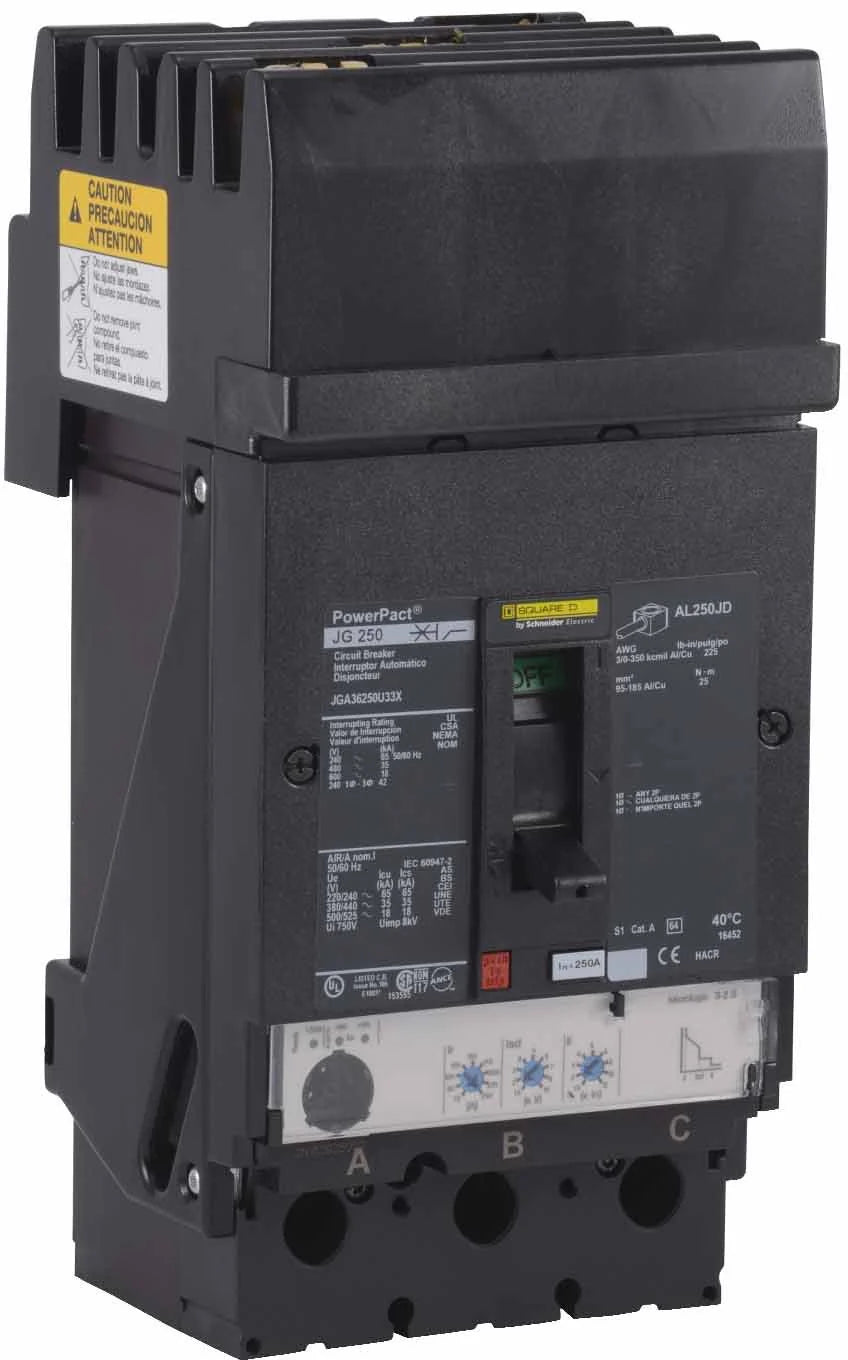

Square D JGA36250U33X Molded Case Circuit Breaker – 250A – 3-Pole / 3-Phase – 600V – 35kA @ 480V – I-Line Style Plug-In – PowerPact JGA Series

The Square D JGA36250U33X is a 250A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact Series. It features a solid-state electronic MicroLogic Standard 3.2S trip unit with Long-Time, Short-Time, and Instantaneous (LSI) trip functions.

The breaker is rated for 600V and provides a 35kA interrupting rating at 480V with high interrupting capacity. It uses an I-Line style plug-in connection, is suitable for reverse connection, and can be used for 2-pole applications.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: JGA
• Catalog No.: JGA36250U33X
• Current Rating: 250A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: High
• Protection Type: Solid-State Electronic
• Trip Unit: MicroLogic Standard 3.2S
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time, Short-Time, and Instantaneous (LSI)
• Mounting / Connection: I-Line Style Plug-In
• Reverse Connection: Suitable for Reverse Connection
• 2-Pole Application: Can Be Used for 2-Pole Applications
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): JGA36250U33X
• Catalog Number: JGA36250U33X
• Model: JGA36250U33X
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: JGA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 250A
• Trip Unit: MicroLogic Standard 3.2S
• Trip Functions: Long-Time, Short-Time and Instantaneous (LSI)
• UPC:785901104452

Compatibility:

Designed for use with compatible Square D PowerPact JGA Series electrical distribution equipment that accepts I-Line style plug-in molded case circuit breakers. The JGA36250U33X provides 250A, 3-pole electronic protection for compatible 600V electrical distribution applications.

The breaker features a non-interchangeable MicroLogic Standard 3.2S trip unit, I-Line style plug-in connection, and LSI trip functions. It is also identified as suitable for reverse connection and 2-pole applications.
