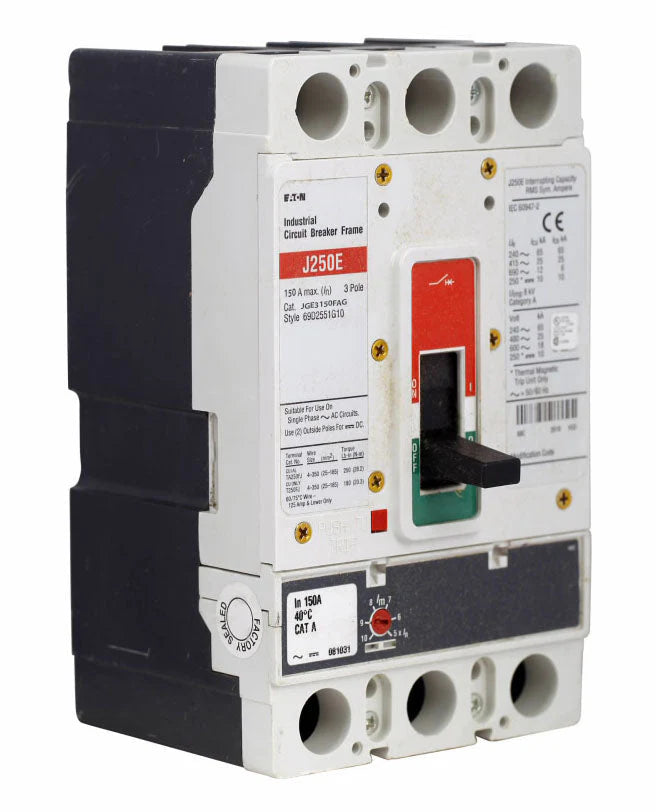

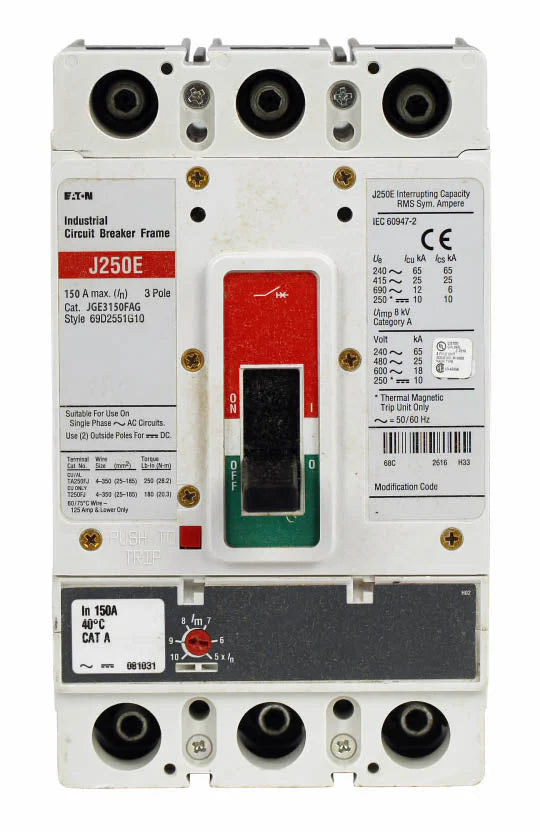

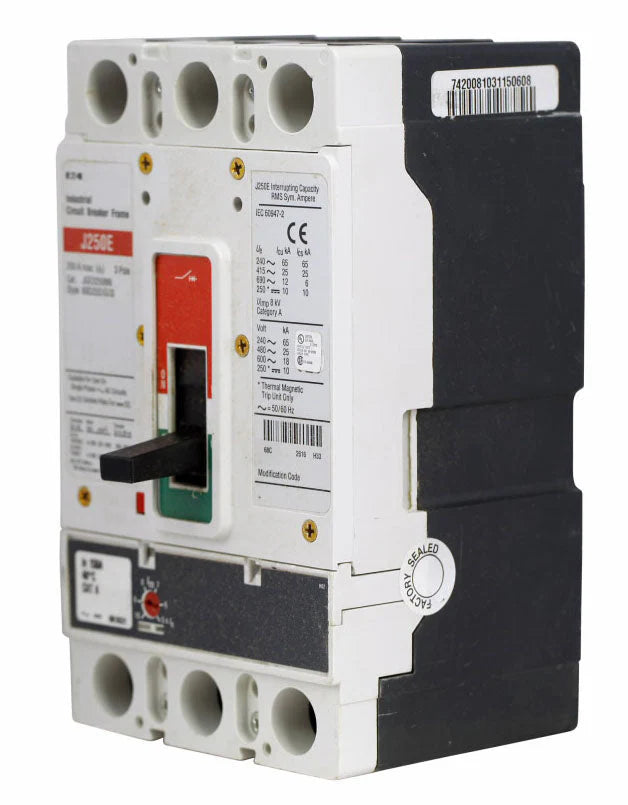

Eaton JGE3150FAG Molded Case Circuit Breaker – 150A – 3-Pole – 600V AC – 65kAIC @ 240V / 25kAIC @ 480V / 18kAIC @ 600V – Not Specified – Series G JG

The Eaton JGE3150FAG is a 150A, 3-pole molded case circuit breaker from the Eaton Series G JG-Frame. It features a fixed thermal trip and adjustable magnetic trip and is designed for compatible electrical distribution applications.

The JGE3150FAG is rated for 600V AC and provides interrupting ratings of 65kAIC at 240V AC, 25kAIC at 480V AC, and 18kAIC at 600V AC. It is specified as 80% rated, supports 50/60 Hz operation, and has line- and load-side connections with a metric configuration.

Specifications:

• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Product Family: Series G
• Series: Series G
• Type: JG
• Frame: JG-Frame
• Catalog No.: JGE3150FAG
• Current Rating: 150A
• Number of Poles: 3-Pole
• Voltage Rating: 600V AC
• Interrupting Rating: 65kAIC @ 240V AC; 25kAIC @ 480V AC; 18kAIC @ 600V AC
• Thermal Trip: Fixed
• Magnetic Trip: Adjustable
• Connection: Line and Load
• Configuration: Metric
• Frequency: 50/60 Hz
• Rating: 80% Rated
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): JGE3150FAG
• Catalog Number: JGE3150FAG
• Model: JGE3150FAG
• Product Family: Eaton Series G Circuit Breakers
• Series: Series G
• Type: JG
• Frame: JG-Frame
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 150A
• UPC:782113526713

Compatibility:

Designed for use with compatible Eaton Series G JG-Frame electrical distribution equipment that accepts the JG Series molded case circuit breaker. The JGE3150FAG provides 150A overcurrent protection for compatible 600V AC applications with fixed thermal and adjustable magnetic trip characteristics.
