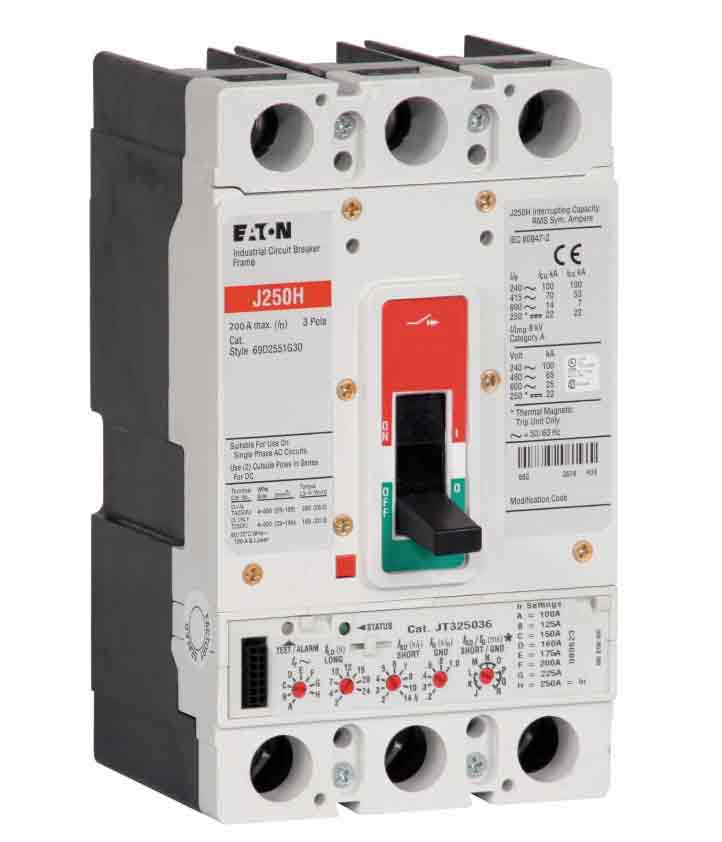

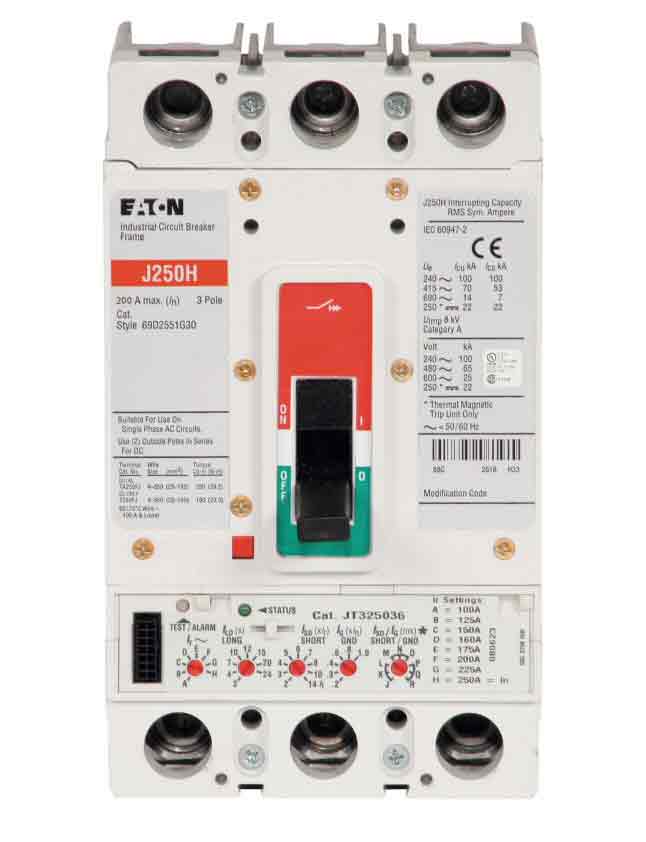

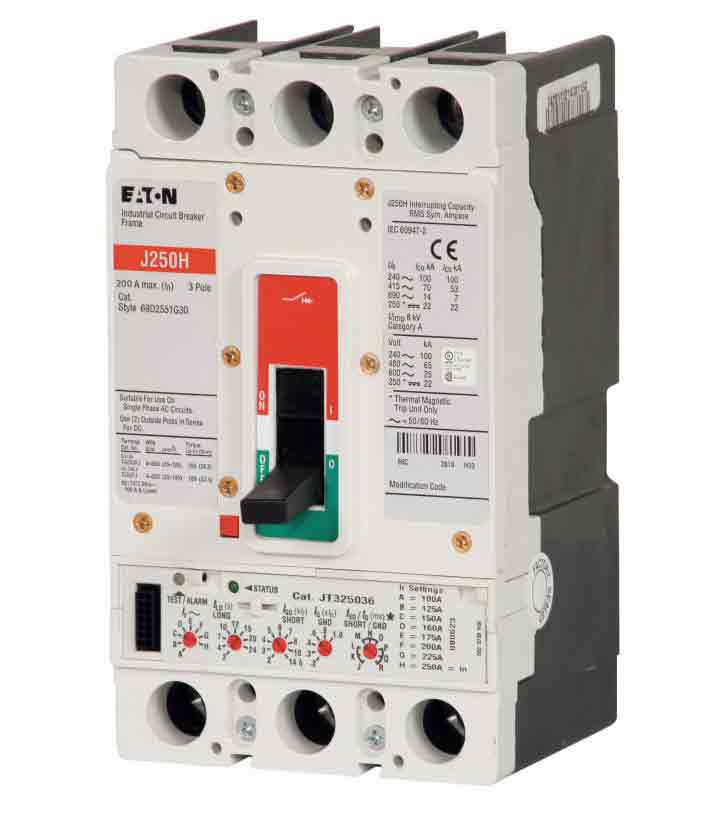

Eaton JGH3200FAG Molded Case Circuit Breaker – 200A – 3-Pole / 3-Phase – 600V – 100kAIC @ 240V / 70kAIC @ 415V / 65kAIC @ 480V / 25kAIC @ 600V – Line & Load – Series G JGH

The Eaton JGH3200FAG is a 200A, 3-pole, 3-phase molded case circuit breaker from the Eaton Series G JG Frame. It is supplied as a complete breaker and features fixed thermal and adjustable magnetic protection for compatible electrical distribution applications.

The JGH3200FAG is rated for 600V and provides multiple interrupting ratings: 100kAIC at 240V, 70kAIC at 415V, 65kAIC at 480V, and 25kAIC at 600V. It features line- and load-side connections with metric mounting hardware.

Specifications:

• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Product Name: Series G Complete Molded Case Circuit Breaker
• Product Family: Series G
• Series: Series G
• Type: JGH
• Frame: JG Frame
• Catalog No.: JGH3200FAG
• Current Rating: 200A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 100kAIC @ 240V; 70kAIC @ 415V; 65kAIC @ 480V; 25kAIC @ 600V
• Protection Type: Thermal-Magnetic
• Thermal Trip: Fixed
• Magnetic Trip: Adjustable
• Connection: Line and Load
• Mounting Hardware: Metric
• Breaker Configuration: Complete Breaker
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton

Part Numbers & Identification:

• Manufacturer Part Number (MPN): JGH3200FAG
• Catalog Number: JGH3200FAG
• Model: JGH3200FAG
• Product Family: Eaton Series G Molded Case Circuit Breakers
• Series: Series G
• Type: JGH
• Frame: JG Frame
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 200A
• Trip Configuration: Fixed Thermal / Adjustable Magnetic
• UPC:782113526850

Compatibility:

Designed for use with compatible Eaton Series G JG Frame electrical distribution equipment that accepts the specified molded case circuit breaker. The JGH3200FAG provides 200A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker features fixed thermal and adjustable magnetic trip protection and includes line- and load-side connections with metric mounting hardware. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip settings, terminal arrangement, mounting hardware, and installation requirements before installation.
