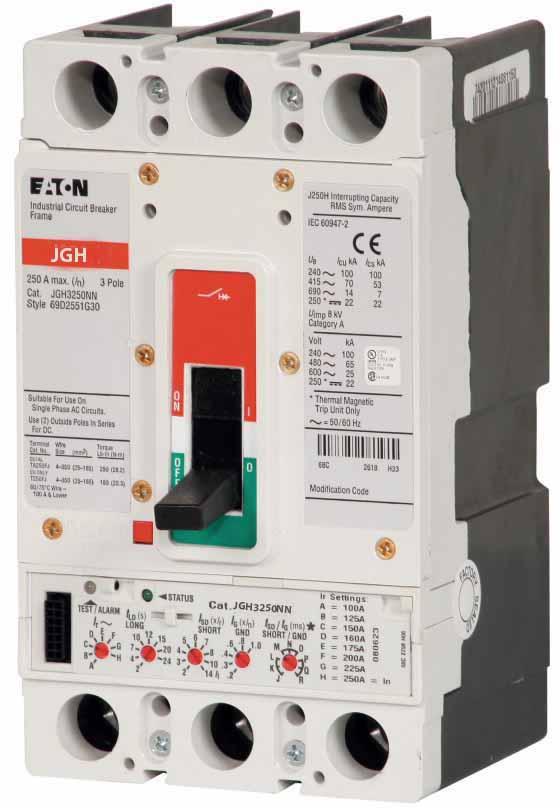

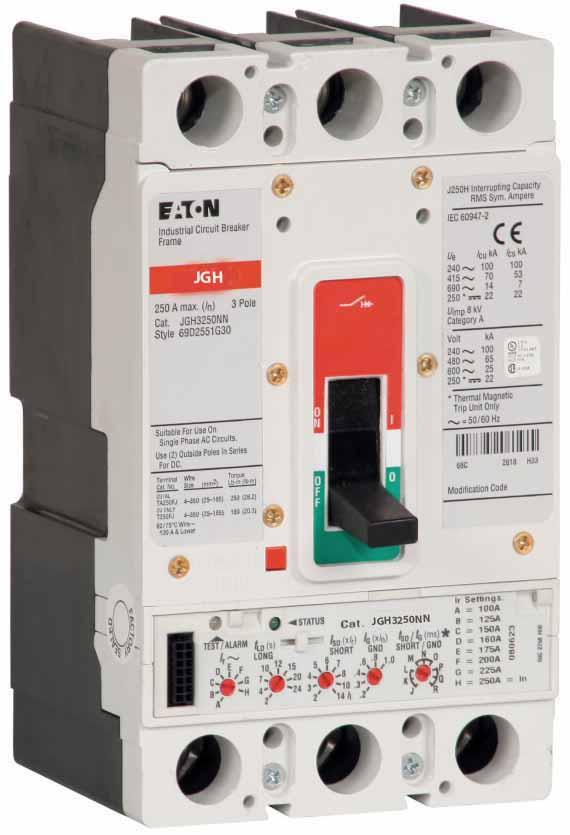

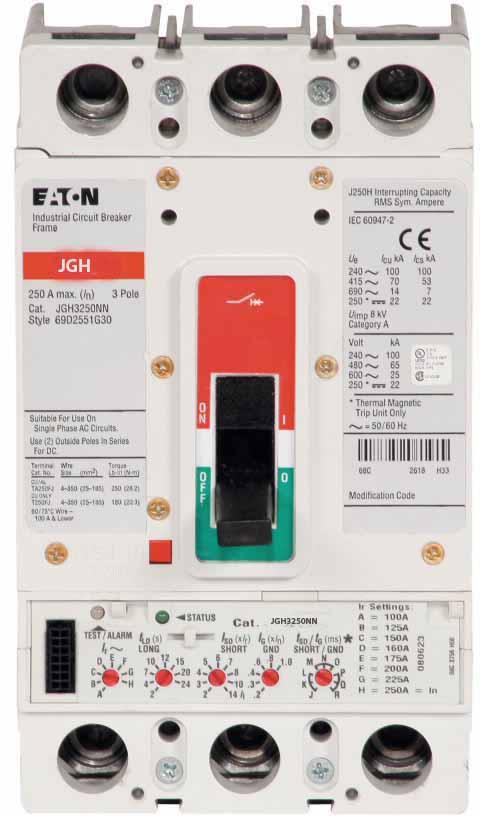

Eaton JGH3250NN Molded Case Circuit Breaker Frame – 250A – 3-Pole / 3-Phase – 600V – 100kA @ 240V – Frame Only – Series G JGH

The Eaton JGH3250NN is a 250A, 3-pole molded case circuit breaker frame from the Eaton Series G, Frame J-K family. It is supplied as a frame only, without a trip unit, and is designed for compatible Eaton molded case circuit breaker applications.

The frame is rated for 600V and has interrupting ratings of 100kA at 240V, 70kA at 415V, 65kA at 480V, and 25kA at 600V. Because this product is supplied as a frame only, a compatible trip unit and required accessories are not included.

Specifications:

• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker Frame
• Product Family: Series G
• Series: Series G
• Frame: Frame J-K
• Catalog No.: JGH3250NN
• Current Rating: 250A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 100kA @ 240V; 70kA @ 415V; 65kA @ 480V; 25kA @ 600V
• Trip Unit: Not Included
• Frame Configuration: Frame Only
• Application: Compatible Eaton molded case circuit breaker applications

Part Numbers & Identification:

• Manufacturer Part Number (MPN): JGH3250NN
• Catalog Number: JGH3250NN
• Model: JGH3250NN
• Product Family: Eaton Series G Molded Case Circuit Breakers
• Series: Series G
• Frame: J-K
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker Frame
• Configuration: 3-Pole, 250A
• Product Configuration: Frame Only
• UPC:782116008636

Compatibility:

Designed for use with compatible Eaton Series G Frame J-K molded case circuit breaker components and electrical distribution equipment. The JGH3250NN is supplied as a frame only and does not include a trip unit.

Always verify the specific breaker frame, compatible trip unit, electrical system voltage, required interrupting rating, pole configuration, accessories, and installation requirements before assembly or installation.

Certifications:

• Series G
• Frame J-K
• 250A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 100kA @ 240V Interrupting Rating
• 70kA @ 415V Interrupting Rating
• 65kA @ 480V Interrupting Rating
• 25kA @ 600V Interrupting Rating
• Frame Only
• Trip Unit Not Included
