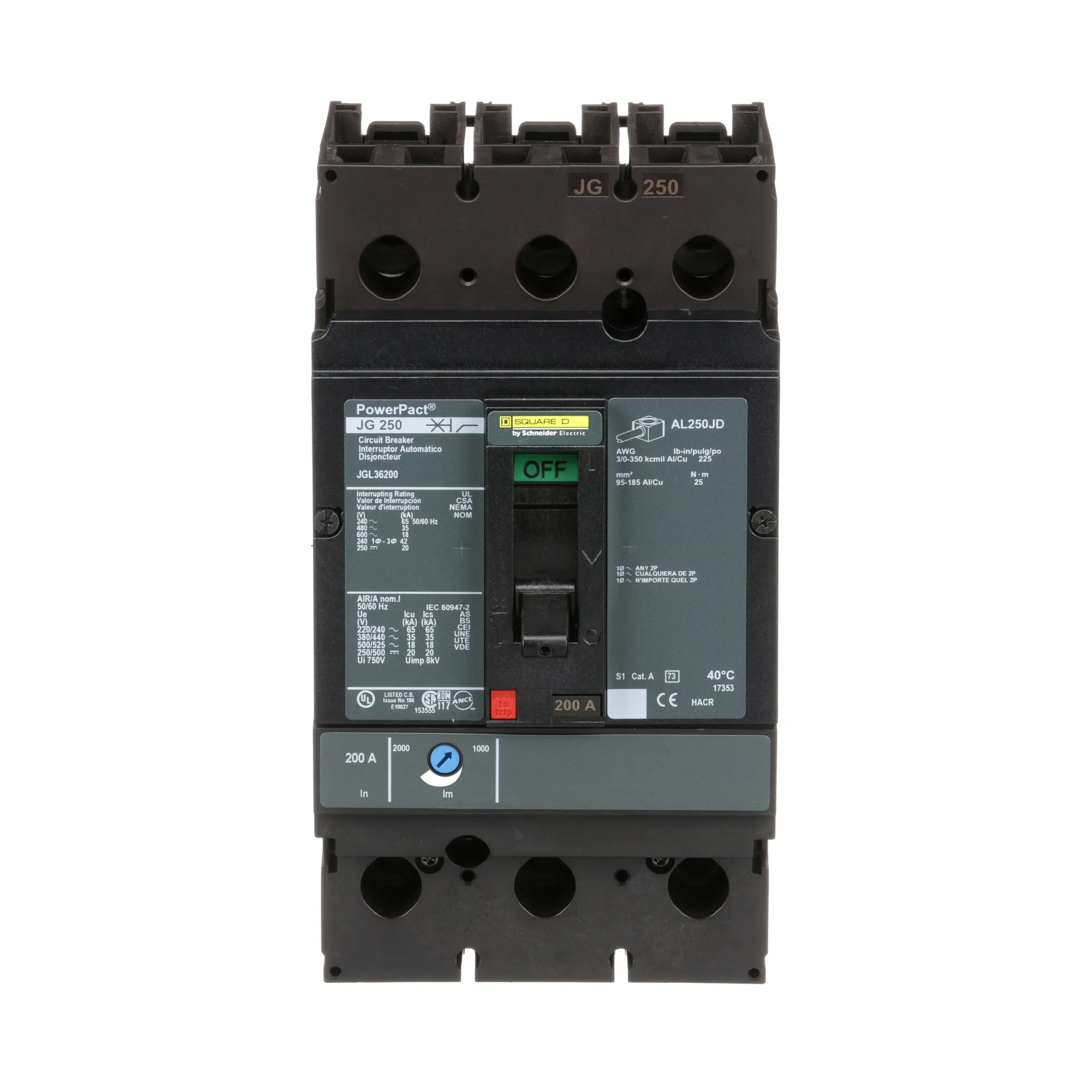

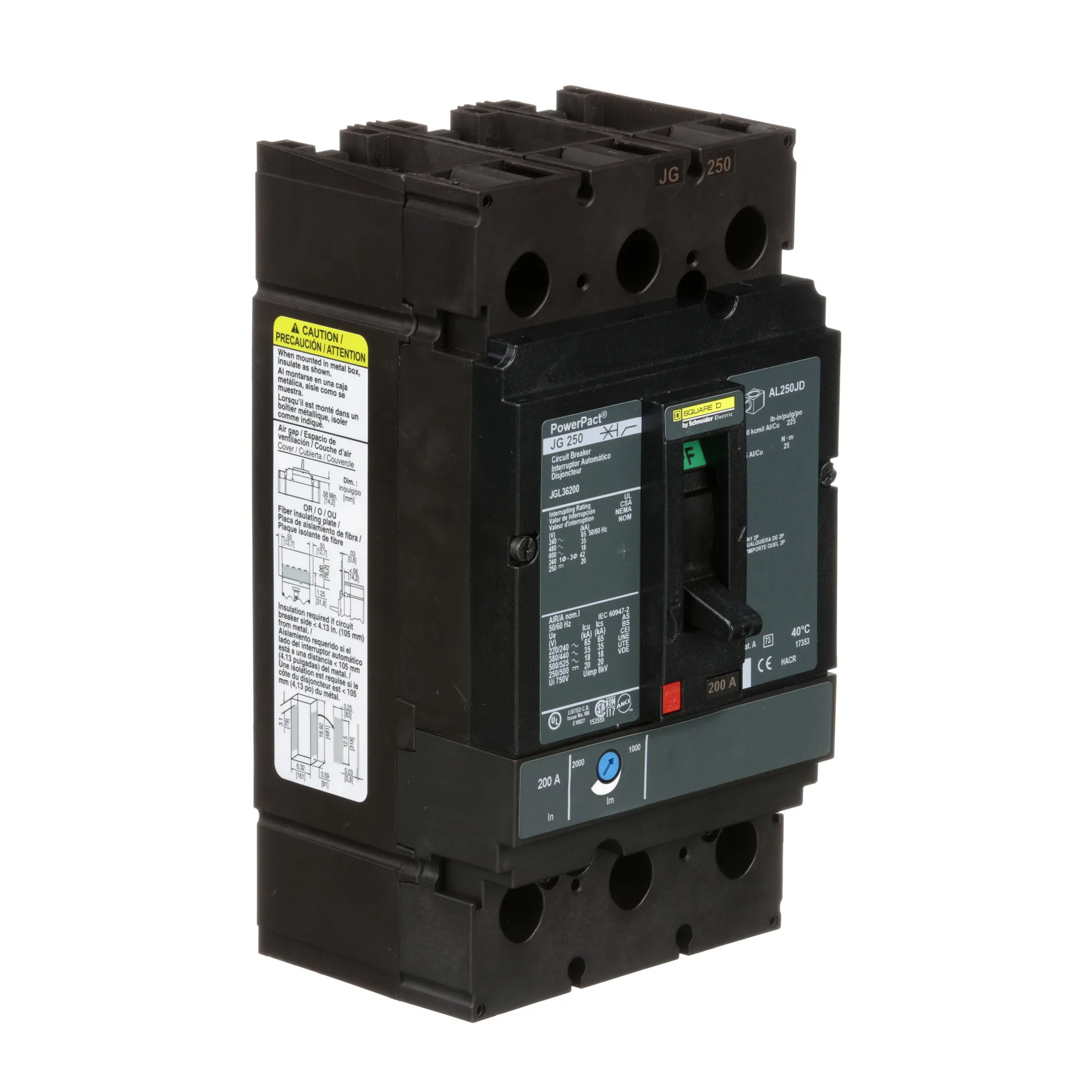

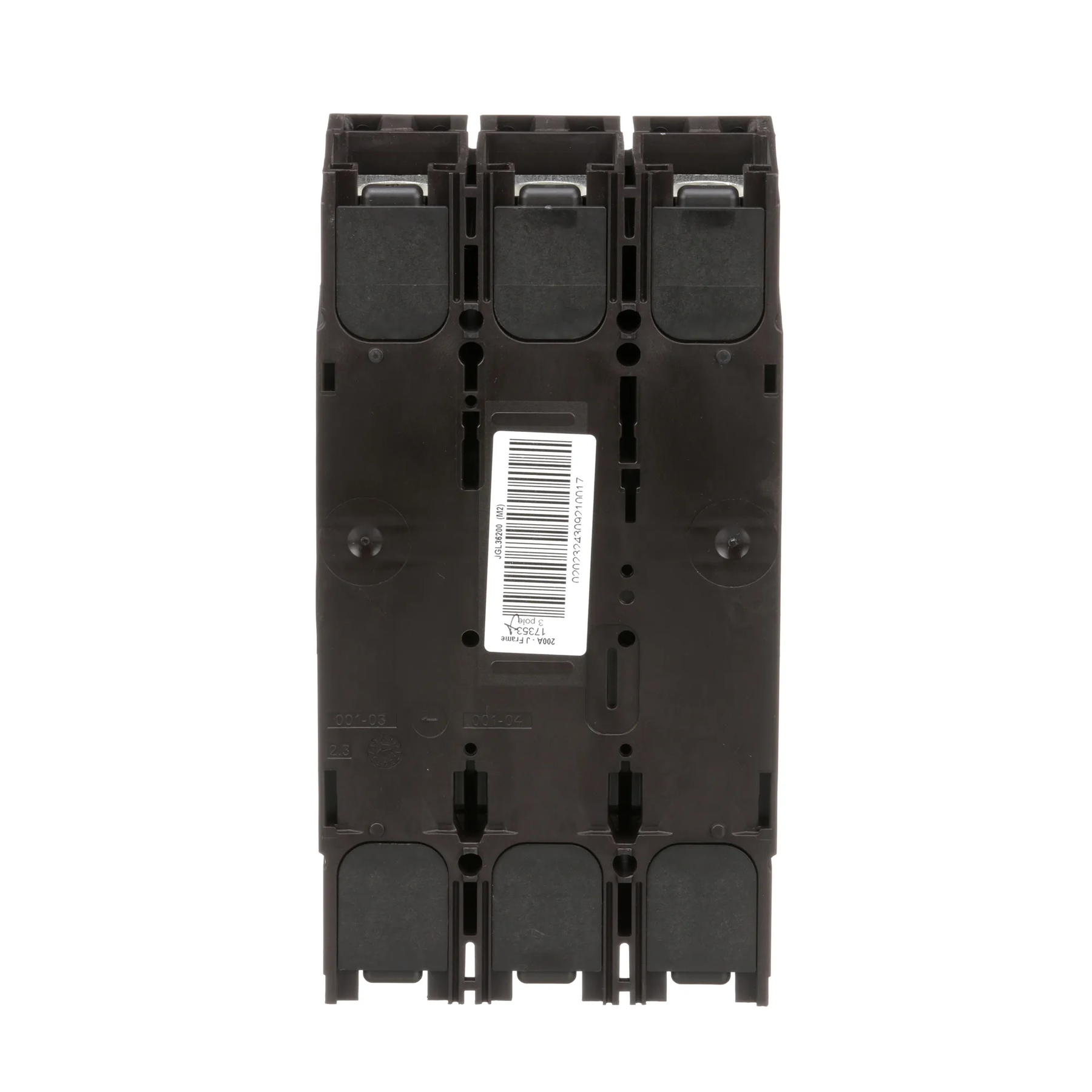

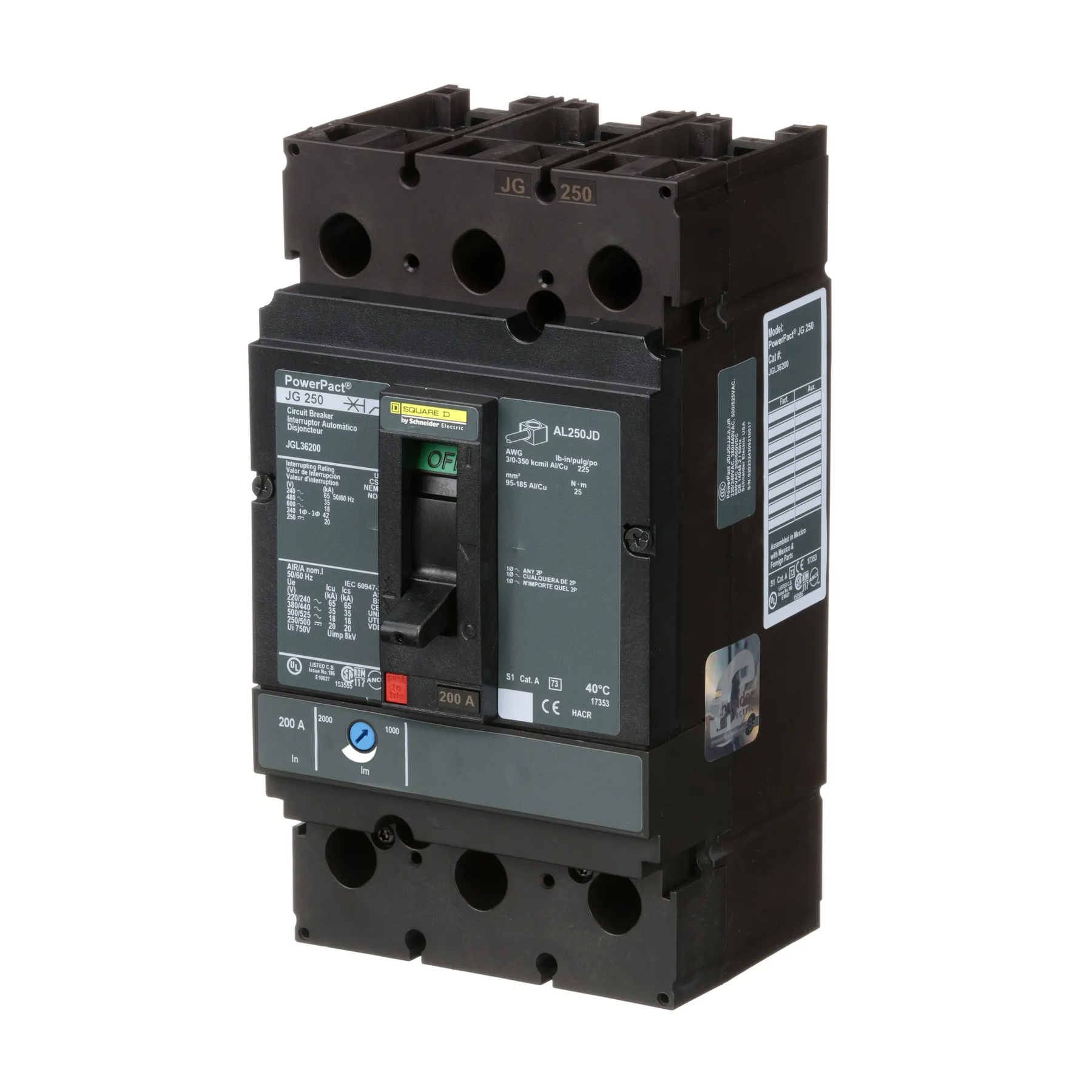

Square D JGL36200 Molded Case Circuit Breaker – 200A – 3-Pole / 3-Phase – 600V – 35kA @ 480V – Feed-Thru – PowerPact JGL Series

The Square D JGL36200 is a 200A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact Type JGL Series. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions and a non-interchangeable trip.

The JGL36200 is rated for 600V with a 35kA interrupting rating at 480V and high interrupting capacity. It uses a feed-thru configuration, includes line-side and load-side lug terminals, and is suitable for reverse-fed applications.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: JGL
• Type: JGL
• Catalog No.: JGL36200
• Current Rating: 200A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Non-Interchangeable
• Mounting / Configuration: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Reverse Feed: Suitable for Reverse-Fed Applications
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): JGL36200
• Catalog Number: JGL36200
• Model: JGL36200
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: JGL
• Type: JGL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 200A
• UPC:785901683216

Compatibility:

Designed for use with compatible Square D PowerPact JGL Series electrical distribution equipment that accepts JGL Series molded case circuit breakers. The JGL36200 provides 200A, 3-pole, 3-phase thermal-magnetic protection for compatible 600V applications and features high interrupting capacity.

The breaker is suitable for reverse-fed applications and includes line-side and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• UL Listed
• PowerPact JGL Series
• 200A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 35kA @ 480V Interrupting Rating
• High Interrupting Capacity
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Non-Interchangeable Trip
• Feed-Thru Configuration
• Line-Side and Load-Side Lug Terminals
• Suitable for Reverse-Feed Applications
• Genuine Square D / Schneider Electric Product
