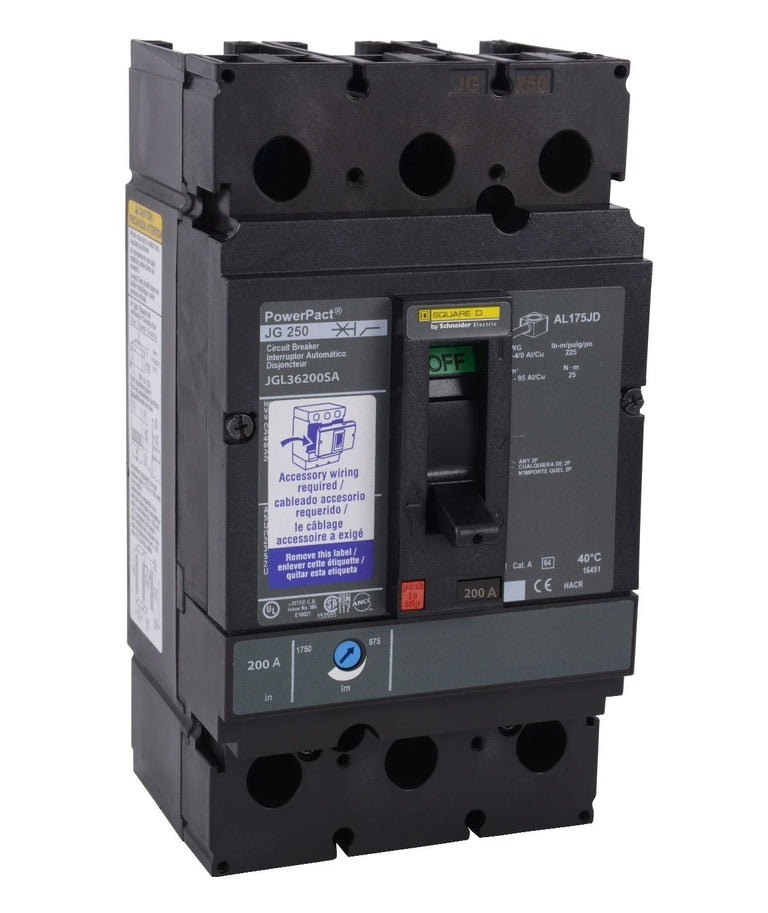

Square D JGL36200SA 200 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 35 kA@480 V – 120 V Shunt Trip – PowerPact JGL

The Square D JGL36200SA is a 200 Amp, 3-pole, 3-phase molded case circuit breaker from the Schneider Electric / Square D PowerPact Series, Type JGL. It is rated for 600 V and provides interrupting ratings of 65 kA at 240 V, 35 kA at 480 V, and 18 kA at 600 V, with high interrupting capacity.

The breaker features thermal-magnetic protection with a non-interchangeable trip unit and LI (Long-Time and Instantaneous) trip functions. It includes a 120 V shunt trip, feed-thru connections, and line- and load-side lug terminals. The breaker is UL listed and suitable for reverse-fed applications.

Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Type: Molded Case Circuit Breaker
• Series: PowerPact
• Type: JGL
• Catalog Number / MPN: JGL36200SA
• Primary Rating: 200 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating at 240 V: 65 kA
• Interrupting Rating at 480 V: 35 kA
• Interrupting Rating at 600 V: 18 kA
• Interrupting Capacity: High
• Trip Type: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Shunt Trip Voltage: 120 V
• Connection / Mounting: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• Reverse-Feed Suitability: Suitable for Reverse-Fed Applications
• UL Listing: UL Listed

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: JGL36200SA
• Series: PowerPact
• Type: JGL
• Current Rating: 200 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Unit: Non-Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Trip Accessory: 120 V Shunt Trip
• Connection: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• UPC:785901579274

Compatibility

The Square D JGL36200SA is intended for compatible Schneider Electric / Square D PowerPact JGL electrical distribution applications, including suitable reverse-fed installations.

Certifications

• UL Listed
