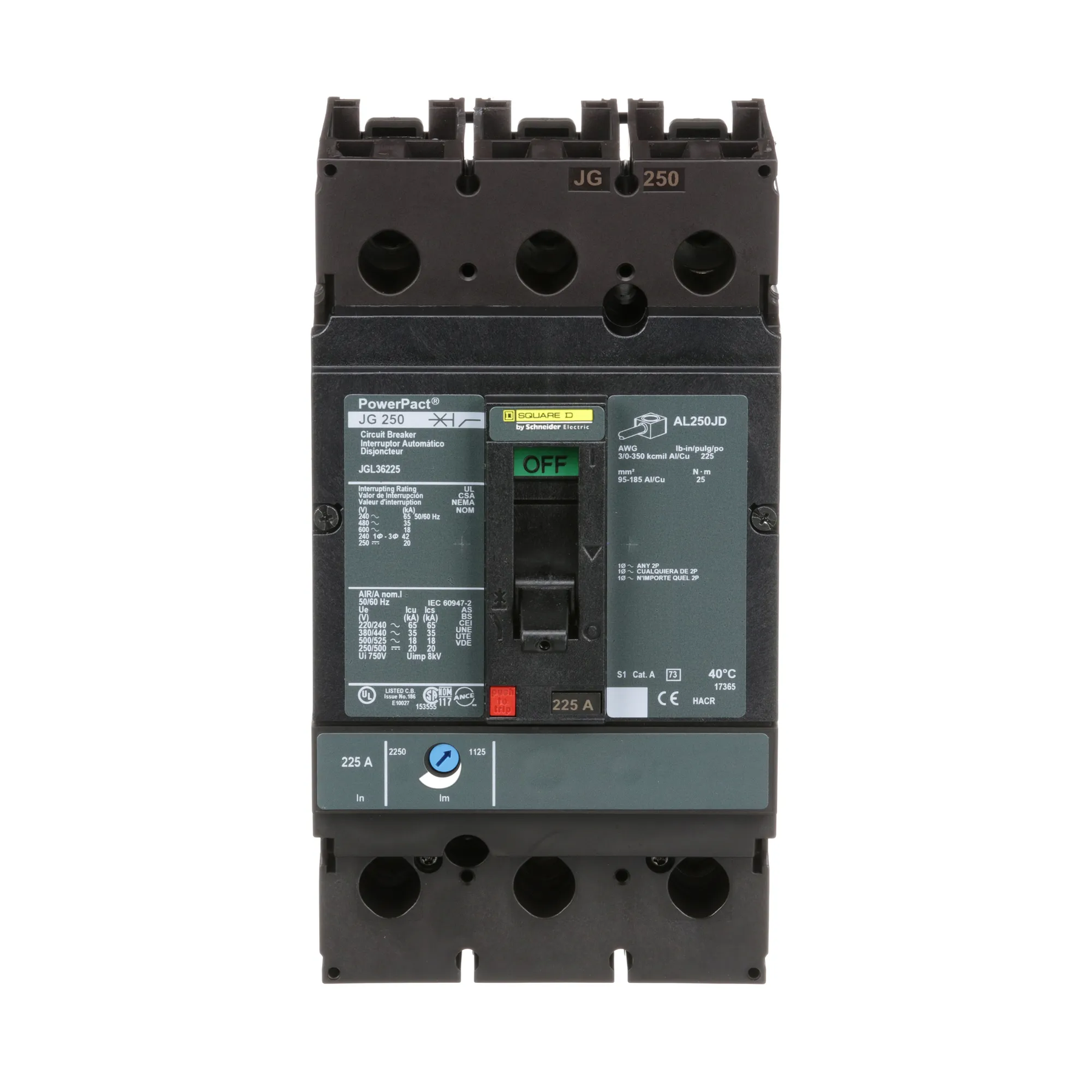

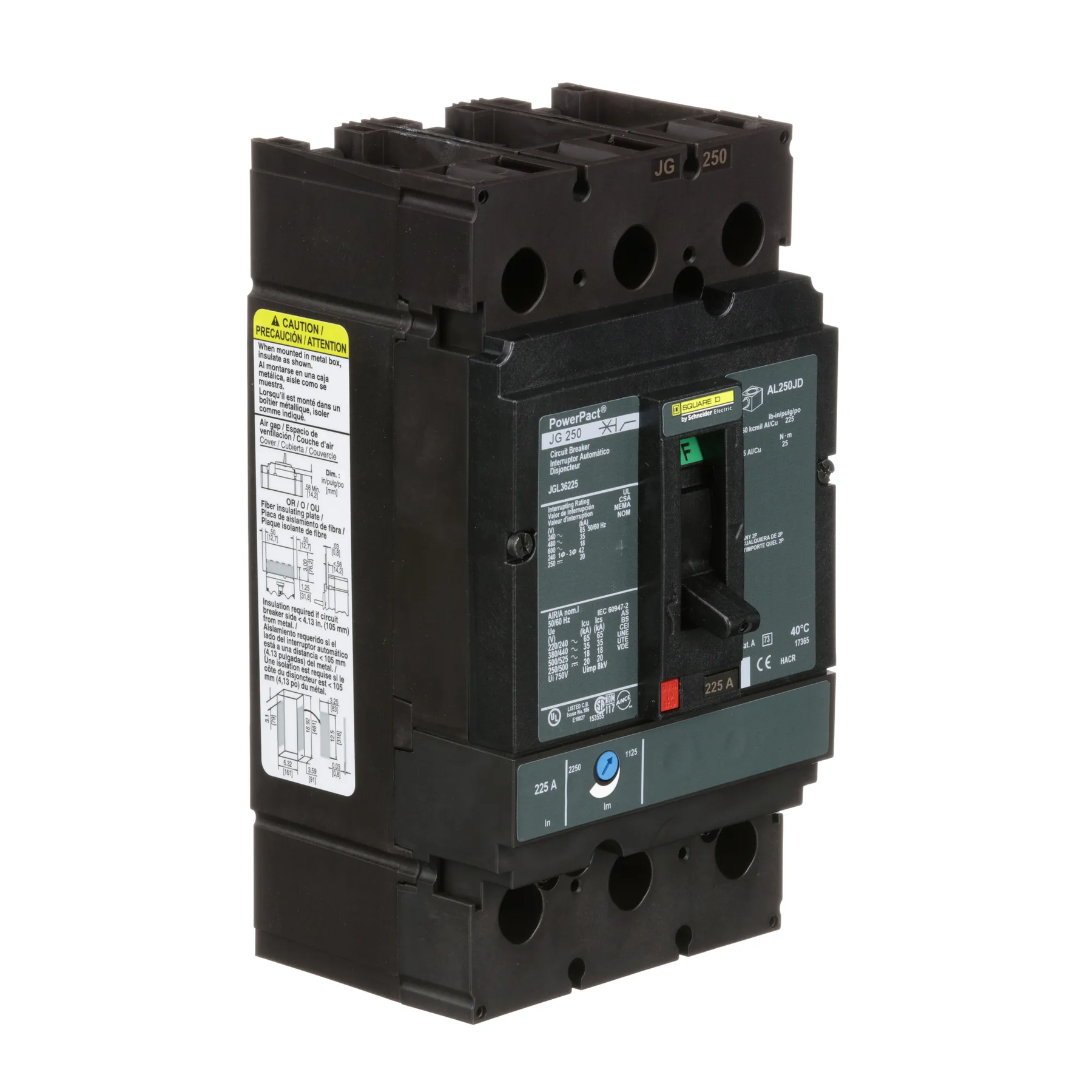

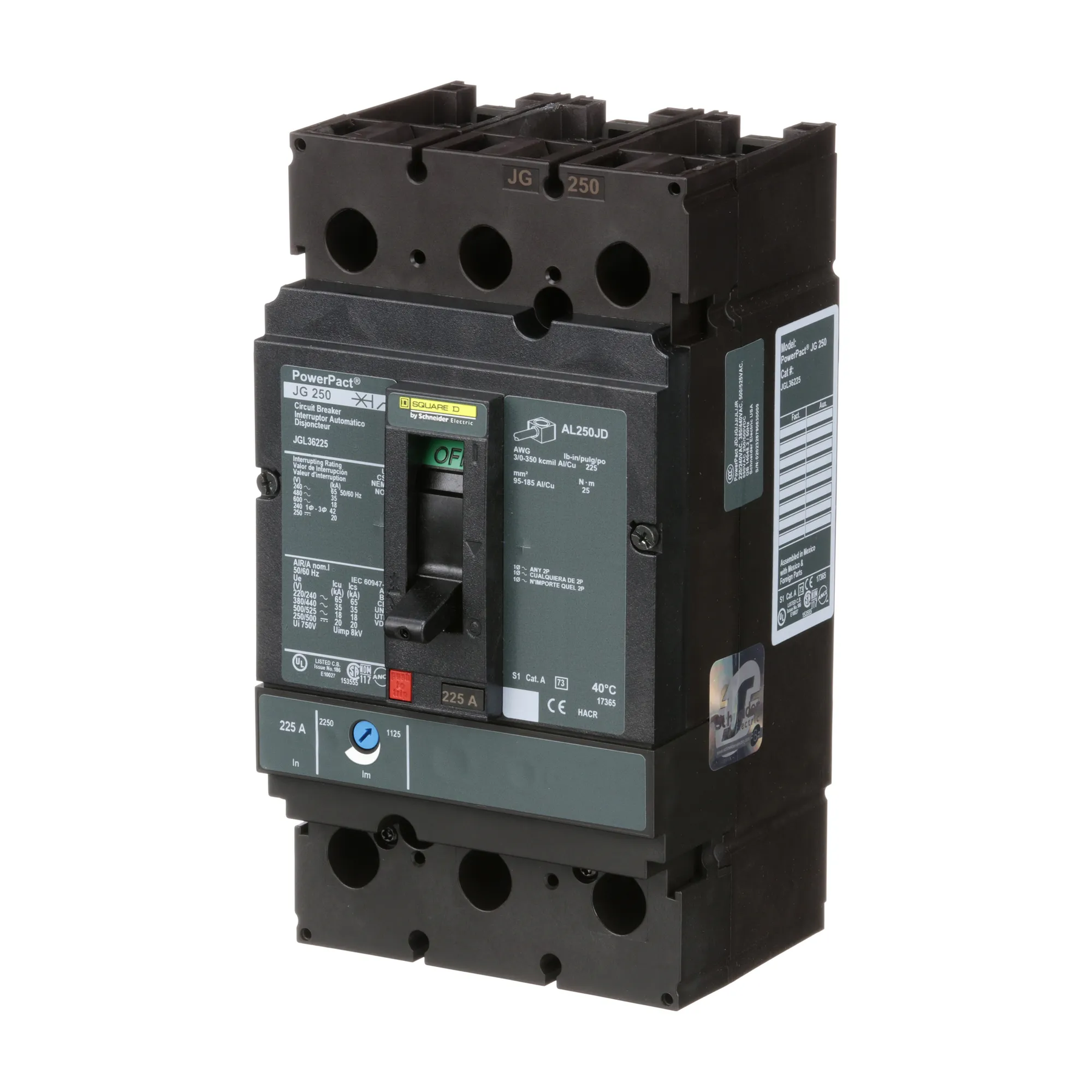

Square D JGL36225 Molded Case Circuit Breaker – 225A – 3-Pole / 3-Phase – 600V – 35kA @ 480V – Feed-Thru – PowerPact JGL Series

The Square D JGL36225 is a 225A, 3-pole, 3-phase molded case circuit breaker from the Square D / Schneider Electric PowerPact Type JGL Series. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions and a non-interchangeable trip.

The breaker is rated for 600V and provides a 35kA interrupting rating at 480V with high interrupting capacity. It features a feed-thru configuration, is UL Listed, and is suitable for reverse-fed applications. The breaker is supplied as a complete unit with line- and load-side lug terminals.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: JGL
• Type: JGL
• Catalog No.: JGL36225
• Current Rating: 225A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Connection: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Breaker Configuration: Complete Breaker
• Reverse Feed: Suitable for Reverse-Fed Applications
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): JGL36225
• Catalog Number: JGL36225
• Model: JGL36225
• Product Family: Square D PowerPact Circuit Breakers
• Series: JGL
• Type: JGL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 225A
• Trip Configuration: Non-Interchangeable LI
• UPC:785901883760

Compatibility:

Designed for use with compatible Square D / Schneider Electric PowerPact JGL Series electrical distribution equipment that accepts JGL Series molded case circuit breakers. The JGL36225 provides 225A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker features a feed-thru configuration, non-interchangeable LI trip functions, and line- and load-side lug terminals. It is also suitable for reverse-fed applications as specified.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip requirements, terminal arrangement, reverse-feed requirements, and installation requirements before installation.

Certifications:

• UL Listed
• PowerPact JGL Series
• 225A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 35kA @ 480V Interrupting Rating
• High Interrupting Capacity
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Non-Interchangeable Trip
• Feed-Thru Configuration
• Complete Breaker
• Line-Side and Load-Side Lug Terminals
• Suitable for Reverse-Fed Applications
