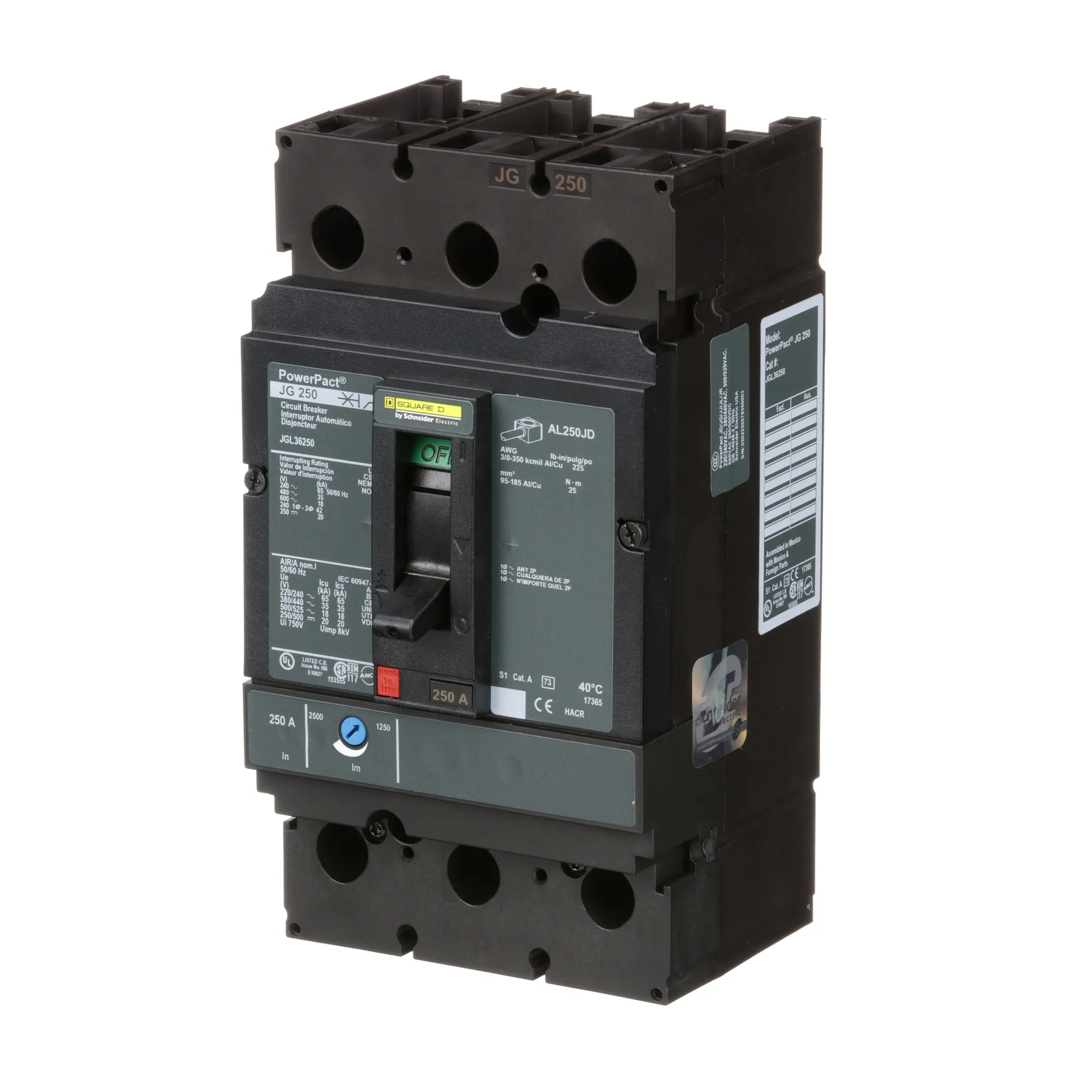

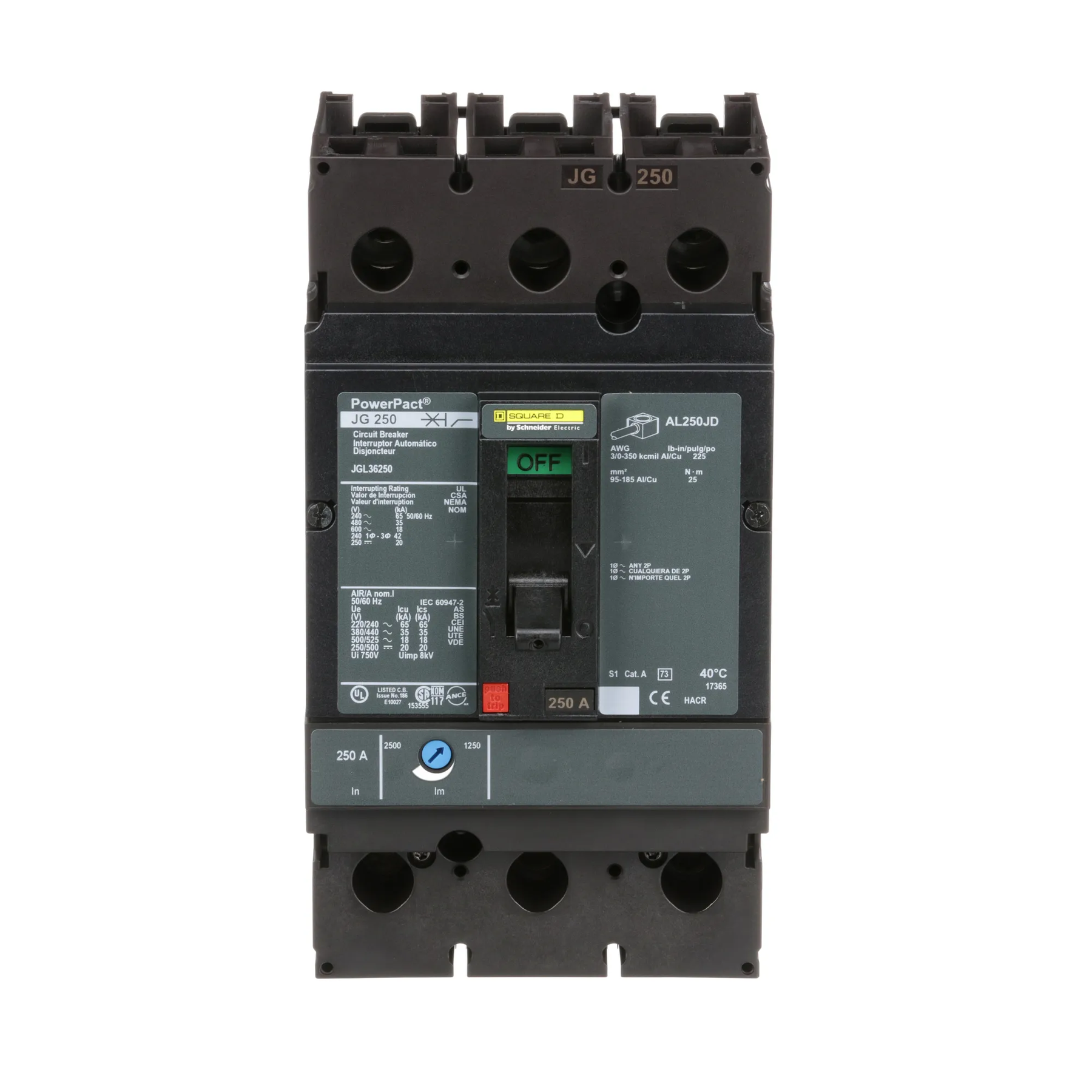

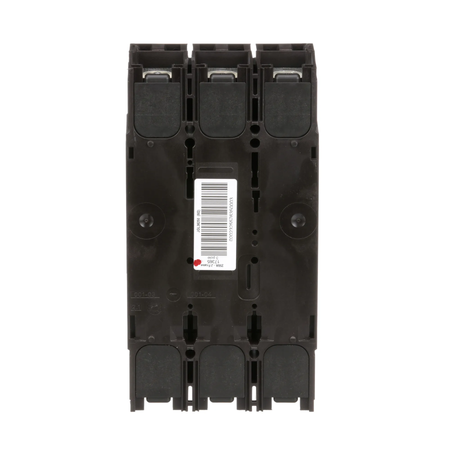

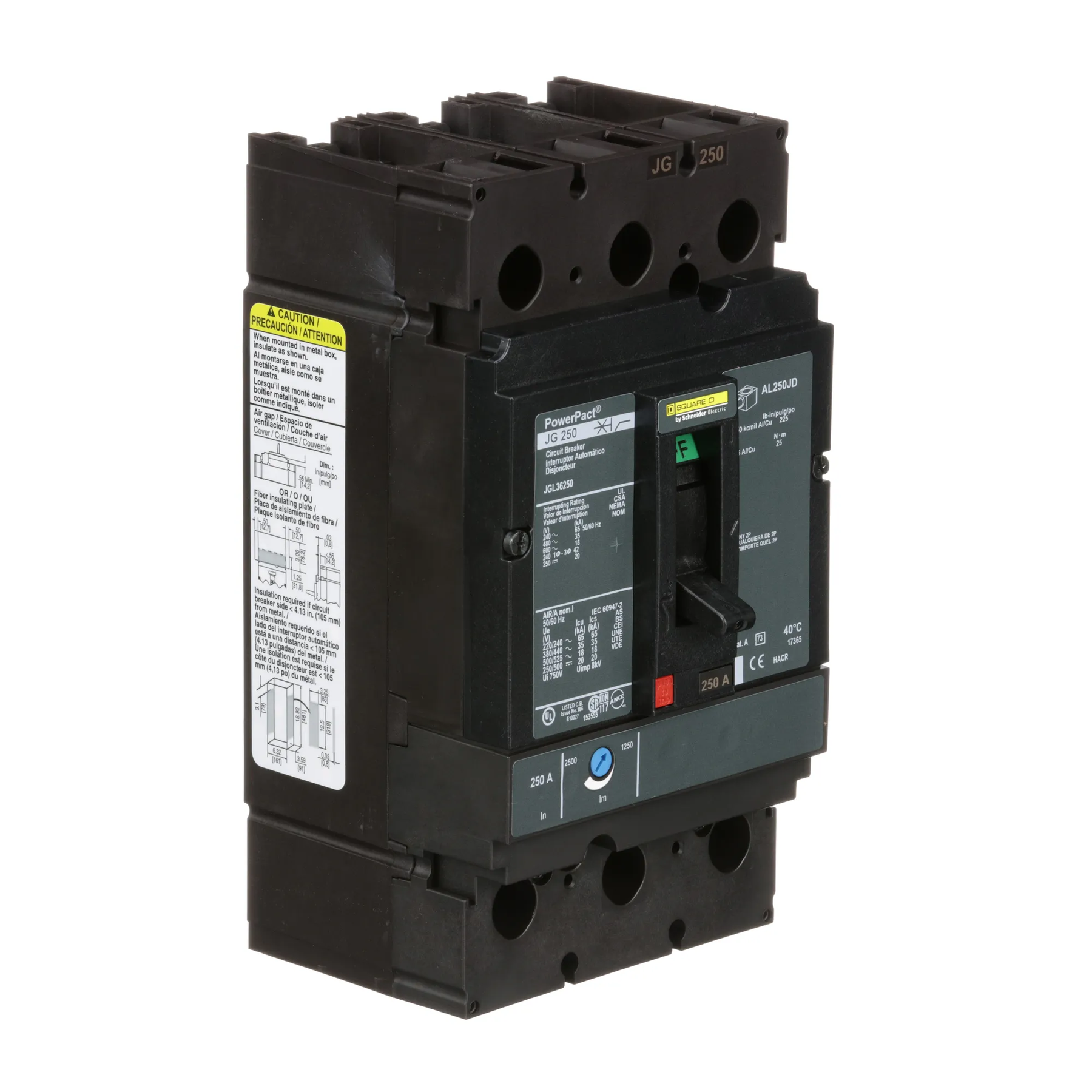

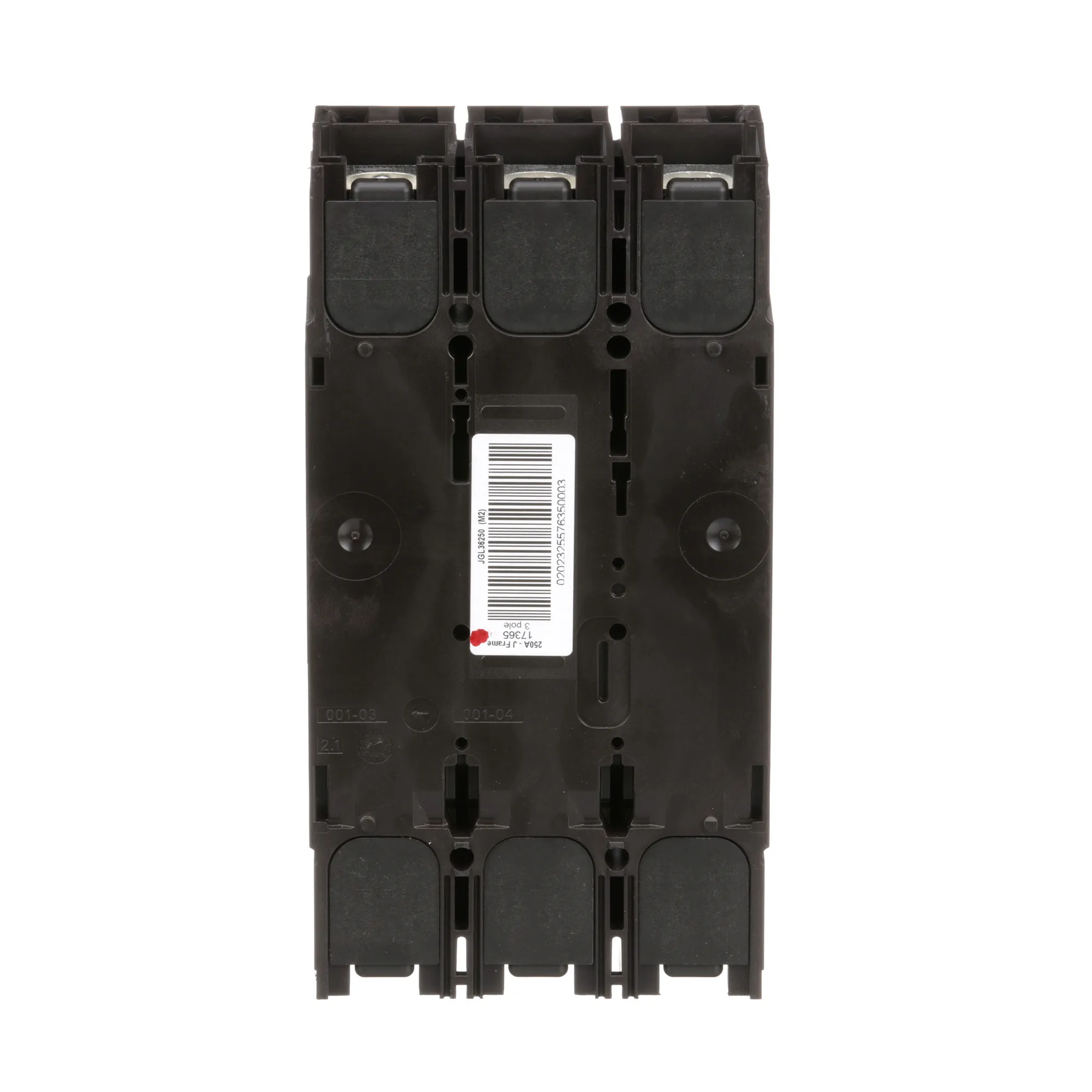

Square D JGL36250 Molded Case Circuit Breaker – 250A – 3-Pole / 3-Phase – 600V – 35kA @ 480V – Feed-Thru – PowerPact JGL Series

JGL36250 - Square D Powerpact Circuit Breaker

Schneider Electri

The Square D JGL36250 is a 250A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact JGL Series. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions and a non-interchangeable trip.

The JGL36250 is rated for 600V with a 35kA interrupting rating at 480V. It uses a feed-thru configuration with line- and load-side lug terminals, provides high interrupting capacity, and is suitable for reverse-fed applications.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: JGL
• Type: JGL
• Catalog No.: JGL36250
• Current Rating: 250A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Non-Interchangeable
• Mounting / Configuration: Feed-Thru
• Terminal Configuration: Line- and Load-Side Lug Terminals
• Application: Electrical Distribution and Overcurrent Protection
• Reverse Feed: Suitable for Reverse-Fed Applications
• Brand: Square D
• Authenticity: Not Specified

Part Numbers & Identification:

• Manufacturer Part Number (MPN): JGL36250
• Catalog Number: JGL36250
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: JGL
• Type: JGL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Model: JGL36250
• Breaker Configuration: 3-Pole, 250A
• upc:785901433897

Compatibility:

Designed for use with compatible Square D PowerPact JGL Series electrical distribution equipment that accepts feed-thru molded case circuit breakers. The JGL36250 provides 250A, 3-pole protection for compatible 600V, 3-phase applications and features thermal-magnetic LI protection with a non-interchangeable trip.

The breaker includes line- and load-side lug terminals and is suitable for reverse-fed applications as specified.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• UL Listed
• PowerPact JGL Series
• 250A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 35kA @ 480V Interrupting Rating
• High Interrupting Capacity
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Non-Interchangeable Trip
• Feed-Thru Configuration
• Line- and Load-Side Lug Terminals
• Suitable for Reverse-Fed Applications

c / Square D, Powerpact, type JGL, 3P, 3PH, 250A, 600V, 35kA@480V, high interrupting capacity, feed-thru, UL listed, suitable for reverse fed applications, complete with non-interchangeable trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, thermal magnetic, molded case circuit breakers.
