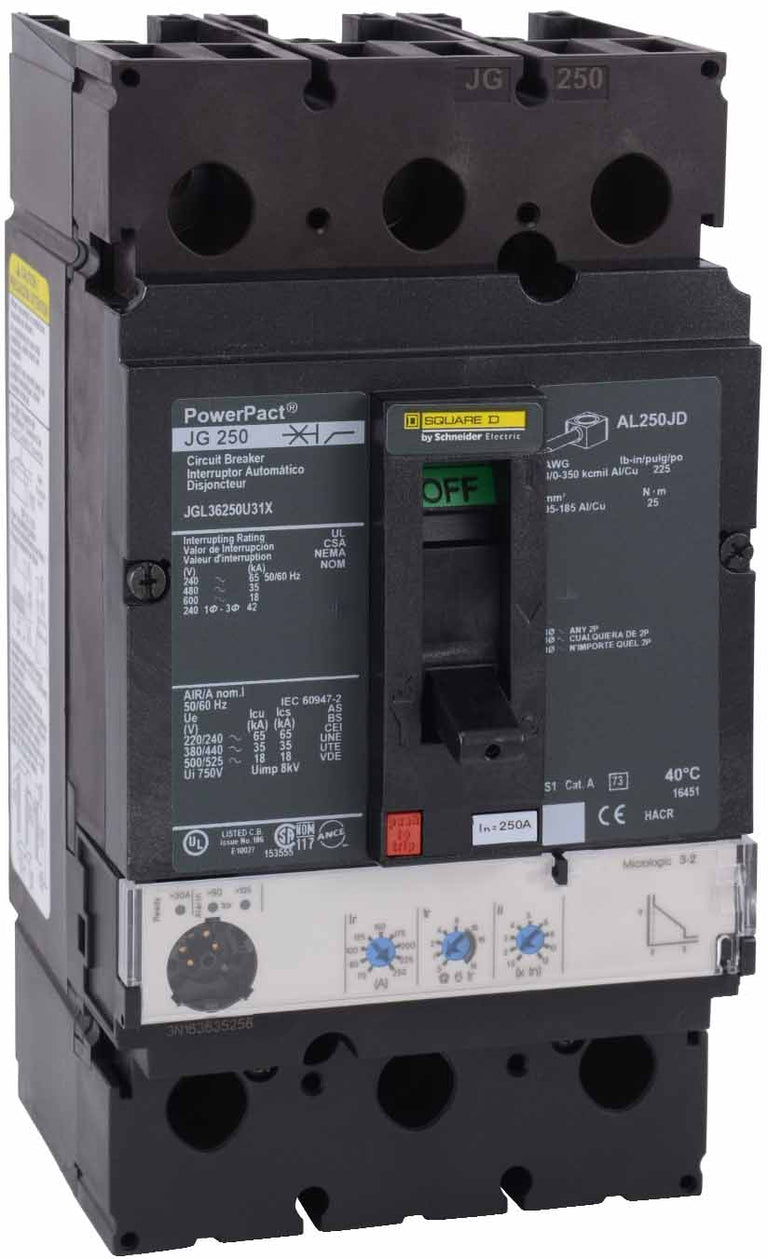

Square D JGL36250U31X 250 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – Feed-Thru – PowerPact Series

The Square D JGL36250U31X is a 250 Amp, 3-pole molded case circuit breaker from the Schneider Electric / Square D PowerPact Series, Type JGL. It is rated for 600 V and features a solid-state electronic trip system with a non-interchangeable Micrologic Standard trip unit. The breaker is designed for feed-thru mounting with line and load-side lug terminals and is suitable for reverse-fed applications. It can also be used for 2-pole applications.

Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Type: Molded Case Circuit Breaker
• Series: PowerPact
• Type: JGL
• Catalog Number / MPN: JGL36250U31X
• Primary Rating: 250 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Connection / Mounting: Feed-Thru
• Trip Type: Solid-State Electronic
• Trip Unit: Micrologic Standard, Non-Interchangeable
• Terminals: Line & Load-Side Lug Terminals
• Application: Suitable for Reverse-Fed Applications; Can Be Used for 2-Pole Applications
• Certification: UL Listed

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: JGL36250U31X
• Series: PowerPact
• Type: JGL
• Current Rating: 250 A
• Pole Count: 3 Pole
• Product Type: Solid-State Electronic Molded Case Circuit Breaker
• Trip Unit: Micrologic Standard, Non-Interchangeable
• Connection: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• UPC:785901125990

Compatibility

The Square D JGL36250U31X is designed for compatible Schneider Electric / Square D PowerPact Type JGL applications. It is suitable for reverse-fed applications and can be used for 2-pole applications as specified.

Certifications

• UL Listed
