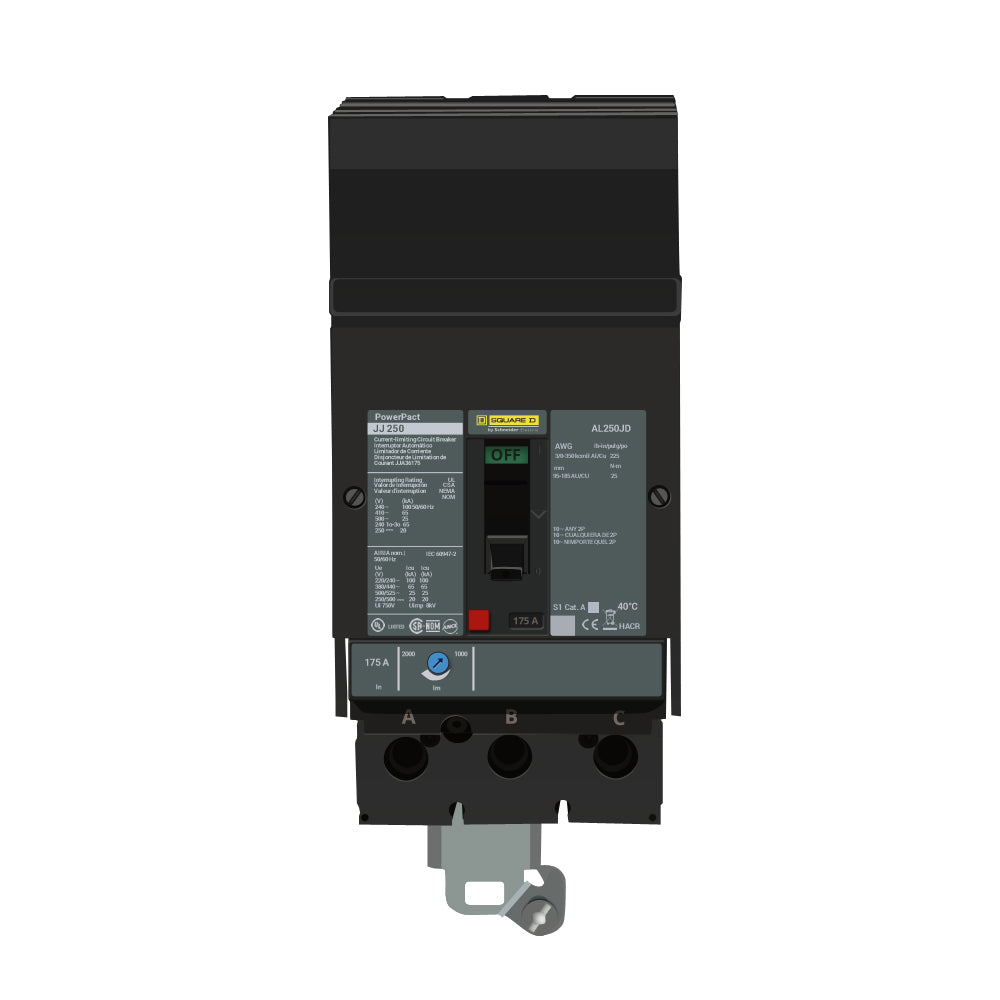

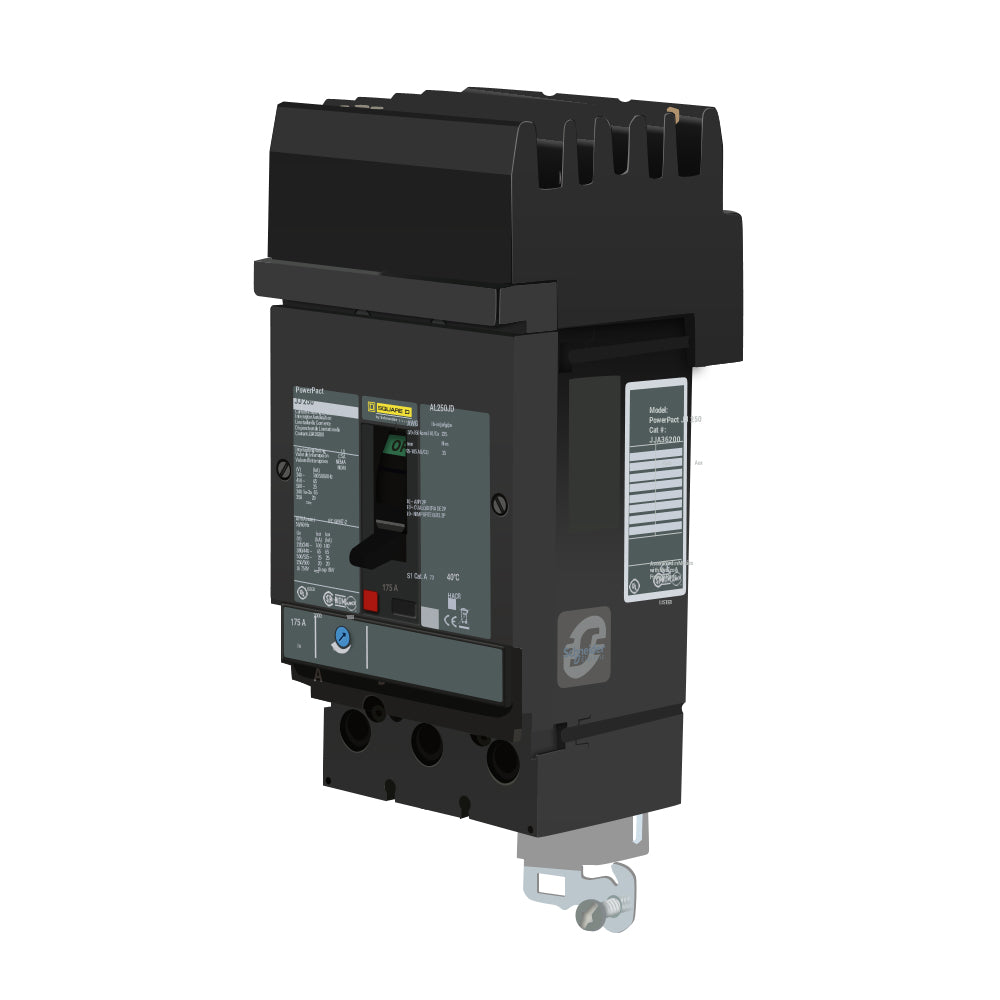

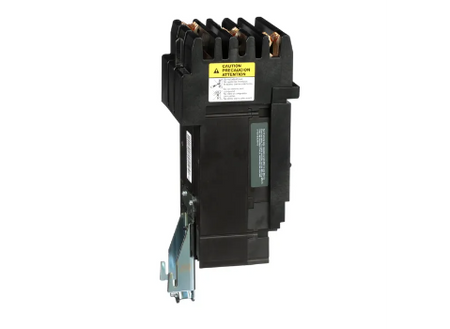

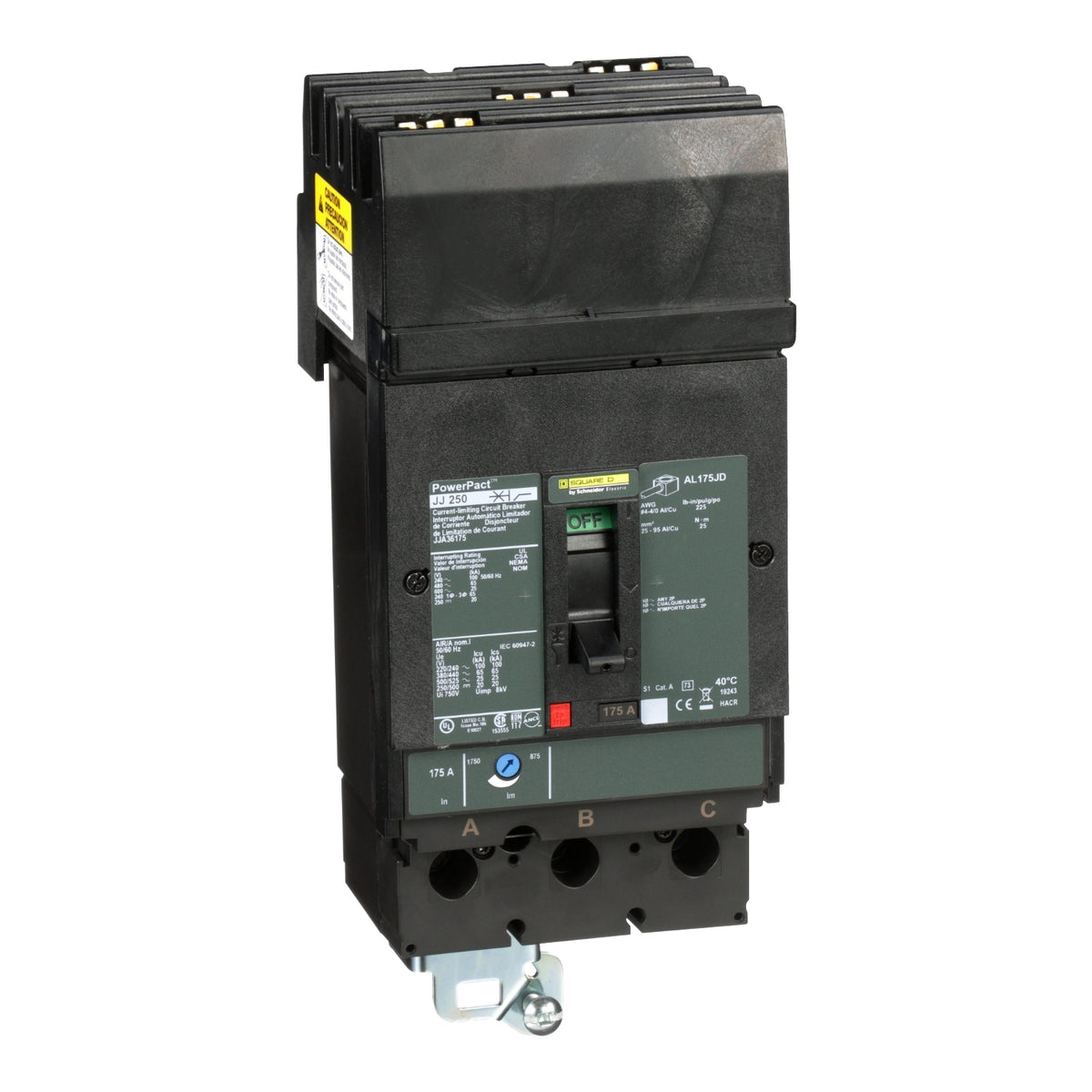

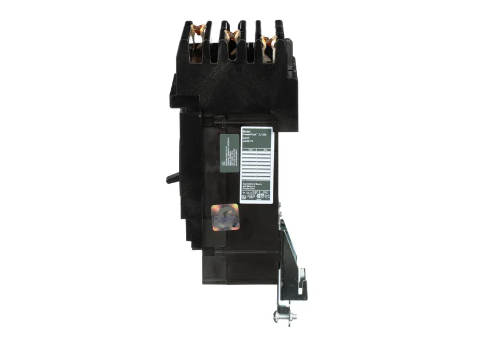

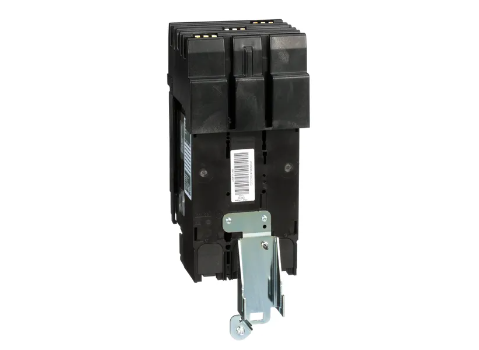

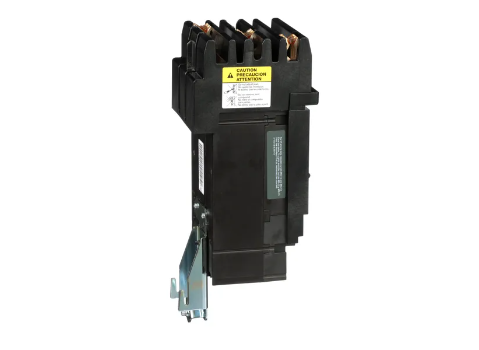

Square D JJA36175 Molded Case Circuit Breaker – 175A – 3-Pole – 600V AC – 100kAIC @ 240V – I-Line Plug-In – PowerPact J Series

The Square D JJA36175 is a 175A, 3-pole molded case circuit breaker from the PowerPact J Series, designed for overcurrent protection in compatible industrial and commercial electrical distribution systems. It features a thermal-magnetic trip unit with Long-Time and Instantaneous (LI) protection for overload and short-circuit protection.

The breaker provides high interrupting capacity across multiple voltage levels, rated at 100kAIC @ 240V AC, 65kAIC @ 480V AC, and 25kAIC @ 600V AC. It uses an I-Line style plug-in connection on the line side and mechanical lugs on the load side.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Catalog No.: JJA36175
• Series: PowerPact J
• Frame: J-Frame
• Current Rating: 175A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V AC
• Frequency Rating: 50/60 Hz
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Interrupting Rating: 100kAIC @ 240V AC; 65kAIC @ 480V AC; 25kAIC @ 600V AC

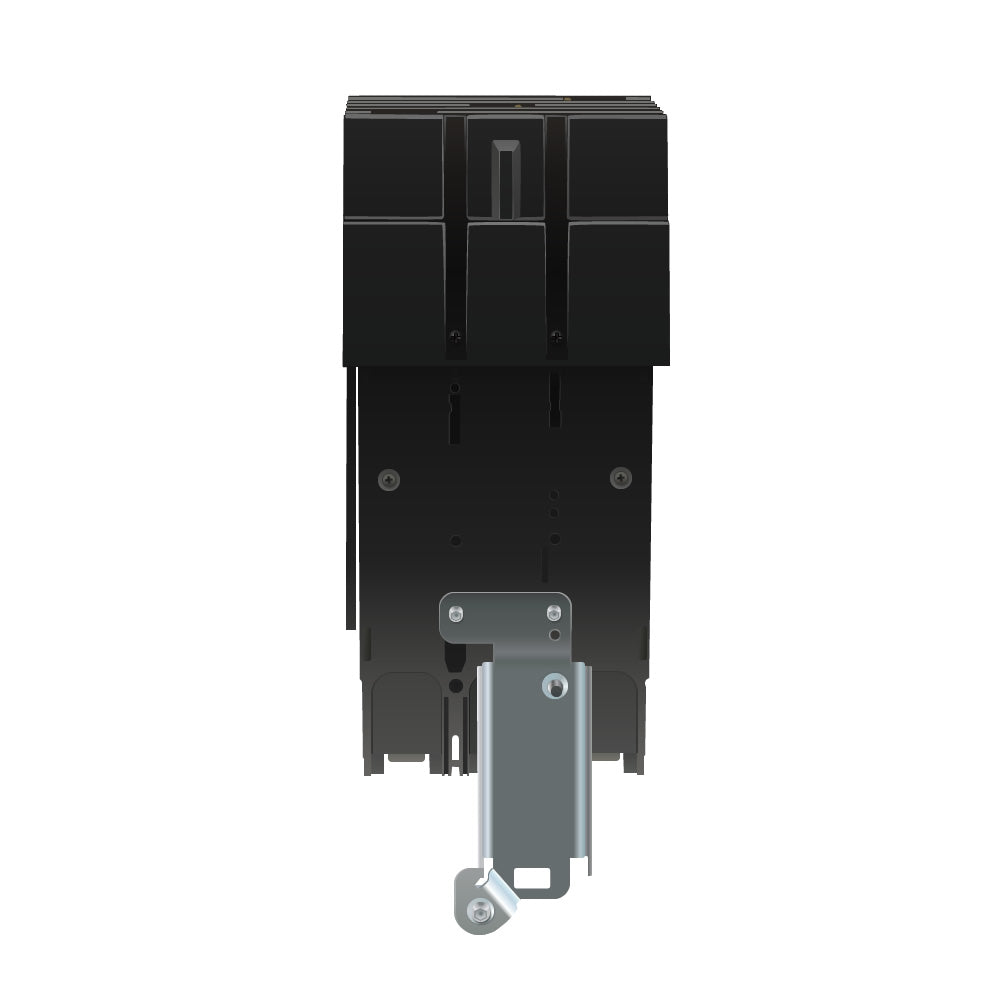

• Mounting Type: I-Line Style Plug-In
• Line-Side Connection: I-Line Plug-In
• Load-Side Connection: Mechanical Lugs
• Continuous Current Rating: 80%
• Application: Industrial and Commercial Electrical Distribution
• Brand: Square D
• Authenticity: Authentic Schneider Electric / Square D Product

Part Numbers & Identification:

• Manufacturer Part Number (MPN): JJA36175
• Catalog Number: JJA36175
• Product Family: PowerPact J Molded Case Circuit Breakers
• Series: PowerPact J
• Frame: J-Frame
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Model: JJA36175
• Breaker Configuration: 3-Pole, 175A
• UPC: 785901700715
• GTIN: 00785901700715

Compatibility:

Designed for use with compatible Square D PowerPact J switchboards, panelboards, and electrical distribution equipment that accepts JJA Series I-Line style plug-in circuit breakers. The JJA36175 provides 175A thermal-magnetic overcurrent protection with LI Long-Time and Instantaneous trip functions.

Always verify the specific equipment model, approved breaker type, system voltage, available fault current, pole configuration, I-Line connection, load-side lugs, conductor requirements, and installation requirements before installation.

Certifications:

• UL Certified
• CSA Certified
• NEMA Certified
• NOM Certified
• IEC Certified
• UL 489
• CSA C22.2
• IEC 60947-2
• 175A Rated
• 3-Pole / 3-Phase
• 600V AC Rated
• Thermal-Magnetic Protection
• LI Long-Time and Instantaneous Trip
• I-Line Style Plug-In
• Genuine Schneider Electric / Square D Product
