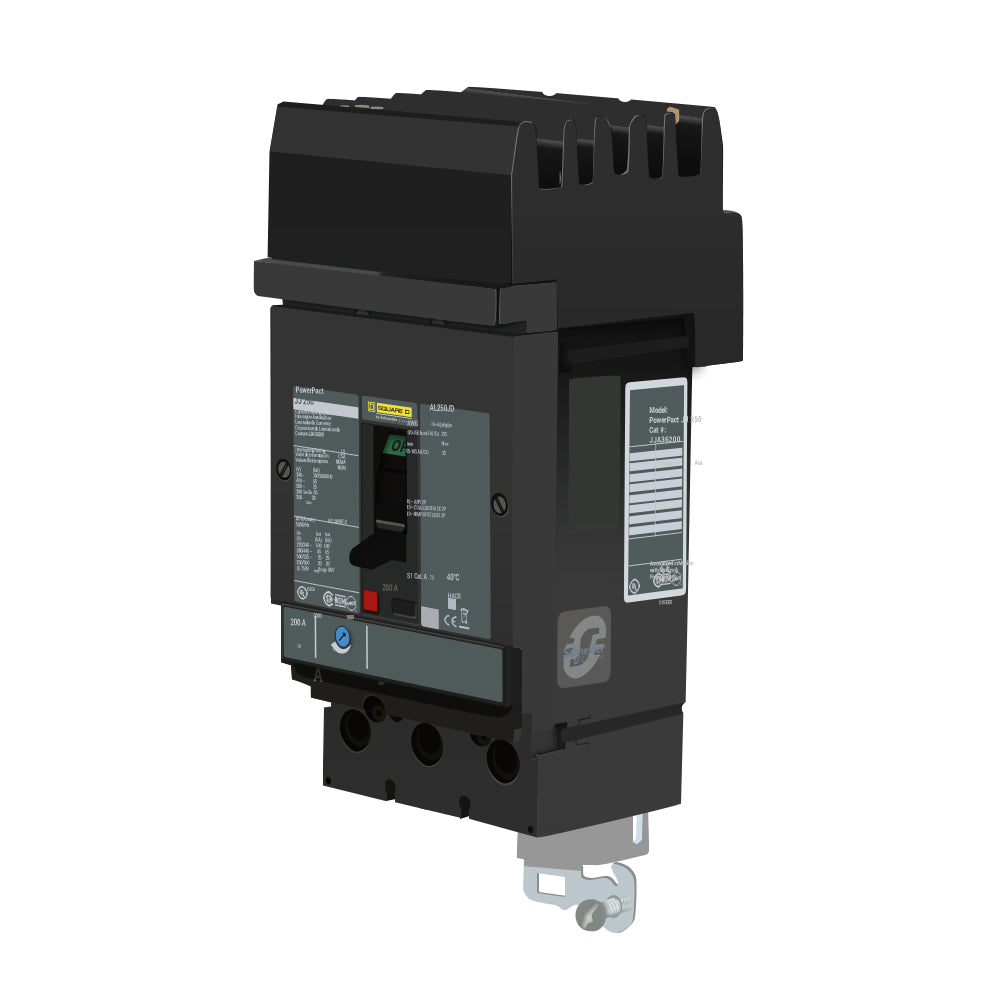

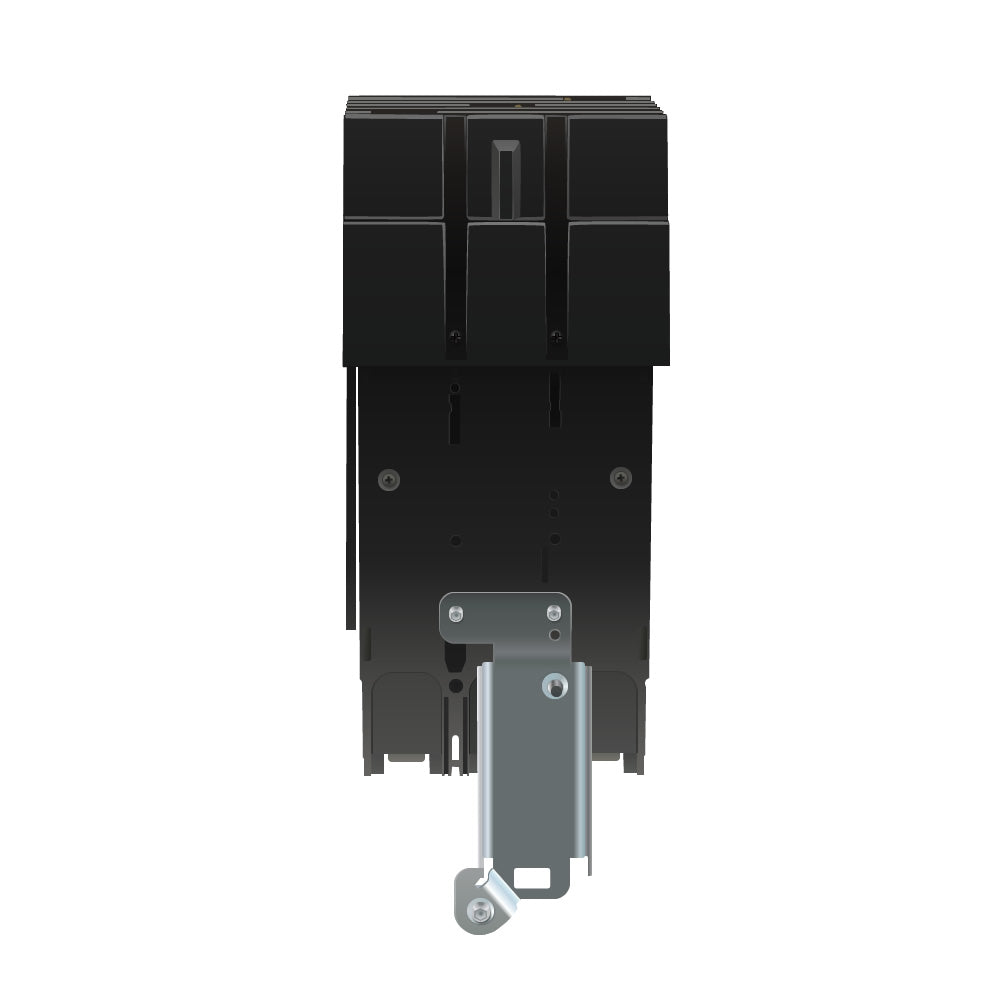

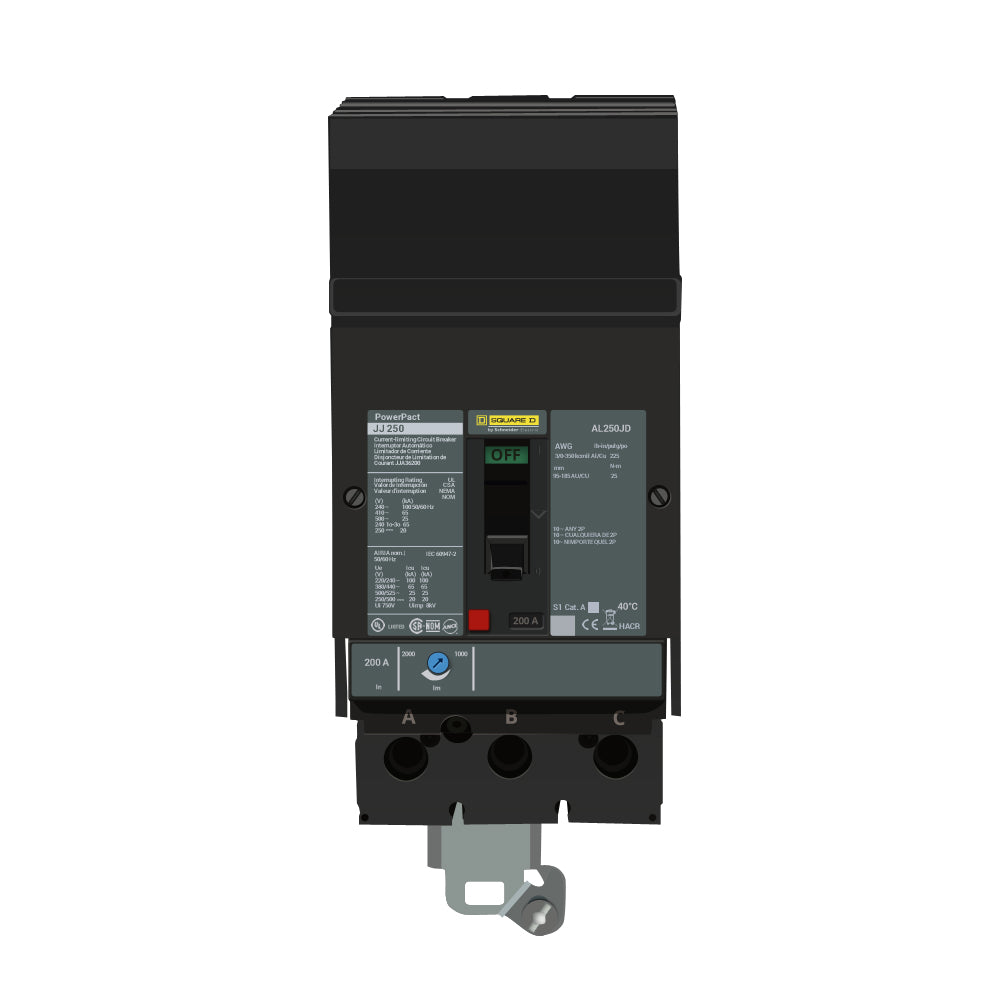

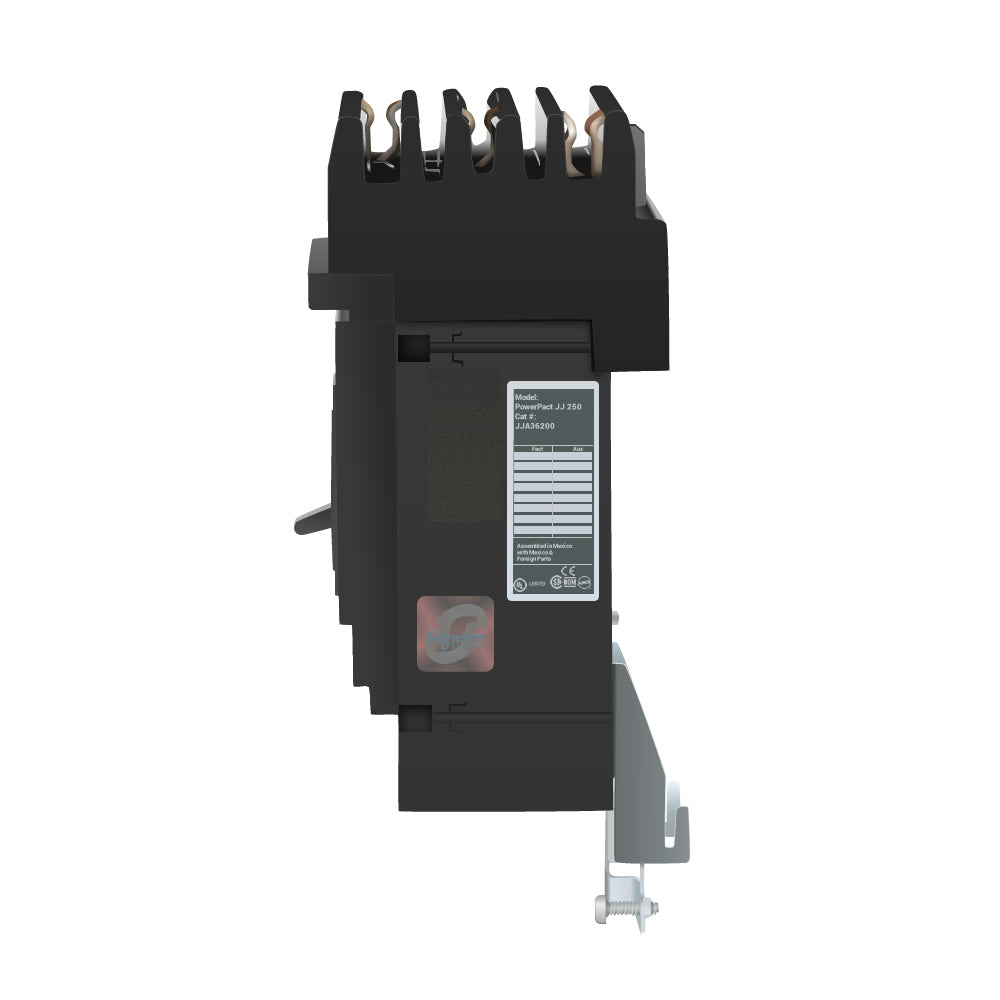

Square D JJA36200 Molded Case Circuit Breaker – 200A – 3-Pole – 600V – 65kA – I-Line Plug-In – PowerPact JJA Series

The Square D JJA36200 is a 200A, 3-pole, 600V molded case circuit breaker from the PowerPact JJA Series. It features an I-Line style plug-in connection, ABC phase configuration, and a thermal-magnetic, non-interchangeable trip unit with Long-Time and Instantaneous (LI) trip functions.

The breaker is current limiting and suitable for reverse-fed applications. It has an interrupting rating of 65kA at 480V AC and is designed for compatible Square D I-Line electrical distribution equipment.

Specifications:

• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Series: PowerPact JJA
• Type: JJA
• Current Rating: 200A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V AC
• Trip Technology: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Unit: Non-Interchangeable
• Mounting Type: I-Line Style Plug-In
• Phase Connection: ABC
• Current Limiting: Yes
• Reverse Feed: Suitable for Reverse-Fed Applications
• Application: Electrical power distribution and circuit protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): JJA36200
• Catalog Number: JJA36200
• Product Family: PowerPact JJA Series
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Model: JJA36200
• Breaker Type: JJA
• upc:785901939245

Compatibility:

Designed for use with compatible Square D PowerPact JJA Series and I-Line style electrical distribution equipment accepting the specified 3-pole breaker configuration. The JJA36200 is suitable for 200A, 3-phase, 600V applications and supports reverse-fed installation where permitted by the equipment and applicable installation requirements.

Always verify the specific panelboard or switchboard model, I-Line compatibility, voltage, interrupting rating, phase configuration, and reverse-feed requirements before installation.

Certifications:

• UL Listed
• PowerPact JJA Series
• Current Limiting
• Suitable for Reverse-Fed Applications
