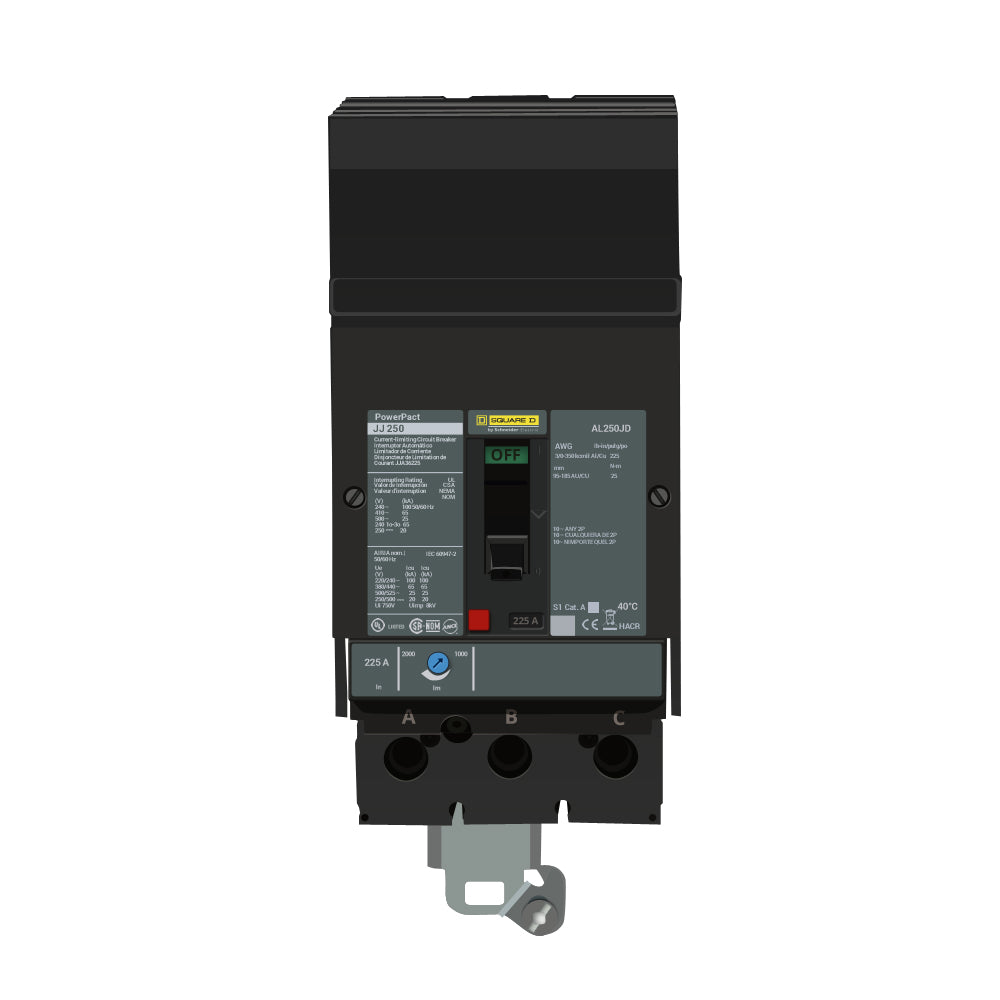

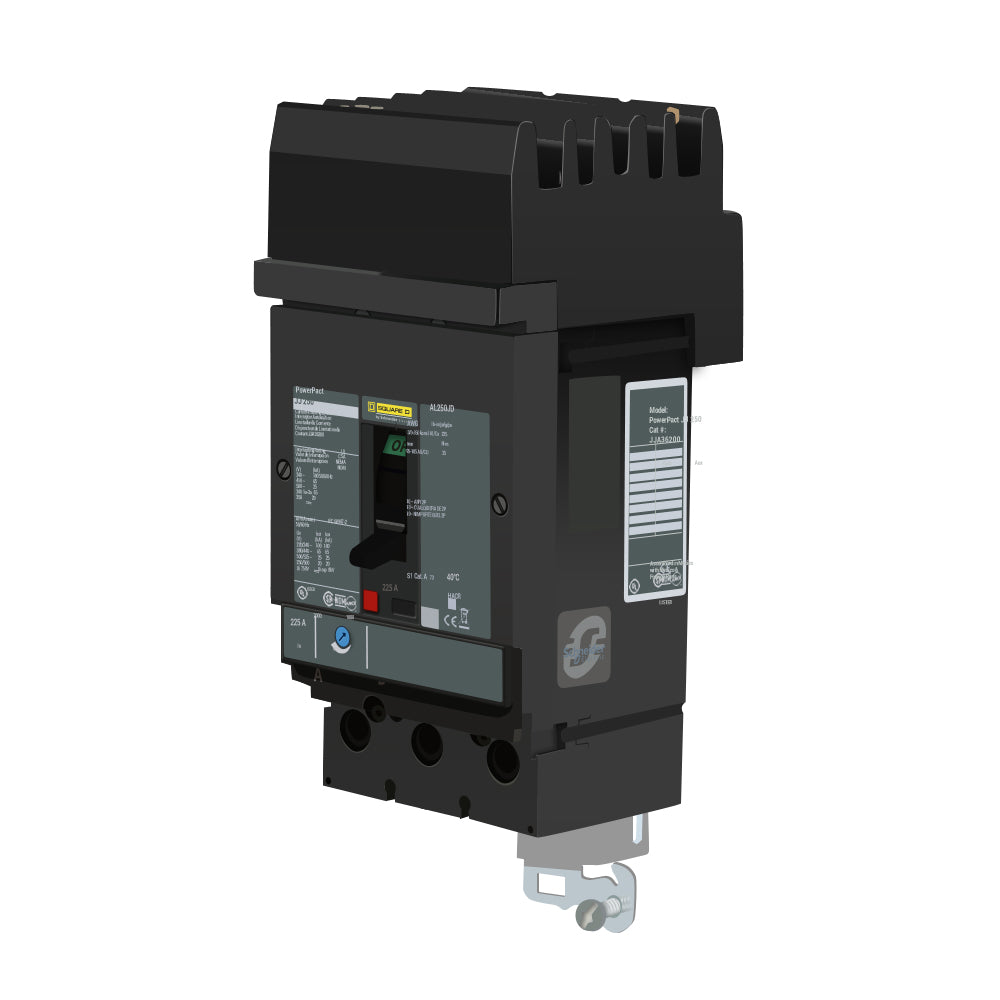

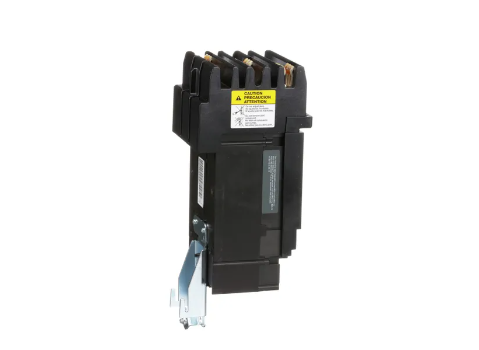

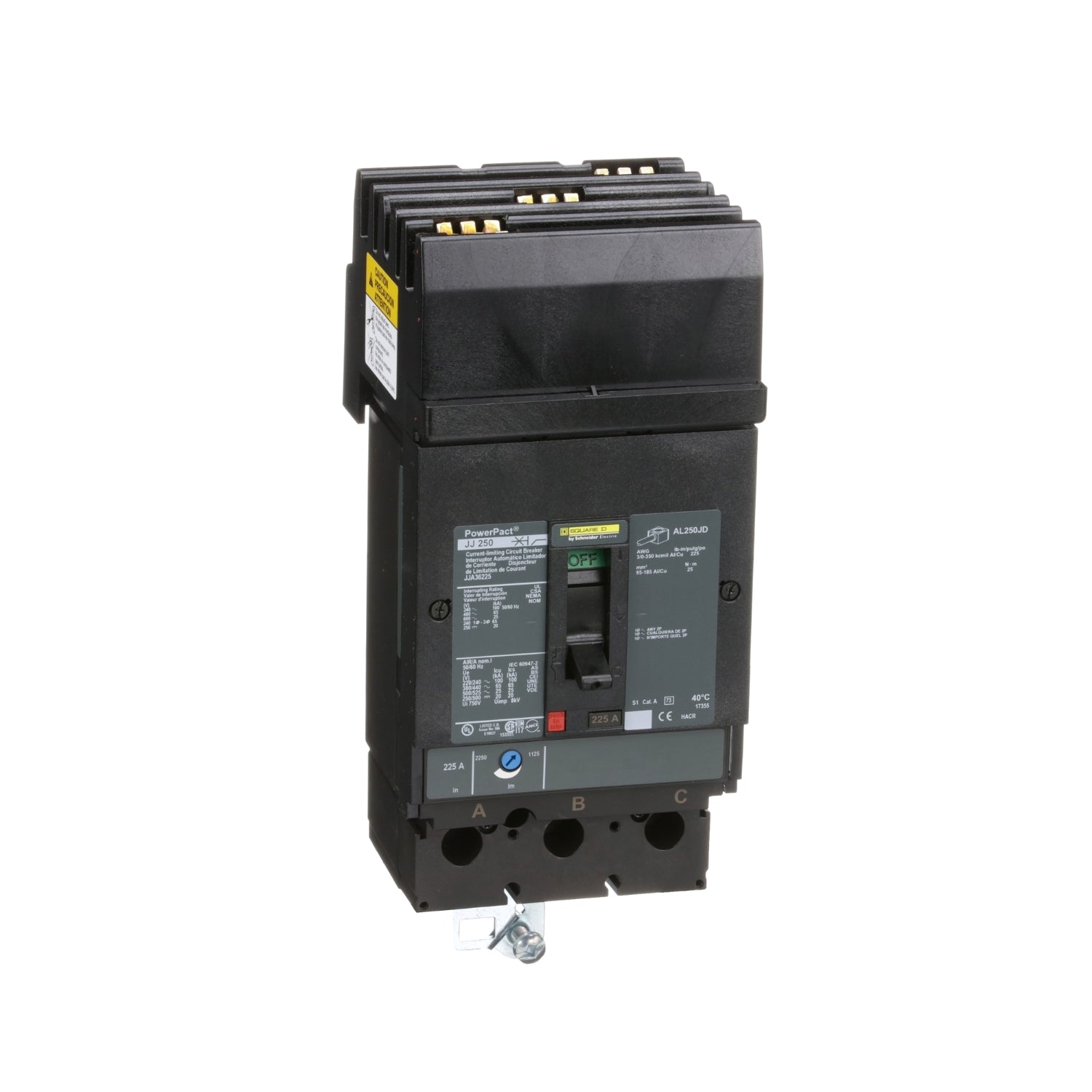

Square D JJA36225 Molded Case Circuit Breaker – 225A – 3-Pole – 600V – 65kA @ 480V – I-Line Plug-In – PowerPact JJA Series

The Square D JJA36225 is a 225A, 3-pole molded case circuit breaker from the PowerPact JJA Series. It is designed for three-phase electrical distribution applications and features an ABC phase connection, current-limiting protection, and an I-Line style plug-in configuration. The breaker is rated for 600V with a 65kA interrupting rating at 480V.

The JJA36225 features thermal-magnetic protection, a non-interchangeable trip unit, and Long-Time and Instantaneous (LI) trip functions. It is UL Listed and suitable for reverse-fed applications.

Specifications:

• Manufacturer: Schneider Electric / Square D
• Product Type: Molded Case Circuit Breaker
• Series: PowerPact JJA
• Type: JJA
• Catalog No.: JJA36225
• Current Rating: 225A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Phase Connection: ABC
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Protection Type: Current Limiting
• Trip Technology: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)

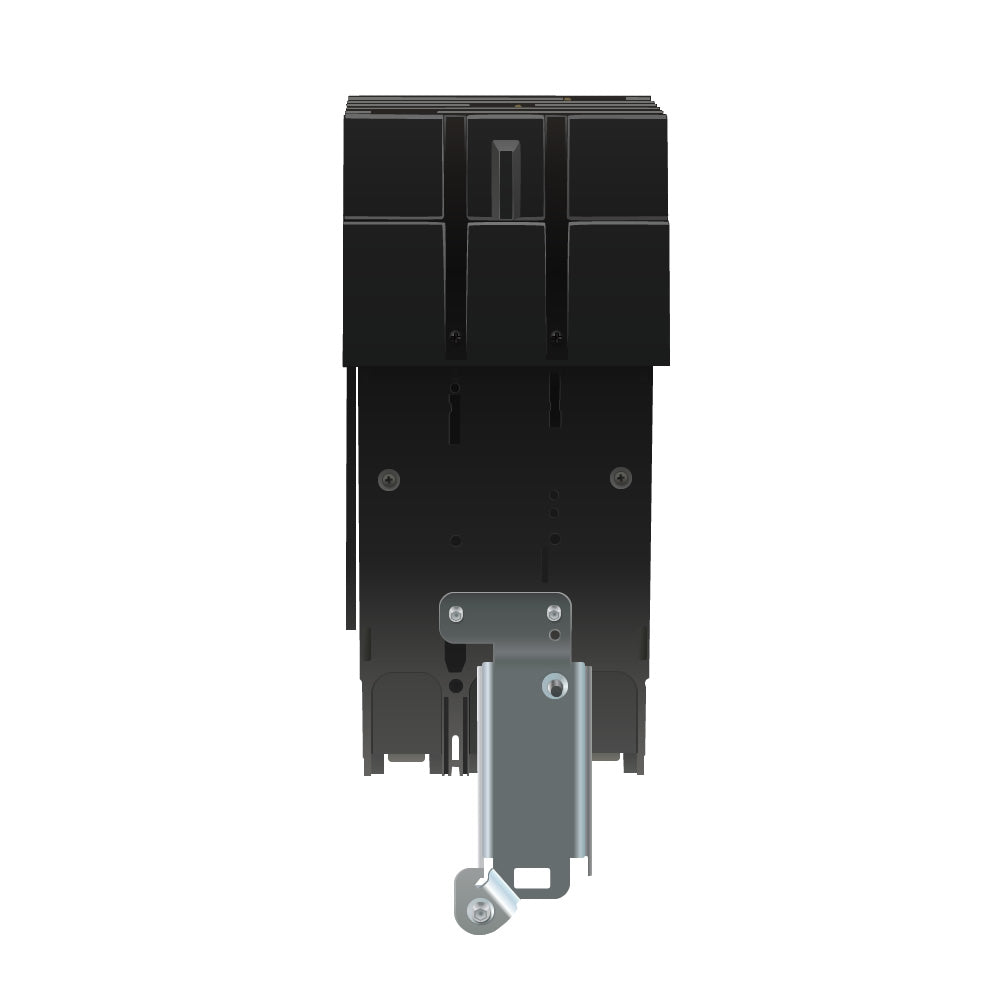

• Mounting / Connection: I-Line Style Plug-In
• Application: Electrical Distribution and Circuit Protection
• Reverse Feed: Suitable for Reverse-Fed Applications

Part Numbers & Identification:

• Manufacturer Part Number (MPN): JJA36225
• Catalog Number: JJA36225
• Product Family: PowerPact JJA Series
• Series: JJA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Model: JJA36225
• Configuration: 225A, 3-Pole
• upc:
  785901795681

Compatibility:

Designed for use with compatible Square D / Schneider Electric PowerPact JJA Series and I-Line electrical distribution equipment that accepts the specified breaker configuration. The JJA36225 is a 225A, 3-pole, 600V molded case circuit breaker with an I-Line style plug-in connection and ABC phase connection.

The breaker is suitable for reverse-fed applications as specified. Always verify the specific panelboard or equipment model, approved breaker type, I-Line compatibility, system voltage, pole configuration, interrupting rating, phase connection, and reverse-feed requirements before installation.

Certifications:

• UL Listed
• Suitable for Reverse-Fed Applications
• PowerPact JJA Series
• 225A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 65kA @ 480V
• Current Limiting
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip
• Non-Interchangeable Trip
• I-Line Style Plug-In
