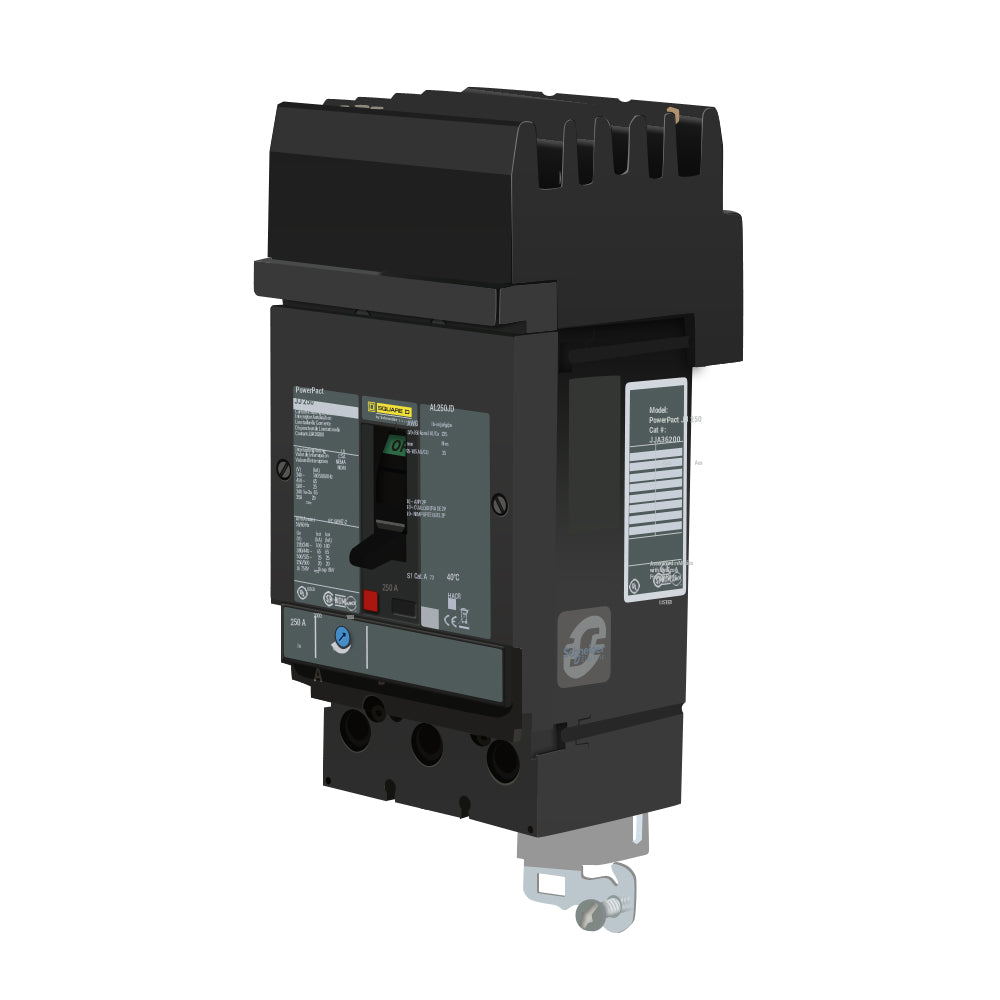

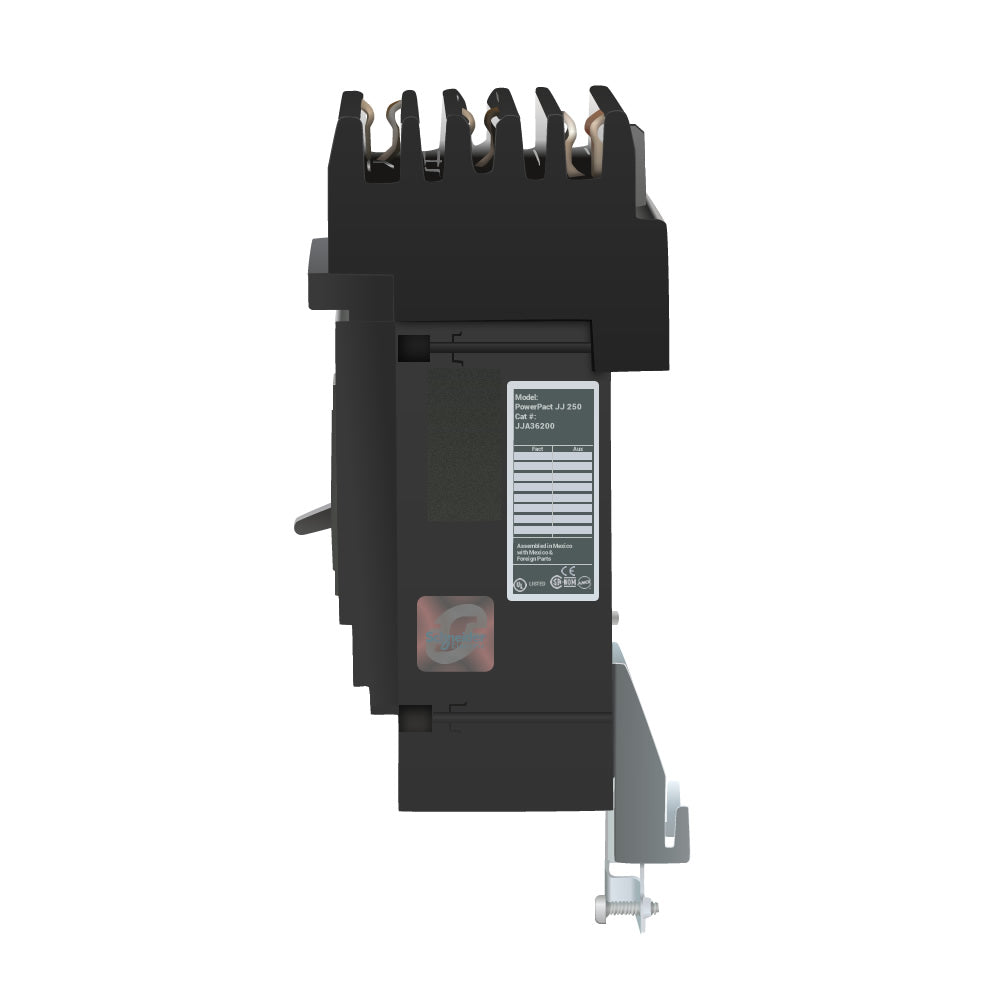

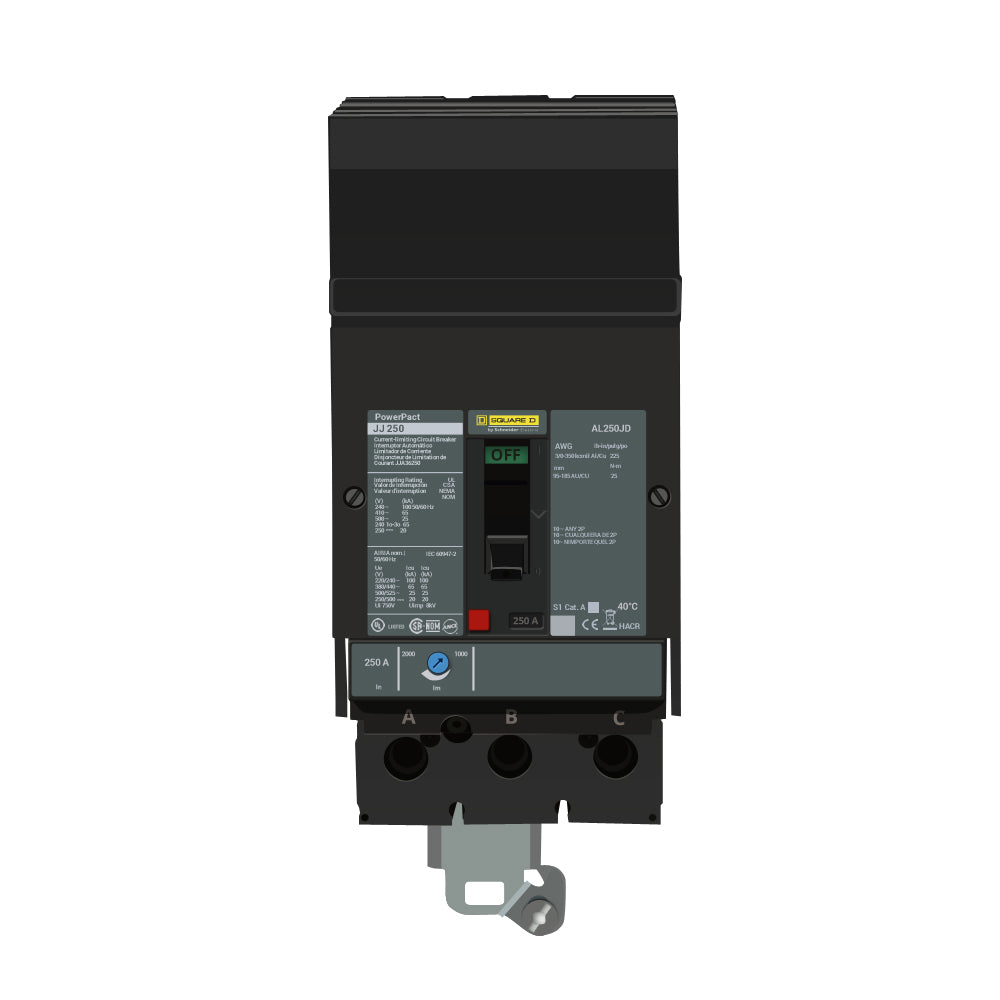

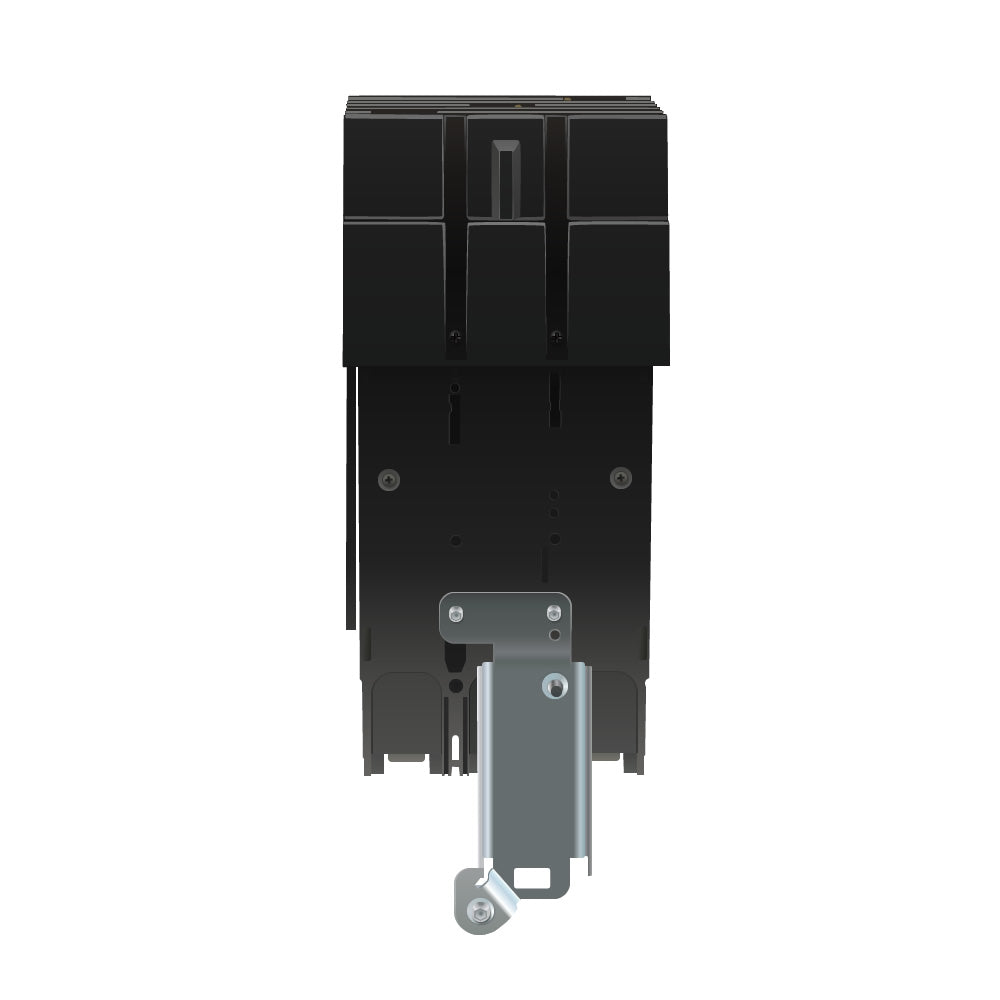

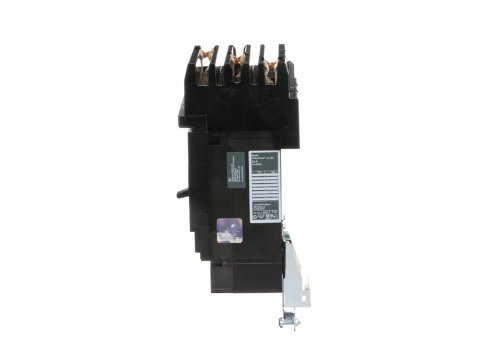

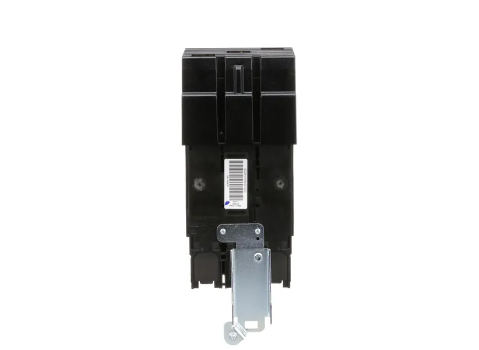

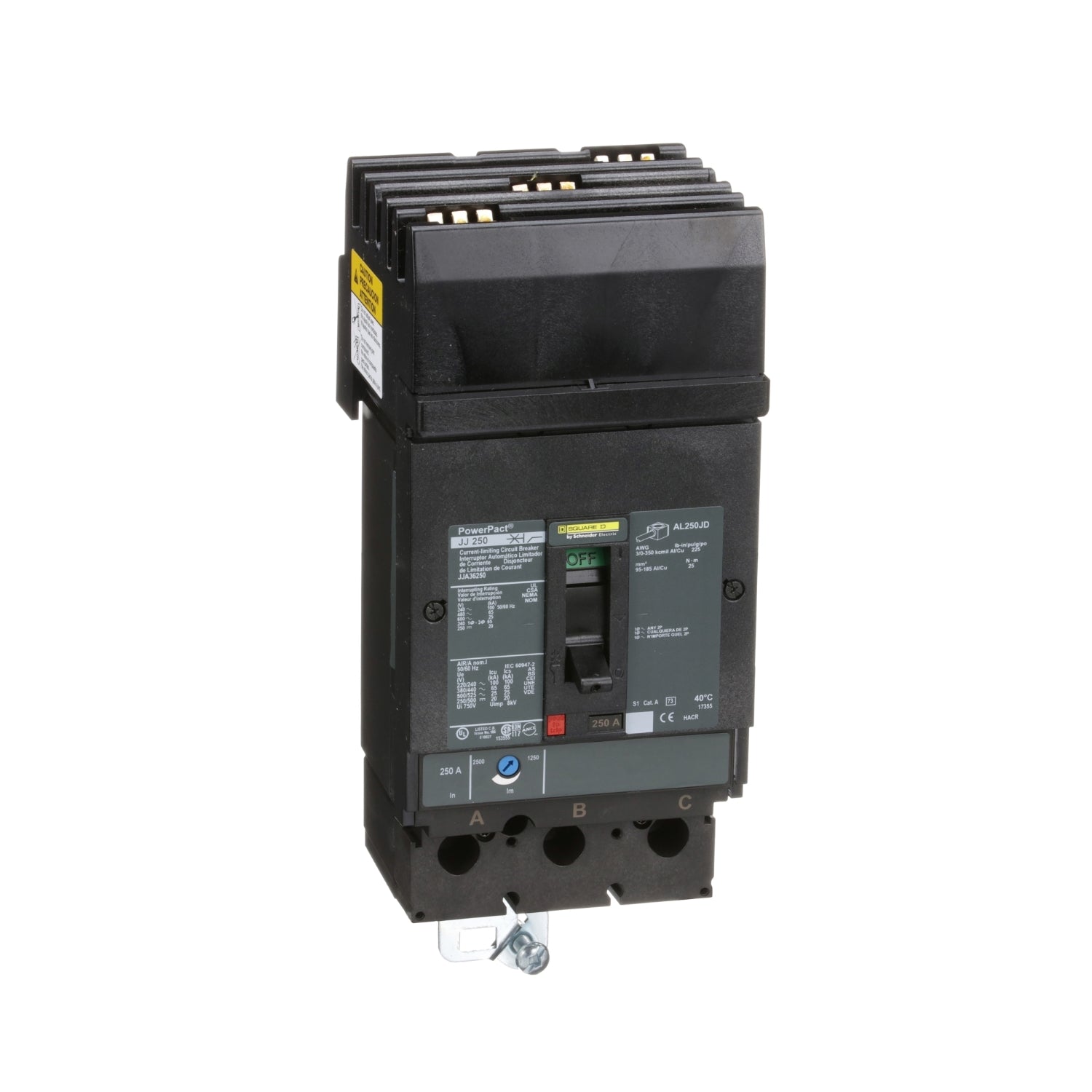

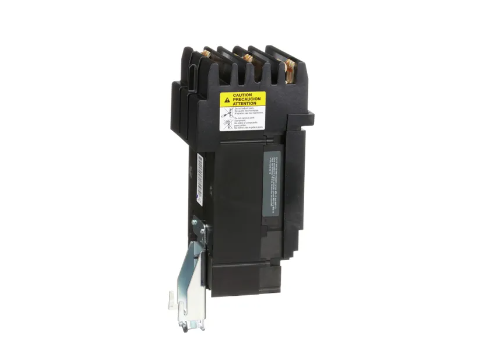

Square D JJA36250 Molded Case Circuit Breaker – 250A – 3-Pole – 600V – 65kA @ 480V – I-Line Plug-In – PowerPact JJA Series

The Square D JJA36250 is a 250A, 3-pole molded case circuit breaker from the Square D PowerPact JJA Series. It is rated for 600V and provides a 65kA interrupting rating at 480V. The breaker features thermal-magnetic protection, current-limiting performance, and an I-Line style plug-in connection with ABC phase connection.

The JJA36250 includes a non-interchangeable trip with Long-Time and Instantaneous (LI) trip functions. It is UL Listed and suitable for compatible applications where reverse-fed operation is permitted.

Specifications:

• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: JJA
• Type: JJA
• Current Rating: 250A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Protection Type: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Connection: I-Line Style Plug-In
• Phase Connection: ABC
• Current Limiting: Yes
• Reverse Feed: Suitable for Reverse-Fed Applications
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): JJA36250
• Catalog Number: JJA36250
• Product Family: Square D PowerPact
• Series: JJA
• Type: JJA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Model: JJA36250
• Breaker Configuration: 3-Pole, 250A
• upc:785901689881

Compatibility:

Designed for use with compatible Square D PowerPact JJA Series electrical distribution equipment supporting I-Line style plug-in circuit breakers. The JJA36250 is suitable for 3-phase, 600V applications requiring a 250A thermal-magnetic breaker with a 65kA interrupting rating at 480V.

The breaker is suitable for reverse-fed applications as specified. Always verify the specific panelboard or switchboard model, approved breaker type, I-Line compatibility, phase connection, system voltage, interrupting rating, and installation requirements before installation.

Certifications:

• UL Listed
• 250A Rating
• 3-Pole / 3-Phase
• 600V Rated
• 65kA @ 480V
• Thermal-Magnetic Protection
• Current Limiting
• I-Line Style Plug-In
• Non-Interchangeable Trip
• Long-Time and Instantaneous (LI) Trip
• Suitable for Reverse-Fed Applications
