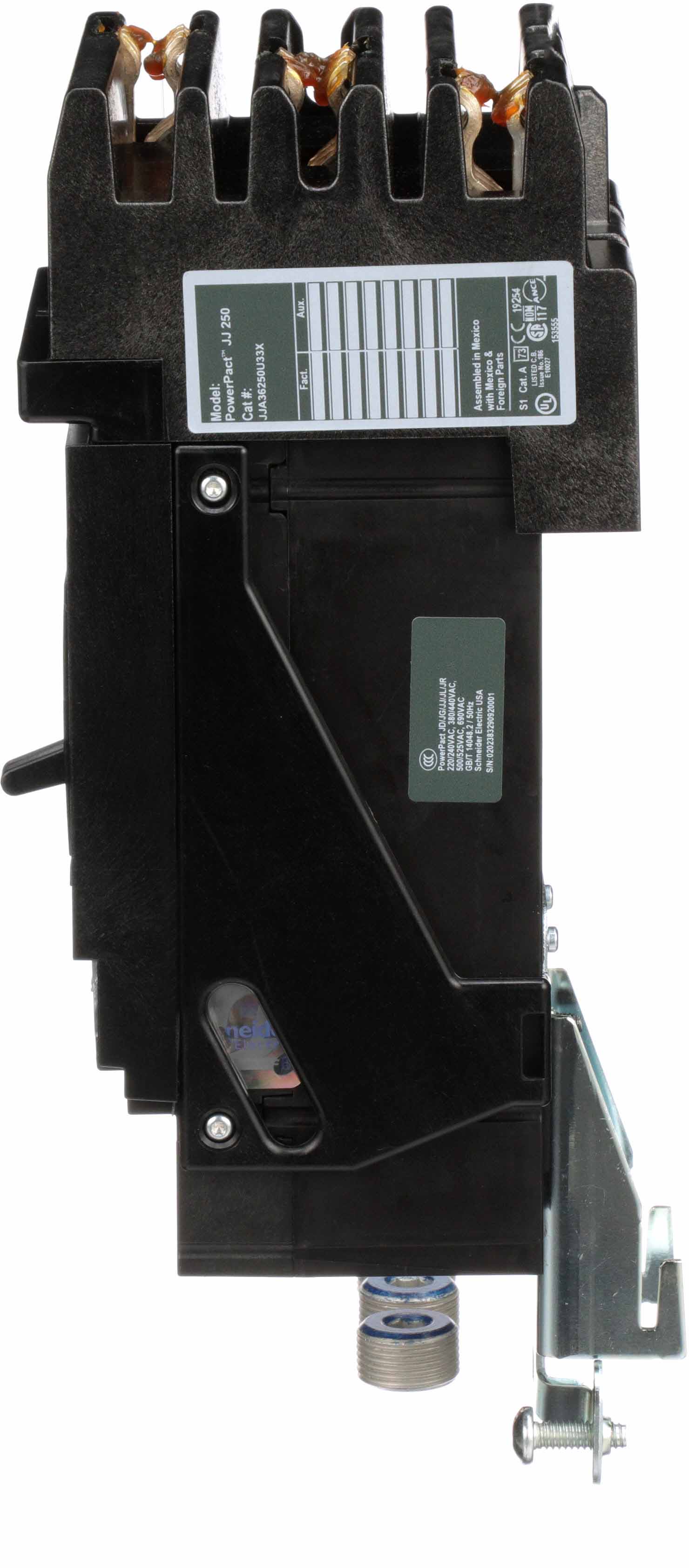

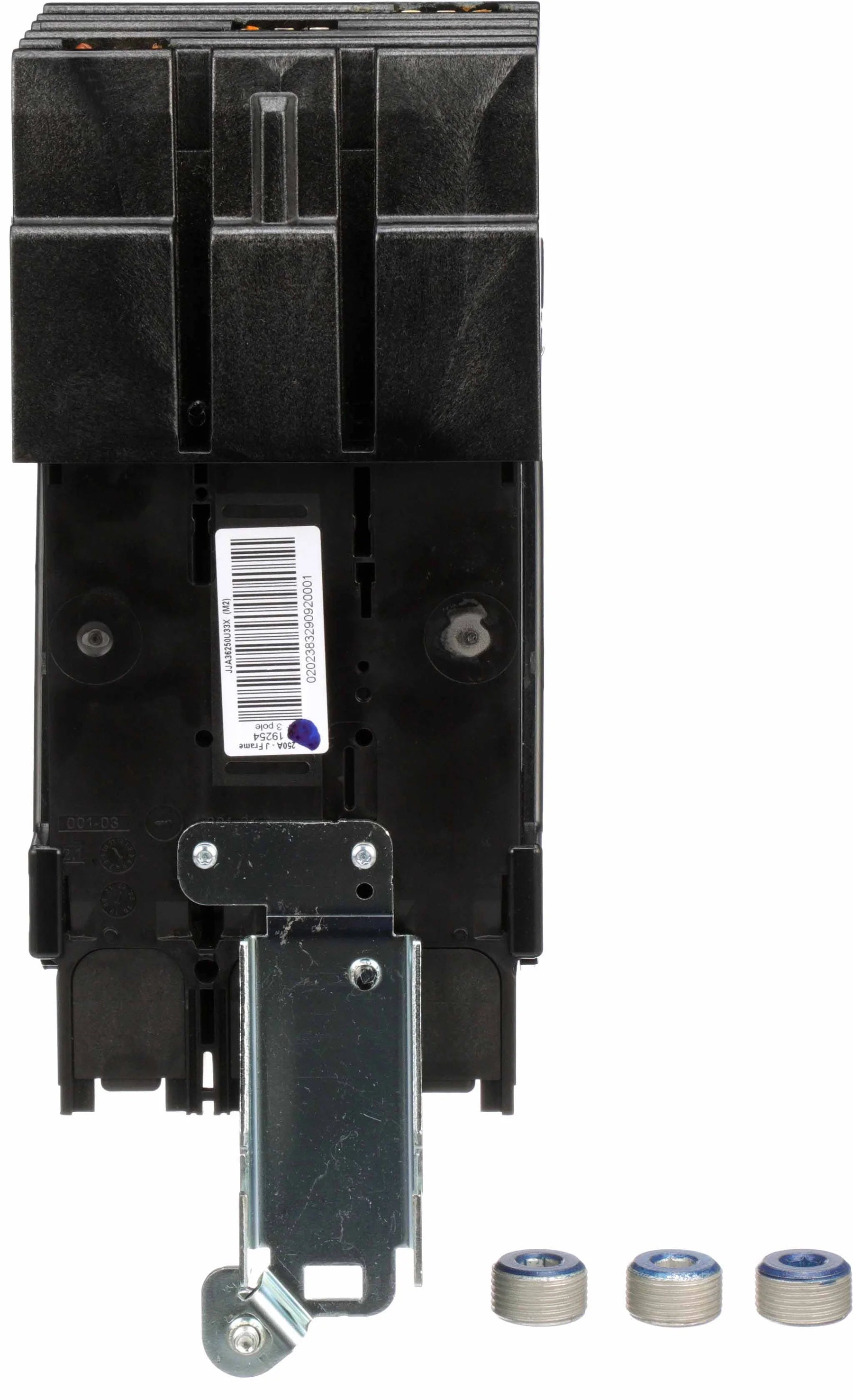

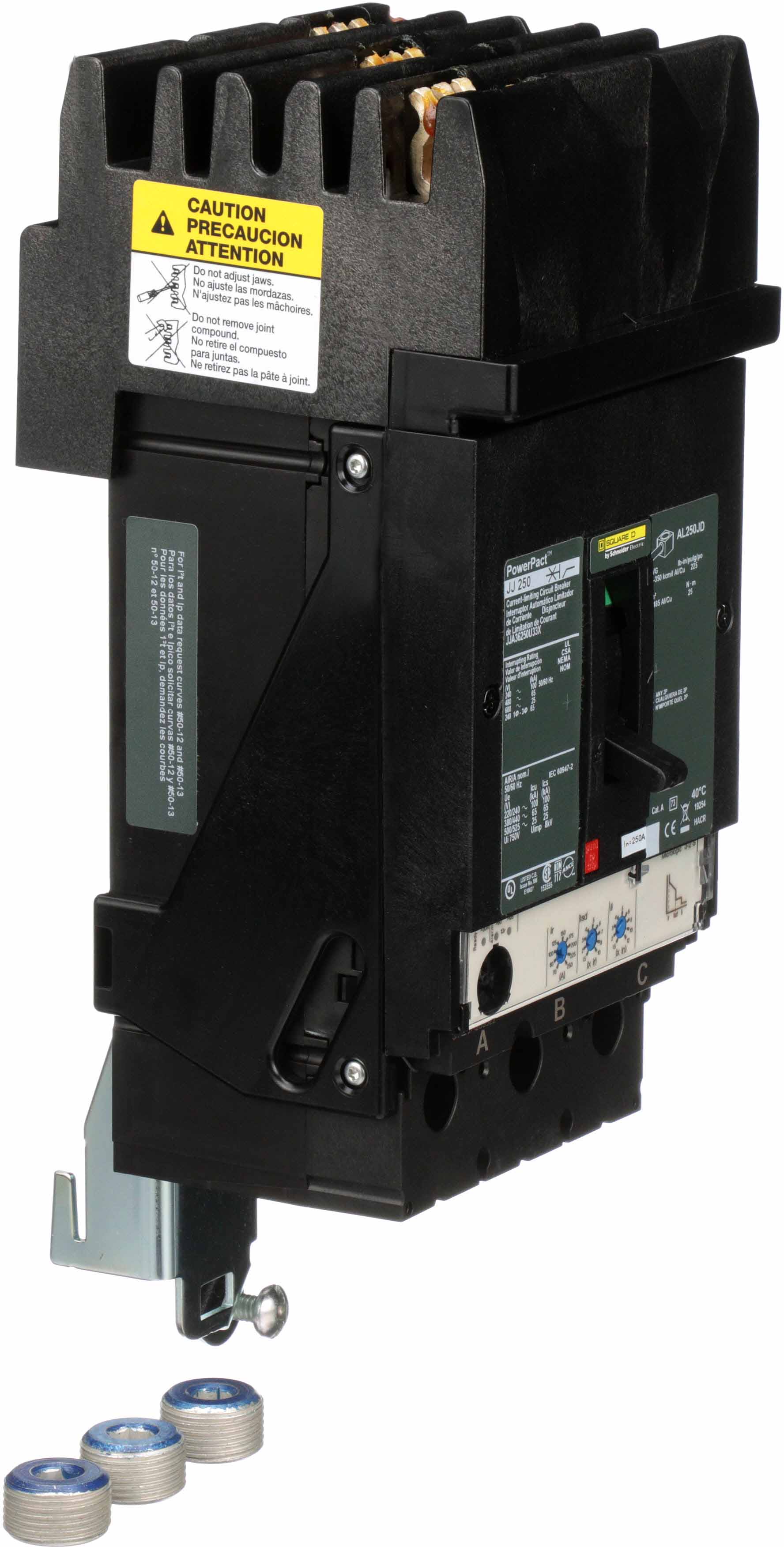

Square D JJA36250U33X Molded Case Circuit Breaker – 250A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – I-Line Style Plug-In – PowerPact JJA Series

The Square D JJA36250U33X is a 250A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact JJA Series. It features solid-state electronic protection with a MicroLogic Standard 3.2S non-interchangeable trip unit providing Long-Time, Short-Time, and Instantaneous (LSI) trip functions.

The breaker is rated for 600V and provides a 65kA interrupting rating at 480V. It features current-limiting construction, an I-Line style plug-in connection, and is suitable for reverse connection applications. The breaker can also be used for 2-pole applications and is supplied as a complete breaker.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: JJA
• Type: JJA
• Catalog No.: JJA36250U33X
• Current Rating: 250A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Protection Type: Solid-State Electronic
• Trip Unit: MicroLogic Standard 3.2S
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time, Short-Time, and Instantaneous (LSI)
• Current Limiting: Current Limiting
• Mounting / Connection: I-Line Style Plug-In
• Reverse Connection: Suitable for Reverse Connection Applications
• 2-Pole Application: Suitable for 2-Pole Applications
• Breaker Configuration: Complete Breaker
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): JJA36250U33X
• Catalog Number: JJA36250U33X
• Model: JJA36250U33X
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: JJA
• Type: JJA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 250A
• Trip Unit: MicroLogic Standard 3.2S
• Trip Configuration: Non-Interchangeable LSI
• UPC:785901606314

Compatibility:

Designed for use with compatible Square D PowerPact JJA Series electrical distribution equipment that accepts I-Line style plug-in molded case circuit breakers. The JJA36250U33X provides 250A, 3-pole solid-state electronic protection for compatible 600V electrical distribution applications.

The breaker features current-limiting construction, an I-Line style plug-in connection, a non-interchangeable MicroLogic Standard 3.2S LSI trip unit, and suitability for reverse connection and 2-pole applications as specified. Always verify the specific panelboard or electrical equipment model, approved breaker configuration, system voltage, available fault current, pole requirements, trip-unit compatibility, and mounting arrangement before installation.

Certifications:

• PowerPact JJA Series
• 250A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 65kA @ 480V Interrupting Rating
• Solid-State Electronic Protection
• MicroLogic Standard 3.2S Trip Unit
• Long-Time, Short-Time, and Instantaneous (LSI) Trip Functions
• Non-Interchangeable Trip
• Current Limiting
• I-Line Style Plug-In
• Suitable for Reverse Connection Applications
• Suitable for 2-Pole Applications
• Complete Breaker
