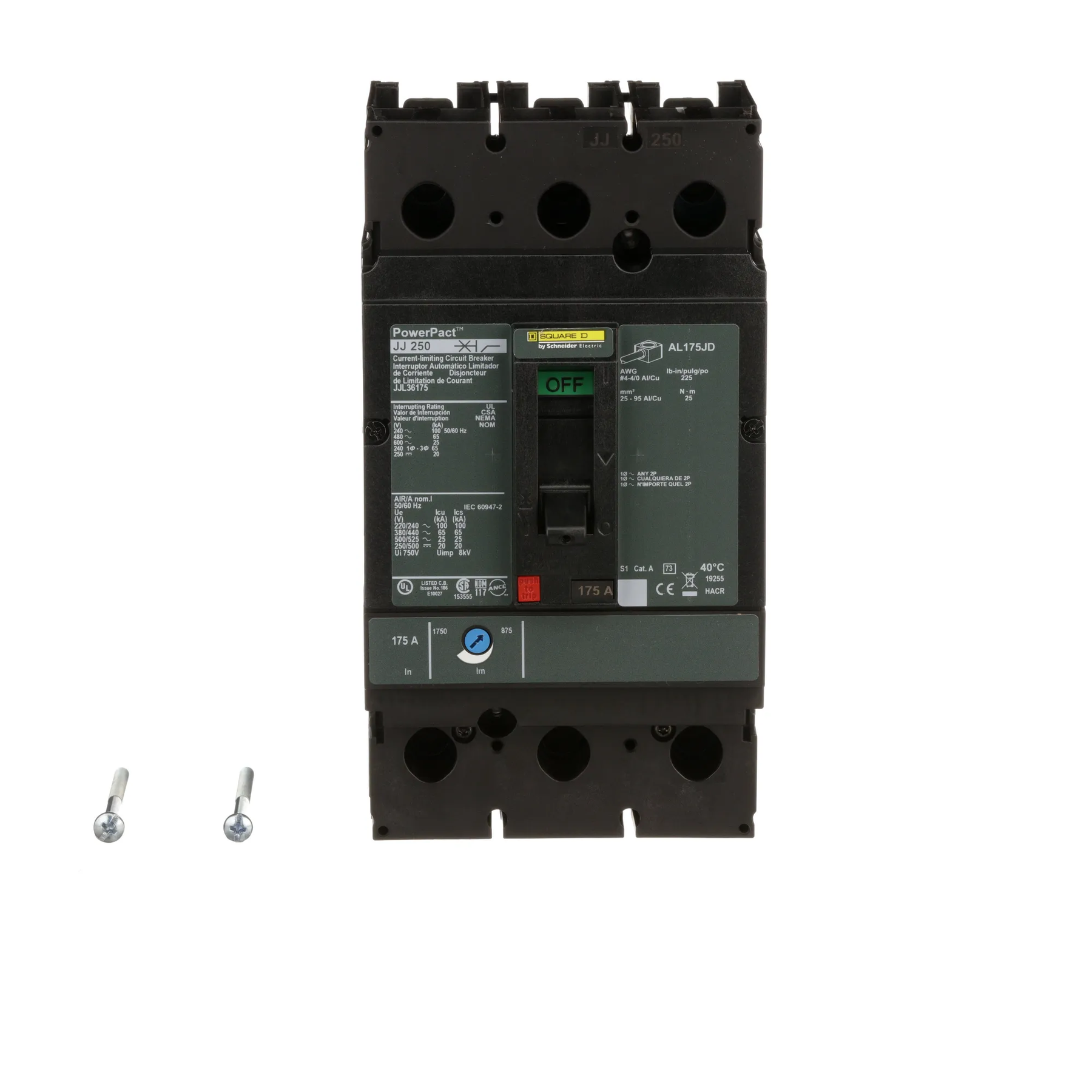

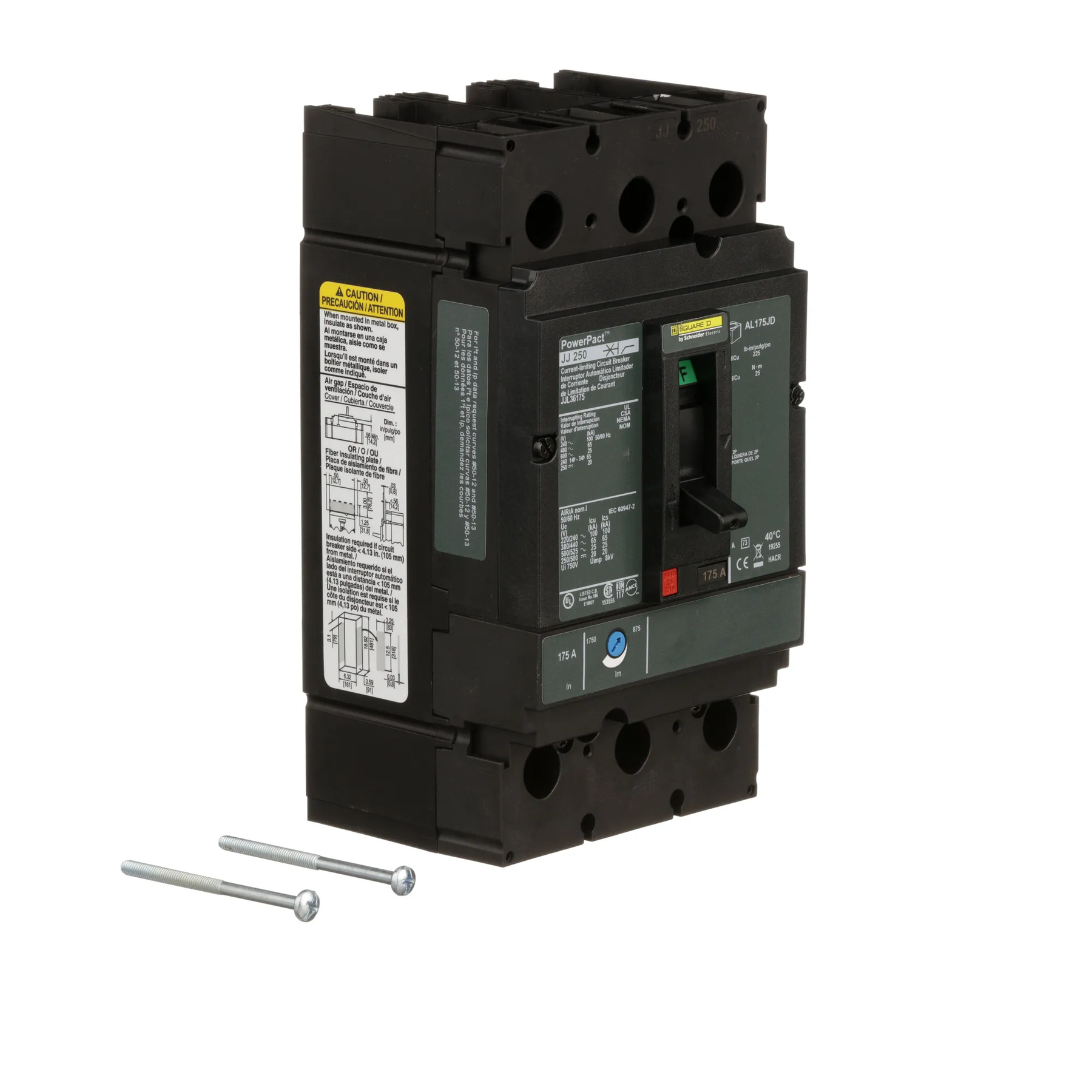

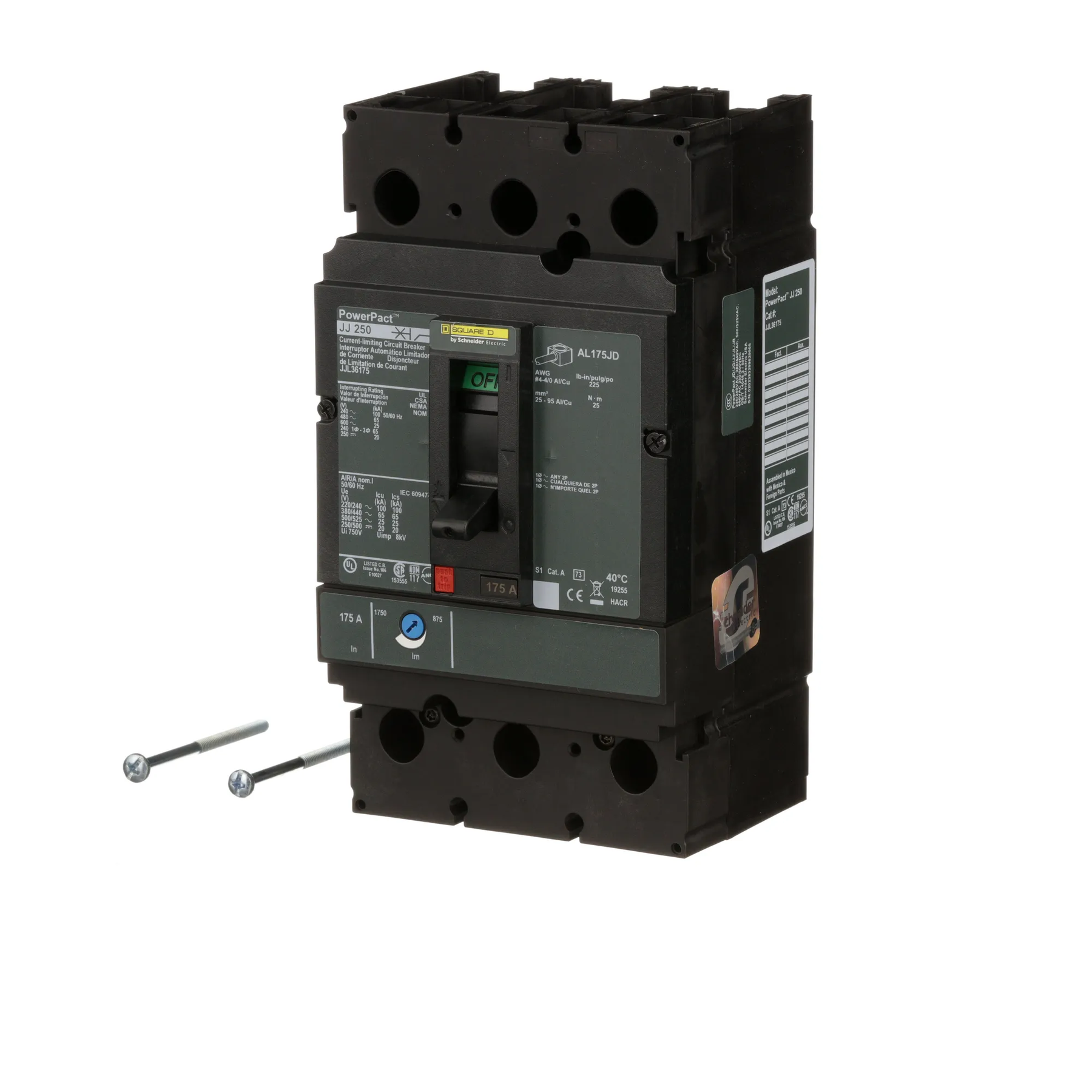

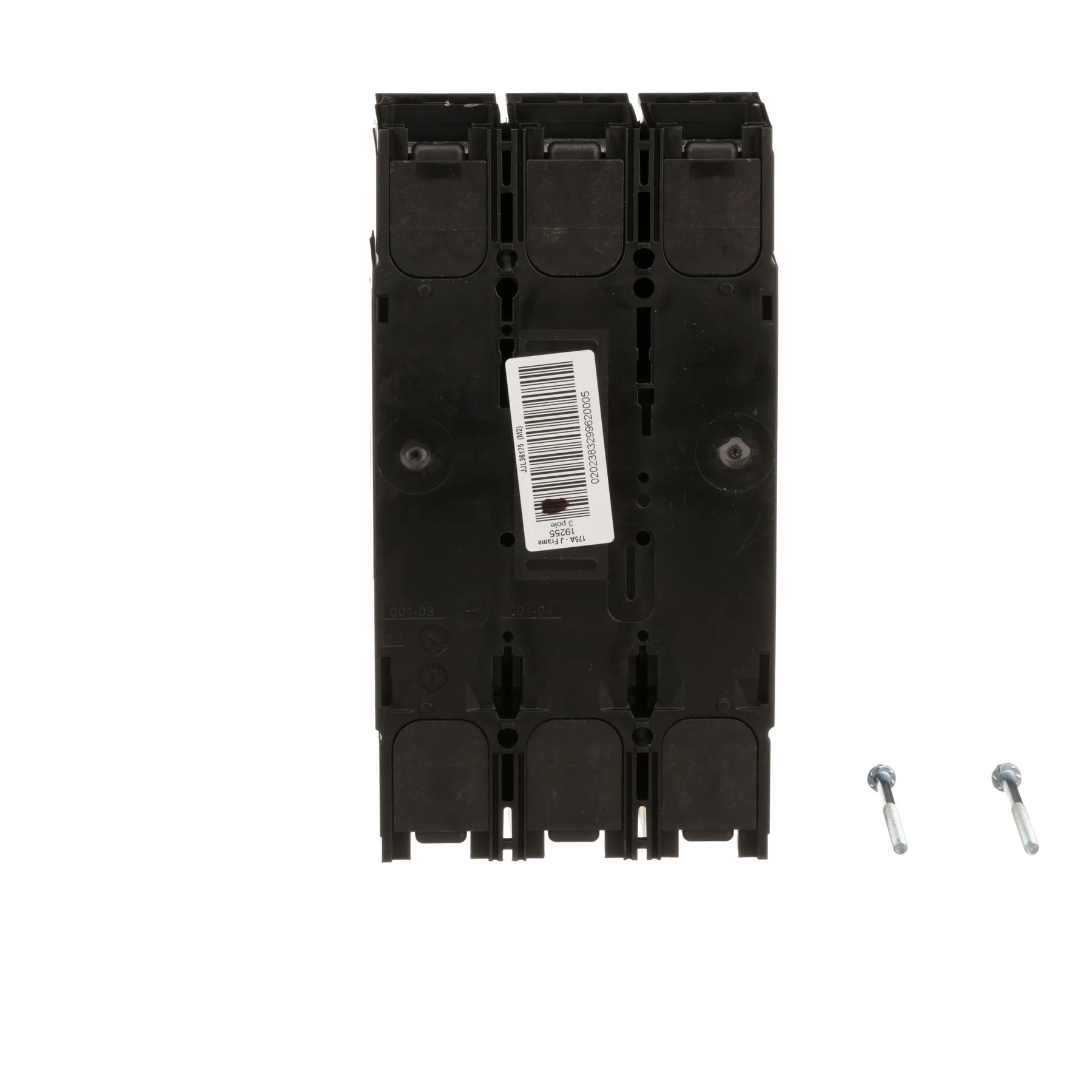

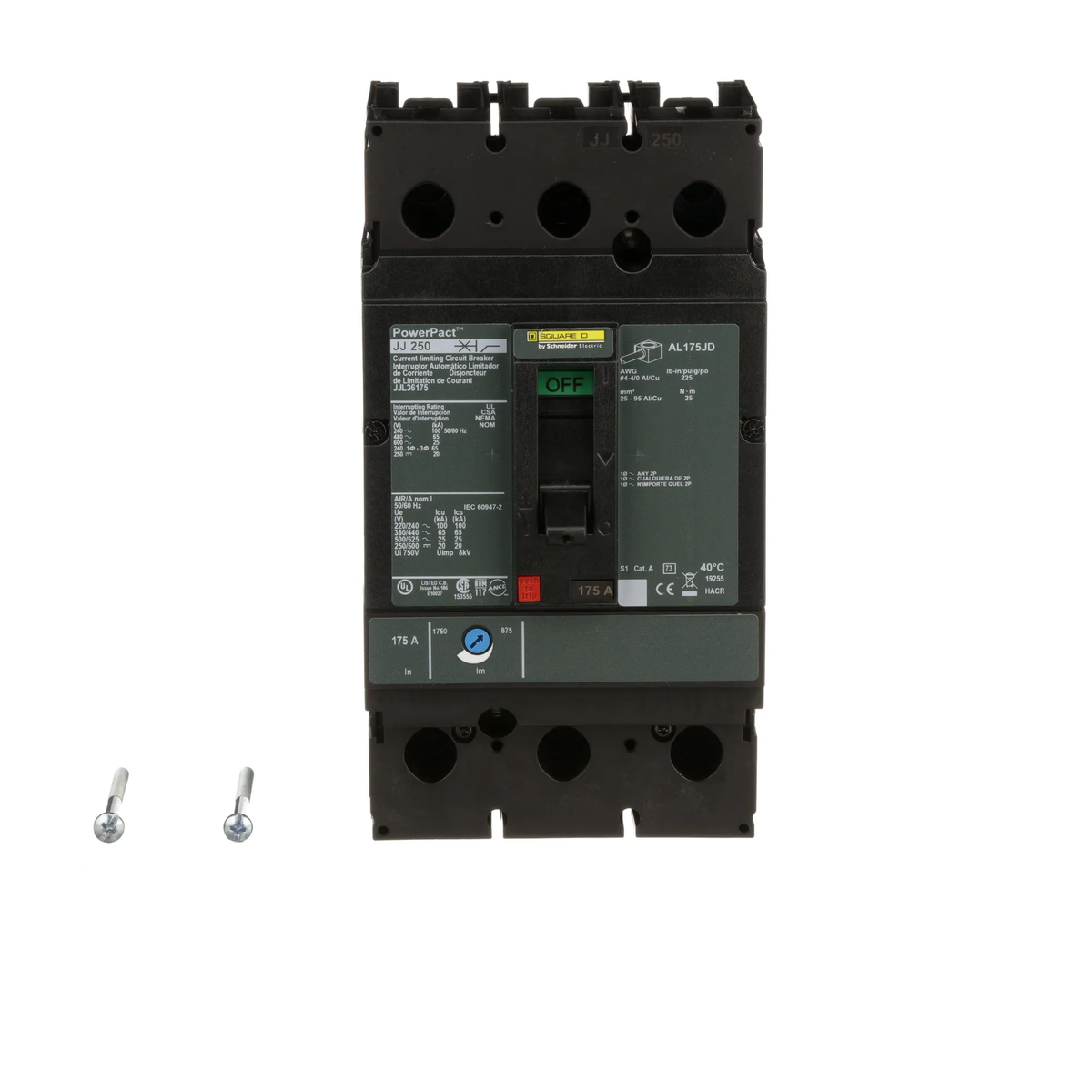

Square D JJL36175 Molded Case Circuit Breaker – 175A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – Feed-Thru – PowerPact JJL Series

The Square D JJL36175 is a 175A, 3-pole, 3-phase molded case circuit breaker from the Square D / Schneider Electric PowerPact Type JJL Series. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions and a non-interchangeable trip.

The JJL36175 is rated for 600V and provides a 65kA interrupting rating at 480V. It features current-limiting construction, a feed-thru configuration, and is suitable for reverse-fed applications. The breaker is supplied complete with line-side and load-side lug terminals.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: JJL
• Type: JJL
• Catalog No.: JJL36175
• Current Rating: 175A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: Not specified
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Non-Interchangeable
• Current Limiting: Current Limiting
• Mounting / Connection: Feed-Thru
• Reverse Feed: Suitable for Reverse-Fed Applications
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Breaker Configuration: Complete Breaker
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): JJL36175
• Catalog Number: JJL36175
• Model: JJL36175
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: JJL
• Type: JJL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 175A
• Trip Configuration: Non-Interchangeable LI Trip
• UPC:785901955948

Compatibility:

Designed for use with compatible Square D / Schneider Electric PowerPact JJL Series electrical distribution equipment that accepts JJL Series molded case circuit breakers. The JJL36175 provides 175A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker features current-limiting construction, a feed-thru configuration, non-interchangeable LI trip functions, and line-side and load-side lug terminals. It is also suitable for reverse-fed applications as specified.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, terminal arrangement, reverse-feed requirements, and installation requirements before installation.

Certifications:

• UL Listed
• PowerPact JJL Series
• 175A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 65kA @ 480V Interrupting Rating
• Current Limiting
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Non-Interchangeable Trip
• Feed-Thru Configuration
• Suitable for Reverse-Fed Applications
• Complete Breaker
• Line-Side and Load-Side Lug Terminals
