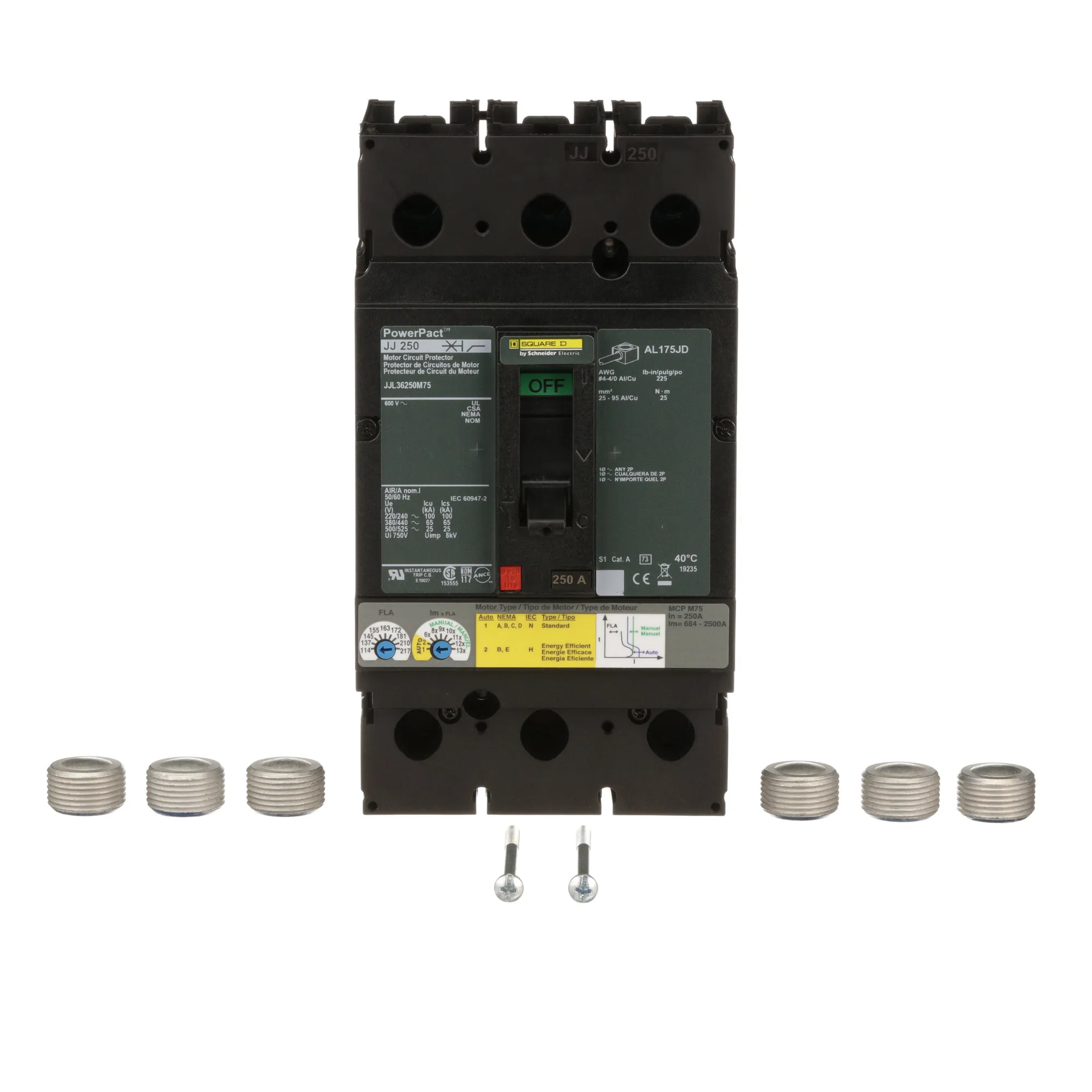

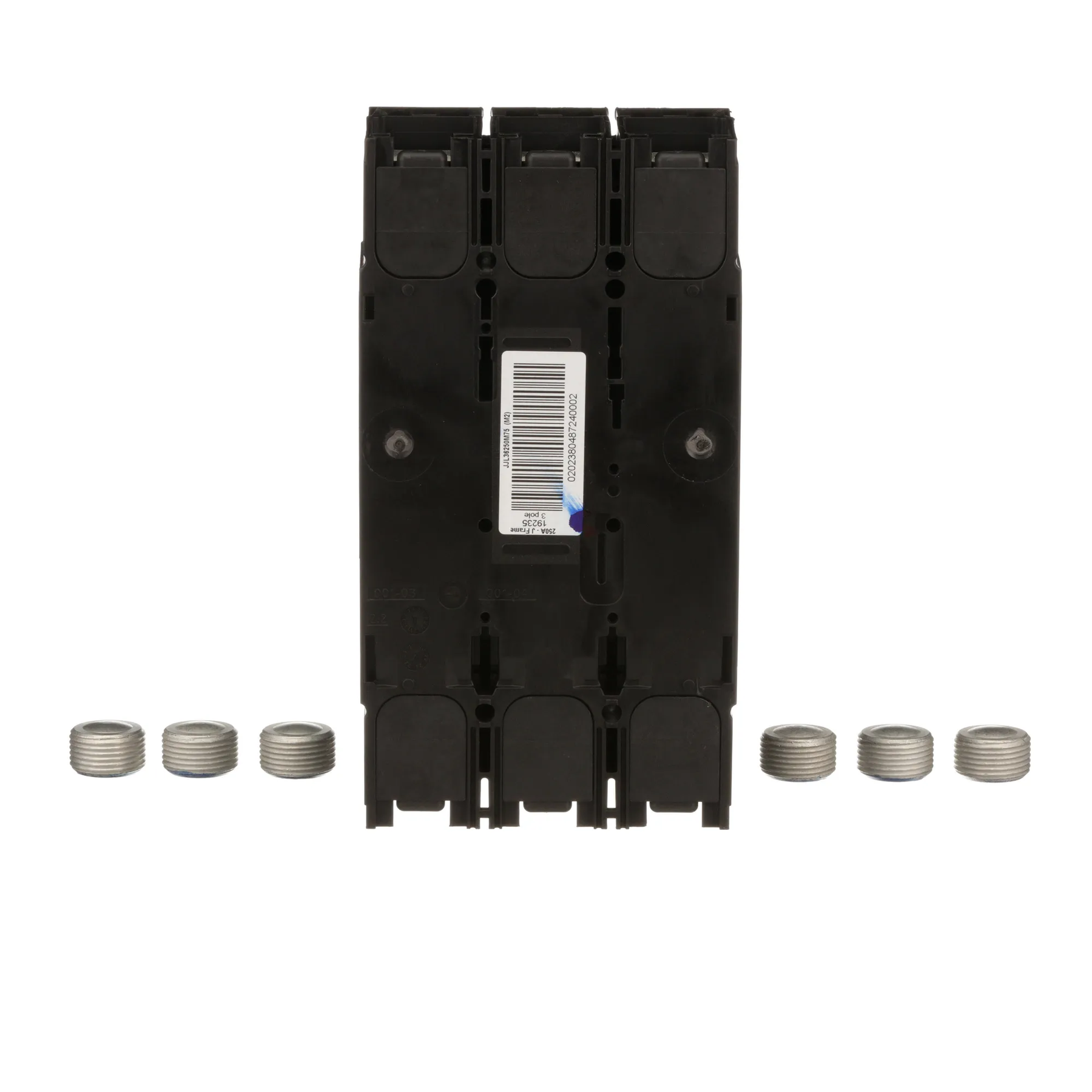

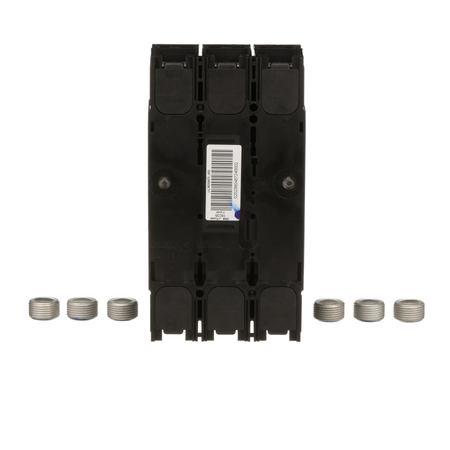

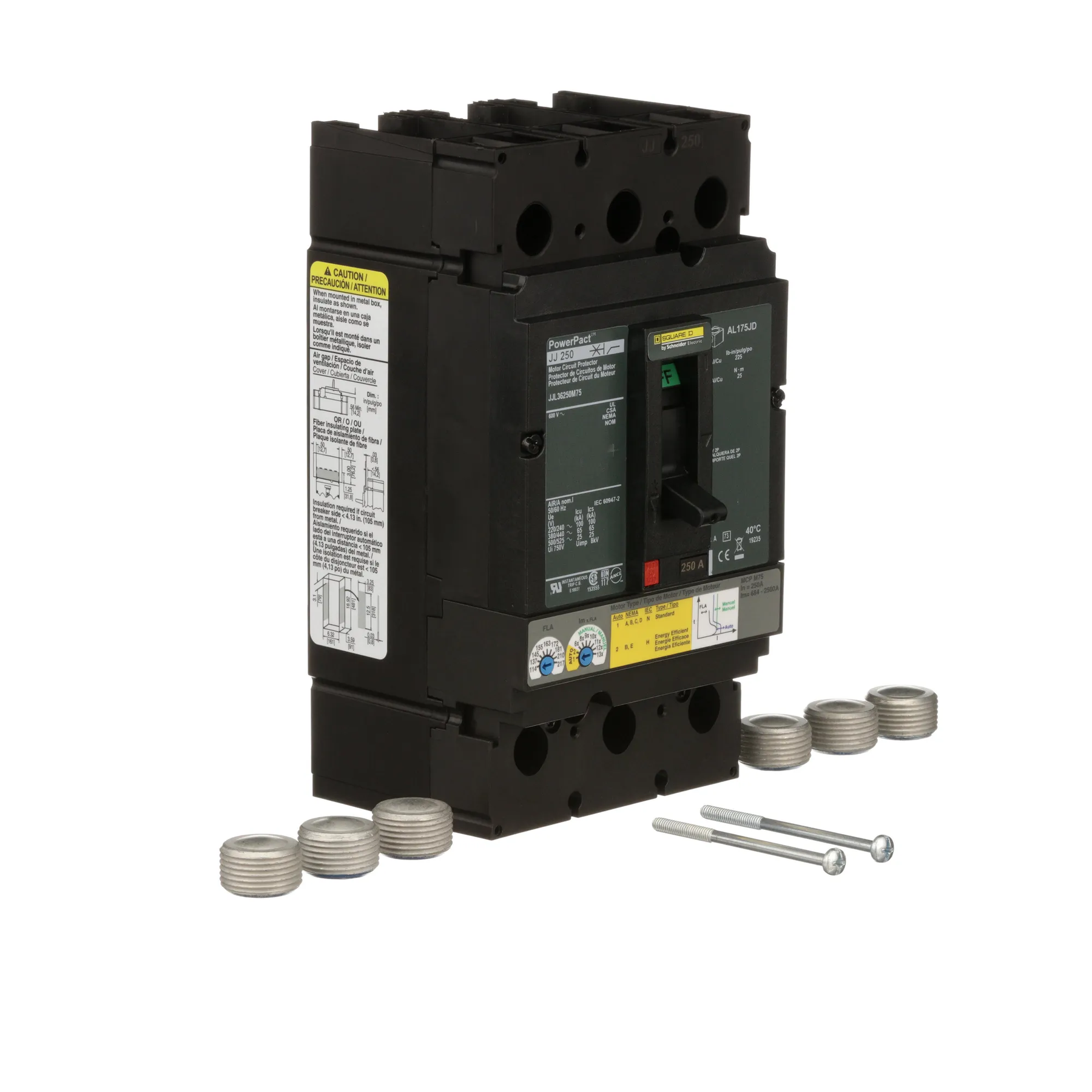

Square D JJL36250M75 Motor Circuit Protector – 250A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – Feed-Thru – PowerPact JJL Series

The Square D JJL36250M75 is a 250A, 3-pole, 3-phase molded case motor circuit protector (MCP) from the Square D PowerPact Type JJL Series. It provides magnetic-only instantaneous protection for compatible motor circuit applications.

The JJL36250M75 is rated for 600V and provides a 65kA interrupting rating at 480V. It features a current-limiting design, feed-thru configuration, and Instantaneous (I) protection only. The breaker includes line- and load-side lug terminals and has a magnetic trip range of 684–2500A. It is also suitable for reverse-fed applications as specified.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Motor Circuit Protector (MCP)
• Product Family: PowerPact
• Series: JJL
• Type: JJL
• Catalog No.: JJL36250M75
• Current Rating: 250A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Protection Type: Magnetic Only
• Trip Function: Instantaneous (I) Protection Only
• Trip Type: Magnetic-Only MCP
• Current Limiting: Current Limiting
• Mounting / Configuration: Feed-Thru
• Terminal Type: Line- and Load-Side Lug Terminals
• Magnetic Trip Range: 684–2500A
• Reverse Feed: Suitable for Reverse-Fed Applications
• Application: Motor Circuit Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): JJL36250M75
• Catalog Number: JJL36250M75
• Model: JJL36250M75
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: JJL
• Type: JJL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Motor Circuit Protector / Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 250A
• Protection Configuration: Magnetic-Only, Instantaneous
• UPC:785901541134

Compatibility:

Designed for use with compatible Square D PowerPact JJL Series motor circuit protection applications. The JJL36250M75 provides 250A, 3-pole magnetic-only instantaneous protection for compatible 600V motor circuits.

The breaker features a 684–2500A magnetic range, current-limiting construction, feed-thru configuration, and line- and load-side lug terminals. It is suitable for reverse-fed applications as specified.

Certifications:

• UL Listed
