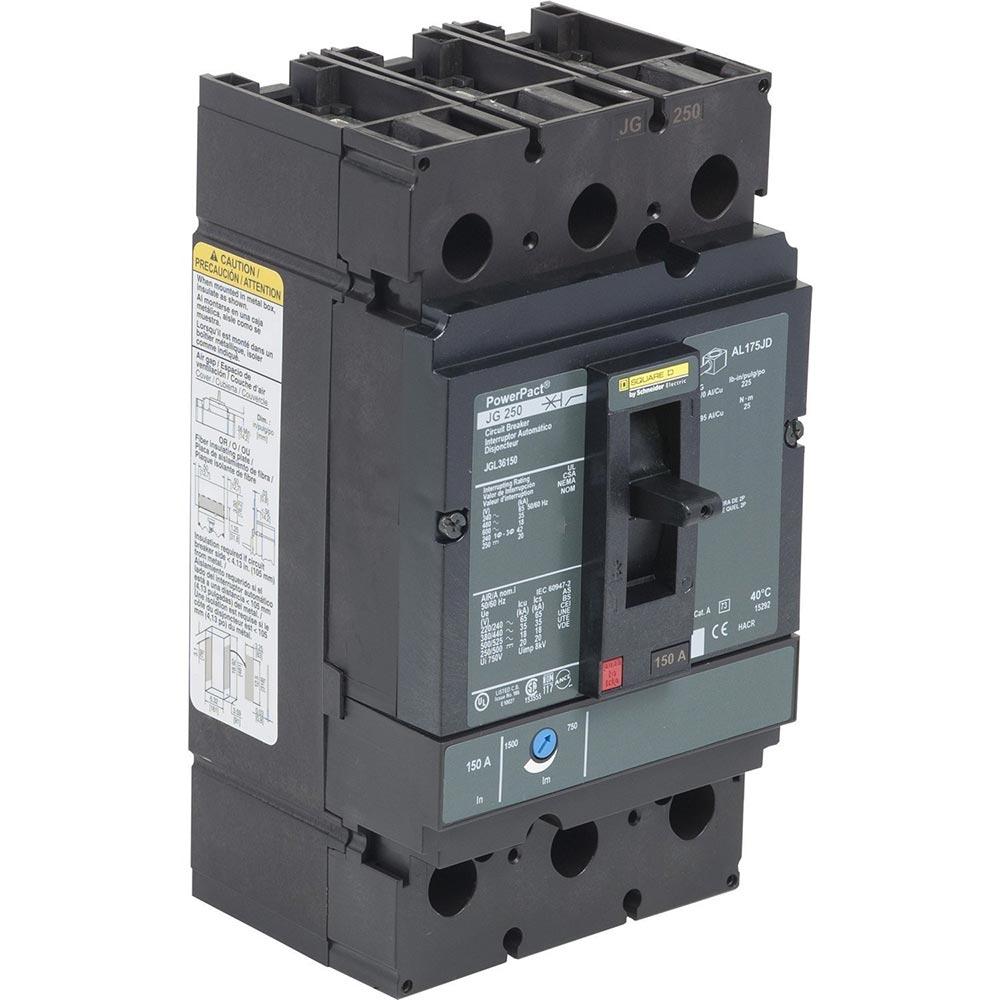

Square D JLL36150 150 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 100 kA@480 V – Feed-Thru – PowerPact Series

The Square D JLL36150 is a 150 Amp, 3-pole molded case circuit breaker from the Schneider Electric / Square D PowerPact Series, Type JLL. It is rated for 600 V with a 100 kA interrupting rating at 480 V and features current-limiting performance. The breaker uses thermal-magnetic protection with a non-interchangeable trip unit and LI (Long-Time and Instantaneous) trip functions. It is designed for feed-thru mounting, includes line & load-side lug terminals, and is suitable for reverse-fed applications.

Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Type: Molded Case Circuit Breaker
• Series: PowerPact
• Type: JLL
• Catalog Number / MPN: JLL36150
• Primary Rating: 150 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 100 kA @ 480 V
• Interrupting Capacity: Current Limiting
• Trip Type: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Connection / Mounting: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• Application: Suitable for Reverse-Fed Applications

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: JLL36150
• Series: PowerPact
• Type: JLL
• Current Rating: 150 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Unit: Non-Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Connection: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• UPC: 785901598756

Compatibility

The Square D JLL36150 is designed for compatible Schneider Electric / Square D PowerPact Type JLL electrical distribution applications. It is suitable for reverse-fed applications as specified. Verify the specific panelboard or switchboard, system voltage, mounting configuration, and breaker compatibility before installation.

Certifications

• UL Listed
