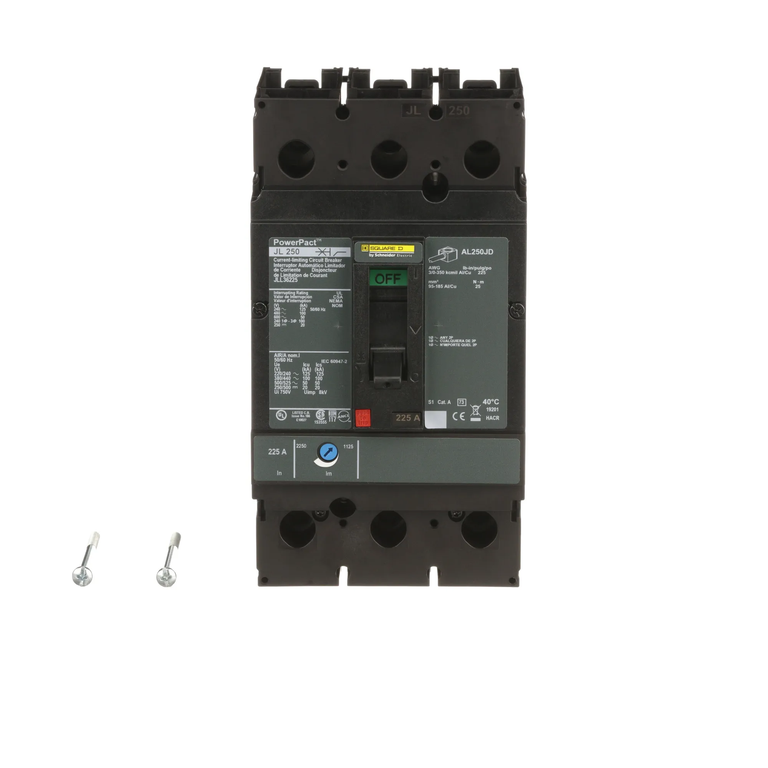

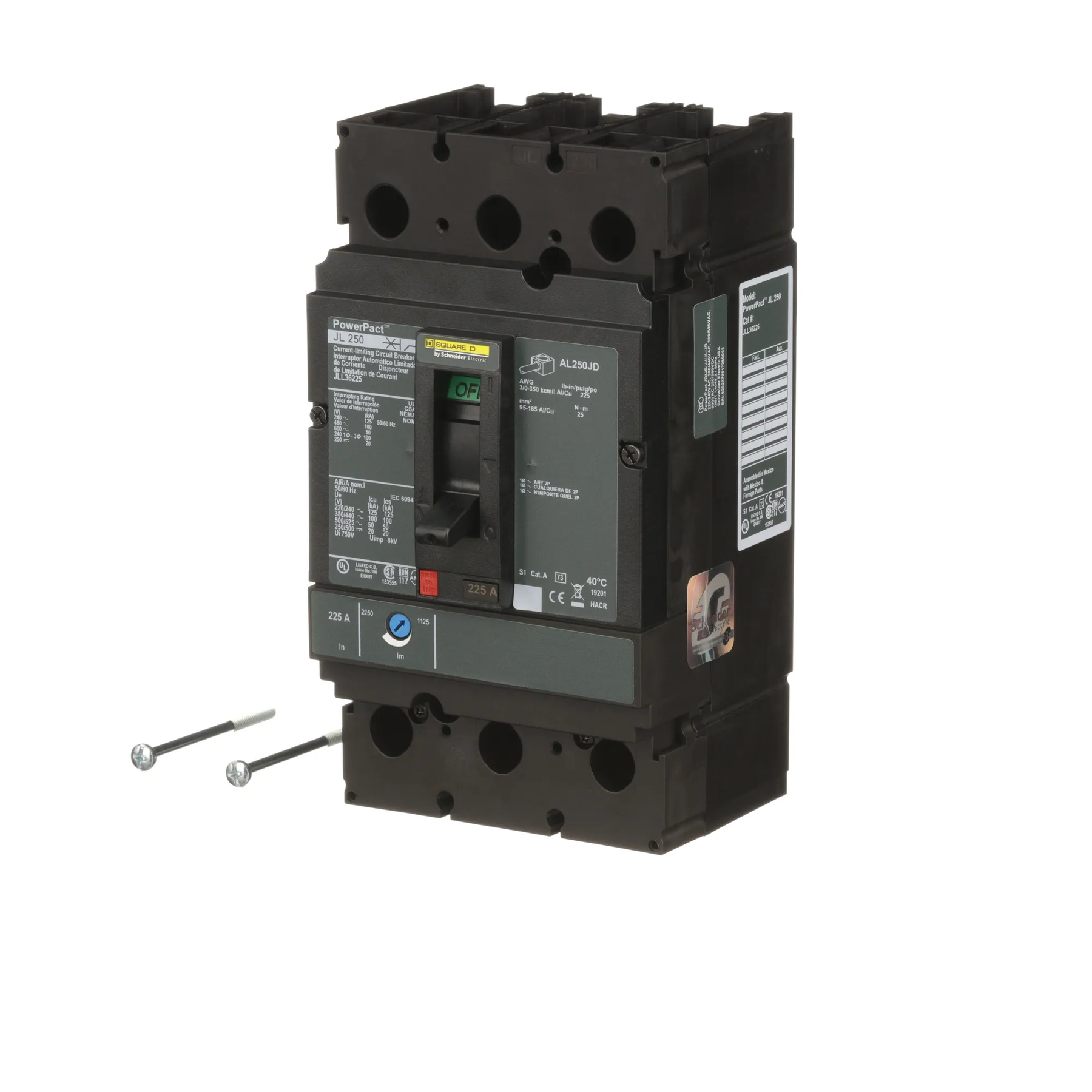

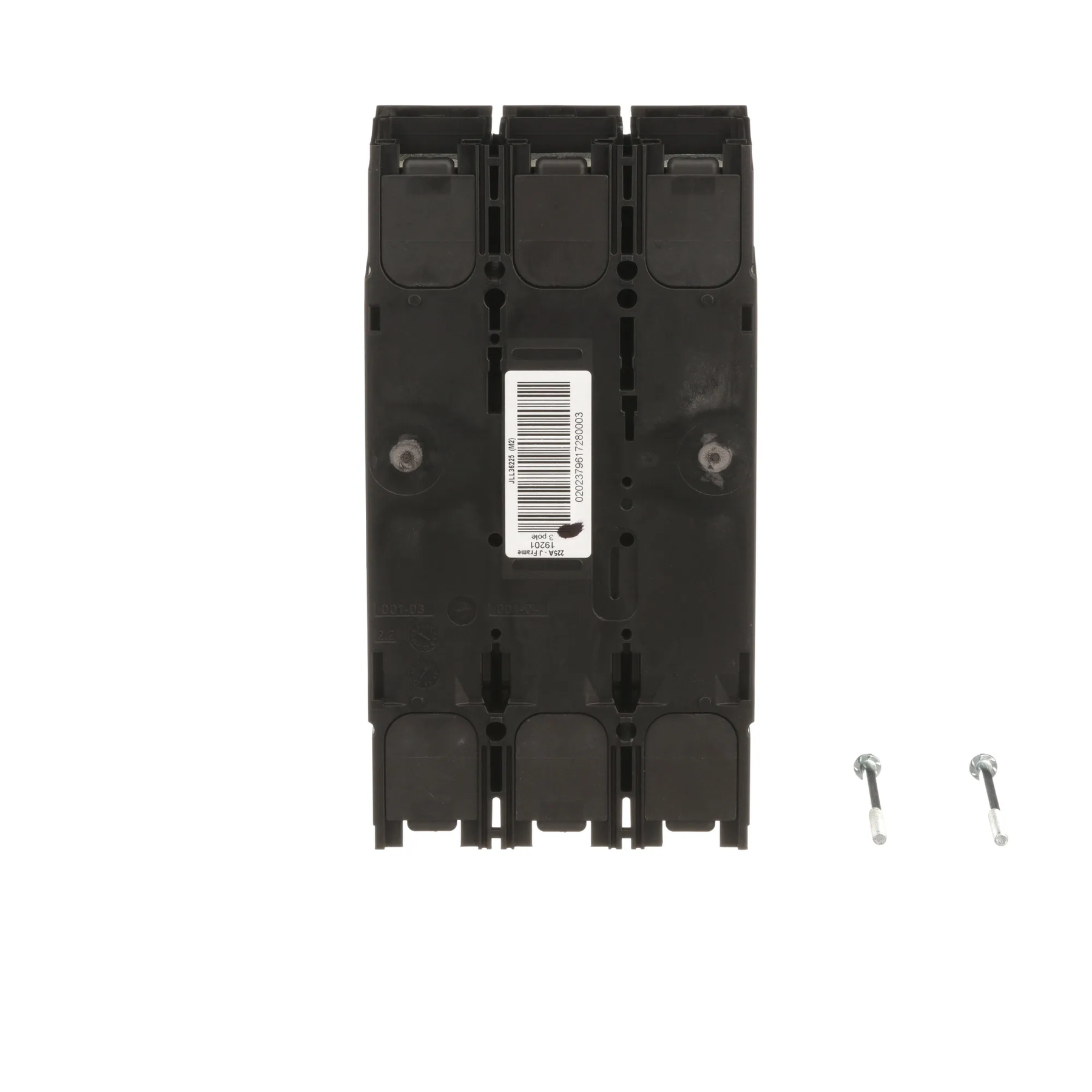

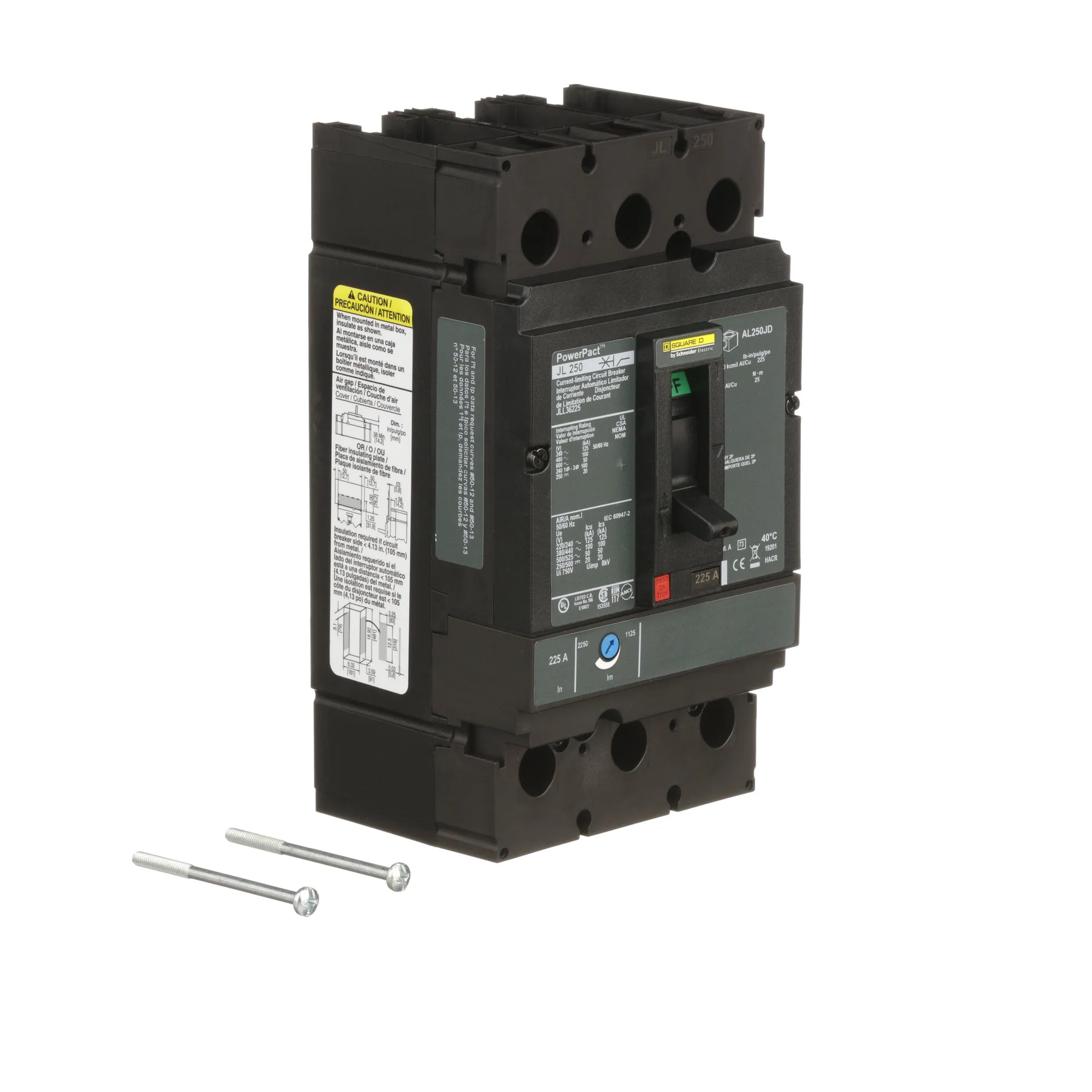

Square D JLL36225 Molded Case Circuit Breaker – 225A – 3-Pole / 3-Phase – 600V – 100kA @ 480V – Feed-Thru – PowerPact JLL Series

The Square D JLL36225 is a 225A, 3-pole, 3-phase molded case circuit breaker from the Square D / Schneider Electric PowerPact Type JLL Series. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions and a non-interchangeable trip.

The JLL36225 is rated for 600V and provides a 100kA interrupting rating at 480V. It features current-limiting construction, a feed-thru configuration, and line- and load-side lug terminals. The breaker is suitable for reverse-fed applications, is supplied as a complete breaker, and is UL Listed.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: JLL
• Type: JLL
• Catalog No.: JLL36225
• Current Rating: 225A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 100kA @ 480V
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Non-Interchangeable
• Current Limiting: Current Limiting
• Mounting / Connection: Feed-Thru
• Breaker Configuration: Complete Breaker
• Terminal Type: Line- and Load-Side Lug Terminals
• Reverse Feed: Suitable for Reverse-Fed Applications
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): JLL36225
• Catalog Number: JLL36225
• Model: JLL36225
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: JLL
• Type: JLL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 225A
• Trip Configuration: Long-Time and Instantaneous (LI)
• UPC:785901433835

Compatibility:

Designed for use with compatible Square D / Schneider Electric PowerPact JLL Series electrical distribution equipment that accepts JLL Series molded case circuit breakers. The JLL36225 provides 225A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker features current-limiting construction, a feed-thru configuration, non-interchangeable LI trip functions, and line- and load-side lug terminals. It is also suitable for reverse-fed applications as specified. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip requirements, terminal arrangement, and installation specifications before installation.

Certifications:

• UL Listed
• PowerPact JLL Series
• 225A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 100kA @ 480V Interrupting Rating
• Current Limiting
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Non-Interchangeable Trip
• Feed-Thru Configuration
• Complete Breaker
• Line- and Load-Side Lug Terminals
• Suitable for Reverse-Fed Applications
