Eaton JT3225T 225 Amp Circuit Breaker Trip Unit – 3 Pole – 600 V – Adjustable Magnetic – Series C

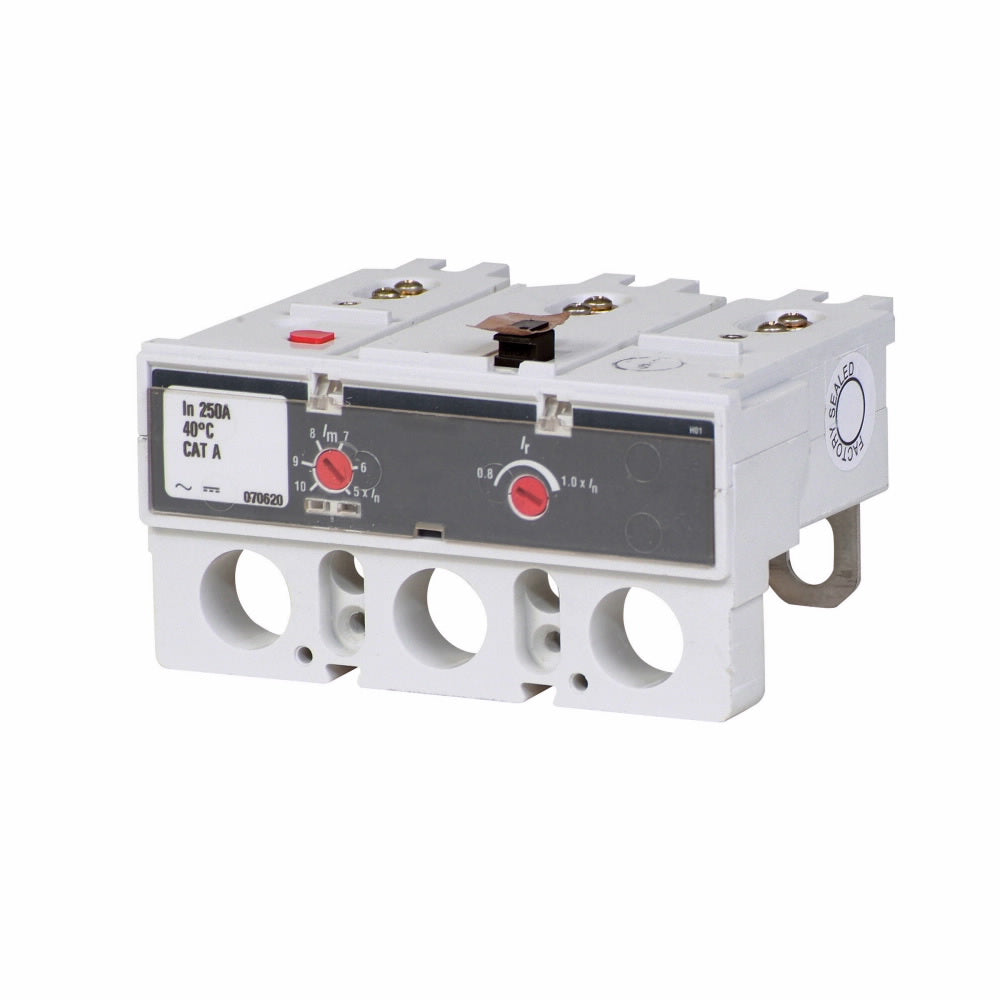

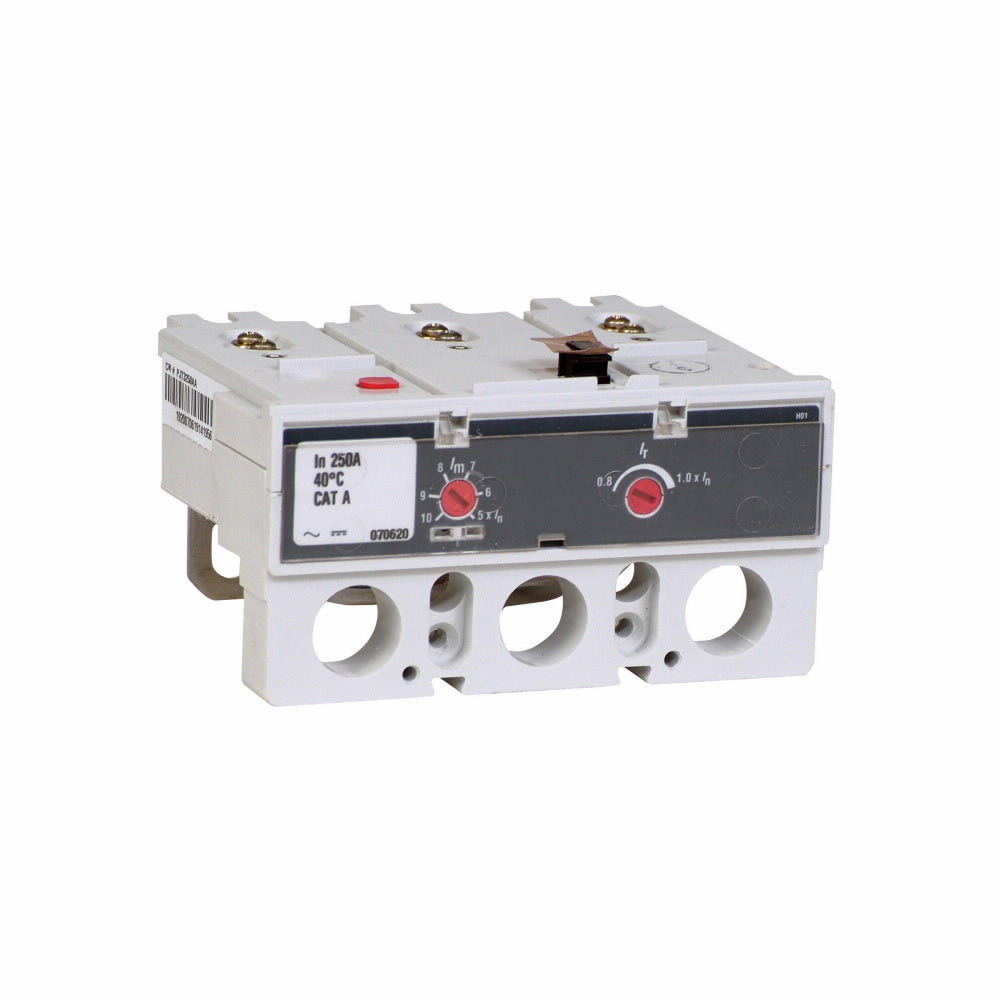

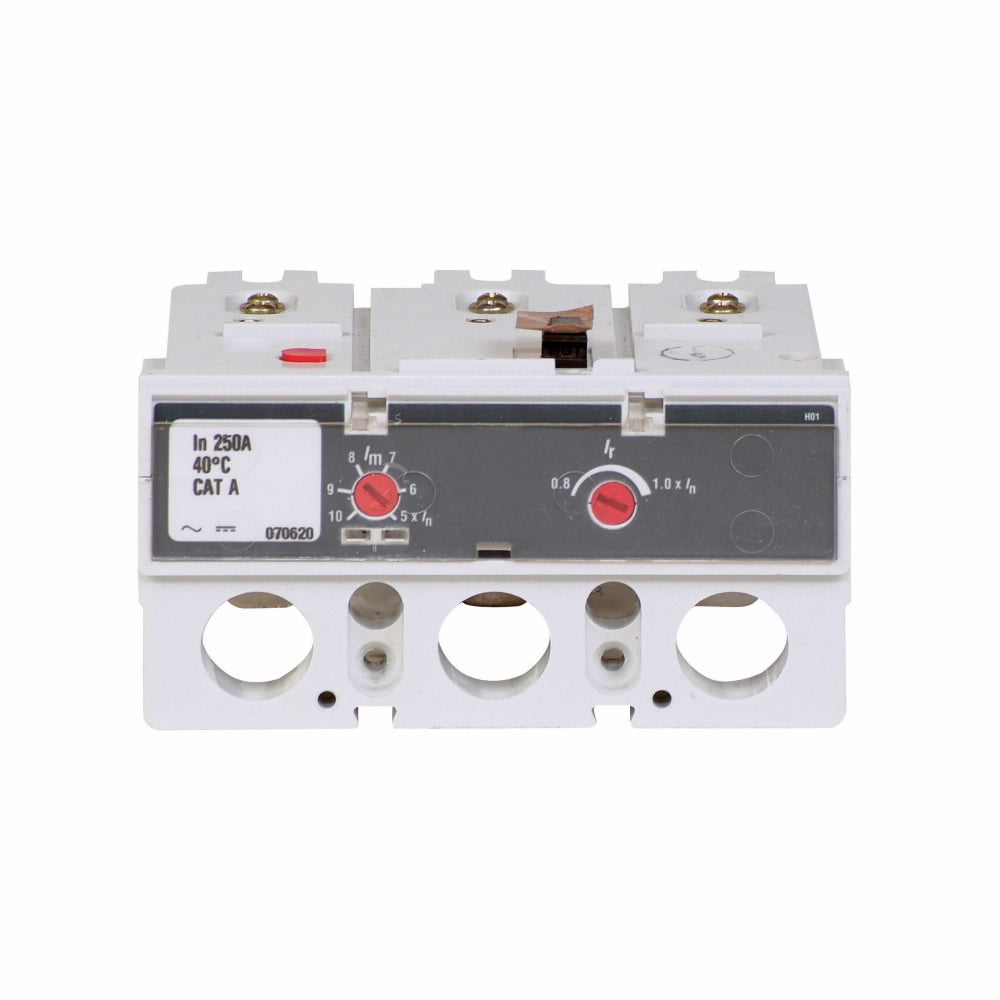

The Eaton / Cutler-Hammer JT3225T is a 225 Amp, 3-pole thermal-magnetic trip unit designed for Eaton Series C J-Frame molded case circuit breakers. It features fixed thermal protection and adjustable magnetic protection for overcurrent and short-circuit protection. This product is a trip unit only and does not include a complete circuit breaker frame.

Specifications

• Manufacturer: Eaton / Cutler-Hammer
• Brand: Eaton
• Product Type: Molded Case Circuit Breaker Trip Unit
• Series: Series C
• Frame: J-Frame
• Type: JT Trip Unit
• Catalog Number / MPN: JT3225T
• Primary Rating: 225 Amp
• Poles / Configuration: 3 Pole
• Maximum System Voltage: 600 VAC / 250 VDC
• Frequency: 50/60 Hz
• Trip Type: Thermal-Magnetic
• Thermal Protection: Fixed
• Magnetic Protection: Adjustable
• Magnetic Trip Range: 1125–2250 A
• Product Configuration: Trip Unit Only

Part Numbers & Identification

• Manufacturer: Eaton / Cutler-Hammer
• Brand: Eaton
• Catalog Number / MPN: JT3225T
• Series: Series C
• Frame: J-Frame
• Type: JT Trip Unit
• Current Rating: 225 A
• Pole Count: 3 Pole
• UPC: 786679404164
• GTIN: 00786679404164

Compatibility

The Eaton JT3225T is designed for compatible Eaton Series C J-Frame molded case circuit breakers.
