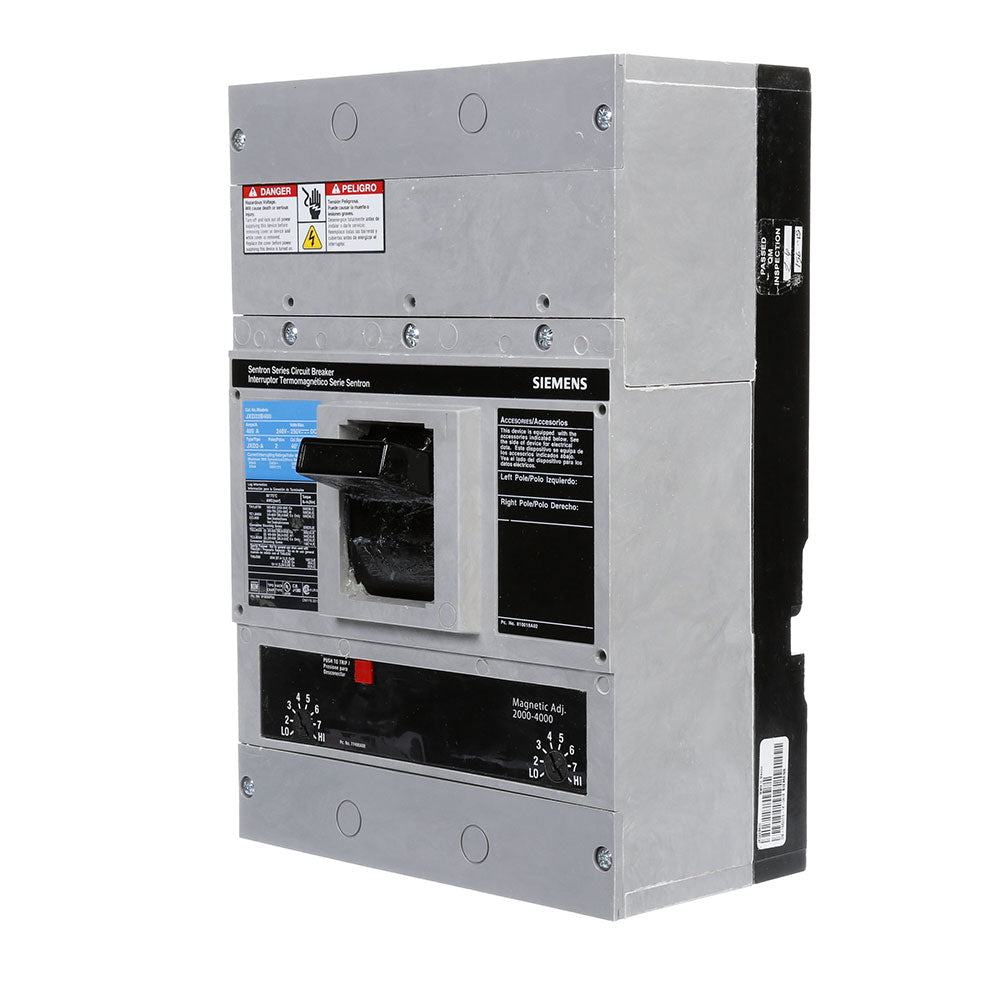

Siemens JXD23B225 Molded Case Circuit Breaker – 225A – 3-Pole / 3-Phase – 240V – 65kA @ 240V – Bolt-On – Sentron JXD Series

The Siemens JXD23B225 is a 225A, 3-pole, 3-phase thermal-magnetic molded case circuit breaker from the Siemens Sentron JXD Series. It is designed for compatible electrical distribution applications and provides overcurrent protection for overload and short-circuit conditions.

The JXD23B225 is rated for 240V and provides a 65kA interrupting rating at 240V with standard interrupting capacity. It uses a bolt-on mounting configuration and is supplied as a complete breaker with a non-interchangeable trip unit. Lugs are not included.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Product Family: Sentron
• Series: JXD
• Type: JXD
• Catalog No.: JXD23B225
• Current Rating: 225A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V
• Interrupting Rating: 65kA @ 240V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Mounting Type: Bolt-On
• Breaker Configuration: Complete Breaker
• Lugs: Not Included
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Siemens

Part Numbers & Identification:

• Manufacturer Part Number (MPN): JXD23B225
• Catalog Number: JXD23B225
• Model: JXD23B225
• Product Family: Siemens Sentron Circuit Breakers
• Series: JXD
• Type: JXD
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 225A
• Rated Current: 225A
• Rated Voltage: 240V
• Trip Configuration: Non-Interchangeable Trip Unit
• UPC : 783643212930

Compatibility:

Designed for use with compatible Siemens Sentron JXD Series electrical distribution equipment that accepts JXD Series bolt-on molded case circuit breakers. The JXD23B225 provides 225A, 3-pole thermal-magnetic overcurrent protection for compatible 240V electrical distribution applications.

The breaker is supplied as a complete breaker with a non-interchangeable trip unit and does not include lugs. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, lug selection, mounting arrangement, temperature requirements, and installation specifications before installation.

Certifications:

• Siemens Sentron JXD Series
• 225A Rated
• 3-Pole / 3-Phase
• 240V Rated
• 65kA @ 240V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Non-Interchangeable Trip Unit
• Bolt-On Mounting
• Complete Breaker
• Lugs Not Included
• 40°C Rated
