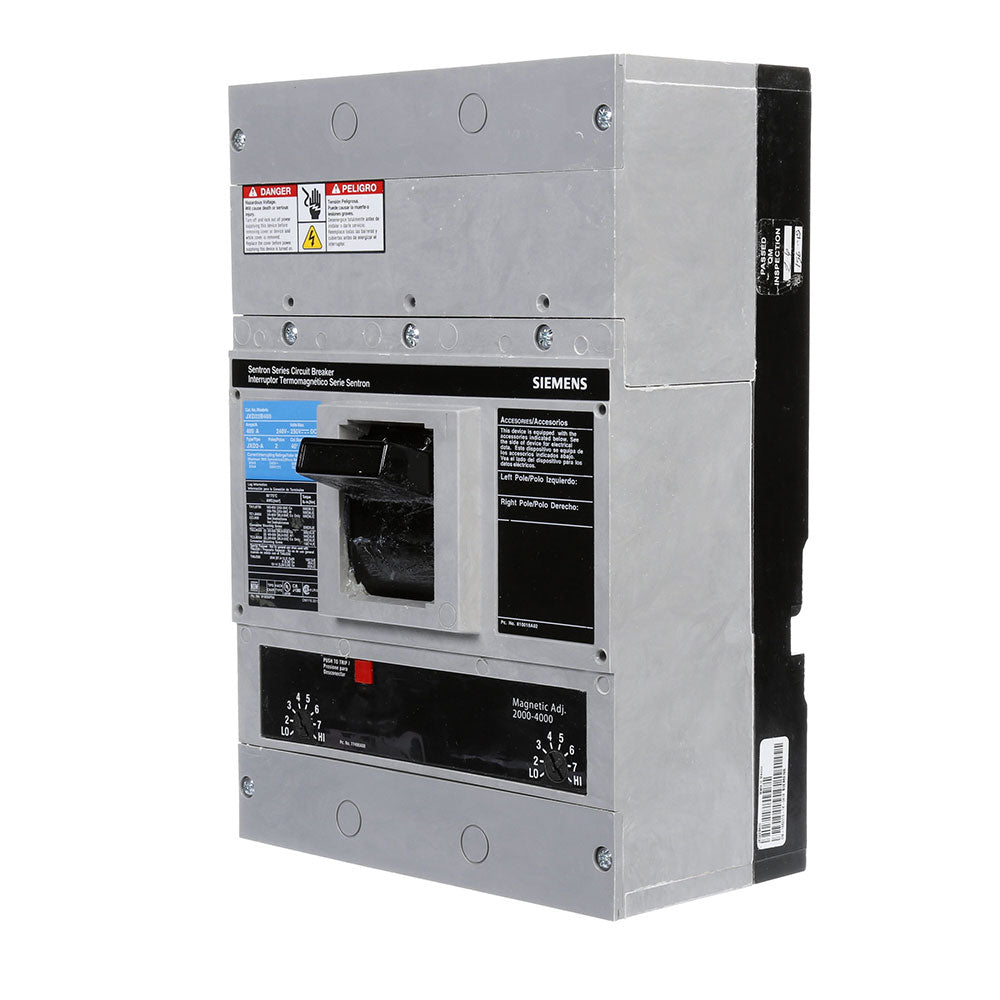

Siemens JXD63B400HL 400 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 65 kA@240 V – Bolt-On – 100% Rated – SENTRON Series

The Siemens JXD63B400HL is a 400 Amp, 3-pole, 3-phase molded case circuit breaker from the Siemens SENTRON Series, Type JXD. It is rated for 600 V and provides interrupting ratings of 65 kA at 240 V and 35 kA at 480 V, with standard interrupting capacity. The breaker features thermal-magnetic protection with a non-interchangeable trip unit and is designed for bolt-on mounting. It is 100% rated and supplied without lugs.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Molded Case Circuit Breaker
• Series: SENTRON
• Type: JXD
• Catalog Number / MPN: JXD63B400HL
• Primary Rating: 400 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 65 kA @ 240 V; 35 kA @ 480 V
• Interrupting Capacity: Standard
• Operating Temperature: 40°C
• Trip Type: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Connection / Mounting: Bolt-On
• Continuous Rating: 100% Rated

Part Numbers & Identification

• Manufacturer: Siemens
• Brand: Siemens
• Catalog Number: JXD63B400HL
• Series: SENTRON
• Type: JXD
• Current Rating: 400 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Unit: Non-Interchangeable
• Connection: Bolt-On
• Continuous Rating: 100% Rated
• UPC:783643229365

Compatibility

The Siemens JXD63B400HL is intended for compatible Siemens SENTRON Series Type JXD electrical distribution applications.
