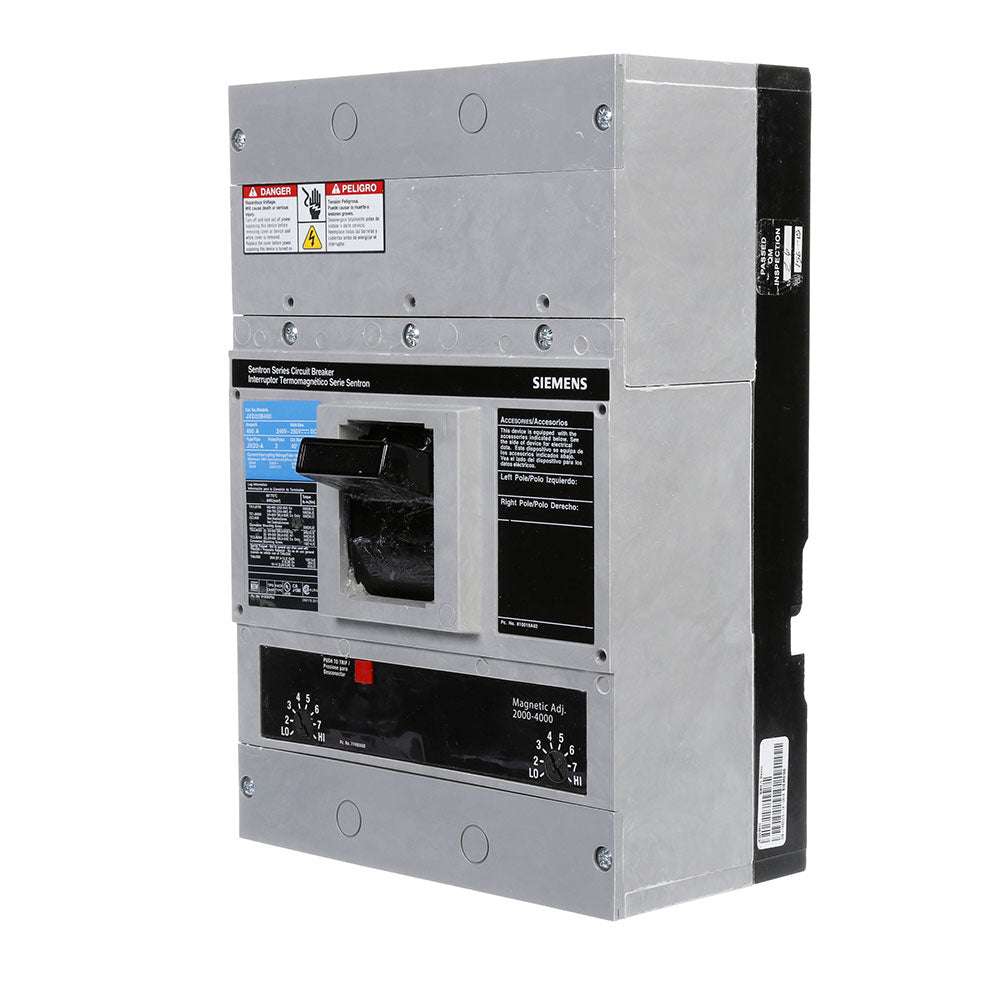

Siemens JXD63H400L 400 Amp Motor Circuit Protector – 3 Pole – 600 V – 35 kA@480 V – Bolt-On – SENTRON Series

The Siemens JXD63H400L is a 400 Amp, 3-pole, 3-phase motor circuit protector (MCP) from the Siemens SENTRON Series, Type JXD. It is rated for 600 V and provides a 35 kA interrupting rating at 480 V, with standard interrupting capacity. The breaker features magnetic-only protection with instantaneous trip functionality and a high instantaneous range. It is designed for bolt-on mounting.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Motor Circuit Protector (MCP)
• Series: SENTRON
• Type: JXD
• Catalog Number / MPN: JXD63H400L
• Primary Rating: 400 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 35 kA @ 480 V
• Interrupting Capacity: Standard
• Trip Type: Magnetic Only
• Trip Functions: I – Instantaneous Protection Only
• Instantaneous Range: High
• Magnetic Range: 2000–4000 A
• Connection / Mounting: Bolt-On

Part Numbers & Identification

• Manufacturer: Siemens
• Brand: Siemens
• Catalog Number: JXD63H400L
• Series: SENTRON
• Type: JXD
• Current Rating: 400 A
• Pole Count: 3 Pole
• Product Type: Magnetic-Only Motor Circuit Protector
• Trip Functions: I – Instantaneous Protection Only
• Magnetic Range: 2000–4000 A
• Connection: Bolt-On
• UPC:783643236851

Compatibility

The Siemens JXD63H400L is intended for compatible Siemens SENTRON Series Type JXD motor control and motor circuit protection applications.
