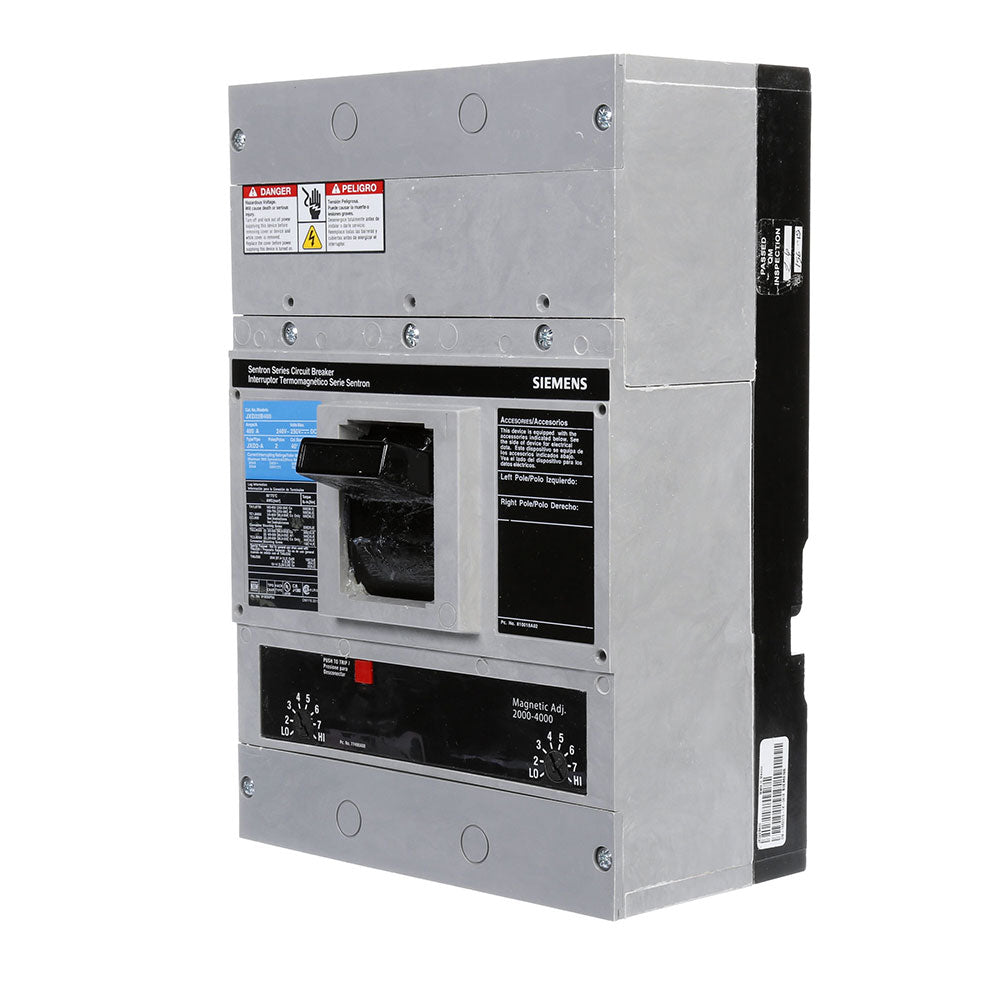

Siemens JXD63L400 400 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 35 kA@480 V – Bolt-On – SENTRON Series

The Siemens JXD63L400 is a 400 Amp, 3-pole molded case circuit breaker from the Siemens SENTRON Series, Type JXD. It is rated for 600 V with a 35 kA interrupting rating at 480 V and features standard interrupting capacity. The breaker is a magnetic-only motor circuit protector with instantaneous (I) protection, a low instantaneous range, and a magnetic range of 1250–2500 A. It is designed for bolt-on mounting.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Molded Case Circuit Breaker
• Series: SENTRON
• Type: JXD
• Catalog Number / MPN: JXD63L400
• Primary Rating: 400 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 35 kA @ 480 V
• Interrupting Capacity: Standard
• Trip Type: Magnetic Only
• Trip Functions: I – Instantaneous Only
• Instantaneous Range: Low
• Magnetic Range: 1250–2500 A
• Connection / Mounting: Bolt-On
• Application: Motor Circuit Protector (MCP)

Part Numbers & Identification

• Manufacturer: Siemens
• Brand: Siemens
• Catalog Number: JXD63L400
• Series: SENTRON
• Type: JXD
• Current Rating: 400 A
• Pole Count: 3 Pole
• Product Type: Magnetic-Only Molded Case Circuit Breaker / Motor Circuit Protector
• Trip Function: I – Instantaneous Only
• Magnetic Range: 1250–2500 A
• UPC:783643213623

Compatibility

The Siemens JXD63L400 is designed for compatible Siemens SENTRON Type JXD motor circuit protector and motor starter applications.
