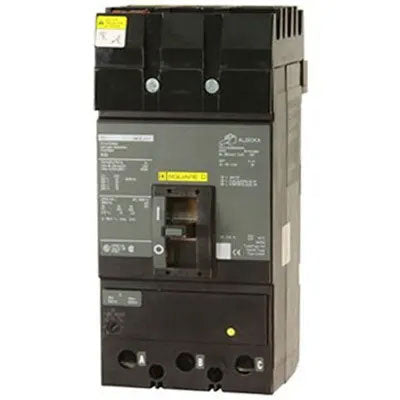

Square D KC34225 – 225A 480VAC 3‑Pole I‑Line Molded Case Circuit Breaker, 65kA @480V KC Frame, Thermal Magnetic,

Description

KC34225

KC34225 is a Square D KC-frame molded case circuit breaker rated for 225 amps and 480 VAC. This 3‑pole breaker is designed with an I-Line style plug-on connection for quick and secure installation in Square D I-Line panelboards and switchboards.

It features a thermal magnetic trip unit with long-time and instantaneous (LI) protection for reliable defense against overloads and short circuits. The high interrupting capacity at multiple voltages makes it suitable for a wide range of commercial and industrial power distribution systems. Designed for 3‑phase systems, the KC34225 is rated for continuous operation at 40 °C ambient temperature and meets UL and CSA certifications.

Interrupting Ratings

• 100 kA @ 240 VAC – extra-high interrupting for lower voltage systems

• 65 kA @ 480 VAC – standard interrupting for 480 V systems

• Not rated @ 600 VAC – KC-series breakers do not have a UL listed interrupting rating at 600 V

Key Specifications

• Manufacturer: Square D

• Part Number: KC34225

• Amperage: 225 A

• Voltage Rating: 480 VAC

• Poles: 3

• Frame Type: KC

• Mounting Type: I-Line Style Plug-On

• Trip Unit: Thermal Magnetic

• Trip Functions: LI – Long-Time and Instantaneous

• Phase: 3

• Ambient Temperature Rating: 40 °C

• Certifications: UL, CSA

Specifications

• Part Number: KC34225

• Manufacturer: Square D

• Category: Circuit Breaker

• Item Subcategory: Molded Case

• Family: I-Line

• Type: KC

• Voltage: 480 VAC

• Amperage: 225 A

• Phase: 3

• Poles: 3

• AIC Rating: 100 kA @ 240 V / 65 kA @ 480 V

• Connection: I-Line Style Plug-On

• Functions: LI – Long-Time and Instantaneous

• Frame Size: K Frame

• Temperature Rating: -13 °F to 158 °F (-25 °C to 70 °C)

• Protection: Thermal Magnetic

Product Data

• UPC: 662643913231

• GTIN: 00662643913231

• Weight: ~13 lb
