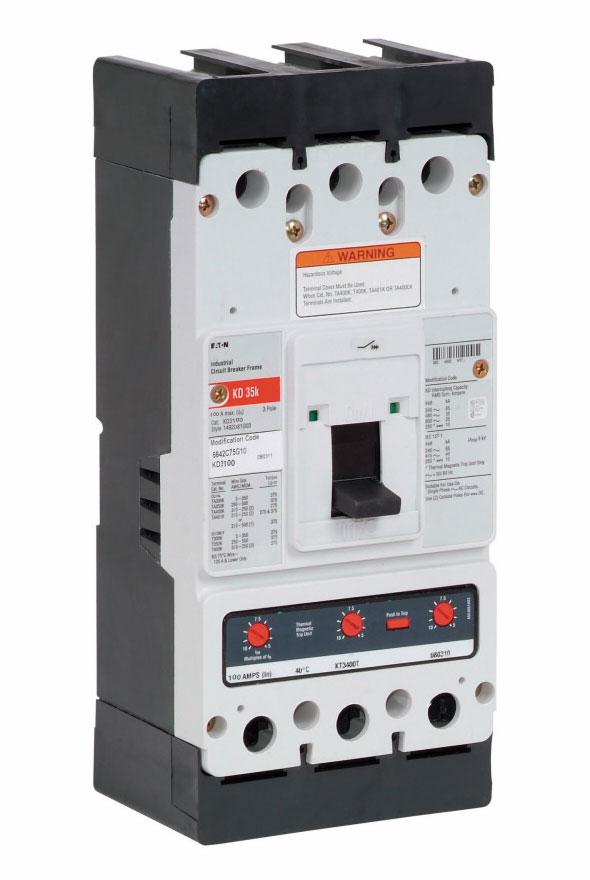

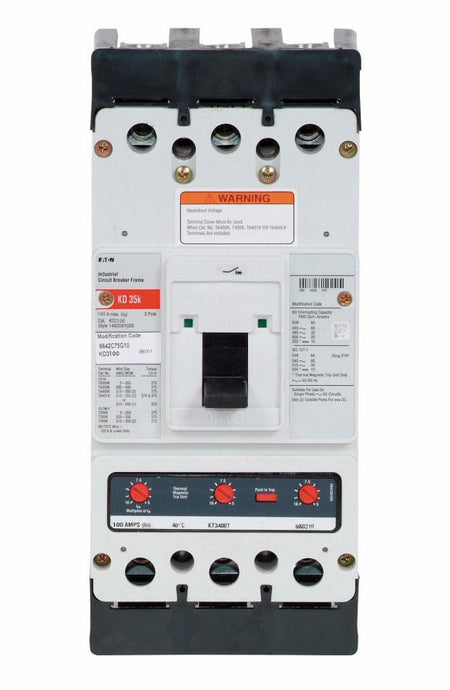

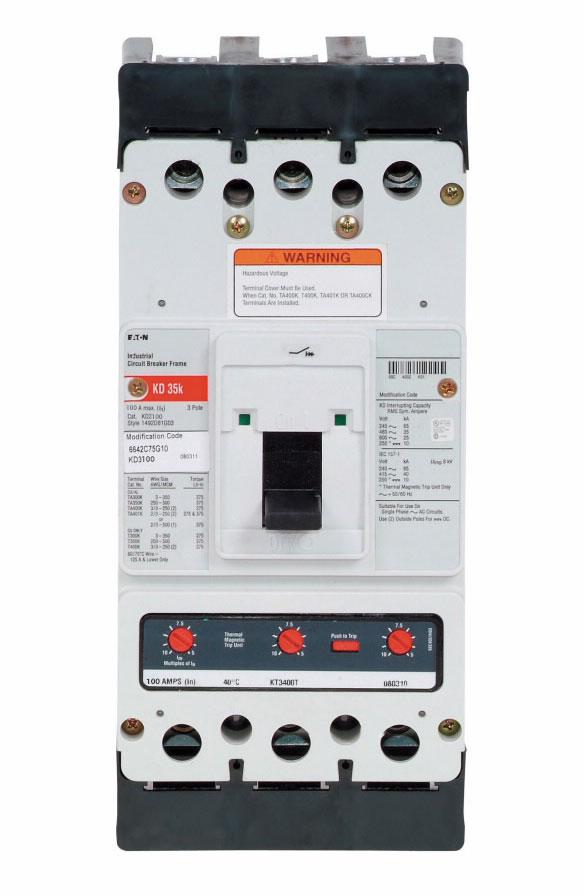

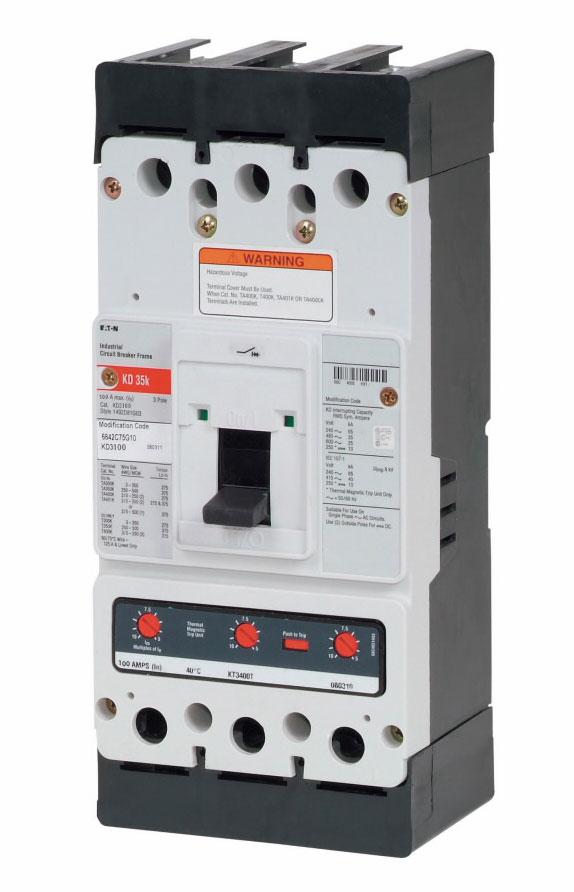

Eaton KD3100Y 100 Amp Molded Case Circuit Breaker – 3 Pole – 600 V AC / 250 V DC – 65 kAIC@240 V AC – 35 kAIC@480 V AC – Feed-Thru – Series C

The Eaton KD3100Y is a 100 Amp, 3-pole molded case circuit breaker from the Eaton / Cutler-Hammer Series C, Type KD, K-Frame product range. It is rated for 600 V AC and 250 V DC, with interrupting ratings of 65 kAIC at 240 V AC and 35 kAIC at 480 V AC. The breaker features fixed thermal and fixed magnetic trip settings, interchangeable LI (Long-Time and Instantaneous) trip functions, and line and load-side lug terminals. It provides standard interrupting capacity and is calibrated for 40°C applications.

Specifications

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Series: Series C
• Type: KD
• Frame: K-Frame
• Catalog Number / MPN: KD3100Y
• Primary Rating: 100 Amp
• Poles / Configuration: 3 Pole
• Voltage: 600 V AC / 250 V DC
• Frequency: 50/60 Hz
• Interrupting Rating: 65 kAIC @ 240 V AC; 35 kAIC @ 480 V AC
• Interrupting Capacity: Standard
• Trip Type: Thermal-Magnetic
• Trip Settings: Fixed Thermal / Fixed Magnetic
• Trip Unit: Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Calibration Temperature: 40°C
• Connection / Mounting: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Catalog Number: KD3100Y
• Series: Series C
• Type: KD
• Frame: K-Frame
• Current Rating: 100 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Settings: Fixed Thermal / Fixed Magnetic
• Trip Functions: LI – Long-Time and Instantaneous
• Connection: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• UPC:786679012970

Compatibility

The Eaton KD3100Y is intended for compatible Eaton / Cutler-Hammer Series C K-Frame electrical distribution applications.
