Eaton KD3175 175 Amp Molded Case Circuit Breaker – 3 Pole – 600 Vac – 35 kA@480 V – Electronic Trip – Series C

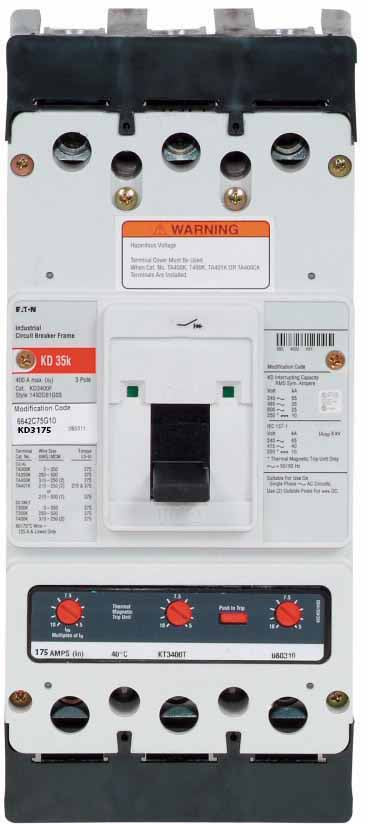

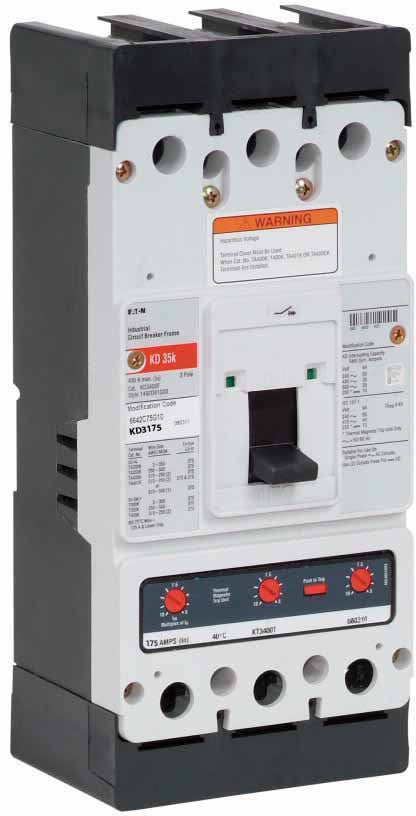

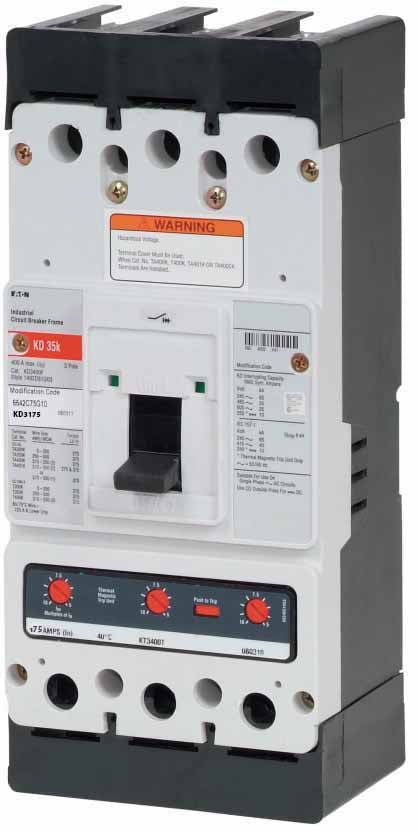

The Eaton KD3175 is a 175 Amp, 3-pole molded case circuit breaker from Eaton's Series C. It features a K-frame design, is rated for 600 Vac and 250 Vdc, and provides a 35 kA interrupting rating at 480 V. The breaker is equipped with an interchangeable electronic trip unit.

Specifications

• Manufacturer: Eaton
• Brand: Eaton
• Product Type: Molded Case Circuit Breaker
• Series: Series C
• Frame: K-Frame
• Catalog Number / MPN: KD3175
• Primary Rating: 175 Amp
• Poles / Configuration: 3 Pole
• AC Voltage Rating: 600 Vac
• DC Voltage Rating: 250 Vdc
• Interrupting Rating: 35 kA @ 480 V
• Trip Type: Electronic
• Trip Unit: Interchangeable Electronic Trip
• Breaker Type: KD

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Eaton
• Catalog Number: KD3175
• Series: Series C
• Frame: K-Frame
• Current Rating: 175 A
• Pole Count: 3 Pole
• Product Type: Molded Case Circuit Breaker
• Trip Type: Interchangeable Electronic
• Breaker Type: KD
• UPC: 786679349137

Compatibility

The Eaton KD3175 is designed for compatible Eaton Series C K-frame electrical distribution applications. Verify the specific panelboard or switchboard, AC/DC system voltage, mounting configuration, and breaker compatibility before installation.
