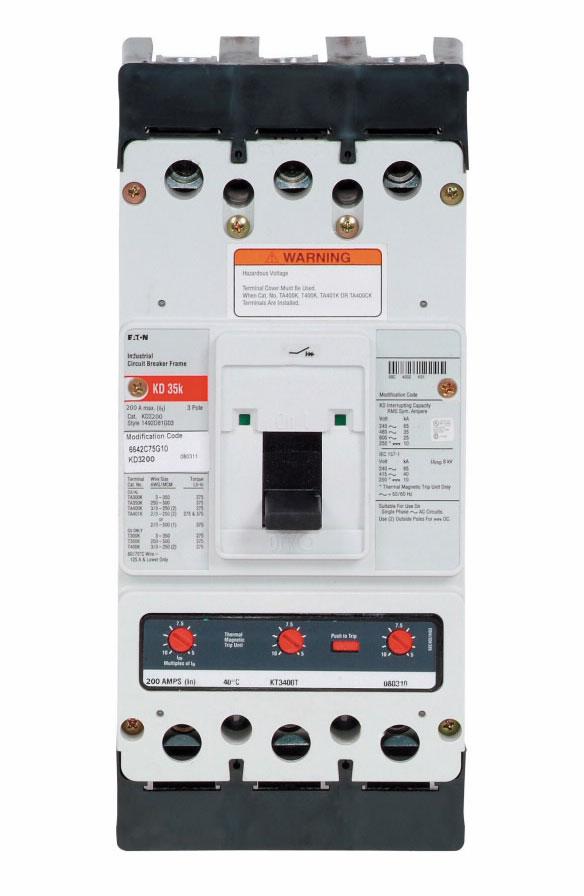

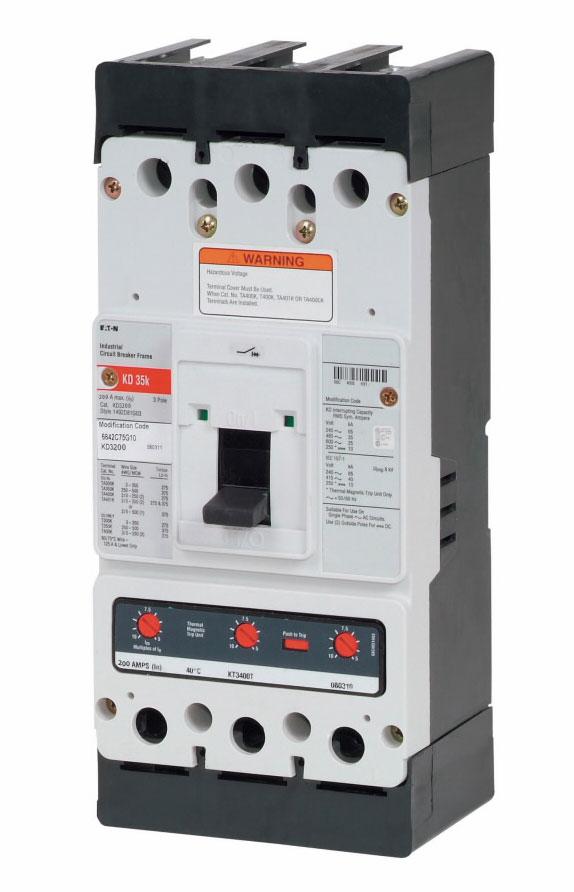

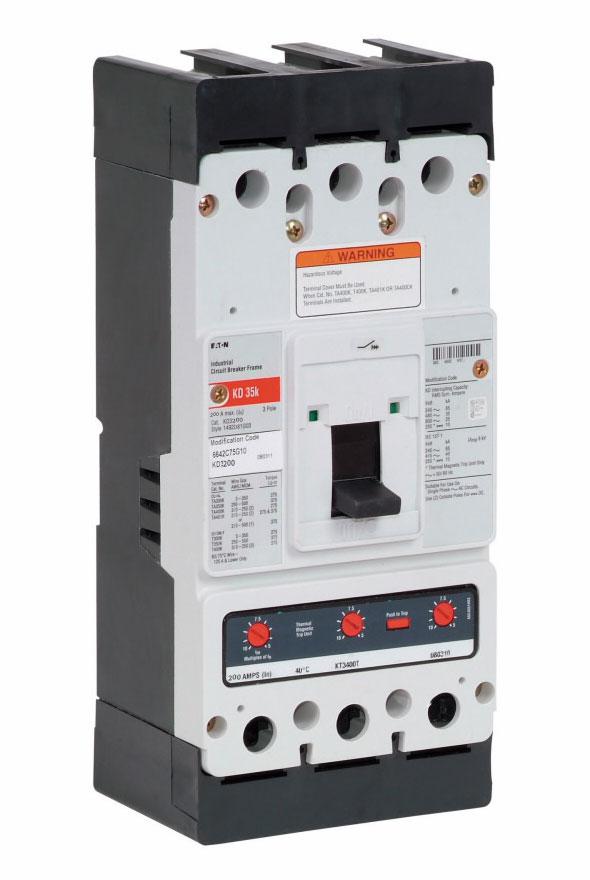

Eaton KD3200Y 200 Amp Molded Case Circuit Breaker – 3 Pole – 600 V AC / 250 V DC – 35 kAIC@480 V – Feed-Thru – Series C

The Eaton KD3200Y is a 200 Amp, 3-pole molded case circuit breaker from the Eaton / Cutler-Hammer Series C, K-Frame product range, Type KD. Rated for 600 V AC and 250 V DC, it provides interrupting ratings of 65 kAIC at 240 V AC and 35 kAIC at 480 V AC. The breaker features fixed thermal and fixed magnetic protection with an interchangeable trip unit supporting LI (Long-Time and Instantaneous) trip functions. It is designed for feed-thru applications and includes aluminum line and load-side lug terminals. The breaker has standard interrupting capacity and is calibrated for 40°C applications.

Specifications

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Series: Series C
• Type: KD
• Frame: K-Frame
• Catalog Number / MPN: KD3200Y
• Primary Rating: 200 Amp
• Poles / Configuration: 3 Pole
• Voltage: 600 V AC
• DC Voltage: 250 V DC
• Interrupting Rating: 65 kAIC @ 240 V AC; 35 kAIC @ 480 V AC
• Interrupting Capacity: Standard
• Trip Type: Fixed Thermal / Fixed Magnetic
• Trip Unit: Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Calibration Temperature: 40°C
• Connection / Mounting: Feed-Thru
• Terminals: Aluminum Line & Load-Side Lug Terminals

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Catalog Number: KD3200Y
• Series: Series C
• Type: KD
• Frame: K-Frame
• Current Rating: 200 A
• Pole Count: 3 Pole
• Product Type: Molded Case Circuit Breaker
• Trip Unit: Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Connection: Feed-Thru
• Terminals: Aluminum Line & Load-Side Lug Terminals
• UPC:786679349144

Compatibility

The Eaton KD3200Y is intended for compatible Eaton / Cutler-Hammer Series C K-Frame electrical distribution applications.
