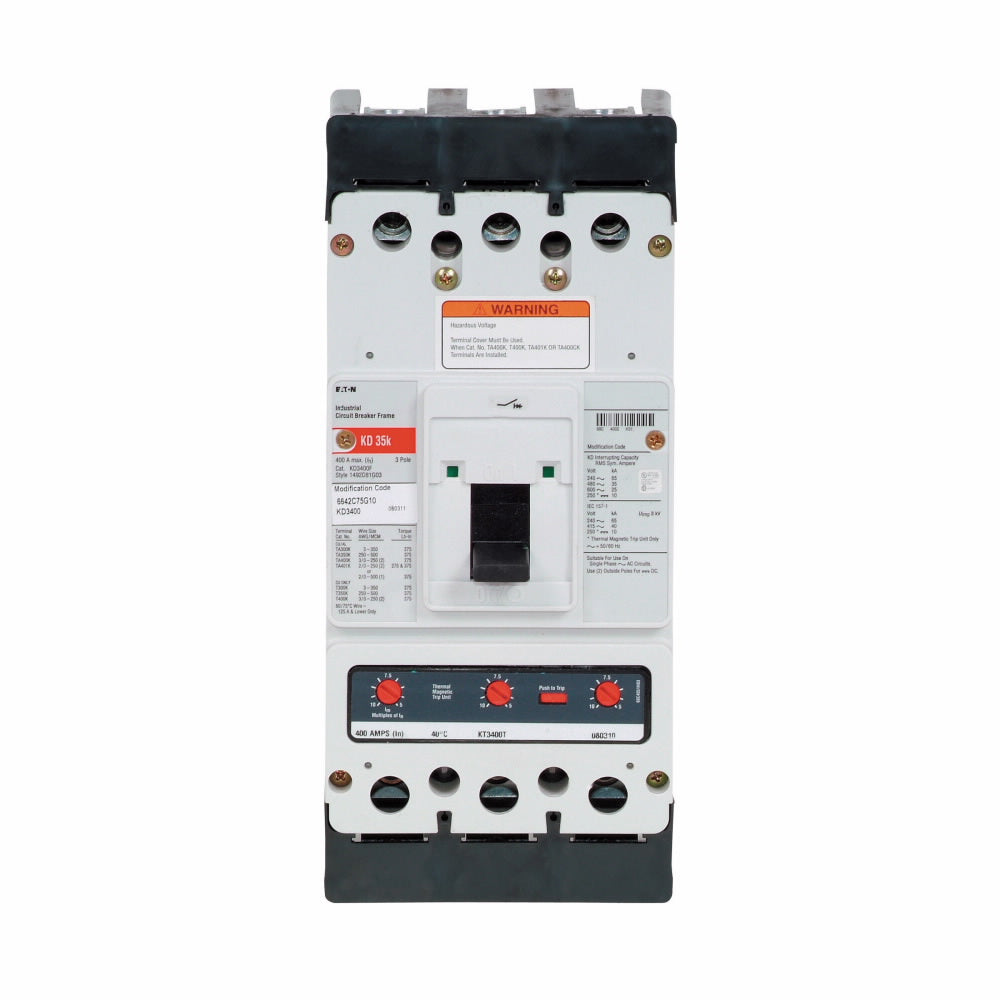

Eaton KD3400K 400 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – Feed-Thru – Series C Type KD

The Eaton KD3400K is a 400 Amp, 3-pole molded case circuit breaker from the Eaton / Cutler-Hammer Series C, Type KD. It is rated for 600 V and features a standard interrupting capacity. The breaker is configured as a non-automatic switch with no overcurrent protection and includes an interchangeable trip unit and line & load-side lug terminals. It is designed for feed-thru mounting applications.

Specifications

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Product Type: Molded Case Circuit Breaker / Non-Automatic Switch
• Series: Series C
• Type: KD
• Catalog Number / MPN: KD3400K
• Primary Rating: 400 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Capacity: Standard
• Overcurrent Protection: NA – No Overcurrent Protection
• Trip Unit: Interchangeable
• Connection / Mounting: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• Switch Type: Non-Automatic Switch
• Ambient Temperature Rating: 40°C

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Catalog Number: KD3400K
• Series: Series C
• Type: KD
• Current Rating: 400 A
• Pole Count: 3 Pole
• Product Type: Non-Automatic Molded Case Switch
• Overcurrent Protection: None
• Trip Unit: Interchangeable
• Connection: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• UPC: 786679612163

Compatibility

The Eaton KD3400K is designed for compatible Eaton / Cutler-Hammer Series C Type KD electrical distribution applications. Verify the specific panelboard or switchboard, system voltage, mounting configuration, trip unit requirements, and terminal compatibility before installation.
