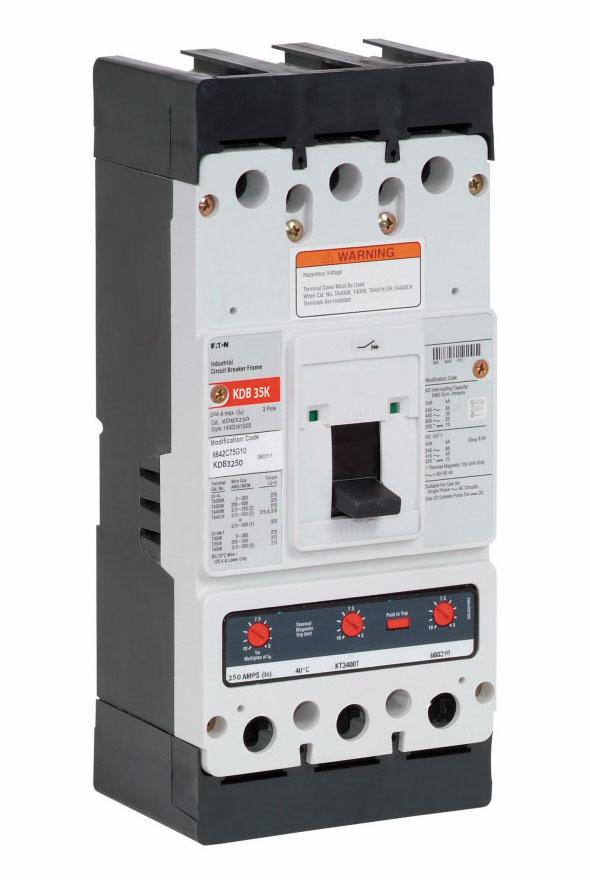

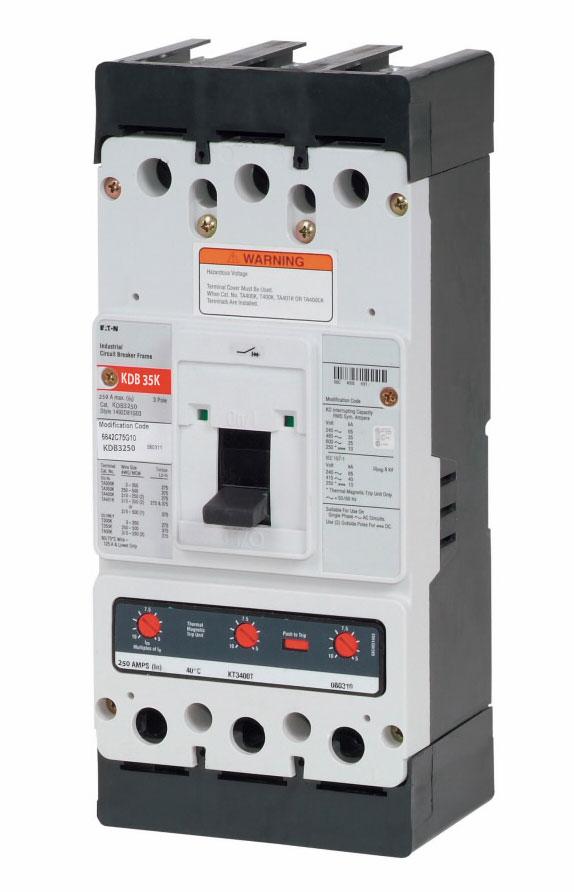

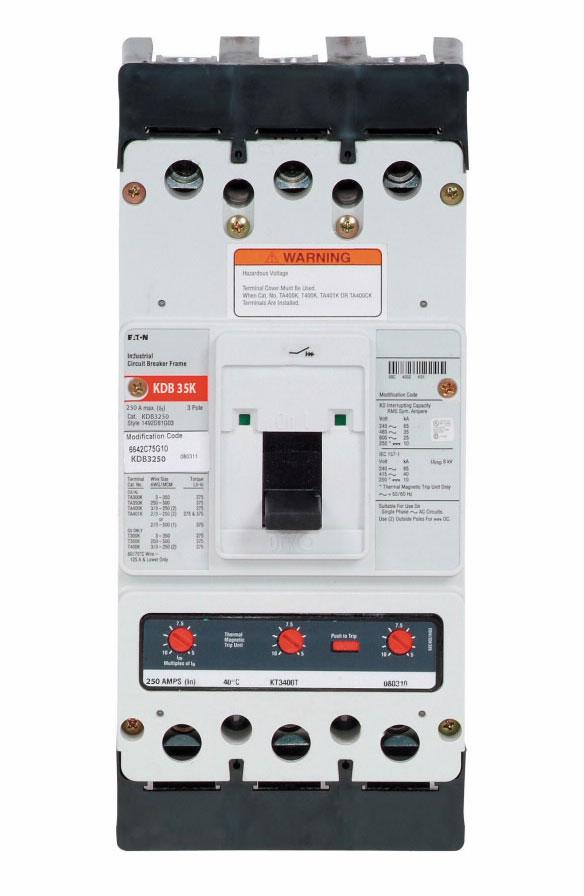

Eaton KDB3250W 250 Amp Molded Case Circuit Breaker – 3 Pole – 35 kA@480 V – Feed-Thru – Series C

Product Description - KDB3250W - Eaton Molded Case Circuit Breakers

Eaton Cutler Hammer, Series C, type KDB, 3P, 3PH, 250A, 600V, 65 kAIC at 240 Vac, 35 kAIC at 480 Vac, standard interrupting capacity, 40 degree C, feed-thru, complete with non-interchangeable LI - Long-Time and Instantaneous trip fun

The Eaton KDB3250W is a 250 Amp, 3-pole, 3-phase molded case circuit breaker from Eaton / Cutler-Hammer Series C, Type KDB. Rated for 600 V, it provides interrupting ratings of 65 kA at 240 V AC and 35 kA at 480 V AC. The breaker features standard interrupting capacity, a thermal-magnetic trip mechanism, and a non-interchangeable trip unit with LI (Long-Time and Instantaneous) protection functions. It is designed for feed-thru mounting and includes line and load-side lug terminals.

Specifications

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Series: Series C
• Type: KDB
• Catalog Number / MPN: KDB3250W
• Primary Rating: 250 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 65 kA @ 240 V AC; 35 kA @ 480 V AC
• Interrupting Capacity: Standard
• Calibration Temperature: 40°C
• Trip Type: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Connection / Mounting: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Catalog Number: KDB3250W
• Series: Series C
• Type: KDB
• Current Rating: 250 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Unit: Non-Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Connection: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• UPC:786679612118

Compatibility

The Eaton KDB3250W is intended for compatible Eaton / Cutler-Hammer Series C electrical distribution applications.
