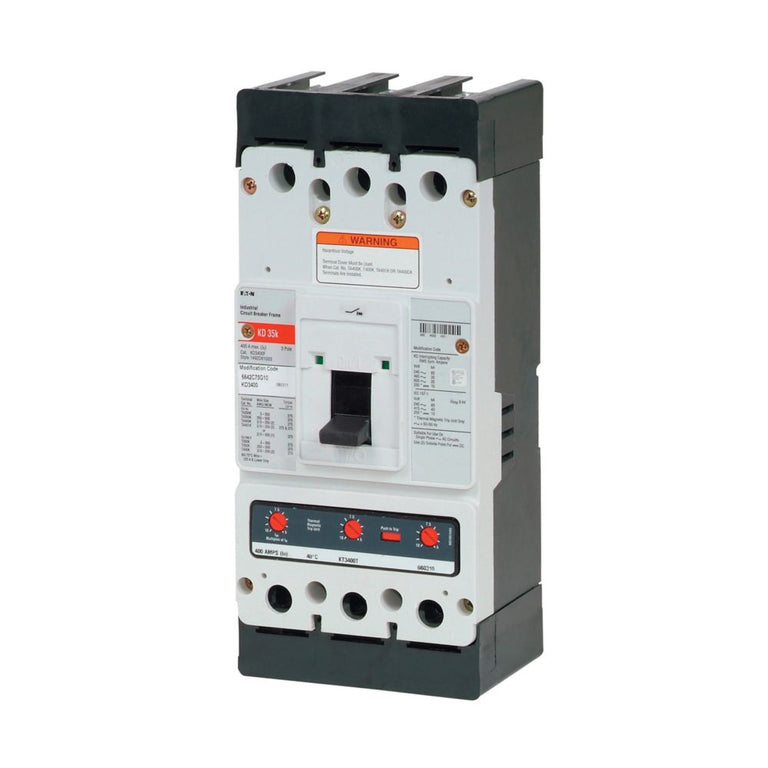

Eaton KDB3400FT32W 400 Amp Molded Case Circuit Breaker – 3 Pole – 600 VAC – 35 kA@480 VAC – Electronic LSI – Series C

The Eaton KDB3400FT32W is a 400 Amp, 3-pole electronic molded case circuit breaker from the Eaton Series C, K-Frame, Type KDB range. It is rated for 600 VAC and 250 VDC and provides interrupting ratings of 65 kAIC at 240 VAC and 35 kAIC at 480 VAC. The breaker features a Digitrip 310 RMS electronic trip unit with LSI (Long-Time, Short-Time and Instantaneous) protection functions. It supports reverse-feed applications and is supplied without terminals.

Specifications

• Manufacturer: Eaton
• Brand: Eaton
• Product Type: Electronic Molded Case Circuit Breaker
• Series: Series C
• Type: KDB
• Frame: K-Frame
• Catalog Number / MPN: KDB3400FT32W
• Primary Rating: 400 Amp
• Poles / Configuration: 3 Pole
• Voltage: 600 VAC
• DC Voltage: 250 VDC
• Interrupting Rating: 65 kAIC@240 VAC; 35 kAIC@480 VAC
• Trip Type: Electronic
• Trip Unit: Digitrip 310 RMS
• Trip Functions: LSI – Long-Time, Short-Time and Instantaneous
• Connection / Mounting: Reverse Feed
• Frequency: 50/60 Hz

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Eaton
• Catalog Number: KDB3400FT32W
• Series: Series C
• Type: KDB
• Frame: K-Frame
• Current Rating: 400 A
• Pole Count: 3 Pole
• Product Type: Electronic Molded Case Circuit Breaker
• Trip Unit: Digitrip 310 RMS
• Trip Functions: LSI – Long-Time, Short-Time and Instantaneous
• UPC: 782113712277

Compatibility

The Eaton KDB3400FT32W is intended for compatible Eaton Series C K-Frame Type KDB electrical distribution applications, including installations designed for reverse-feed use.
