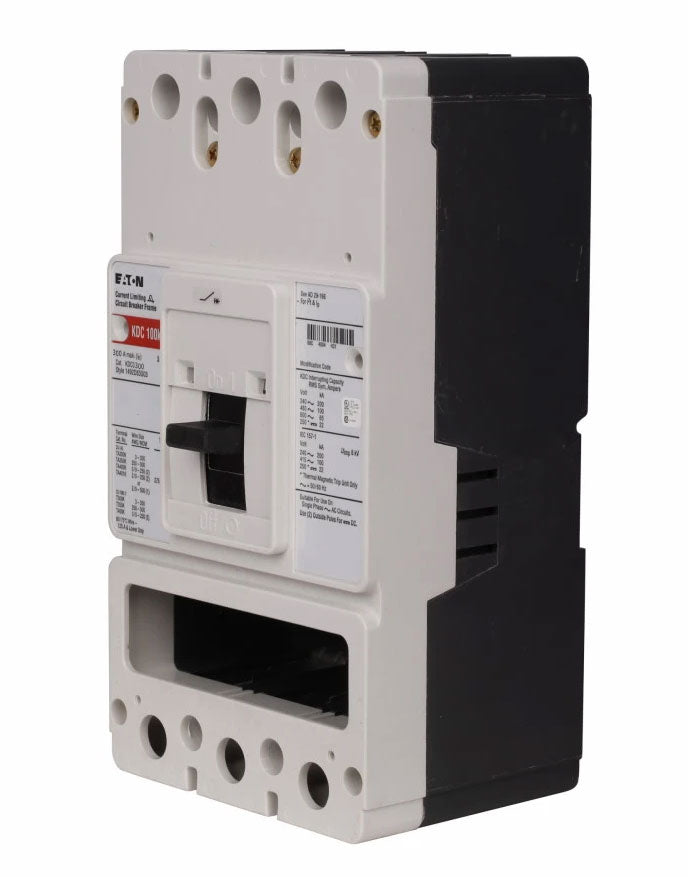

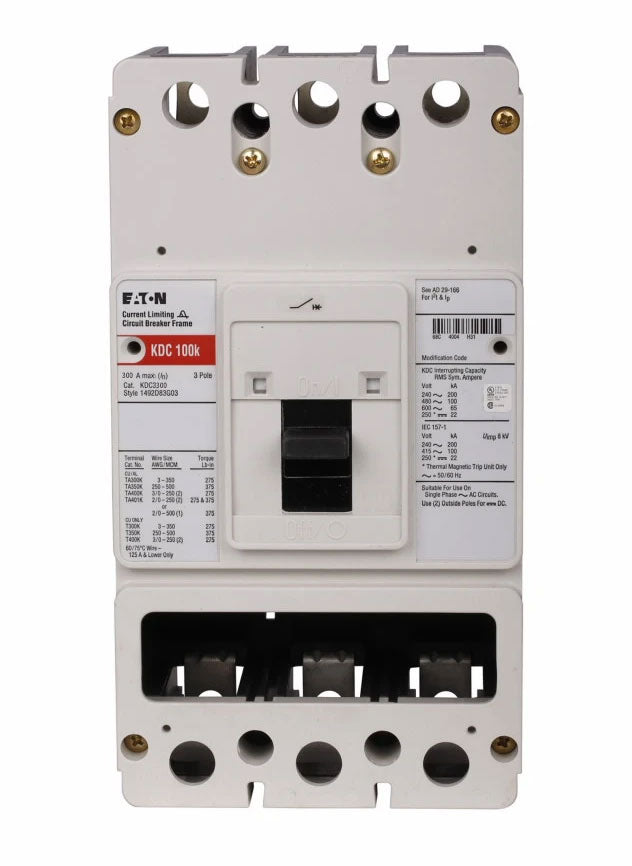

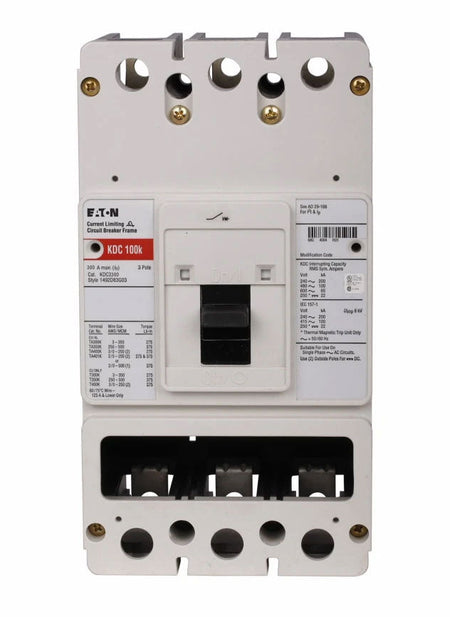

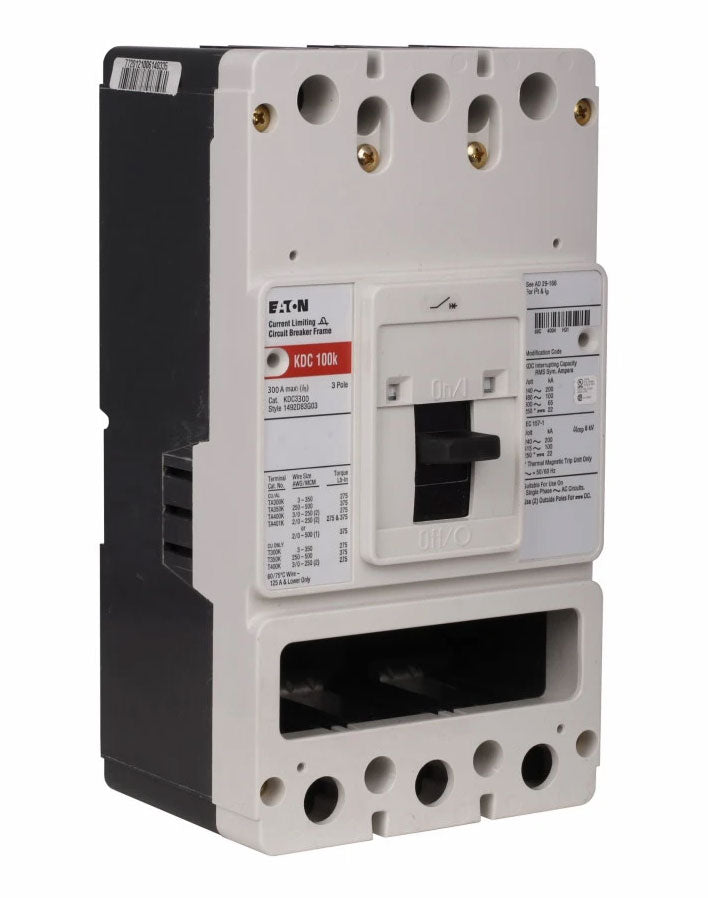

Eaton KDC3300Y 300 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 100 kA@480 V – Feed-Thru – Series C

The Eaton KDC3300Y is a 300 Amp, 3-pole, 3-phase molded case circuit breaker from the Eaton / Cutler-Hammer Series C, Type KDC. Rated for 600 V, it provides interrupting ratings of 200 kAIC at 240 V AC and 100 kA at 480 V. The breaker features current-limiting performance, thermal-magnetic protection, and an interchangeable trip unit with LI (Long-Time and Instantaneous) trip functions. It is designed for feed-thru mounting and is suitable for reverse-fed applications.

Specifications

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Series: Series C
• Type: KDC
• Catalog Number / MPN: KDC3300Y
• Primary Rating: 300 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 200 kAIC @ 240 V AC; 100 kA @ 480 V
• Interrupting Capacity: Current Limiting
• Calibration Temperature: 40°C
• Trip Type: Thermal-Magnetic
• Trip Unit: Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Connection / Mounting: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• Application: Suitable for Reverse-Fed Applications

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Catalog Number: KDC3300Y
• Series: Series C
• Type: KDC
• Current Rating: 300 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Unit: Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Connection: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• UPC:786679341681

Compatibility

The Eaton KDC3300Y is designed for compatible Eaton / Cutler-Hammer Series C Type KDC electrical distribution applications, including suitable reverse-fed installations.
