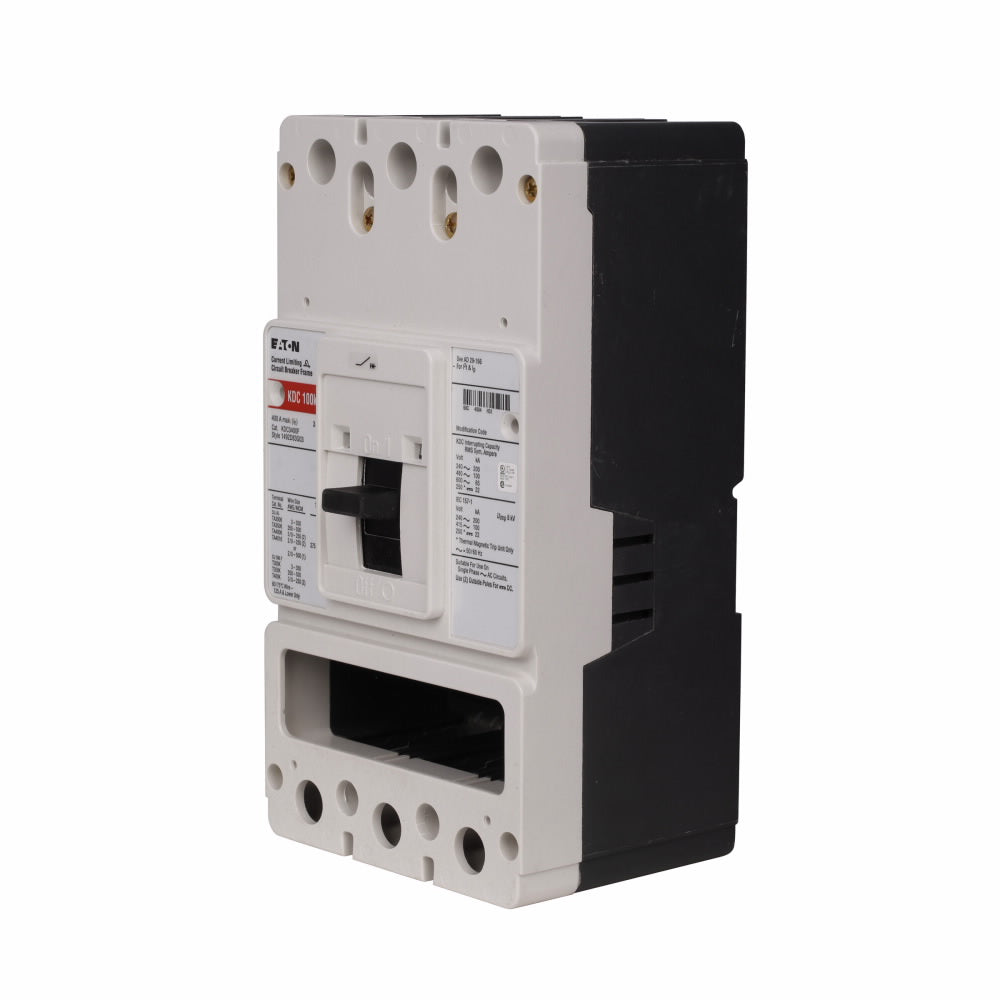

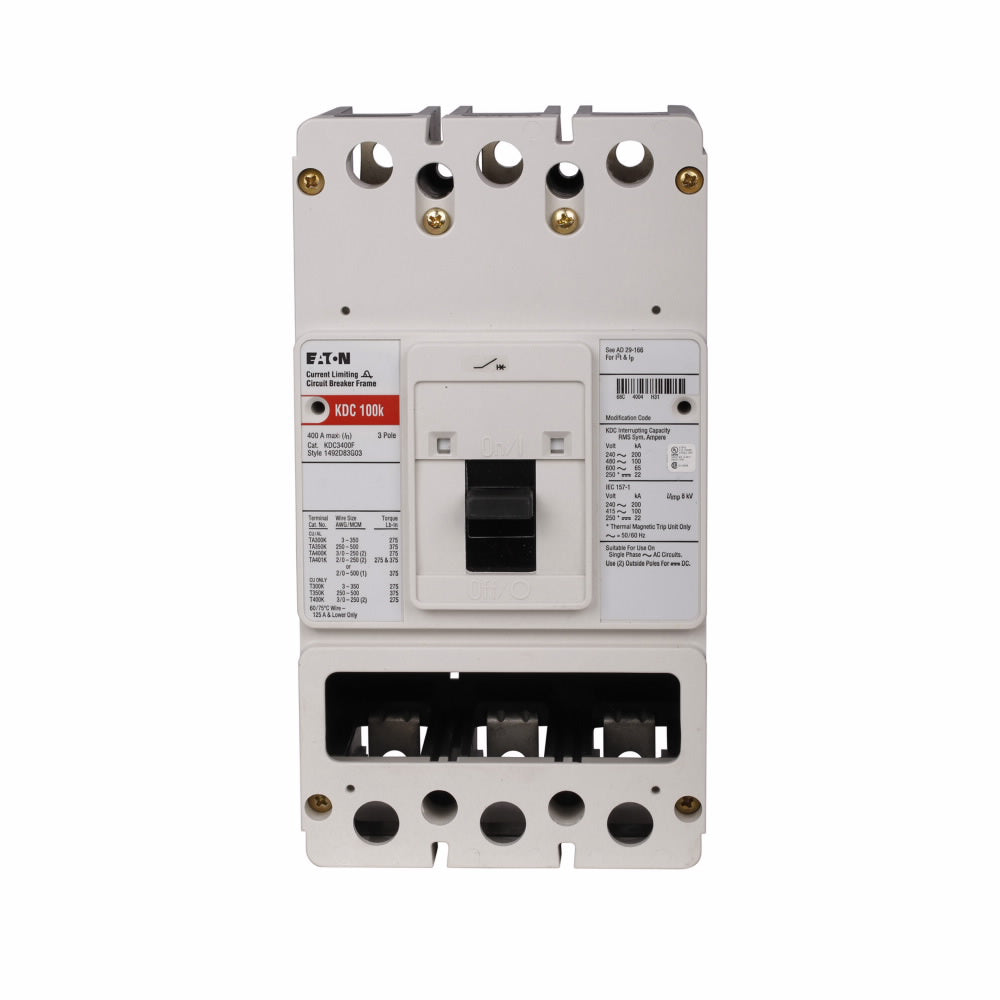

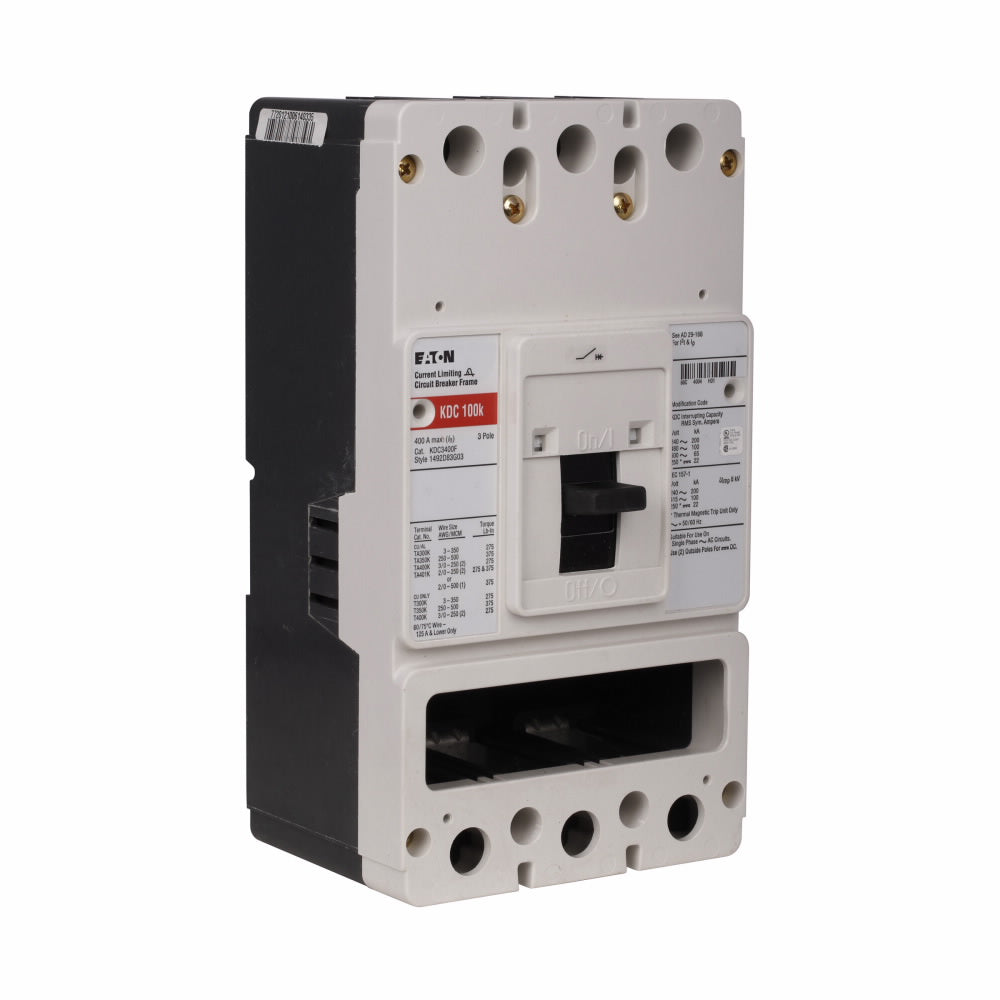

Eaton KDC3400F Molded Case Circuit Breaker Frame – 400A – 3-Pole / 3-Phase – 600V – 100kA @ 480V – Bolt-On – Series C KDC

The Eaton KDC3400F is a 400A, 3-pole, 3-phase molded case circuit breaker frame from the Eaton Series C Type KDC Series. It is a frame-only configuration with a current-limiting design and is rated for 600V.

The KDC3400F provides a 100kA interrupting rating at 480V and features a thermal-magnetic circuit breaker design. As a frame-only product, the applicable trip unit and other required components must be specified separately.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer / Westinghouse
• Product Type: Molded Case Circuit Breaker Frame
• Product Family: Series C
• Series: KDC
• Type: KDC
• Catalog No.: KDC3400F
• Current Rating: 400A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 100kA @ 480V
• Protection Type: Thermal-Magnetic
• Current Limiting: Current Limiting
• Mounting Type: Bolt-On
• Configuration: Frame Only
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): KDC3400F
• Catalog Number: KDC3400F
• Model: KDC3400F
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: KDC
• Type: KDC
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker Frame
• Breaker Configuration: 3-Pole, 400A
• Configuration: Frame Only
• UPC:786679611661

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C KDC electrical distribution equipment that accepts the KDC frame. The KDC3400F is a 3-pole, 400A, 600V current-limiting frame with a 100kA interrupting rating at 480V.

This product is supplied as a frame only; the appropriate trip unit and required accessories/components must be selected separately as applicable.

Always verify the specific electrical equipment model, approved frame and trip-unit combination, system voltage, available fault current, pole configuration, mounting arrangement, and installation requirements before installation.

Certifications:

• Series C KDC Series
• 400A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 100kA @ 480V Interrupting Rating
• Current Limiting
• Thermal-Magnetic Design
• Bolt-On Mounting
• Frame Only
