Eaton KES3250LSIG Trip Unit – 250A – Interchangeable – Not Specified – LSIG – Series C KES

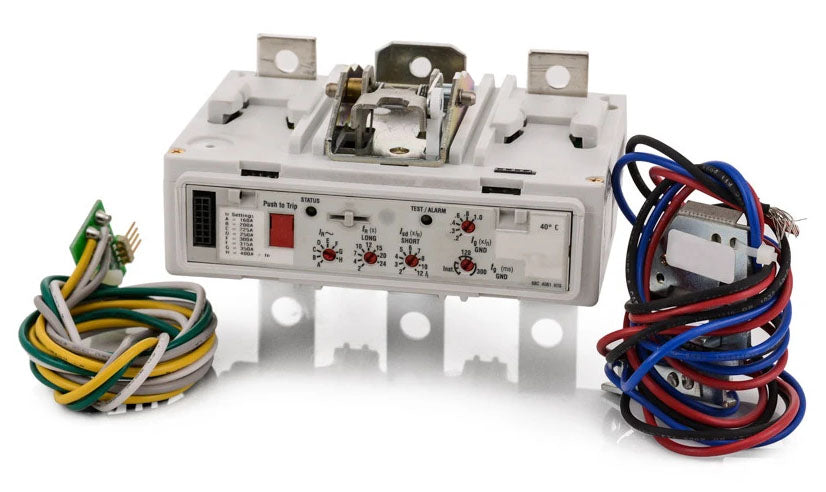

The Eaton KES3250LSIG is an interchangeable solid-state electronic trip unit from the Eaton / Cutler-Hammer Series C Type KES. It is rated for 250A and features a Digitrip RMS 310+ design with LSIG trip functions.

The trip unit provides Long-Time, Short-Time, Instantaneous, and Ground Fault protection functions and is designed for use with compatible Series C molded case circuit breaker frame types.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Electronic Trip Unit
• Product Family: Series C
• Series: Series C
• Type: KES
• Catalog No.: KES3250LSIG
• Current Rating: 250A
• Trip Unit: Digitrip RMS 310+
• Trip Type: Interchangeable
• Protection Type: Solid-State Electronic
• Trip Functions: Long-Time, Short-Time, Instantaneous, and Ground Fault (LSIG)
• Application: Molded Case Circuit Breaker Trip Unit
• Compatible Frame Types: KD, DK, KDB, HKD, HKDB, KDC, CKD, CHKD, KW, HKW, and KWC
• Mounting Type: Not specified
• Voltage Rating: Not specified
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): KES3250LSIG
• Catalog Number: KES3250LSIG
• Model: KES3250LSIG
• Product Family: Eaton Series C Trip Units
• Series: Series C
• Type: KES
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Electronic Trip Unit
• Trip Unit Model: Digitrip RMS 310+
• Configuration: Interchangeable
• Rating: 250A
• Trip Configuration: LSIG
• UPC:786679271162

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C molded case circuit breaker frame types, including KD, DK, KDB, HKD, HKDB, KDC, CKD, CHKD, KW, HKW, and KWC.

The KES3250LSIG is an interchangeable 250A Digitrip RMS 310+ electronic trip unit with LSIG protection functions. Always verify the specific breaker frame, trip-unit compatibility, electrical ratings, accessory requirements, and installation instructions before installation.

Certifications:

• Series C KES
• 250A Rated
• Interchangeable Trip Unit
• Digitrip RMS 310+
• Solid-State Electronic
• LSIG Protection
• Long-Time Trip
• Short-Time Trip
• Instantaneous Trip
• Ground Fault Trip
• Compatible with KD / DK / KDB / HKD / HKDB / KDC / CKD / CHKD / KW / HKW / KWC Frame Types
