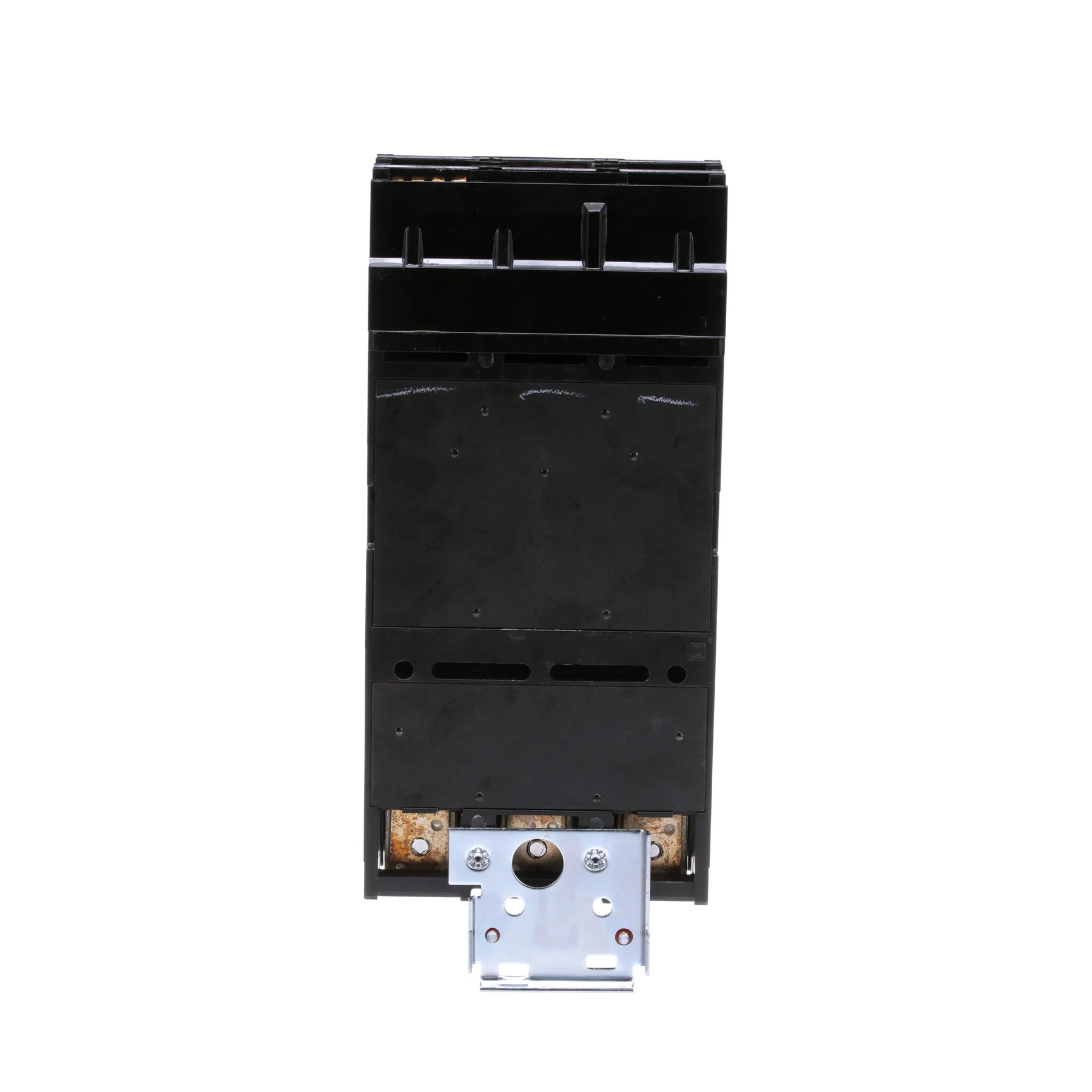

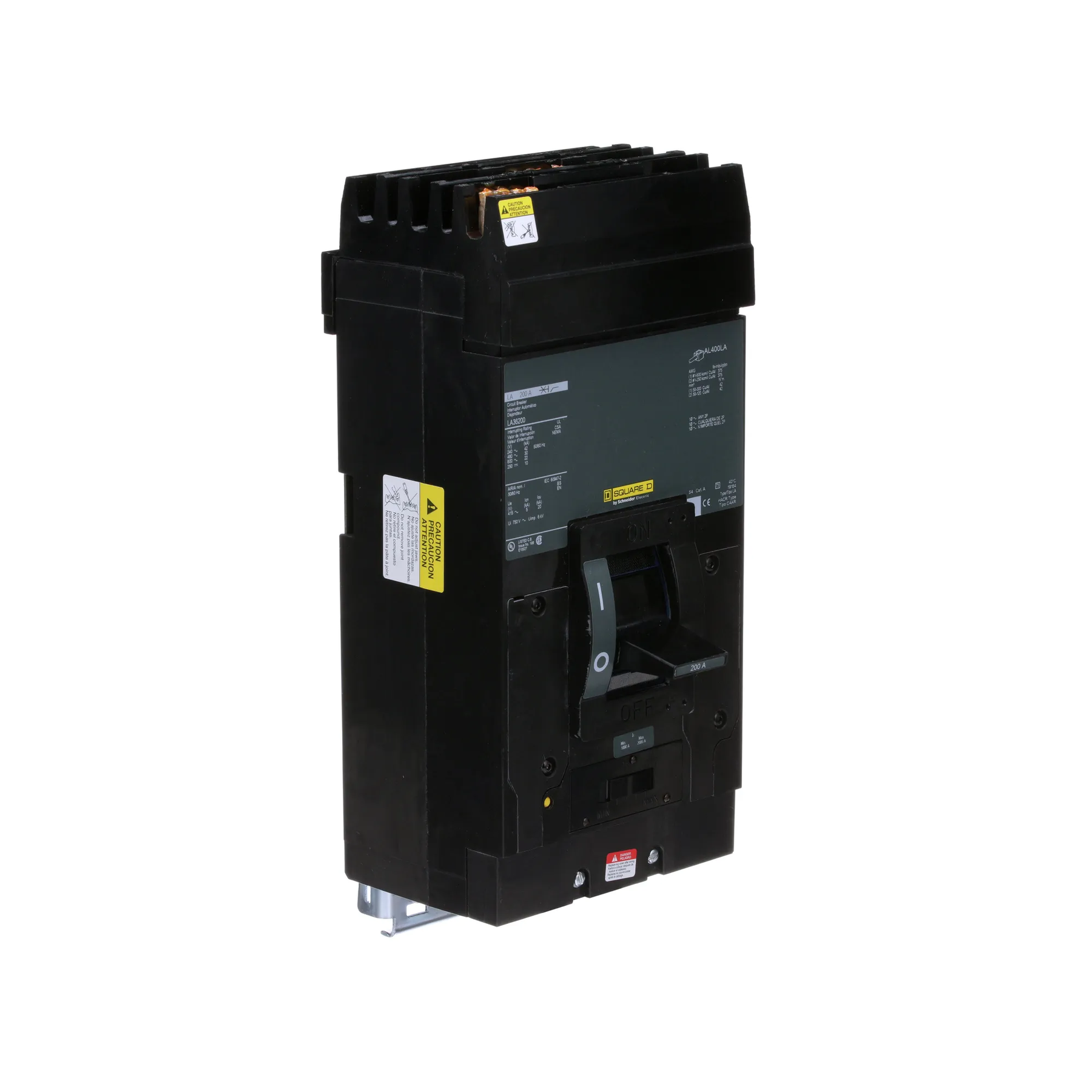

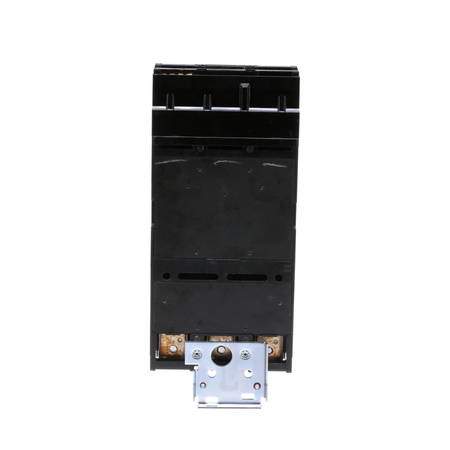

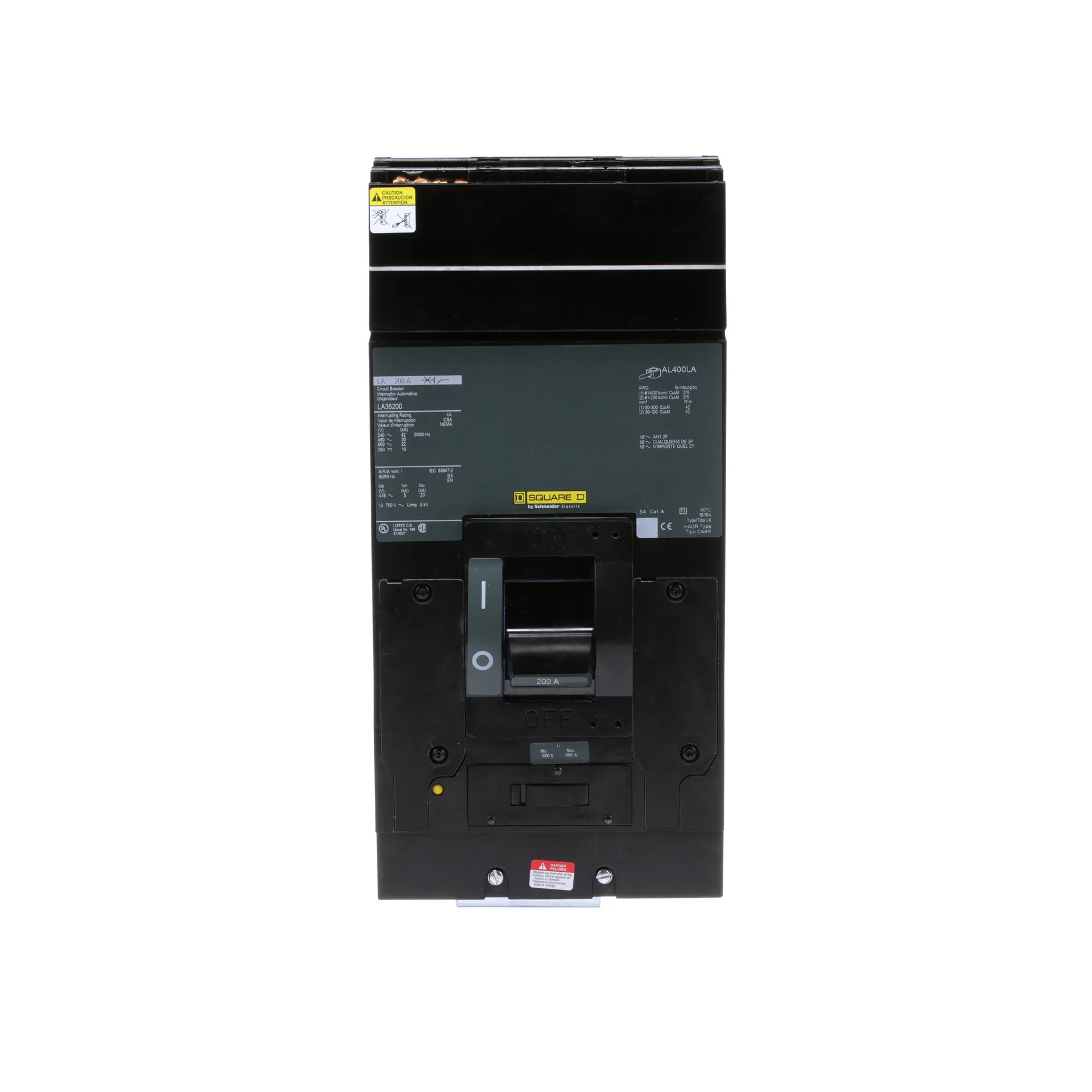

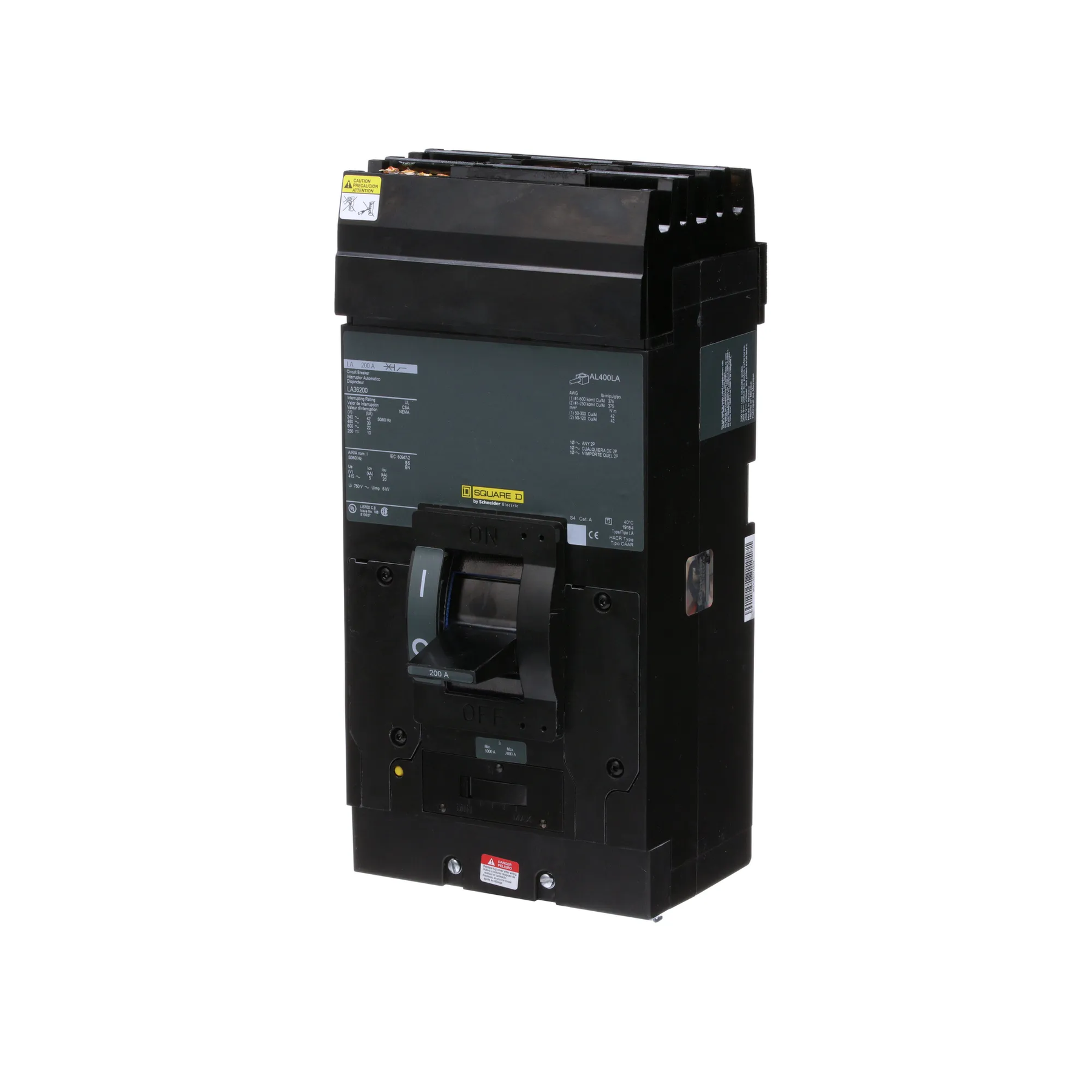

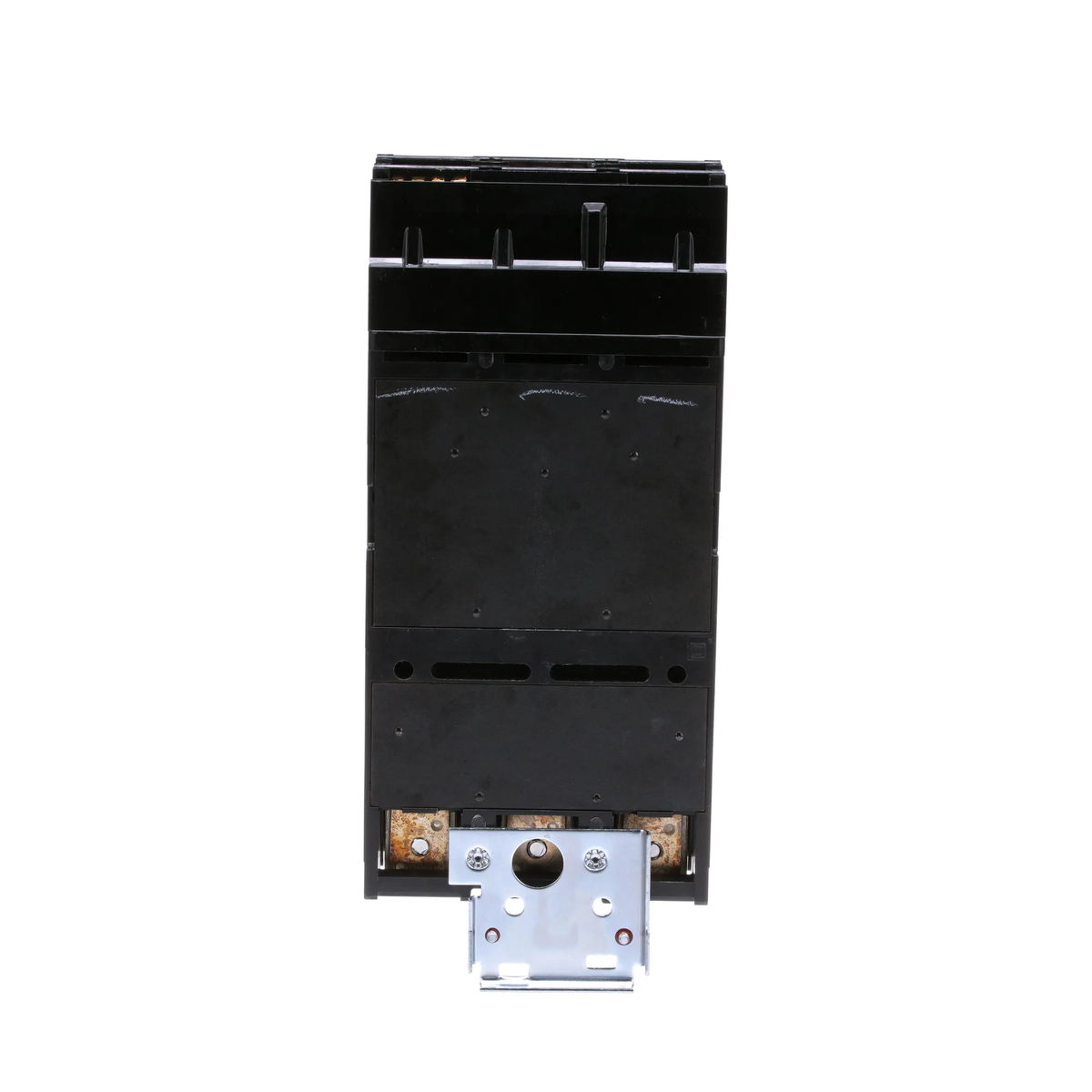

Square D LA36200 Molded Case Circuit Breaker – 200A – 3-Pole / 3-Phase – 600V AC – 30kAIC @ 480V AC – I-Line Plug-In – I-Line LA Series

The Square D LA36200 is a 200A, 3-pole, 3-phase molded case circuit breaker from the Square D I-Line Type LA Series. It is designed for commercial and industrial electrical distribution applications and provides thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions.

The LA36200 is rated for 600V AC and 250V DC and provides a 30kA interrupting capacity at 480V AC. It features an I-Line plug-in connection, load-side lugs, and a toggle-handle actuator. The breaker is designed for use with compatible I-Line panelboards.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: I-Line
• Series: LA
• Type: LA
• Catalog No.: LA36200
• Current Rating: 200A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Phase Connection: ABC
• AC Voltage Rating: 600V AC
• DC Voltage Rating: 250V DC
• Interrupting Rating: 30kA @ 480V AC
• Interrupting Capacity: 30kAIC @ 480V AC
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Connection: I-Line Plug-In
• Terminal Connection: Load-Side Lugs
• Frame Type: LA / L-Frame
• Actuator: Toggle Handle
• Wire Range: 1 AWG–600 kcmil, Single Conductor; 1 AWG–250 kcmil, Two Conductors
• Operating Temperature: Approximately 40°C
• Weight: Approximately 12 lb
• Dimensions (H × W × D): 11 × 6 × 5.84 in
• Application: Commercial and Industrial Electrical Distribution
• Panel Compatibility: Compatible I-Line Panelboards
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): LA36200
• Catalog Number: LA36200
• Model: LA36200
• Product Family: Square D I-Line Circuit Breakers
• Series: LA
• Type: LA
• Frame: LA / L-Frame
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 200A
• UPC: 785901426233
• GTIN: 00785901426233
• Country of Origin: Mexico
• UPC:785901339298

Compatibility:

Designed for use with compatible Square D I-Line panelboards that accept Type LA I-Line plug-in molded case circuit breakers. The LA36200 provides 200A, 3-pole thermal-magnetic protection for compatible 600V AC / 250V DC electrical distribution applications.

The breaker features LI long-time and instantaneous trip functions, load-side lugs, and an I-Line plug-in connection. Always verify the specific panelboard model, approved breaker type, system voltage, available fault current, pole configuration, terminal requirements, conductor size, and installation requirements before installation.

Certifications:

• UL Listed
• CSA Certified
• 200A Rated
• 3-Pole / 3-Phase
• 600V AC Rated
• 250V DC Rated
• 30kAIC @ 480V AC
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• I-Line Plug-In
• Load-Side Lugs
• LA / L-Frame
