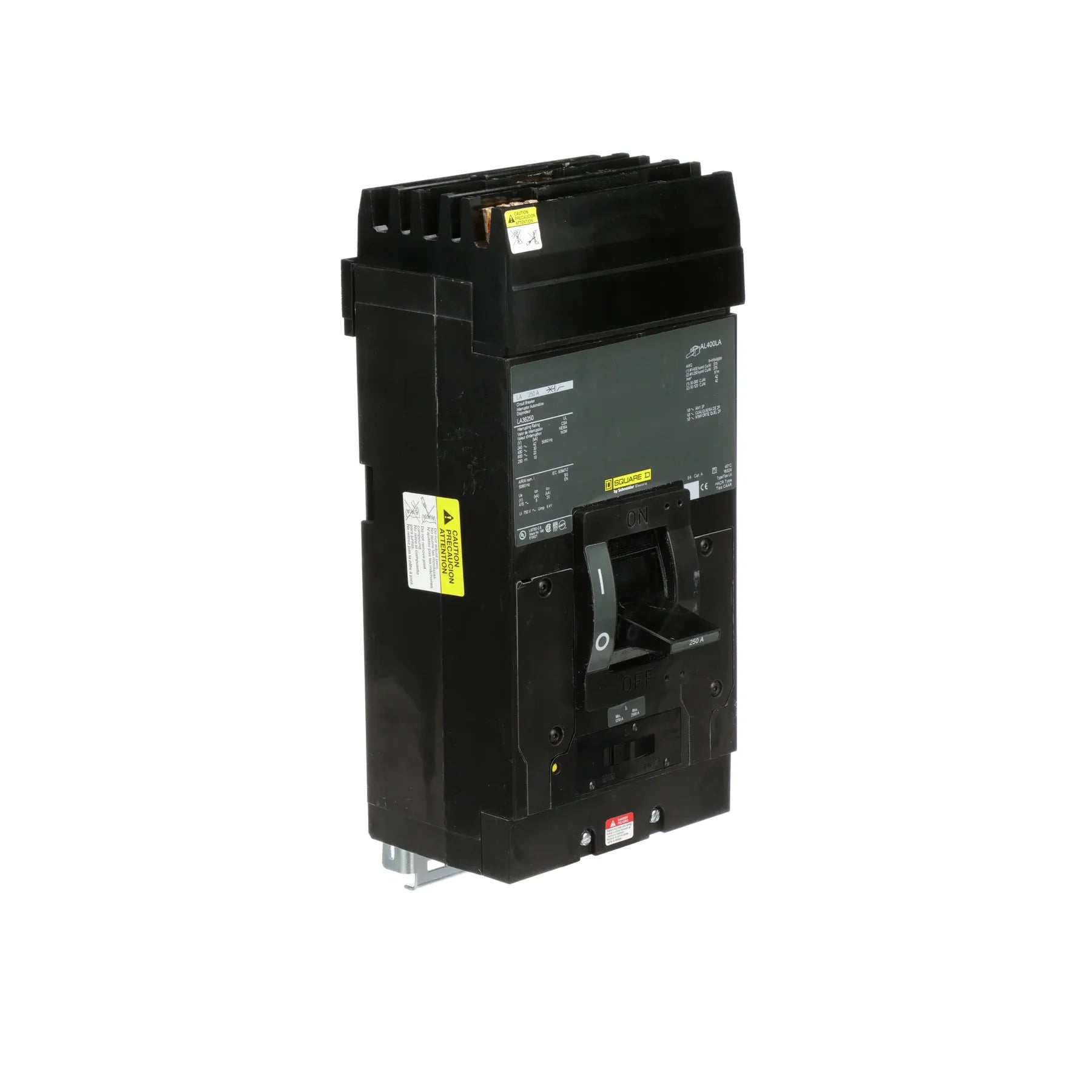

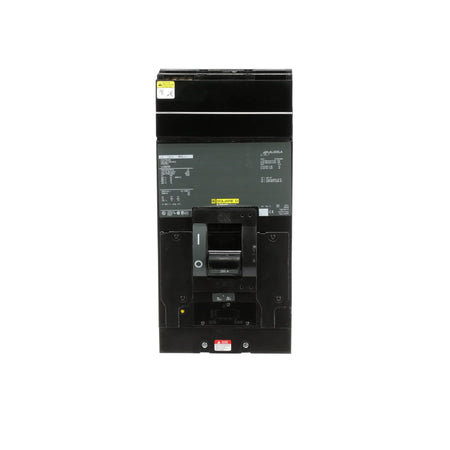

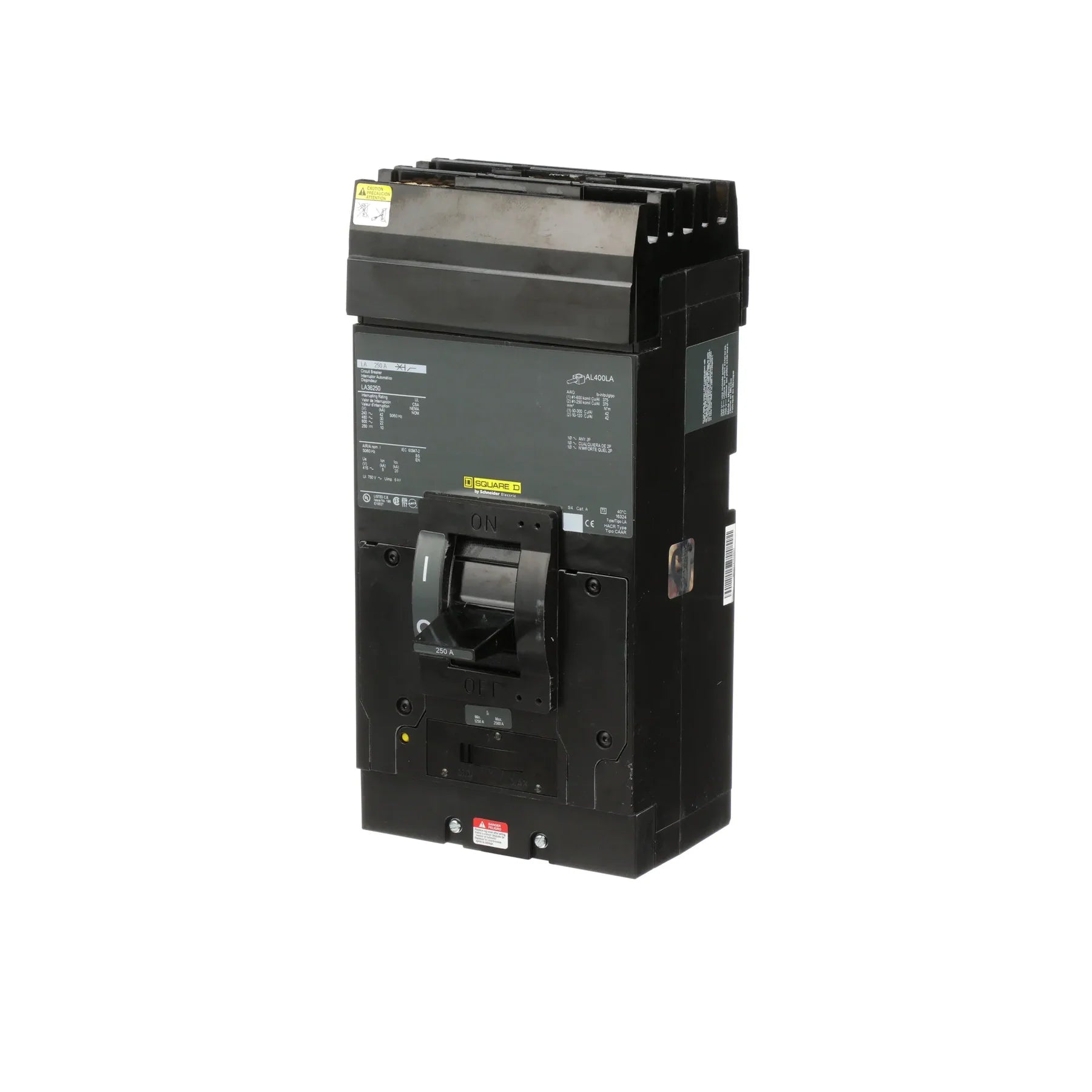

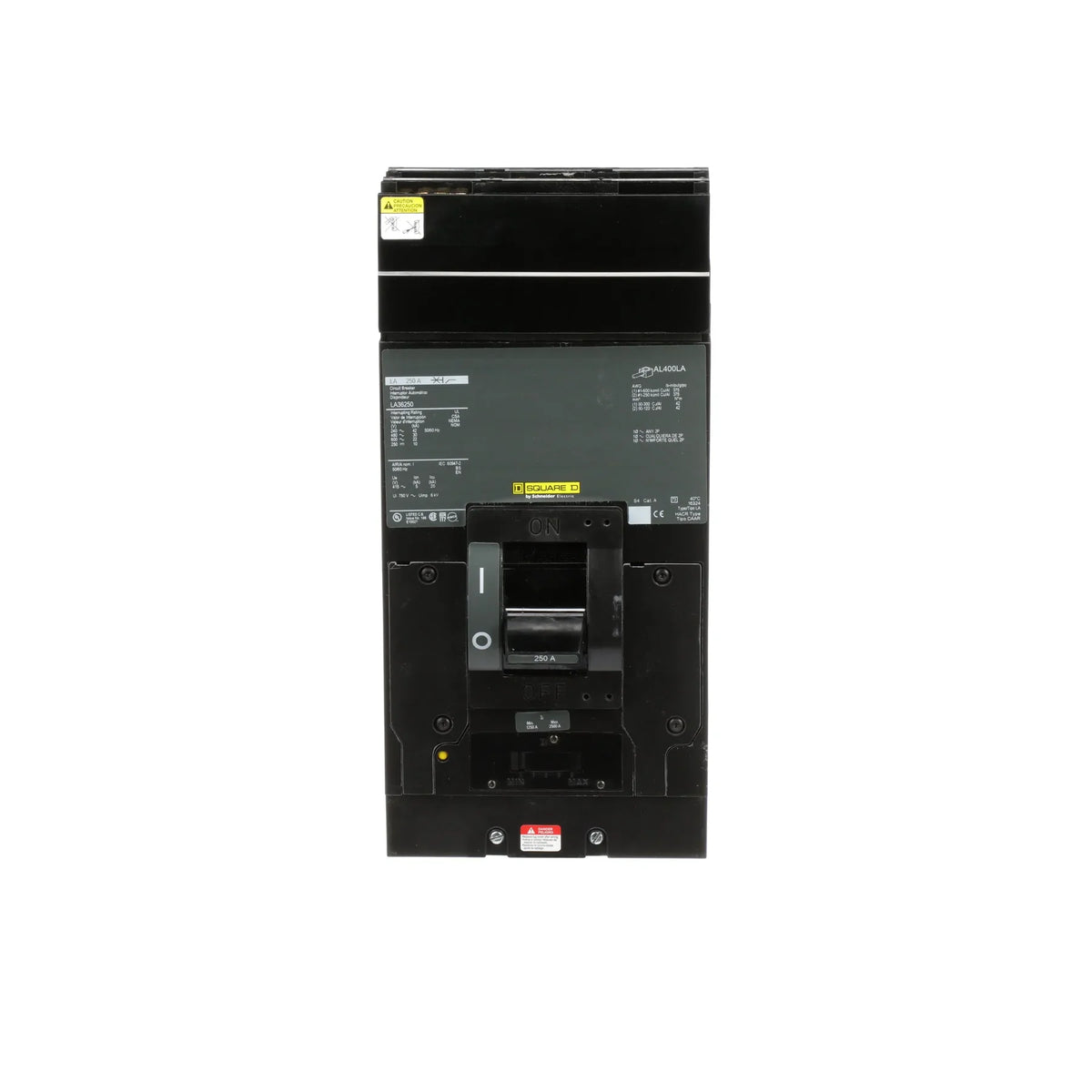

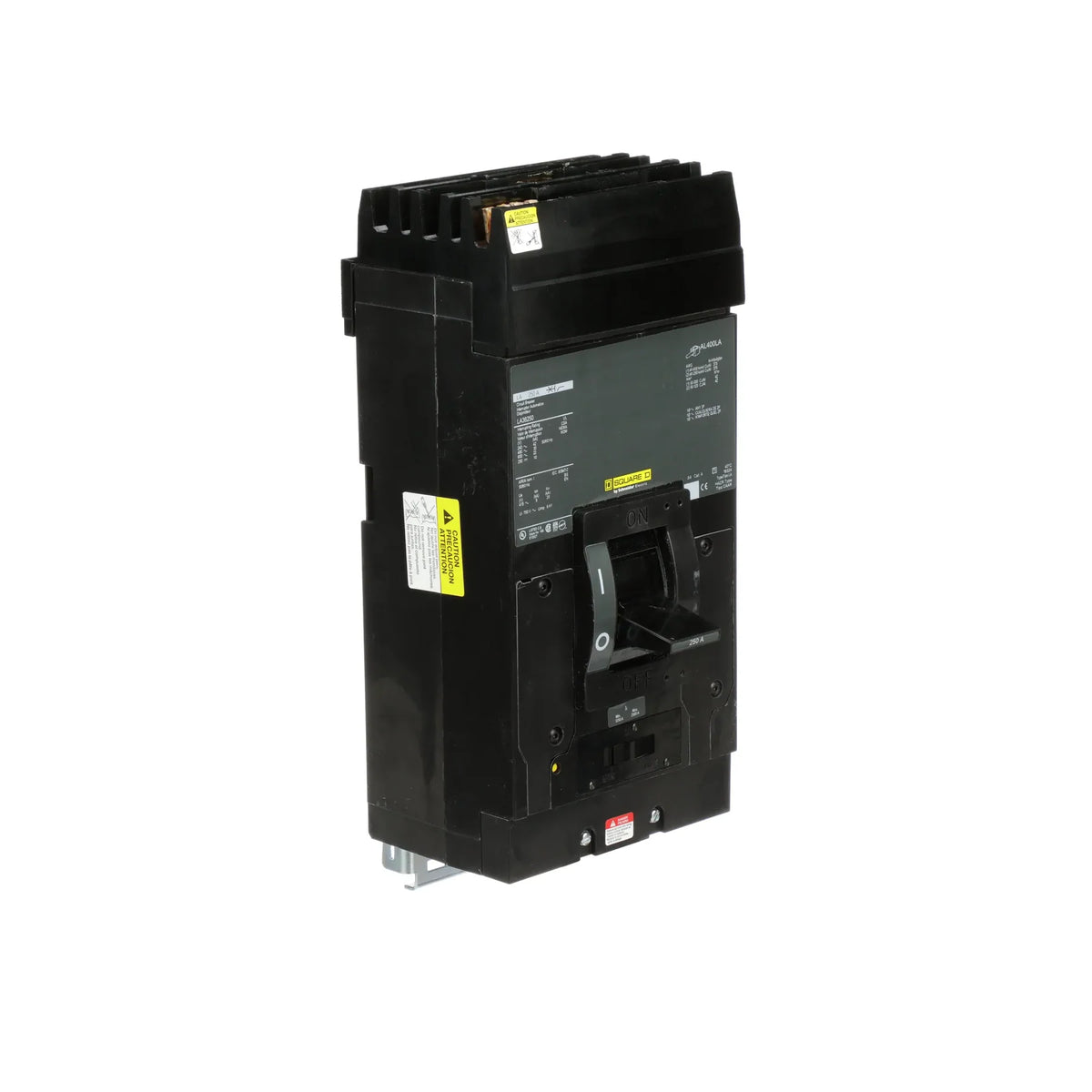

Square D LA36250 Molded Case Circuit Breaker – 250A – 3-Pole / 3-Phase – 600V AC – 30kA @ 480V – I-Line Plug-In – I-Line LA Series

The Square D LA36250 is a 250A, 3-pole, 3-phase molded case circuit breaker from the Square D I-Line Type LA Series. It is designed for commercial and industrial electrical distribution applications and provides thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions.

The LA36250 is rated for 600V AC and 250V DC and provides a 30kA interrupting rating at 480V AC. It features an I-Line plug-in connection, ABC phase connection, and load-side lug terminals for compatible I-Line panelboards.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: I-Line
• Series: Type LA
• Type: LA
• Catalog No.: LA36250
• Current Rating: 250A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Phase Connection: ABC
• AC Voltage Rating: 600V AC
• DC Voltage Rating: 250V DC
• Interrupting Rating: 30kA @ 480V AC
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)

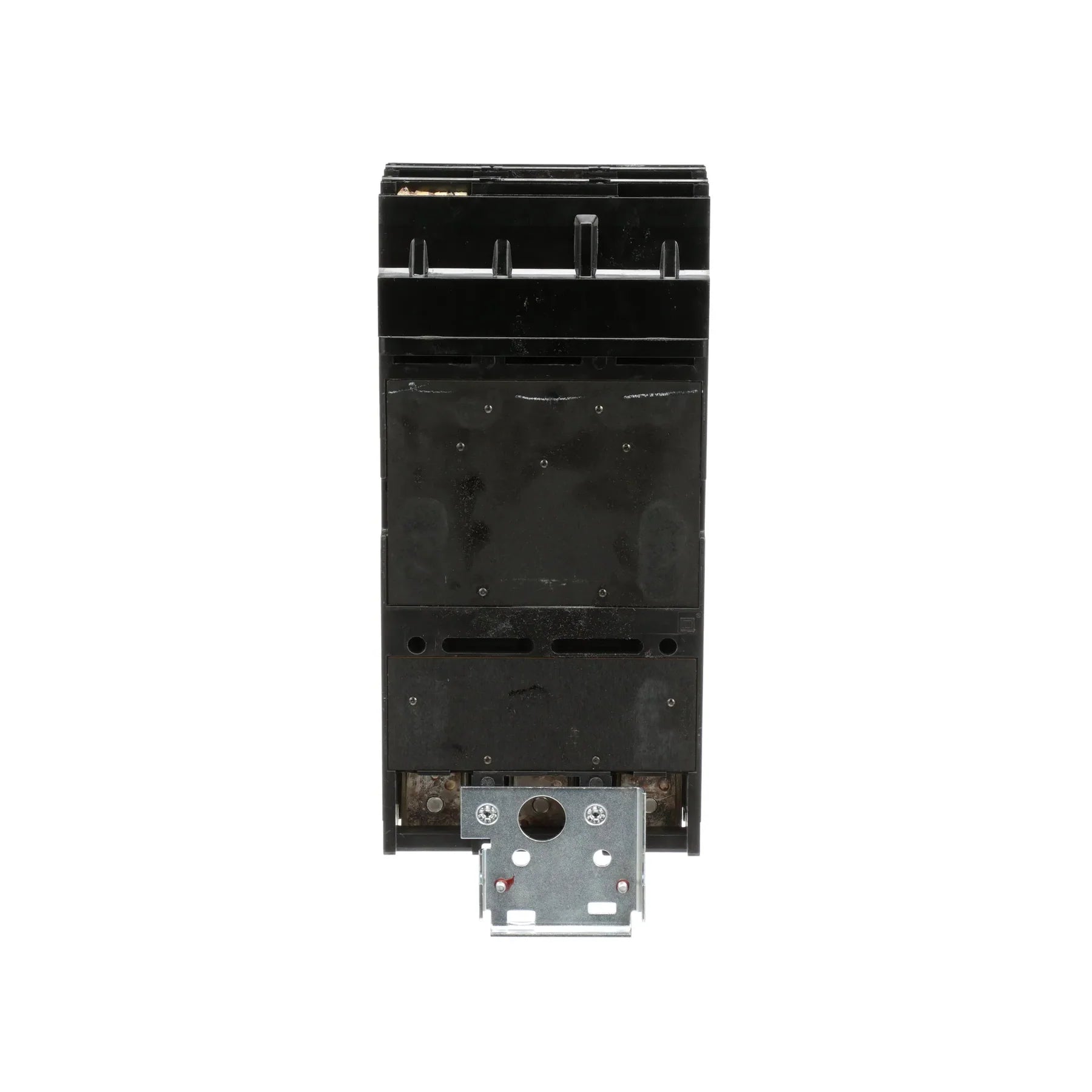

• Mounting / Connection: I-Line Plug-In
• Terminal Type: Load-Side Lugs
• Frame: LA / L-Frame
• Actuator: Toggle Handle
• Wire Range: 1 AWG–600 kcmil, single conductor; 1 AWG–250 kcmil, two conductors
• Operating Temperature Rating: 40°C
• Weight: Approximately 14 lb
• Dimensions (H × W × D): Approximately 11 × 6 × 5.84 in
• Application: Commercial and Industrial Electrical Distribution

Part Numbers & Identification:

• Manufacturer Part Number (MPN): LA36250
• Catalog Number: LA36250
• Model: LA36250
• Product Family: Square D I-Line Circuit Breakers
• Series: Type LA
• Type: LA
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 250A
• UPC: 785901426202
• Country of Origin: Mexico

Compatibility:

Designed for use with compatible Square D I-Line panelboards that accept Type LA I-Line plug-in molded case circuit breakers. The LA36250 provides 250A, 3-pole thermal-magnetic protection for compatible 600V AC electrical distribution applications.

The breaker features an I-Line plug-in connection, ABC phase connection, load-side lugs, and LI Long-Time and Instantaneous trip functions. Always verify the specific panelboard model, approved breaker type, system voltage, available fault current, pole configuration, conductor size, terminal arrangement, and installation requirements before installation.

Certifications:

• UL Listed
• CSA Certified
• 250A Rated
• 3-Pole / 3-Phase
• 600V AC Rated
• 250V DC Rated
• 30kA @ 480V AC Interrupting Rating
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• I-Line Plug-In Connection
• ABC Phase Connection
• Load-Side Lug Terminals
• 40°C Rated
• Square D / Schneider Electric Product
