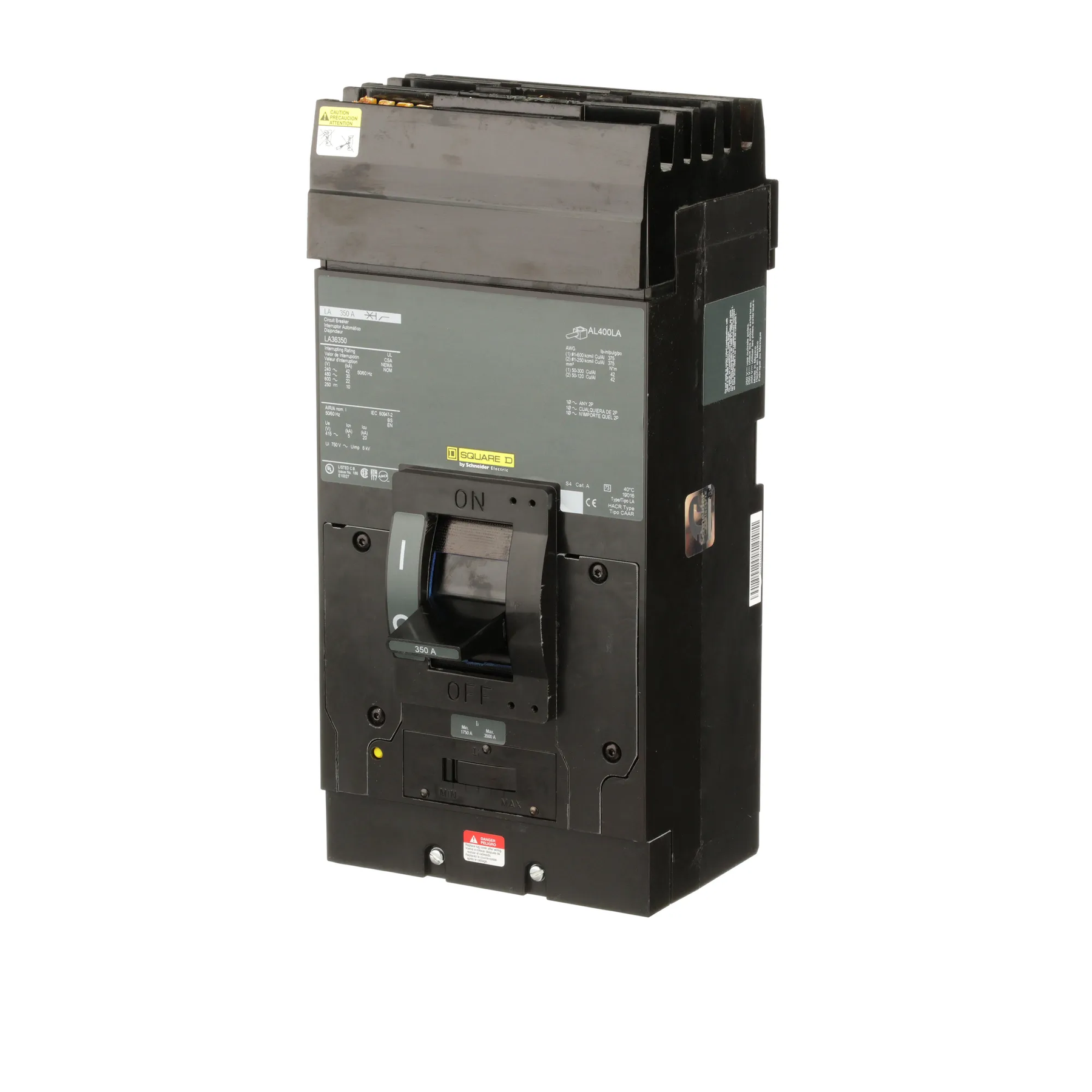

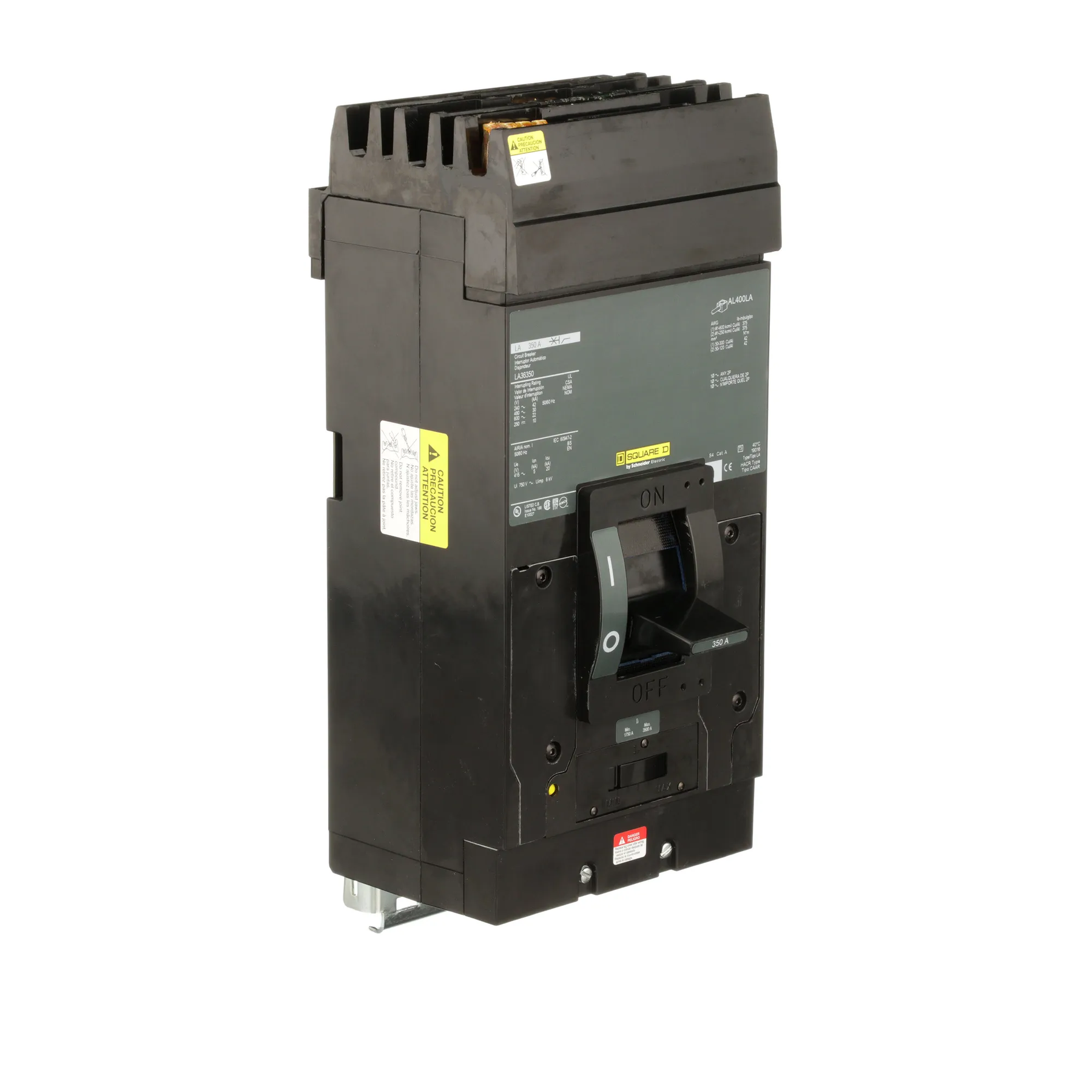

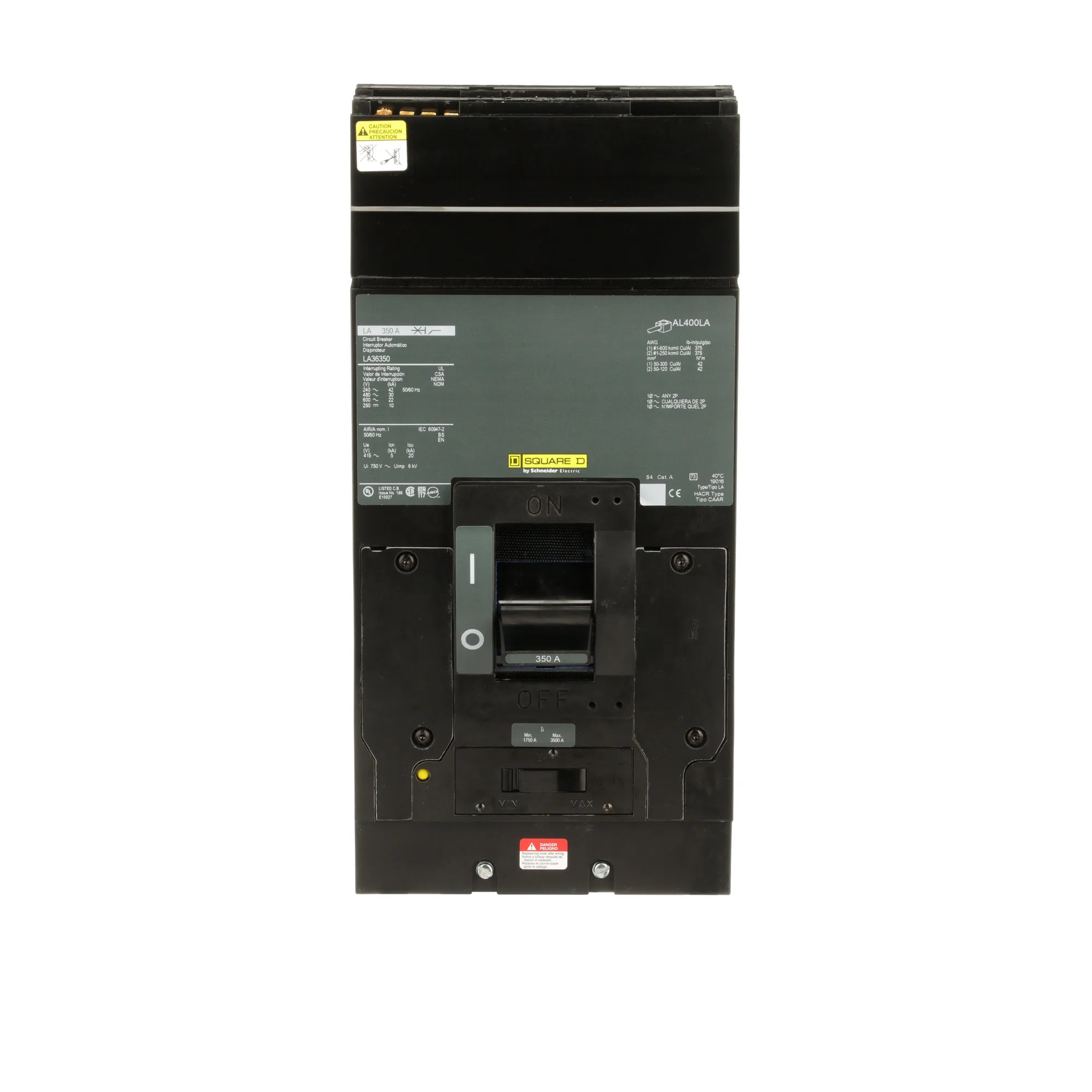

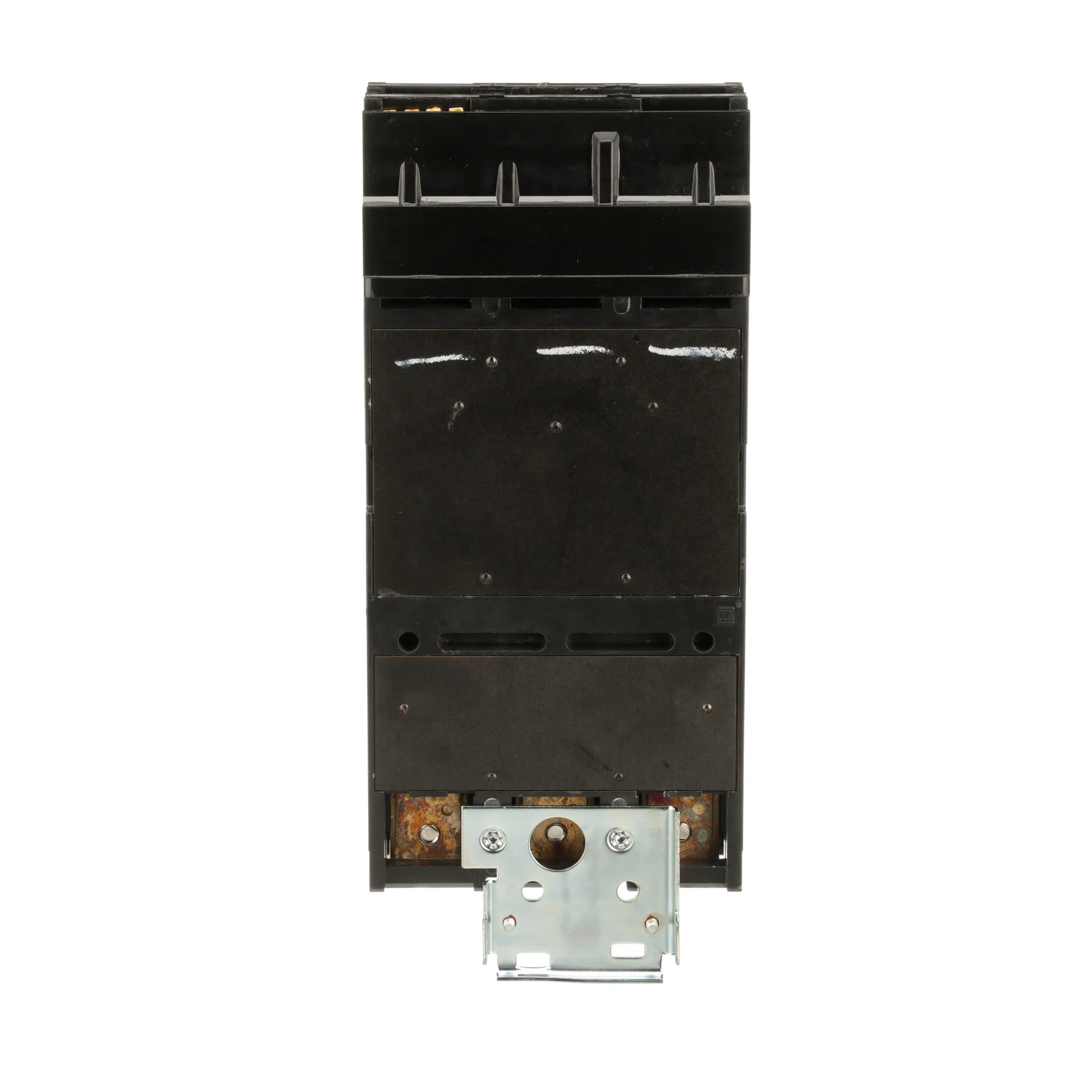

Square D LA36350 Molded Case Circuit Breaker – 350A – 3-Pole – 600V AC / 250V DC – 30kA @ 480V AC – I-Line Plug-In – Type LA Series

The Square D LA36350 is a 350A, 3-pole molded case circuit breaker from the Square D Type LA / I-Line Series, designed for overload and short-circuit protection in compatible commercial and industrial electrical distribution systems. It features an I-Line plug-in connection, thermal-magnetic protection, and LI (long-time and instantaneous) trip characteristics.

The LA36350 is rated for 600V AC and 250V DC and provides a 30kA interrupting rating at 480V AC. It is designed for installation in compatible I-Line panelboards and includes load-side lugs for electrical connections.

Specifications:

• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Series: Type LA / I-Line
• Catalog No.: LA36350
• Current Rating: 350A
• Number of Poles: 3-Pole
• Phase: 3-Phase (ABC)
• Voltage Rating: 600V AC / 250V DC
• Interrupting Rating: 30kA @ 480V AC
• Protection Type: Thermal-Magnetic
• Trip Function: LI — Long-Time and Instantaneous
• Mounting Type: I-Line Plug-In
• Connection: Load-Side Lugs
• Frame Type: LA / L-Frame
• Actuator: Toggle Handle
• Wire Range: 1 AWG–600 kcmil, single conductor; 1 AWG–250 kcmil, two conductors
• Operating Temperature: Approximately 40°C Rating
• Weight: Approximately 21 lb (9.53 kg)
• Dimensions (H × W × D): Approximately 11 × 6 × 5.84 in
• Application: Commercial and Industrial Electrical Distribution

Part Numbers & Identification:

• Manufacturer Part Number (MPN): LA36350
• Catalog Number: LA36350
• Model: LA36350
• Product Family: Square D I-Line Circuit Breakers
• Series: Type LA
• Frame: LA / L-Frame
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• UPC:785901426288
• GTIN: 00785901426257
• Country of Origin: Mexico

Compatibility:

Designed for use with compatible Square D I-Line panelboards and electrical distribution equipment that accept Type LA I-Line circuit breakers. The LA36350 provides 350A, 3-pole protection for compatible 600V AC / 250V DC systems and features thermal-magnetic LI trip functionality.

The breaker uses an I-Line plug-in connection with load-side lugs and is intended for compatible I-Line bus systems. Always verify the specific panelboard model, approved breaker type, system voltage, available fault current, pole configuration, conductor size, terminal arrangement, and installation requirements before installation.

Certifications:

• UL Listed
• CSA Certified
• 350A Rated
• 3-Pole / 3-Phase
• 600V AC / 250V DC Rated
• 30kA Interrupting Rating @ 480V AC
• Thermal-Magnetic Protection
• LI Long-Time and Instantaneous Trip
• I-Line Plug-In
• Type LA / L-Frame
