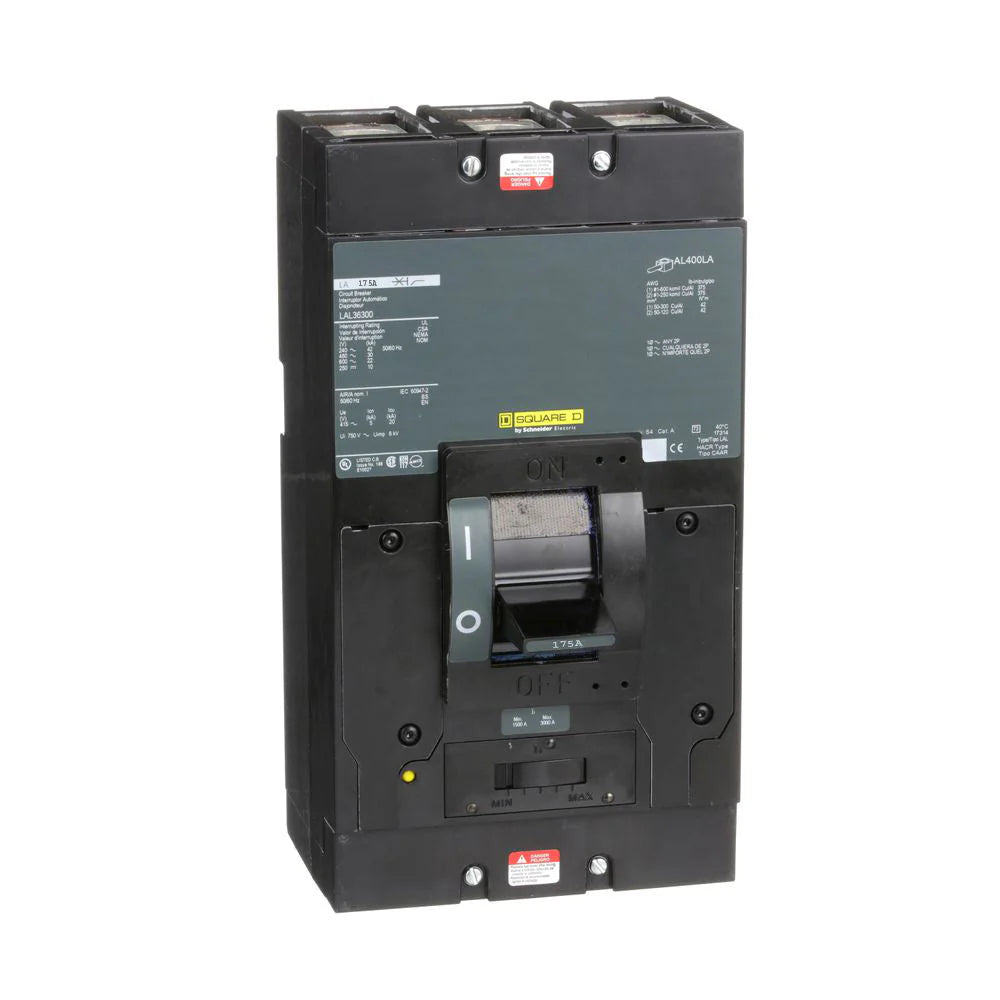

Square D LAL36175 175 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 30 kA@480 V – Feed-Thru – LAL Series

The Square D LAL36175 is a 175 Amp, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact LAL Series. It is rated for 600 V and provides a 30 kA interrupting rating at 480 V. The breaker features standard interrupting capacity, feed-thru mounting, thermal-magnetic protection, LI (Long-Time and Instantaneous) trip functions, and line and load-side lug terminals.

Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Type: Molded Case Circuit Breaker
• Series: LAL
• Type: LAL
• Catalog Number / MPN: LAL36175
• Primary Rating: 175 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 30 kA @ 480 V
• Interrupting Capacity: Standard
• Trip Type: Thermal-Magnetic
• Trip Functions: LI – Long-Time and Instantaneous
• Connection / Mounting: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: LAL36175
• Series: LAL
• Type: LAL
• Current Rating: 175 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Functions: LI – Long-Time and Instantaneous
• Connection: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• UPC: 785901563235

Compatibility

The Square D LAL36175 is designed for compatible Square D PowerPact LAL Series electrical distribution applications.
