Square D LAL36200 Molded Case Circuit Breaker – 200A – 3-Pole / 3-Phase – 600V AC – 42kAIC @ 240V / 30kAIC @ 480V / 22kAIC @ 600V – Feed-Thru / Unit Mount – PowerPact LAL Series

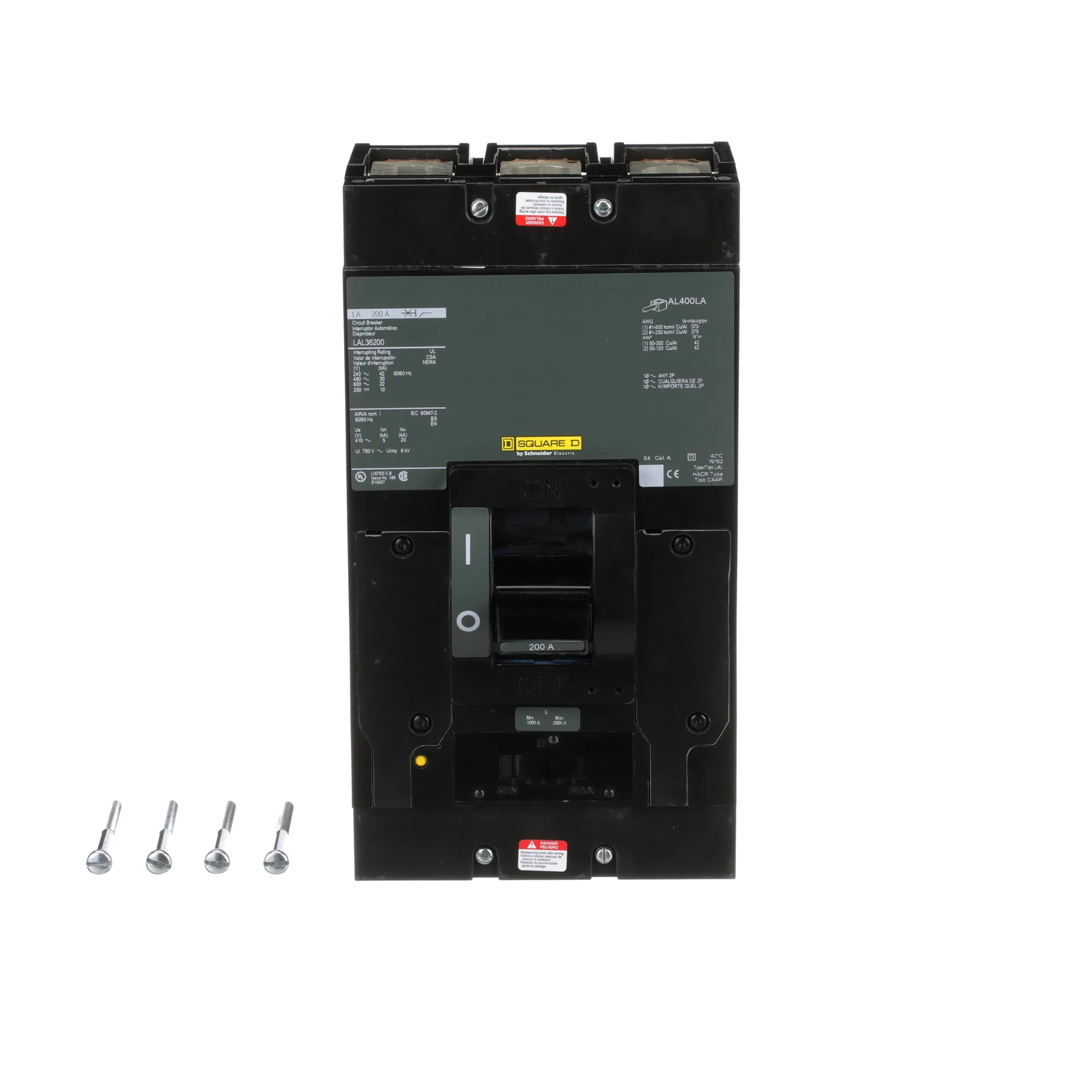

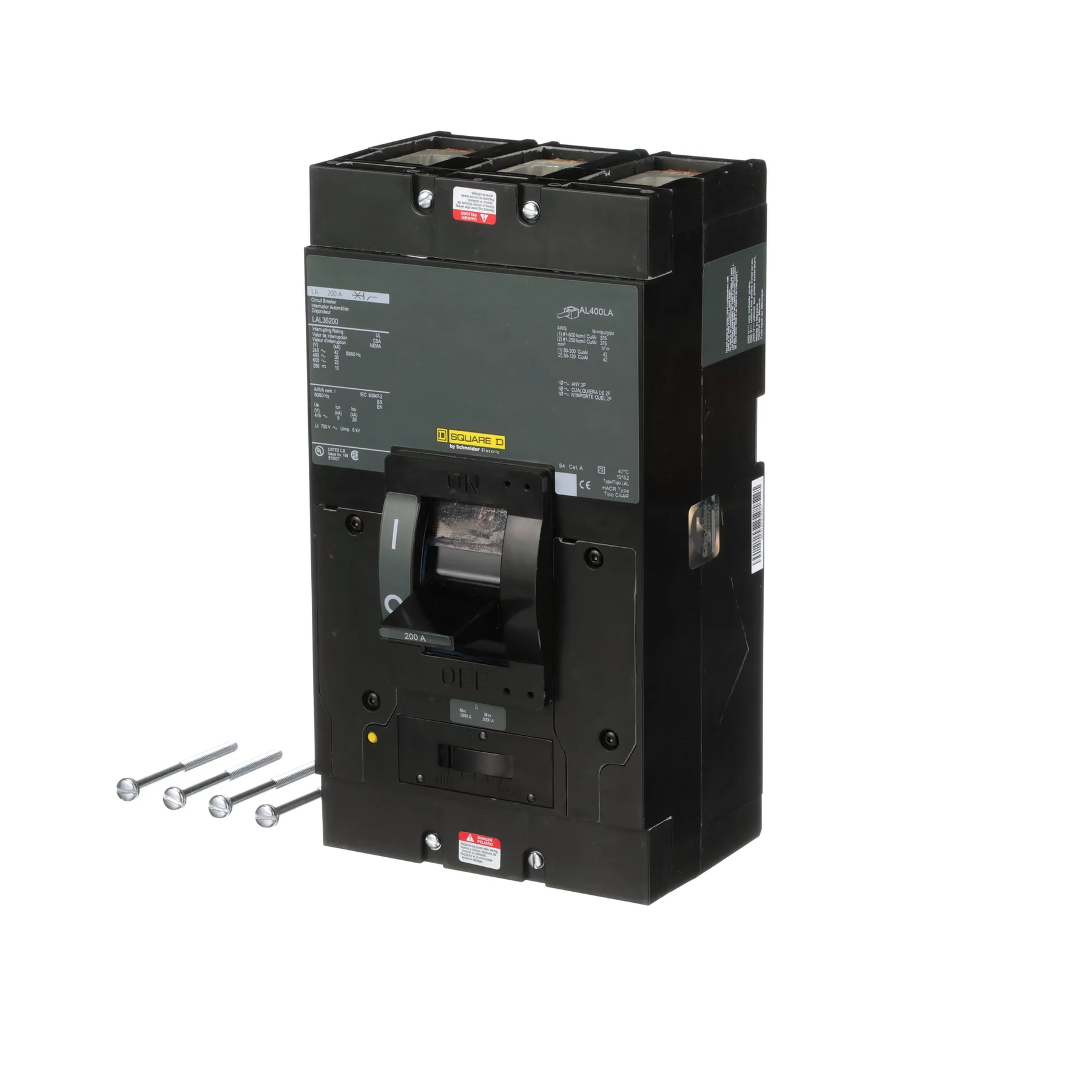

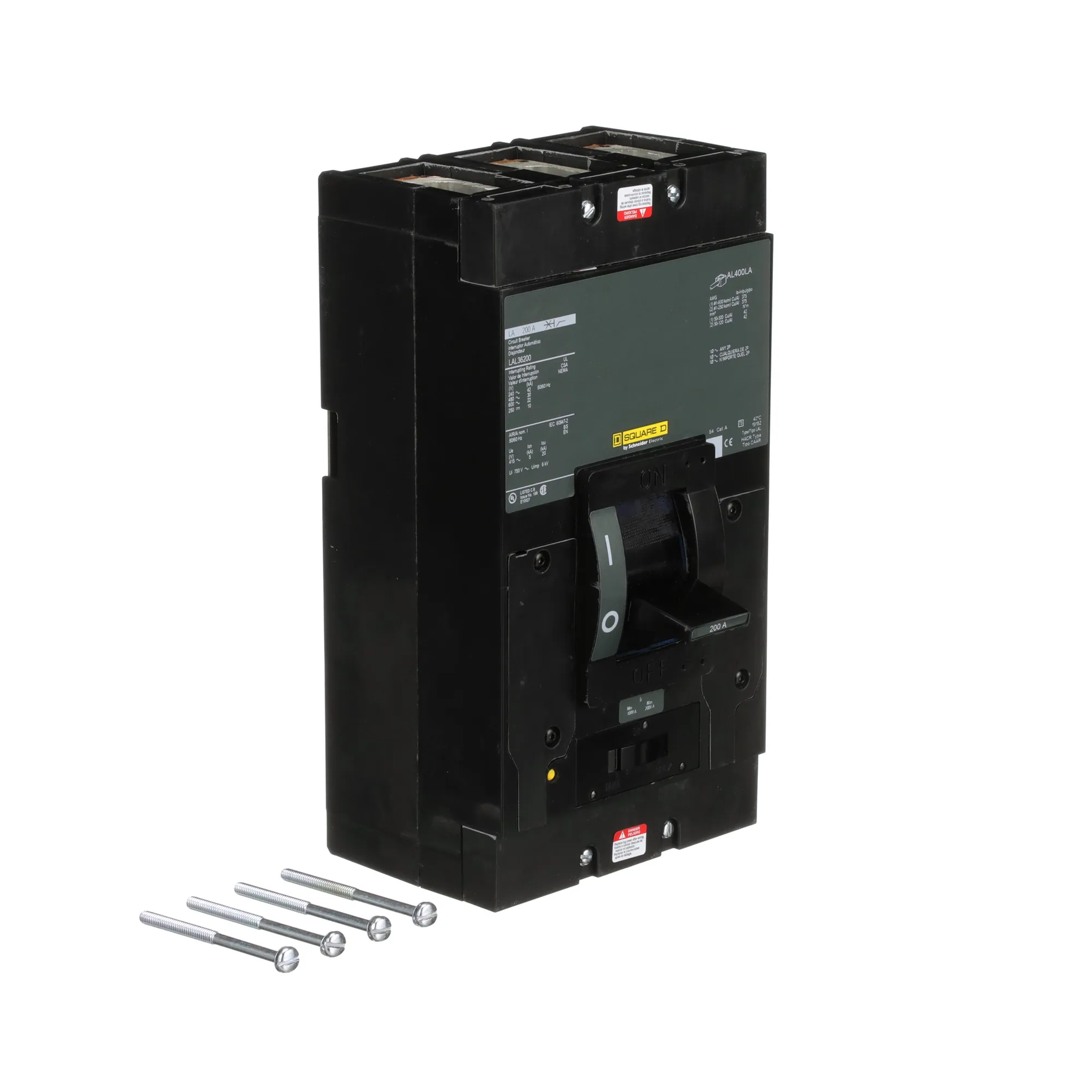

The Square D LAL36200 is a 200A, 3-pole, 3-phase molded case circuit breaker from the Square D / Schneider Electric PowerPact LAL Series. It is designed to provide overload and short-circuit protection for compatible commercial and industrial electrical distribution systems.

The LAL36200 is rated for 600V AC and 250V DC and features a thermal-magnetic trip unit with Long-Time and Instantaneous (LI) trip functions. It provides interrupting ratings of 42kAIC at 240V AC, 30kAIC at 480V AC, 22kAIC at 600V AC, and 10kAIC at 250V DC.

The breaker uses a unit-mount / feed-thru configuration with line- and load-side lug or feed-thru connections and operates at 50/60Hz.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: LAL
• Type: LAL
• Catalog No.: LAL36200
• Current Rating: 200A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• AC Voltage Rating: 600V AC
• DC Voltage Rating: 250V DC
• Interrupting Rating: 42kAIC @ 240V AC; 30kAIC @ 480V AC; 22kAIC @ 600V AC; 10kAIC @ 250V DC
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting Type: Unit Mount / Feed-Thru

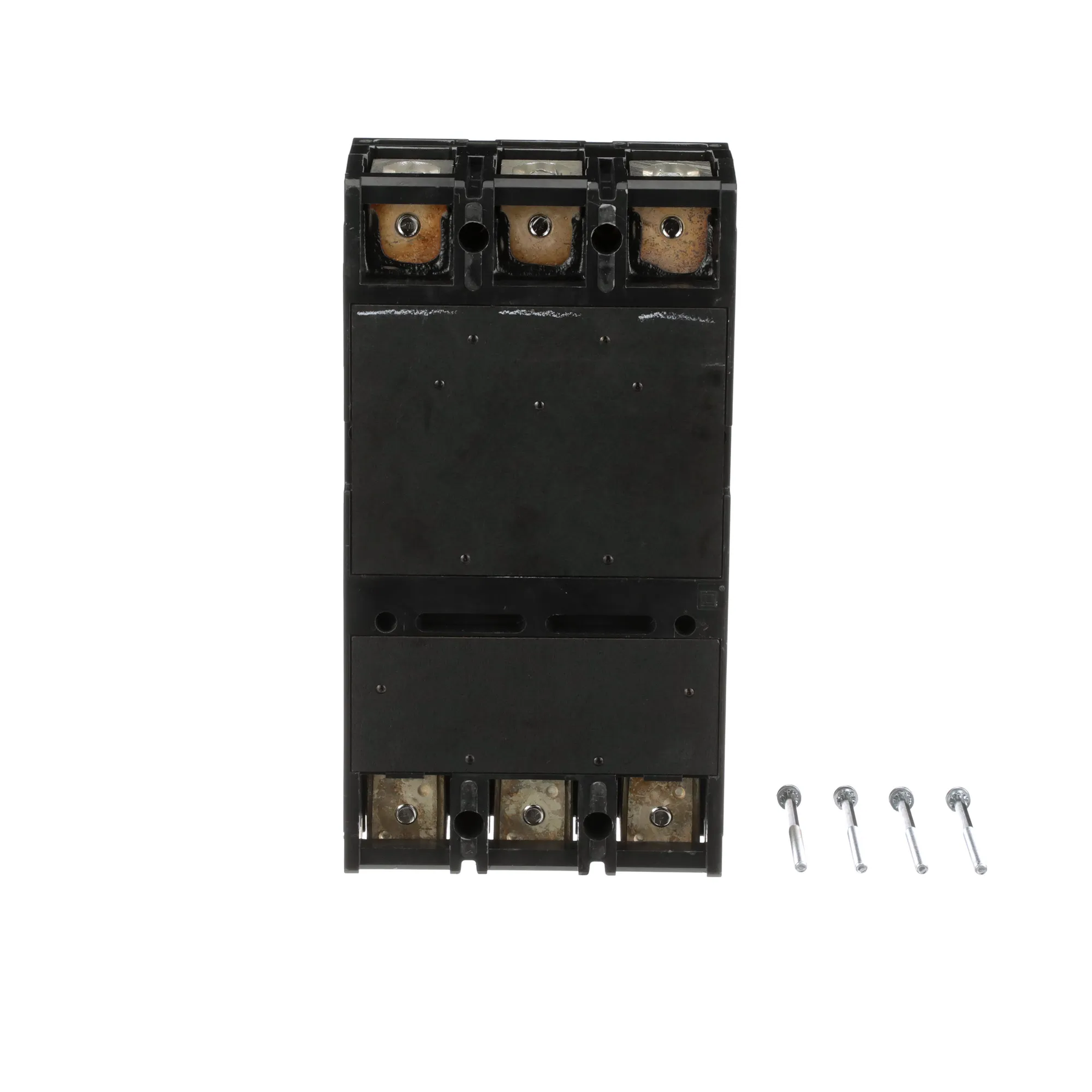

• Terminal Connection: Line- and Load-Side Lug or Feed-Thru
• Frequency Rating: 50/60Hz
• Protection: Overload and Short-Circuit Protection
• Application: Commercial and Industrial Electrical Distribution
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): LAL36200
• Catalog Number: LAL36200
• Model: LAL36200
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: LAL
• Type: LAL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 200A
• Trip Configuration: Thermal-Magnetic LI
• Mounting Configuration: Unit Mount / Feed-Thru
• UPC / GTIN: 785901368052 / 00785901368052

Compatibility:

Designed for use with compatible Square D / Schneider Electric PowerPact LAL Series switchboards, panelboards, and electrical distribution equipment that accept LAL Series molded case circuit breakers.

The LAL36200 provides 200A, 3-pole thermal-magnetic protection for compatible 600V AC / 250V DC applications. Always verify the specific equipment model, approved breaker configuration, system voltage, available fault current, interrupting rating, pole configuration, trip-unit requirements, mounting arrangement, terminal configuration, and installation requirements before installation.

Certifications:

• UL Listed
• CSA Certified
• IEC Certified
• UL 489
• CSA C22.2
• IEC 60947-2
• PowerPact LAL Series
• 200A Rated
• 3-Pole / 3-Phase
• 600V AC Rated
• 250V DC Rated
• 42kAIC @ 240V AC
• 30kAIC @ 480V AC
• 22kAIC @ 600V AC
• 10kAIC @ 250V DC
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Unit Mount / Feed-Thru Configuration
