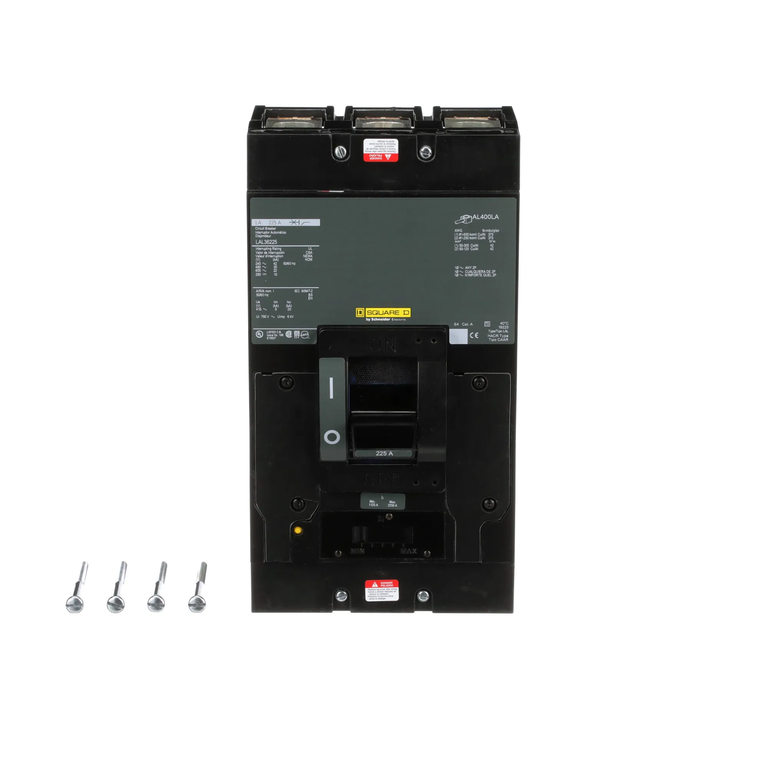

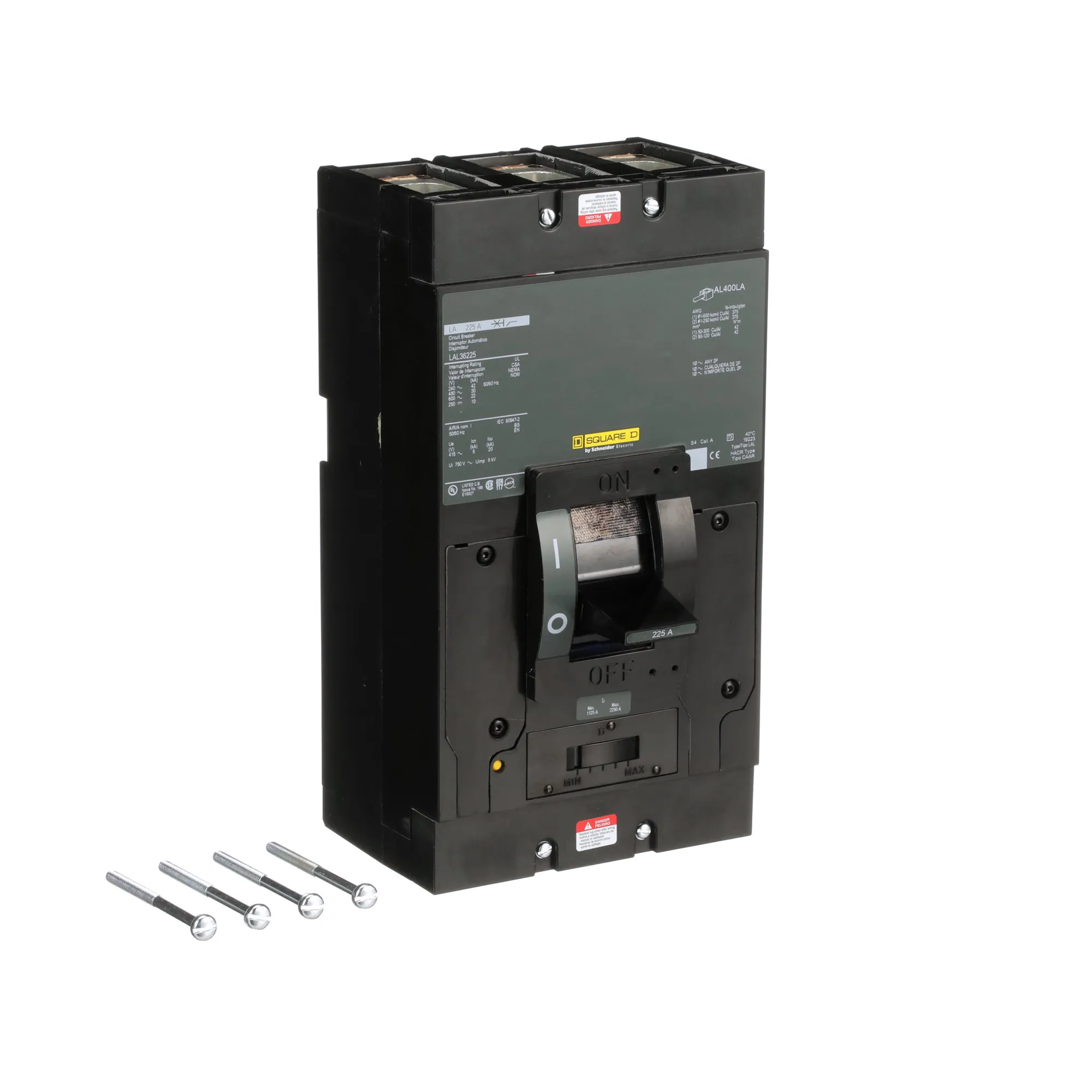

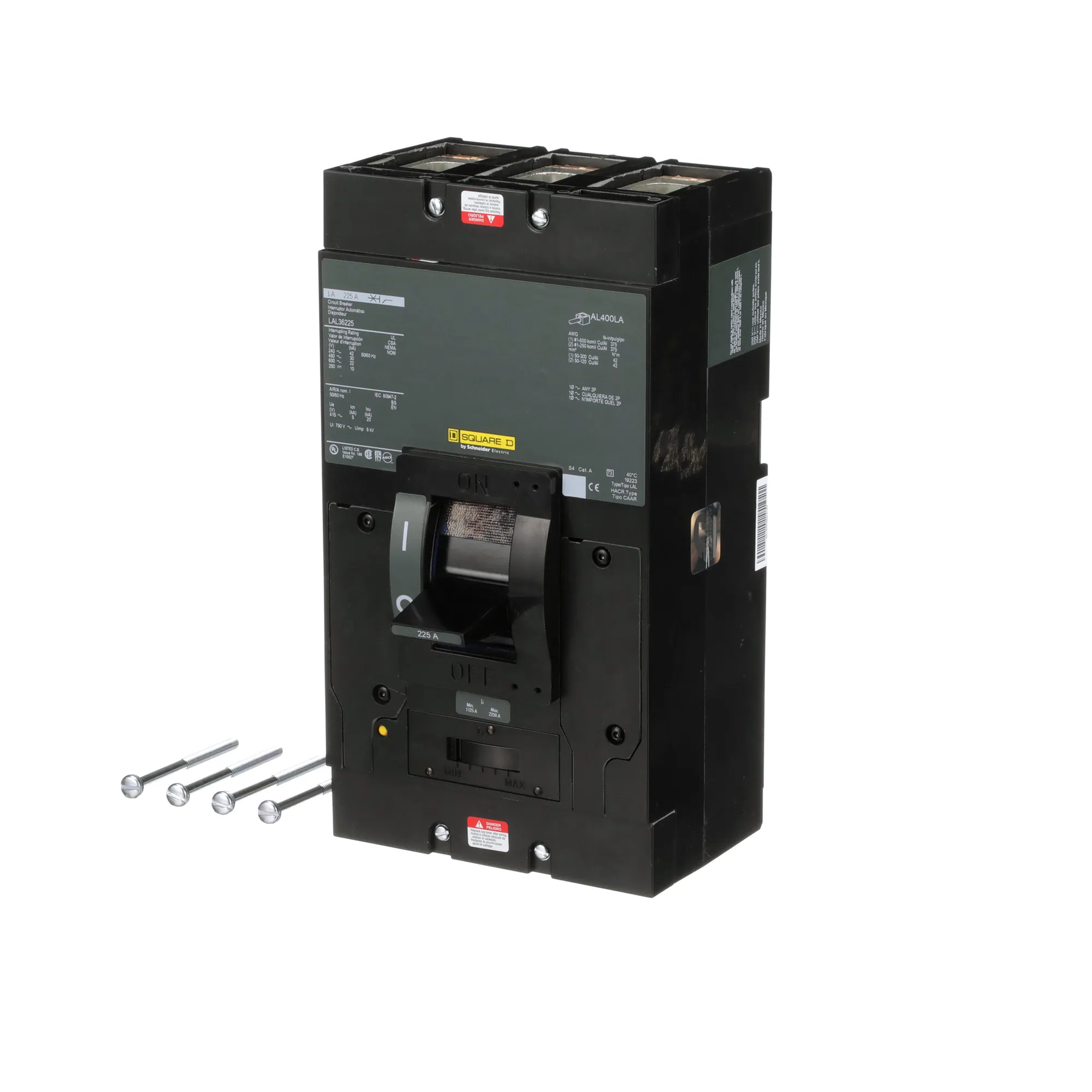

Square D LAL36225 Molded Case Circuit Breaker – 225A – 3-Pole / 3-Phase – 600V – 30kA @ 480V – Feed-Thru – PowerPact LAL Series

The Square D LAL36225 is a 225A, 3-pole, 3-phase thermal-magnetic molded case circuit breaker from the Square D PowerPact LAL Series. It is designed for compatible electrical distribution and overcurrent protection applications.

The LAL36225 is rated for 600V and provides a 30kA interrupting rating at 480V with standard interrupting capacity. It features a feed-thru configuration, line- and load-side lug terminals, and Long-Time and Instantaneous (LI) trip functions. The breaker is supplied as a complete breaker.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: LAL
• Type: LAL
• Catalog No.: LAL36225
• Current Rating: 225A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 30kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Connection: Feed-Thru
• Breaker Configuration: Complete Breaker
• Terminal Type: Line- and Load-Side Lug Terminals
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): LAL36225
• Catalog Number: LAL36225
• Model: LAL36225
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: LAL
• Type: LAL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 225A
• Rated Current: 225A
• Rated Voltage: 600V
• Trip Configuration: Long-Time and Instantaneous (LI)
• UPC:785901009818

Compatibility:

Designed for use with compatible Square D / Schneider Electric PowerPact LAL Series electrical distribution equipment that accepts LAL Series molded case circuit breakers. The LAL36225 provides 225A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker features a feed-thru configuration with line- and load-side lug terminals and Long-Time and Instantaneous (LI) trip functions. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• PowerPact LAL Series
• 225A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 30kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Feed-Thru Configuration
• Complete Breaker
• Line- and Load-Side Lug Terminals
