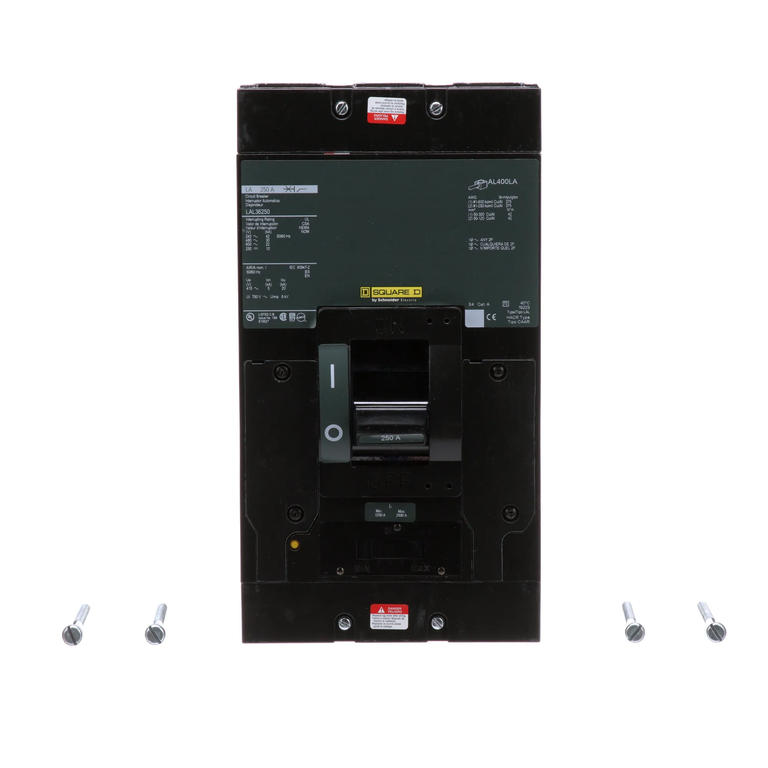

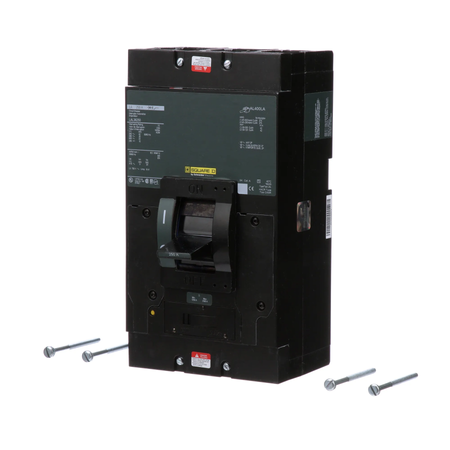

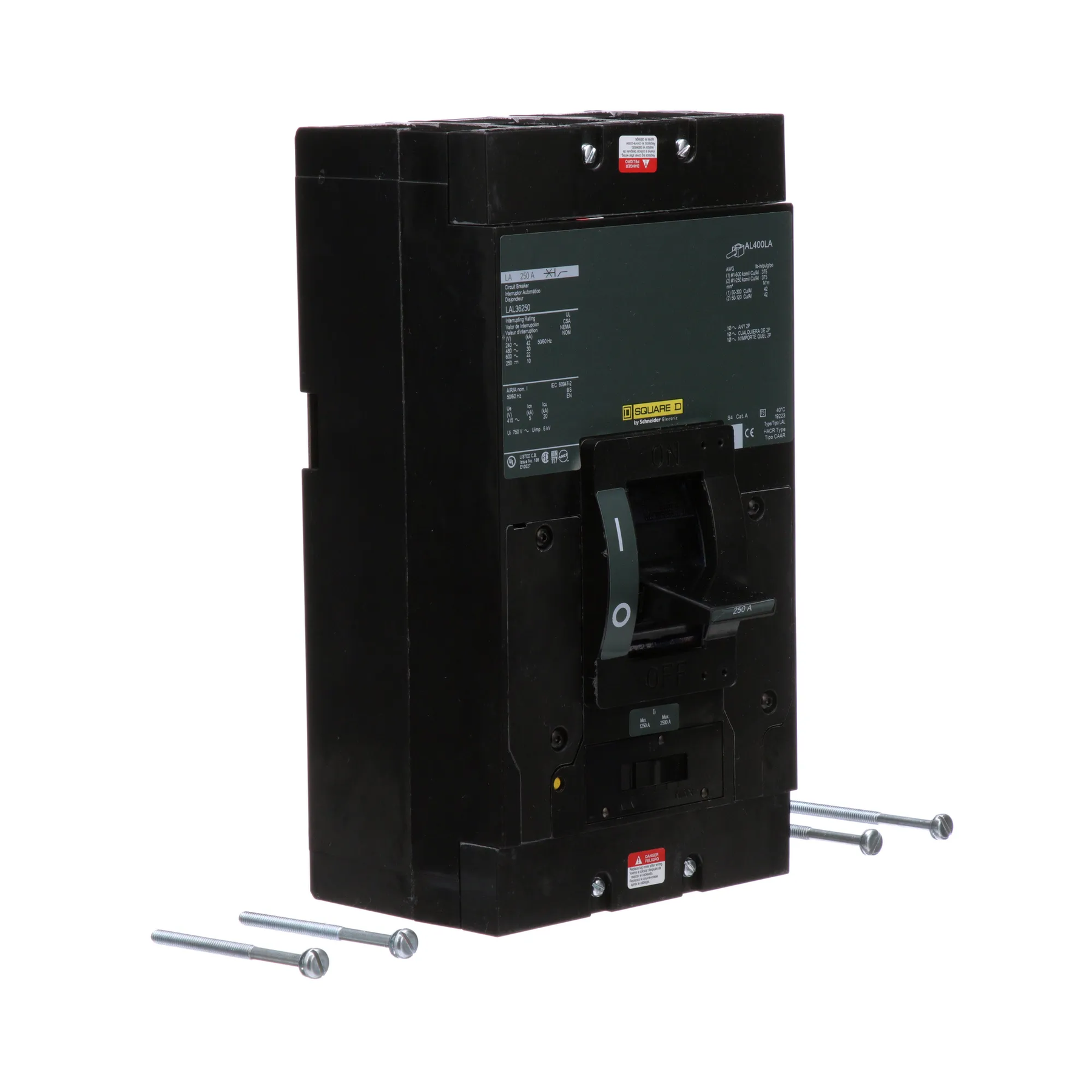

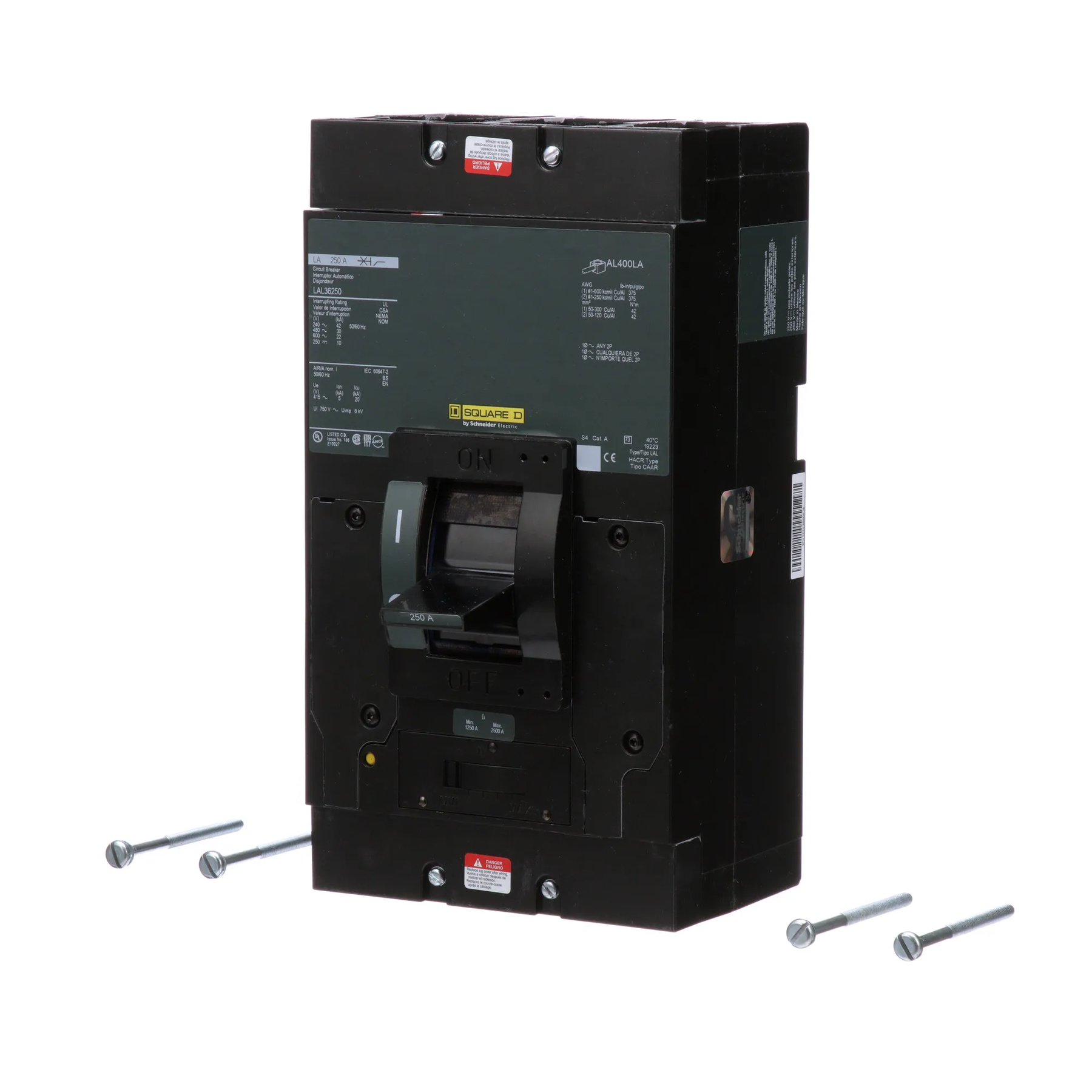

Square D LAL36250 Molded Case Circuit Breaker – 250A – 3-Pole / 3-Phase – 600V – 30kA @ 480V – Feed-Thru – PowerPact LAL Series

The Square D LAL36250 is a 250A, 3-pole, 3-phase thermal-magnetic molded case circuit breaker from the Square D PowerPact Type LAL Series. It is designed for compatible electrical distribution applications and provides overcurrent protection for suitable electrical systems.

The LAL36250 is rated for 600V and provides a 30kA interrupting rating at 480V with standard interrupting capacity. It features a feed-thru configuration, a complete breaker assembly with Long-Time and Instantaneous (LI) trip functions, and line- and load-side lug terminals.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: LAL
• Type: LAL
• Catalog No.: LAL36250
• Current Rating: 250A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 30kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Connection: Feed-Thru
• Breaker Configuration: Complete Breaker

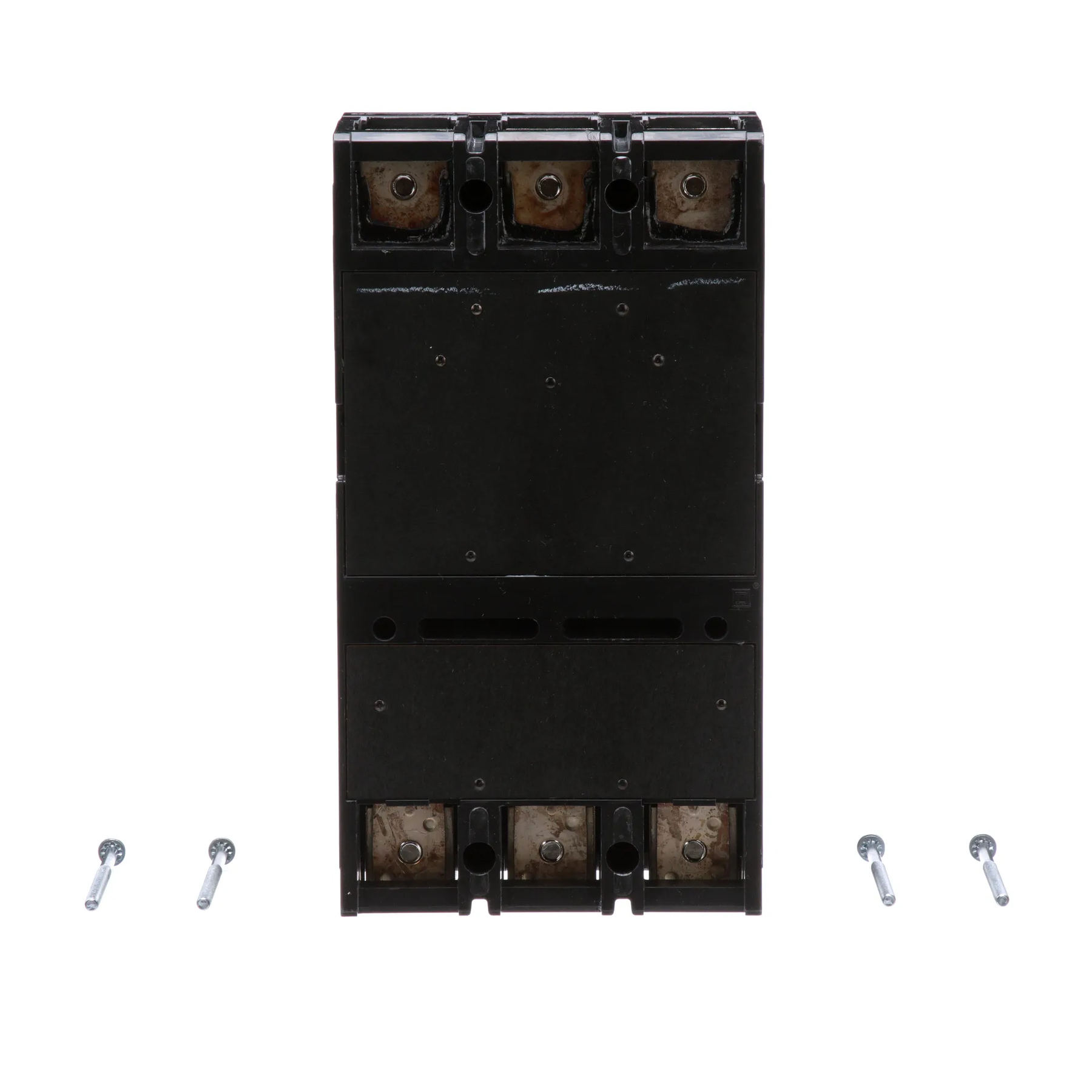

• Terminal Type: Line-Side and Load-Side Lug Terminals
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): LAL36250
• Catalog Number: LAL36250
• Model: LAL36250
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: LAL
• Type: LAL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 250A
• Trip Configuration: Long-Time and Instantaneous (LI)
• UPC:785901426745

Compatibility:

Designed for use with compatible Square D PowerPact LAL Series electrical distribution equipment that accepts LAL Series molded case circuit breakers. The LAL36250 provides 250A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker features a feed-thru configuration, complete breaker assembly, LI trip functions, and line- and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• PowerPact LAL Series
• 250A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 30kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Feed-Thru Configuration
• Complete Breaker
• Line- and Load-Side Lug Terminals
