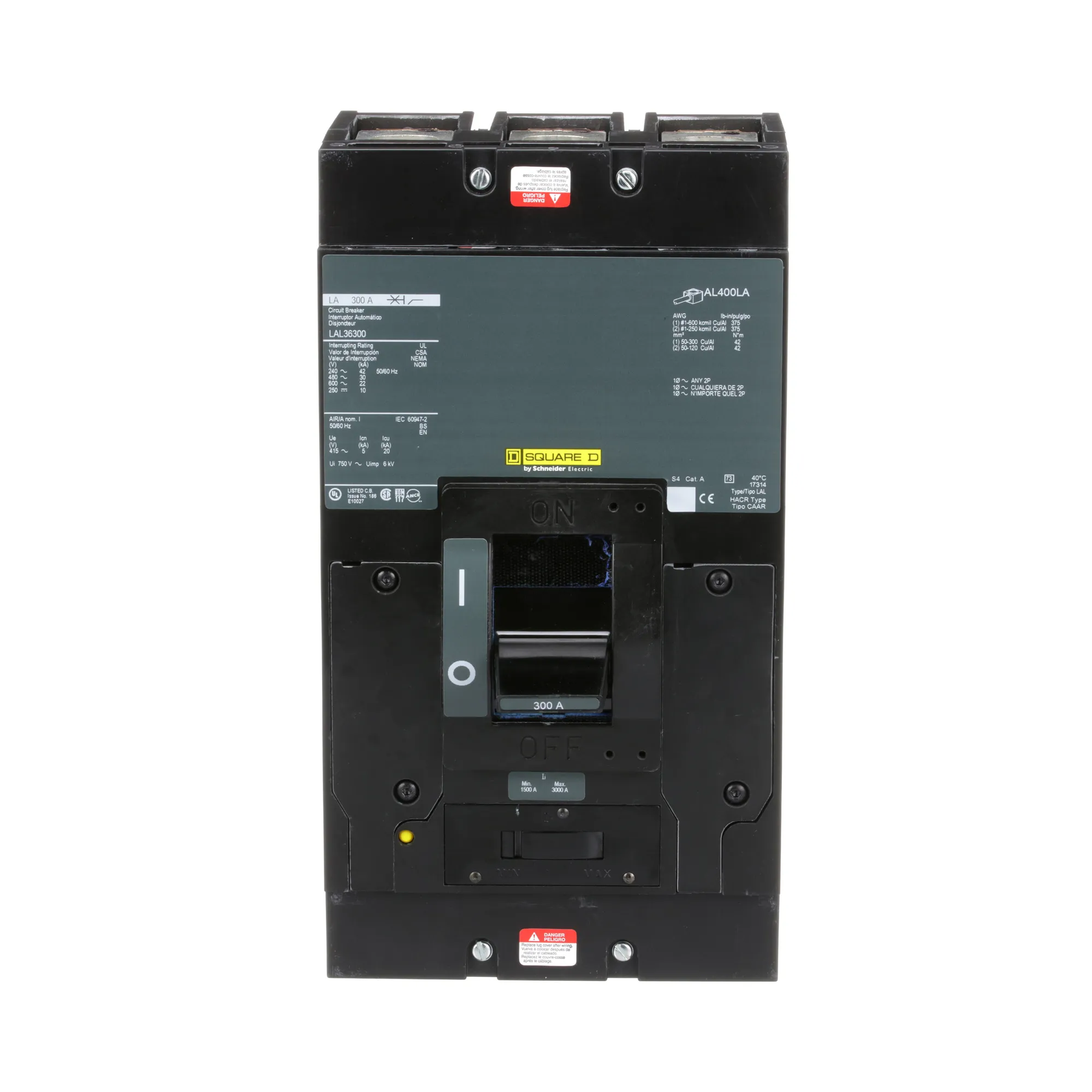

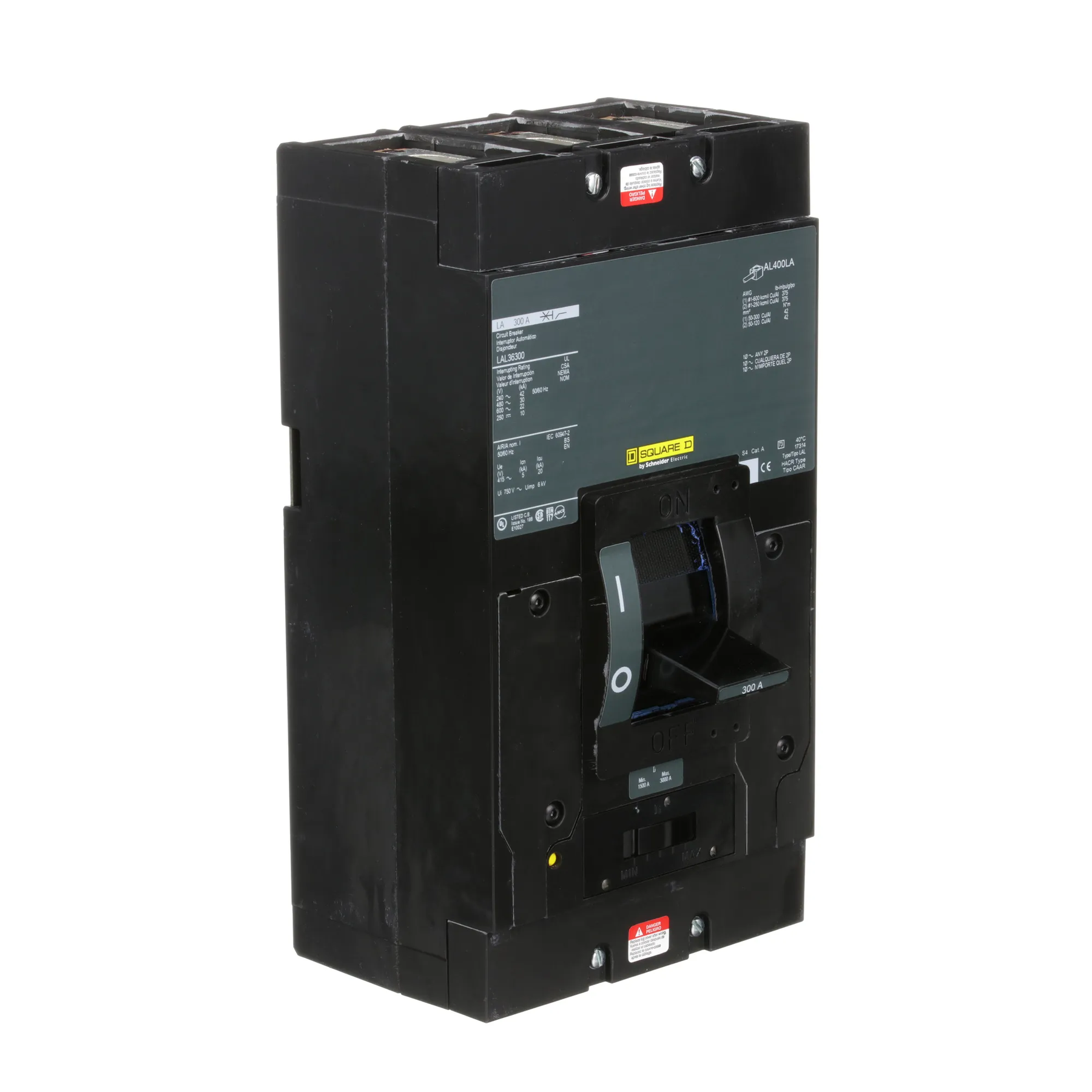

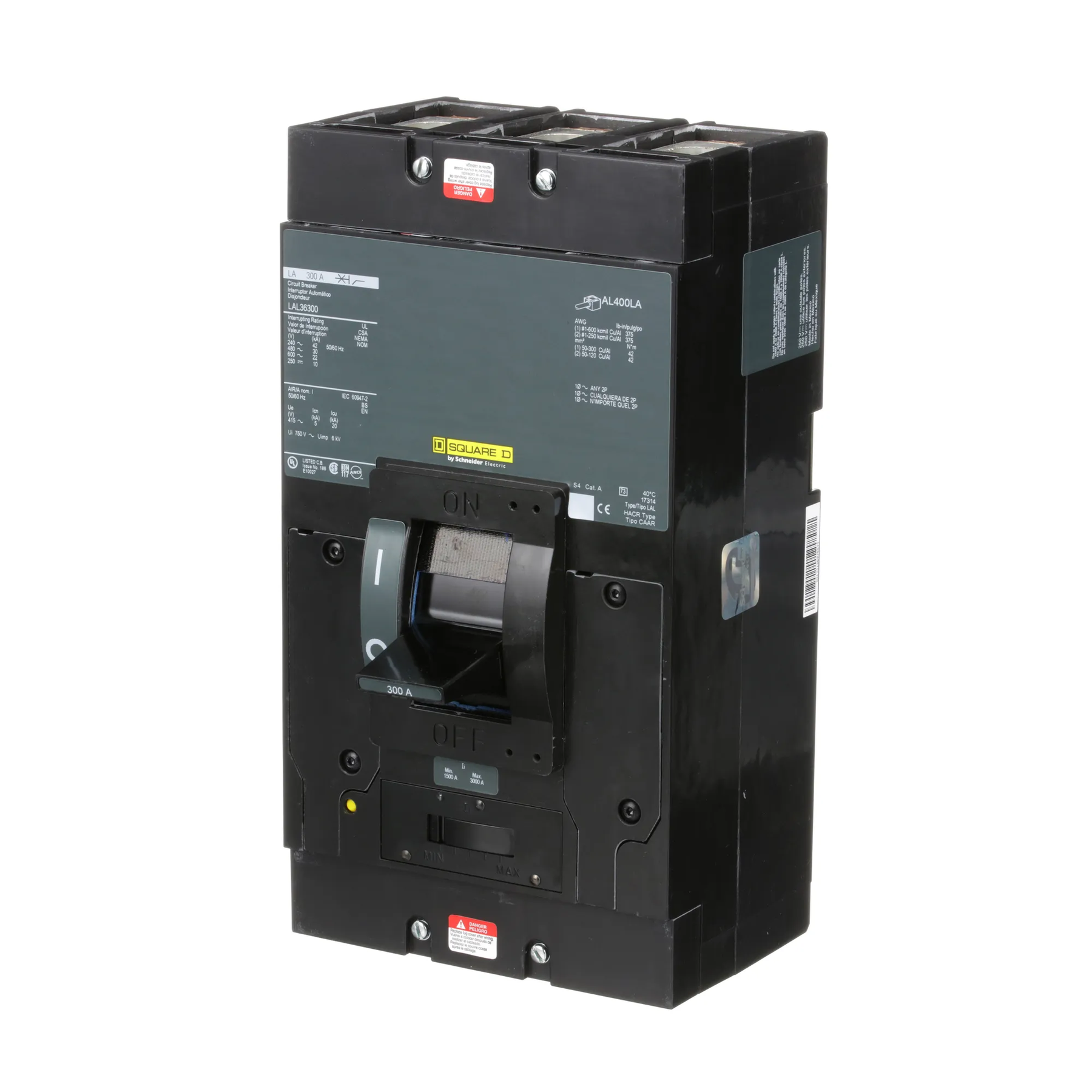

Square D LAL36300 Molded Case Circuit Breaker – 300A – 3-Pole – 600V AC – 30kA @ 480V AC – Feed-Through – LAL Series

The Square D LAL36300 is a 300A, 3-pole, 3-phase molded case circuit breaker from the Square D LAL Series. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions.

The LAL36300 is rated for 600V AC with a 30kA interrupting rating at 480V AC. It uses a feed-through configuration and includes line- and load-side lug terminals.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: LAL Series
• Series: LAL
• Type: LAL
• Catalog No.: LAL36300
• Current Rating: 300A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V AC
• Interrupting Rating: 30kA @ 480V AC
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Configuration: Feed-Through
• Terminal Configuration: Line- and Load-Side Lug Terminals
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): LAL36300
• Catalog Number: LAL36300
• Product Family: Square D LAL Molded Case Circuit Breakers
• Series: LAL
• Type: LAL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Model: LAL36300
• Breaker Configuration: 3-Pole, 300A
• upc:785901426783

Compatibility:

Designed for use with compatible Square D LAL Series electrical distribution equipment that accepts the specified molded case circuit breaker configuration. The LAL36300 is a 3-pole, 300A, 600V thermal-magnetic breaker with a 30kA interrupting rating at 480V AC, LI trip functions, and line- and load-side lug terminals.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, terminal arrangement, and mounting configuration before installation.

Certifications:

• LAL Series
• 300A Rated
• 3-Pole / 3-Phase
• 600V AC Rated
• 30kA @ 480V AC Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Feed-Through Configuration
• Line- and Load-Side Lug Terminals
