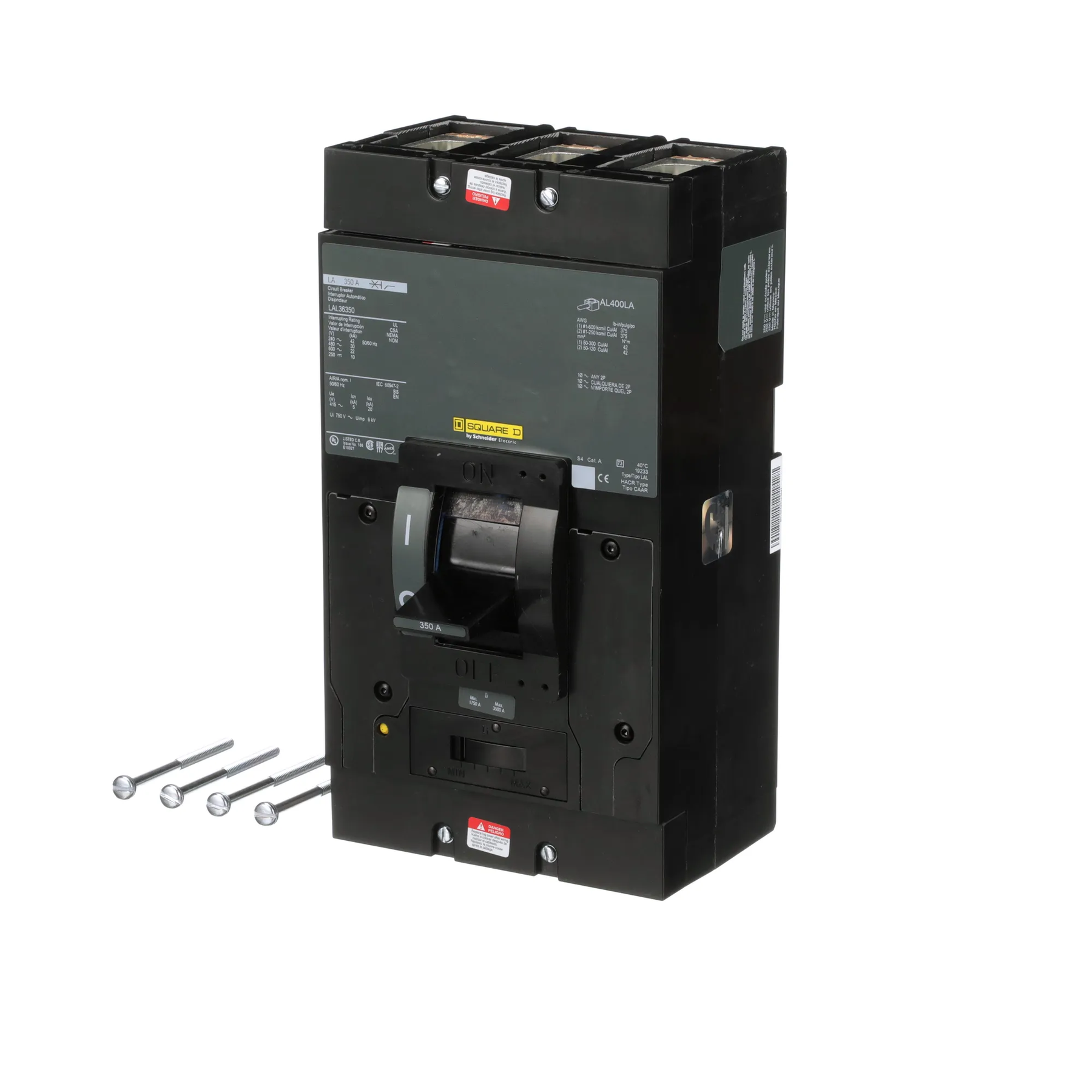

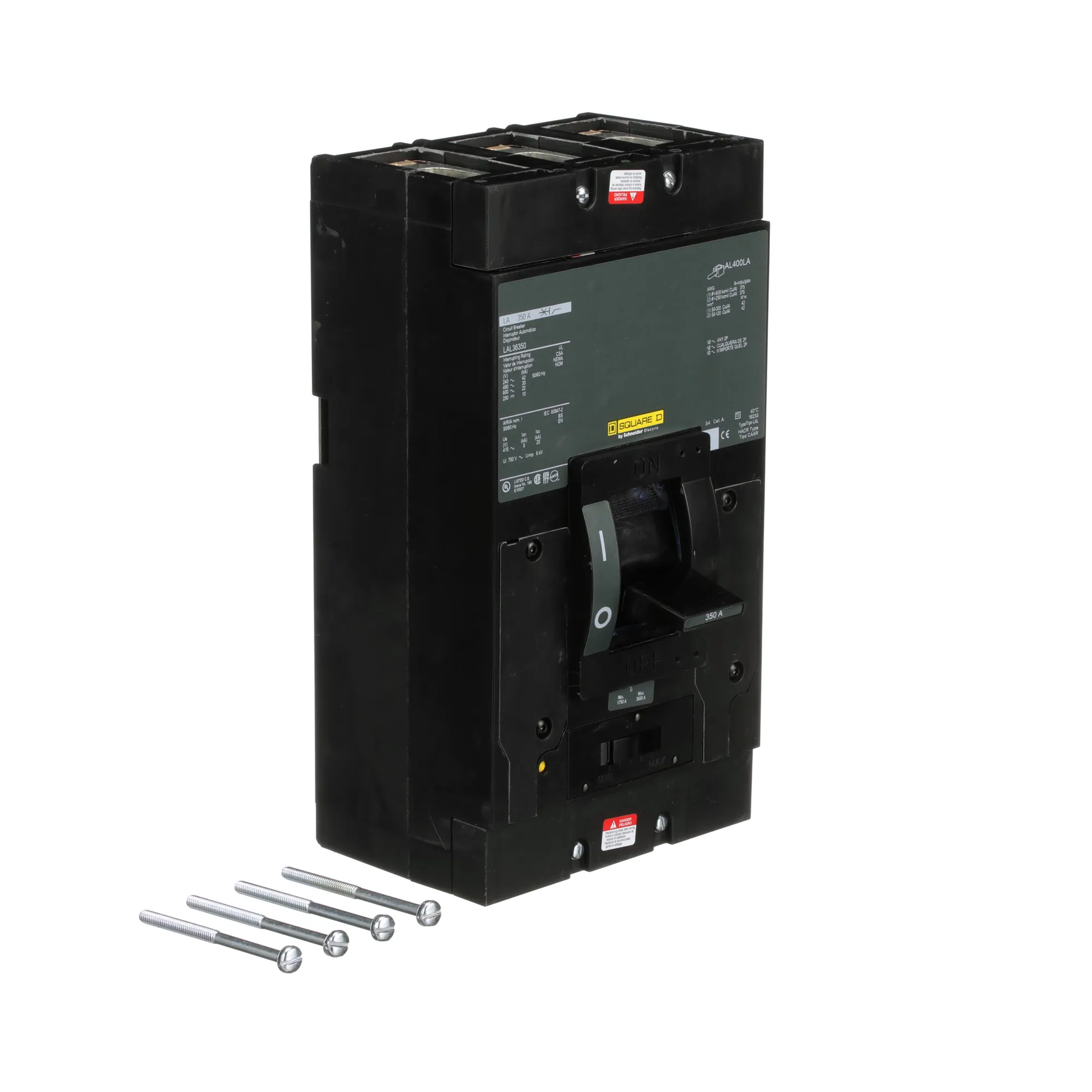

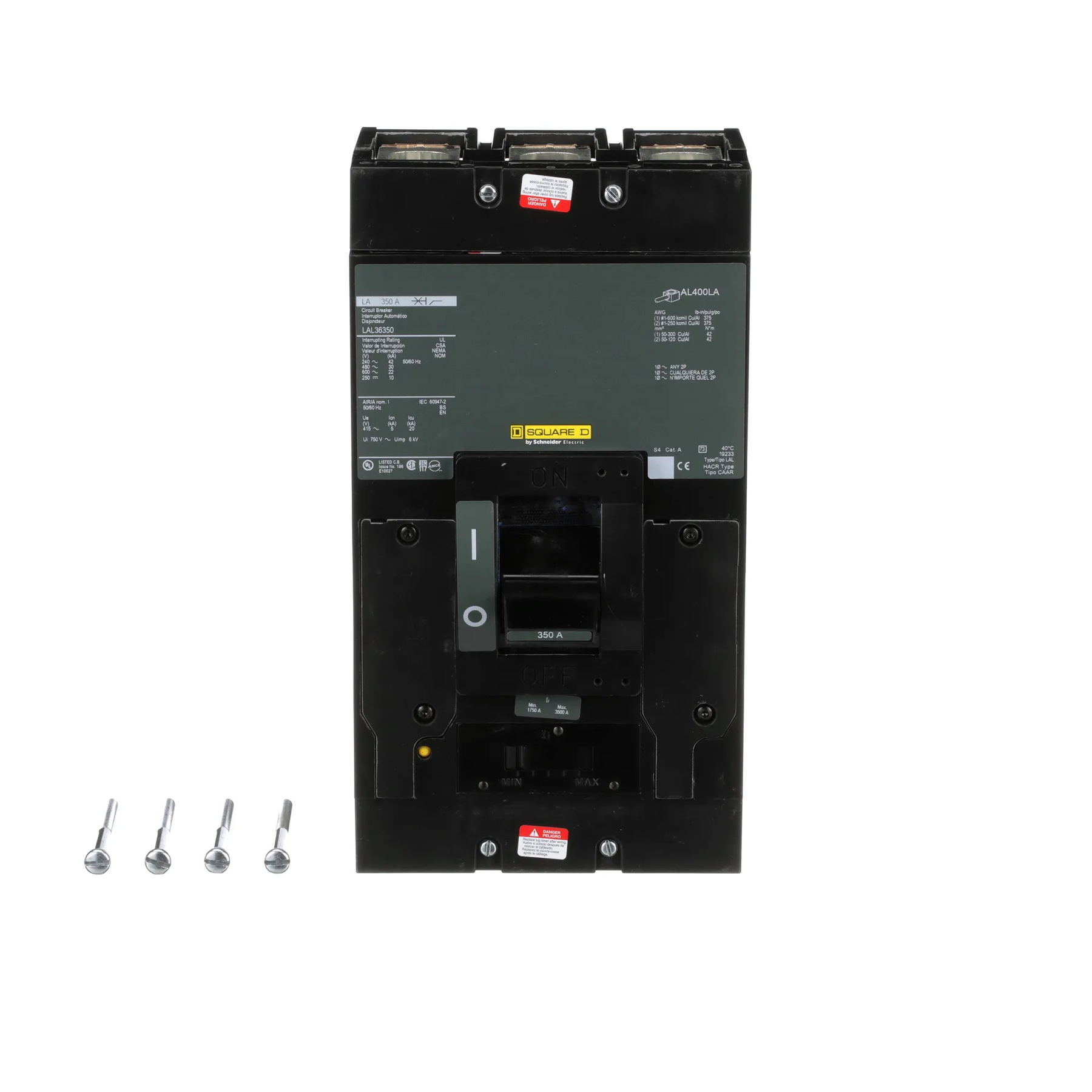

Square D LAL36350 Molded Case Circuit Breaker – 350A – 3-Pole / 3-Phase – 600V – 30kA @ 480V – Feed-Thru – PowerPact LAL Series

The Square D LAL36350 is a 350A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact LAL Series. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions.

The LAL36350 is rated for 600V and provides a 30kA interrupting rating at 480V with standard interrupting capacity. It features a feed-thru configuration with line-side and load-side lug terminals.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: LAL
• Type: LAL
• Catalog No.: LAL36350
• Current Rating: 350A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 30kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Not specified
• Mounting / Configuration: Feed-Thru

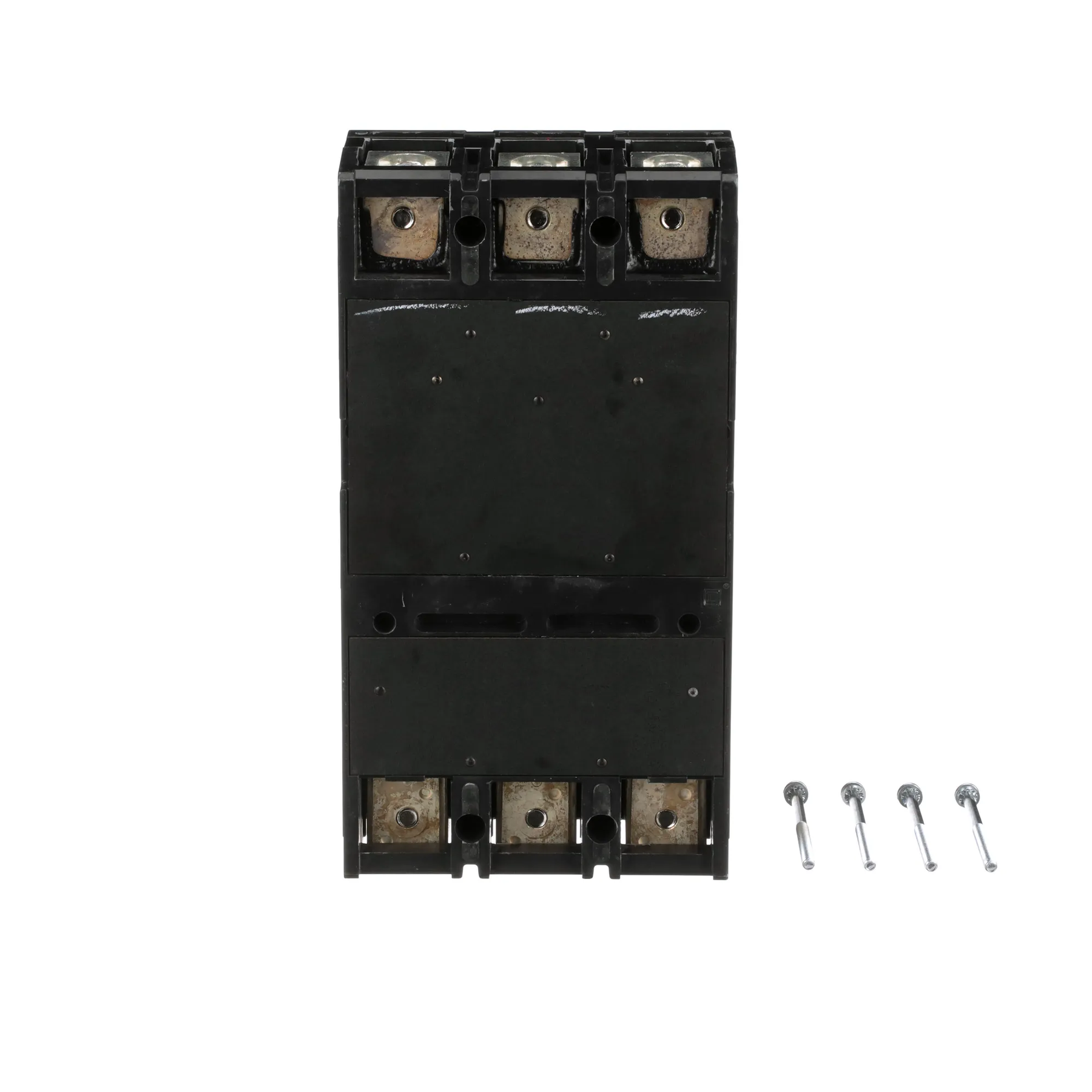

• Terminal Type: Line-Side and Load-Side Lug Terminals
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): LAL36350
• Catalog Number: LAL36350
• Model: LAL36350
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: LAL
• Type: LAL
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 350A
• UPC:785901426820

Compatibility:

Designed for use with compatible Square D PowerPact LAL Series electrical distribution equipment that accepts LAL Series molded case circuit breakers. The LAL36350 provides 350A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker features a feed-thru configuration with line-side and load-side lug terminals and provides a 30kA interrupting rating at 480V. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• No specific certification information provided
