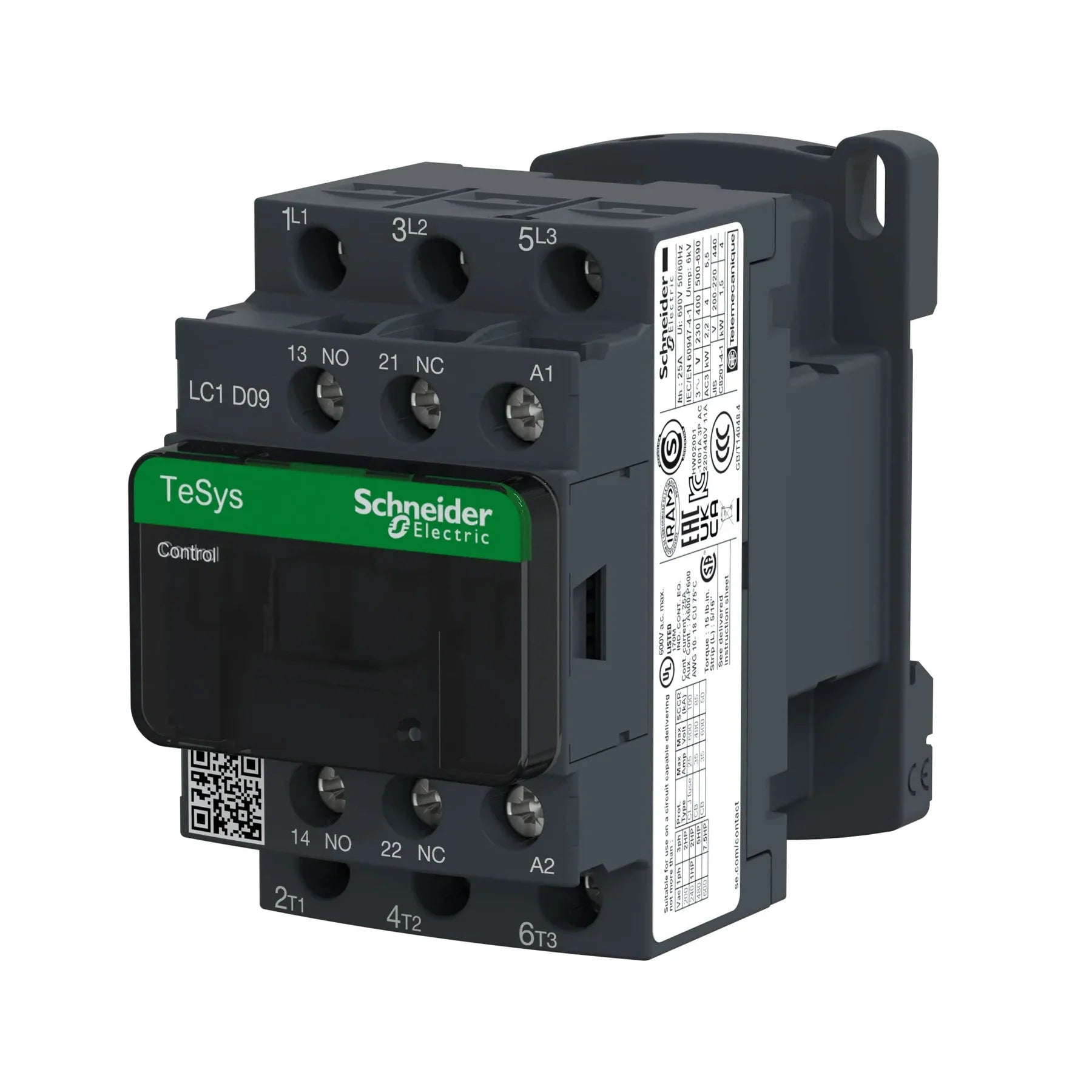

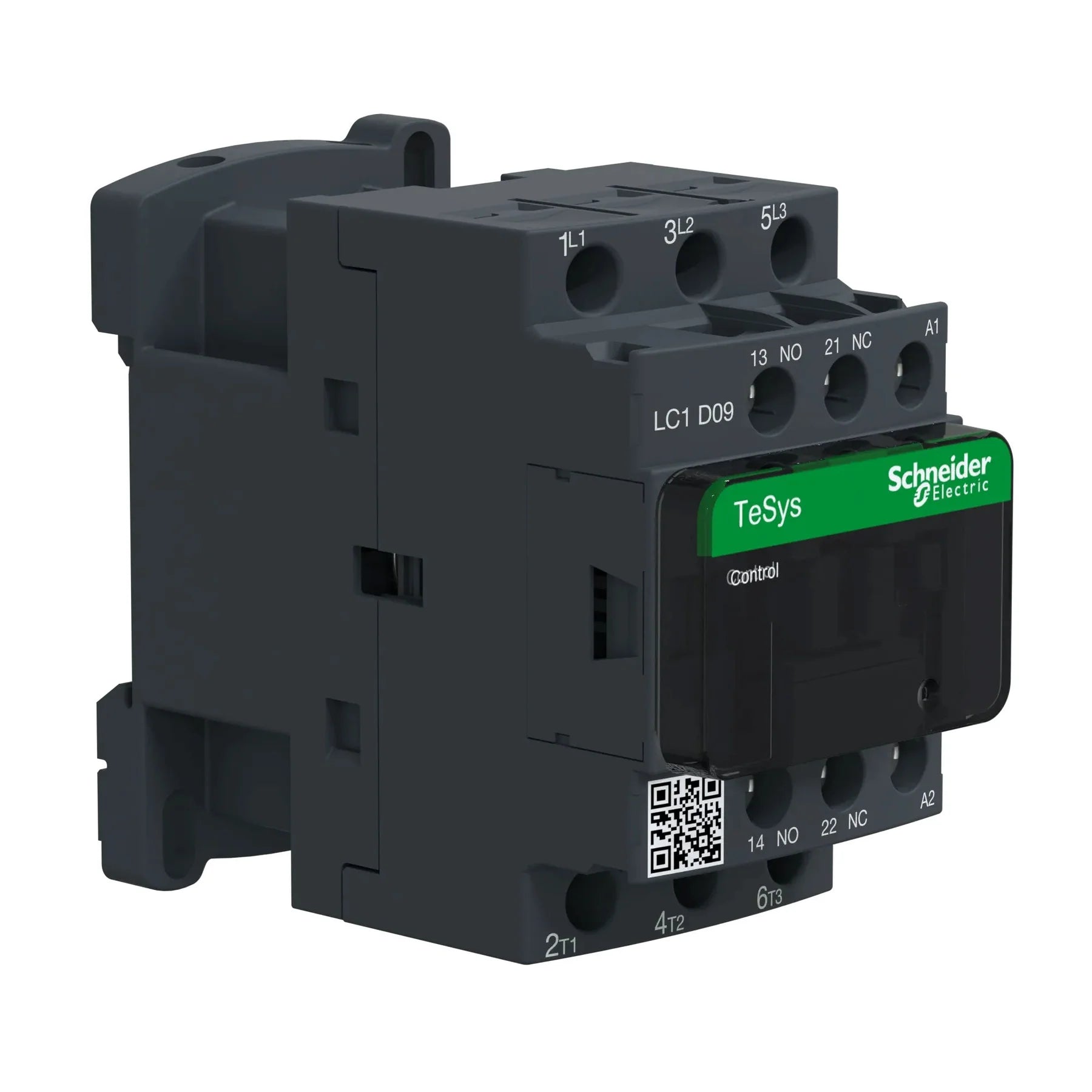

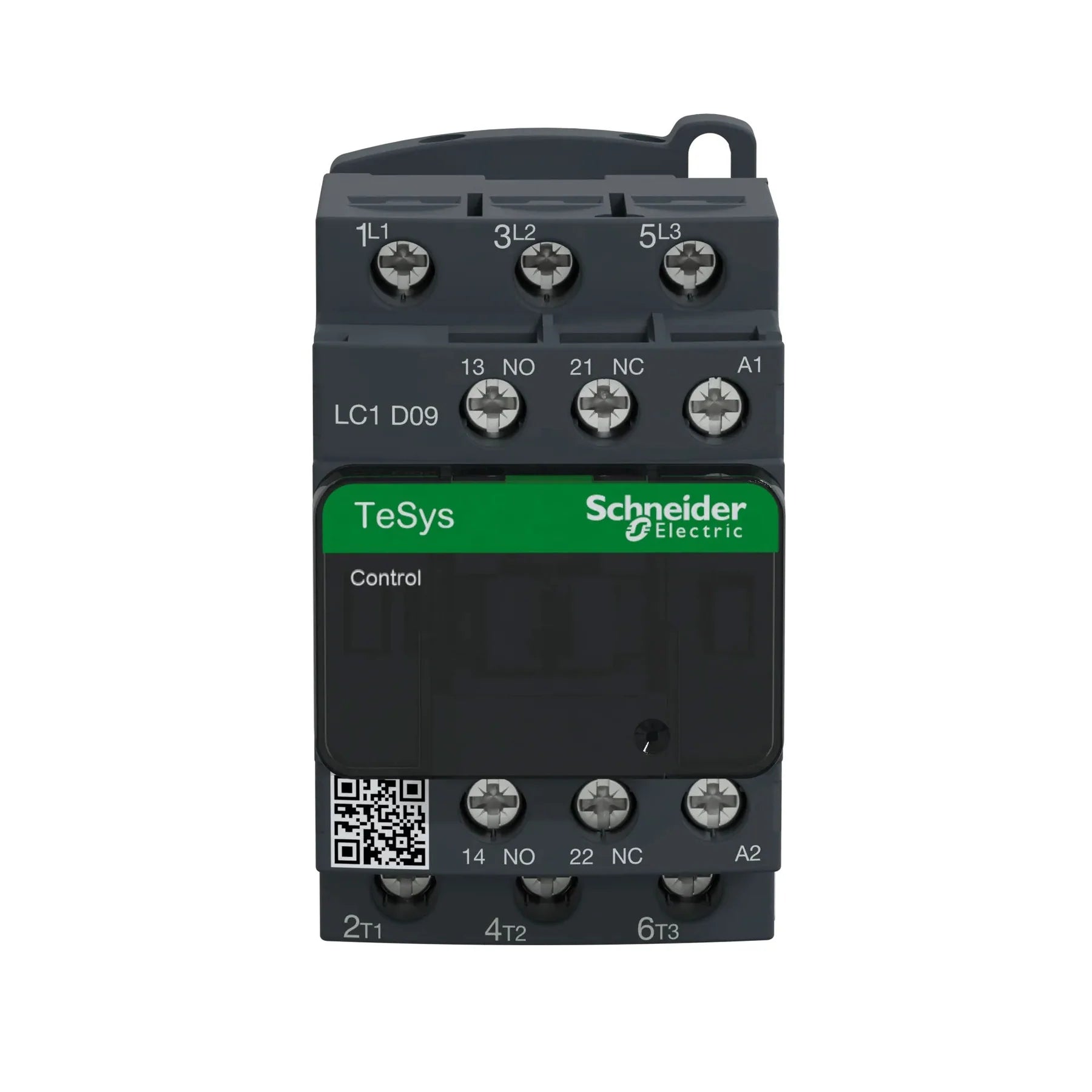

Square D LC1D09T7 9 Amp IEC Contactor – 3 Pole – 80 V AC Coil – TeSys D Series

The Square D LC1D09T7 is a 9 Amp, 3-pole IEC contactor from the Schneider Electric TeSys D Series, designed for integration into motor control systems and motor starter applications. It supports inductive motor loads up to 9 A and includes one normally open and one normally closed auxiliary contact. The contactor is supplied with an 80 V AC coil rated for 50/60 Hz operation. It supports DIN rail or direct panel mounting and uses screw-clamp terminals for load and auxiliary connections.

Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Type: IEC Contactor
• Series: TeSys D
• Catalog Number / MPN: LC1D09T7
• Primary Rating: 9 Amp
• Poles / Configuration: 3 Pole
• Coil Voltage: 80 V AC
• Coil Frequency: 50/60 Hz
• Auxiliary Contacts: 1 NO, 1 NC
• Auxiliary Contact Certification: NC contact is mirror certified
• Inductive Load Rating: 9 A
• Mounting: DIN Rail or Direct Panel Mount
• Terminals: Screw-Clamp Terminals
• Horsepower Ratings (3 Phase):
  • 20 HP @ 200–208 V AC
  • 25 HP @ 240 V AC
  • 60 HP @ 480 V AC
  • 60 HP @ 600 V AC
• Horsepower Ratings (Single Phase):
  • 7.5 HP @ 115 V AC
  • 15 HP @ 240 V AC
• SCCR: Up to 85 kA with a 480 V AC circuit breaker rated up to 35 A; up to 100 kA with a 600 V AC Class J or Class CC fuse rated up to 25 A

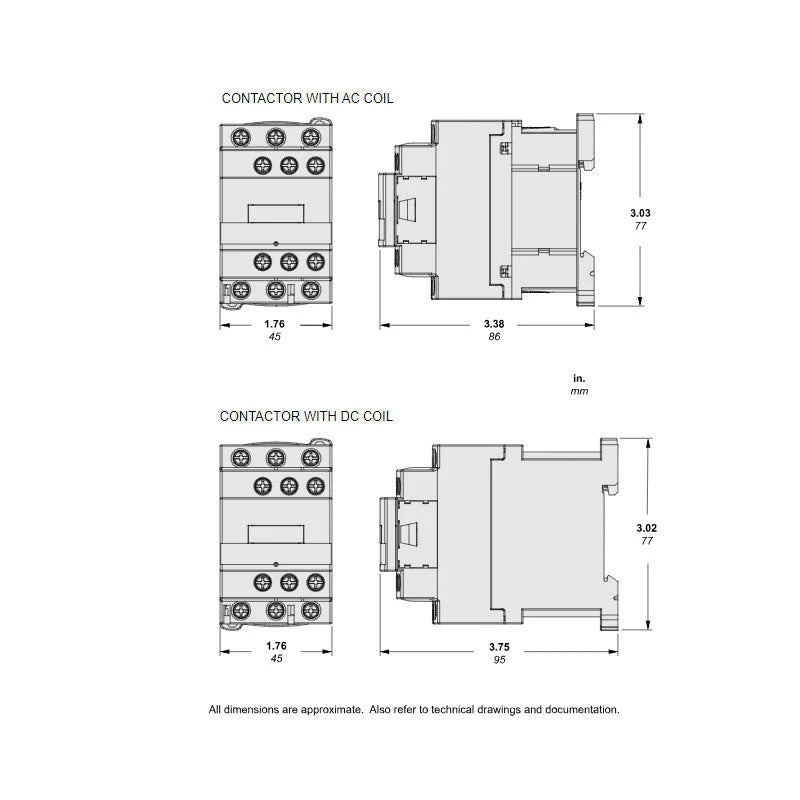

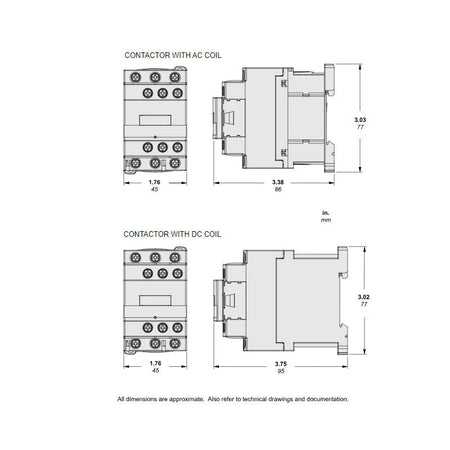

• Dimensions (H × W × D): 3.15" × 1.77" × 3.39"
• Weight: 0.71 lb

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: LC1D09T7
• Series: TeSys D
• Current Rating: 9 A
• Pole Count: 3 Pole
• Product Type: IEC Contactor
• Auxiliary Contacts: 1 NO, 1 NC
• UPC:785901206941

Compatibility

The Square D LC1D09T7 is designed for compatible Schneider Electric TeSys D motor starters, motor control systems, and industrial control applications.

Certifications

• UL
• CSA
• IEC
• CCC
• EAC
• Marine Standards
• RoHS/REACH Compliant
• Green Premium Product
