Square D LC1D1156M7 115 Amp IEC Contactor – 3 Pole – 220 V AC Coil – TeSys D Series

In stock
SKU: LC1D1156M7
$570.51

Select product condition:

Condition
Secure transaction
FREE & fast shipping on orders over $149
1 year warranty
10 day returns

Ask an expert

Email 866-972-6370

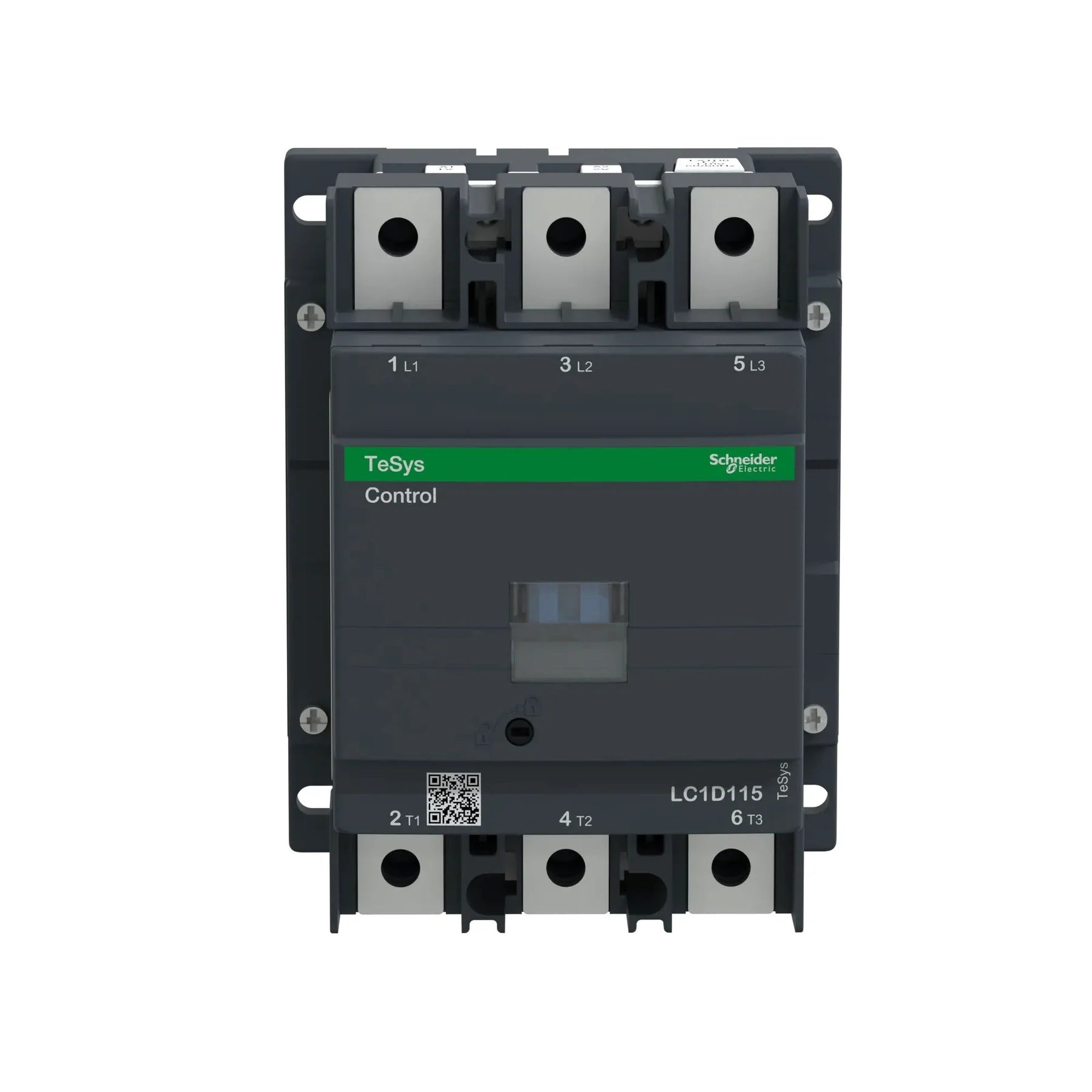

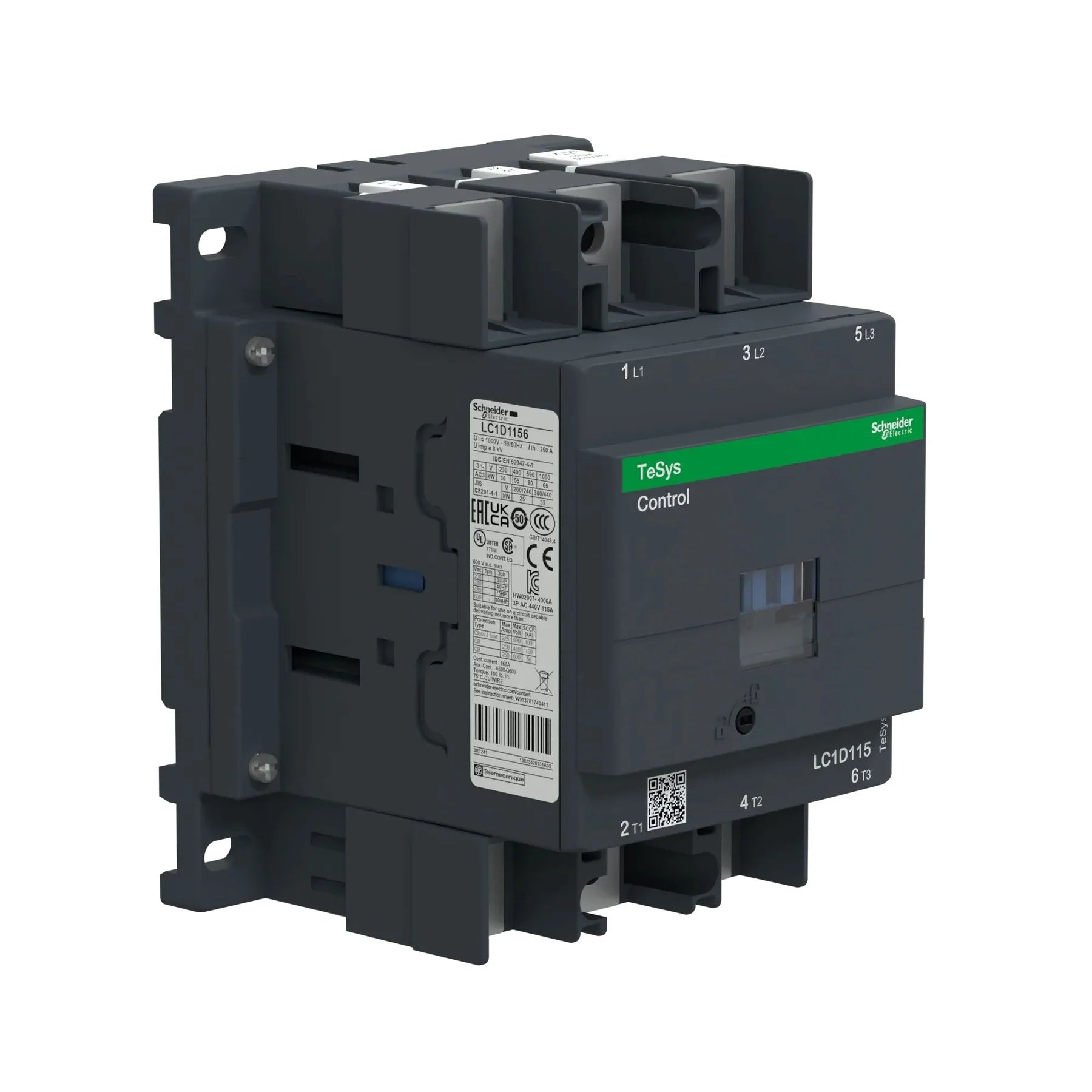

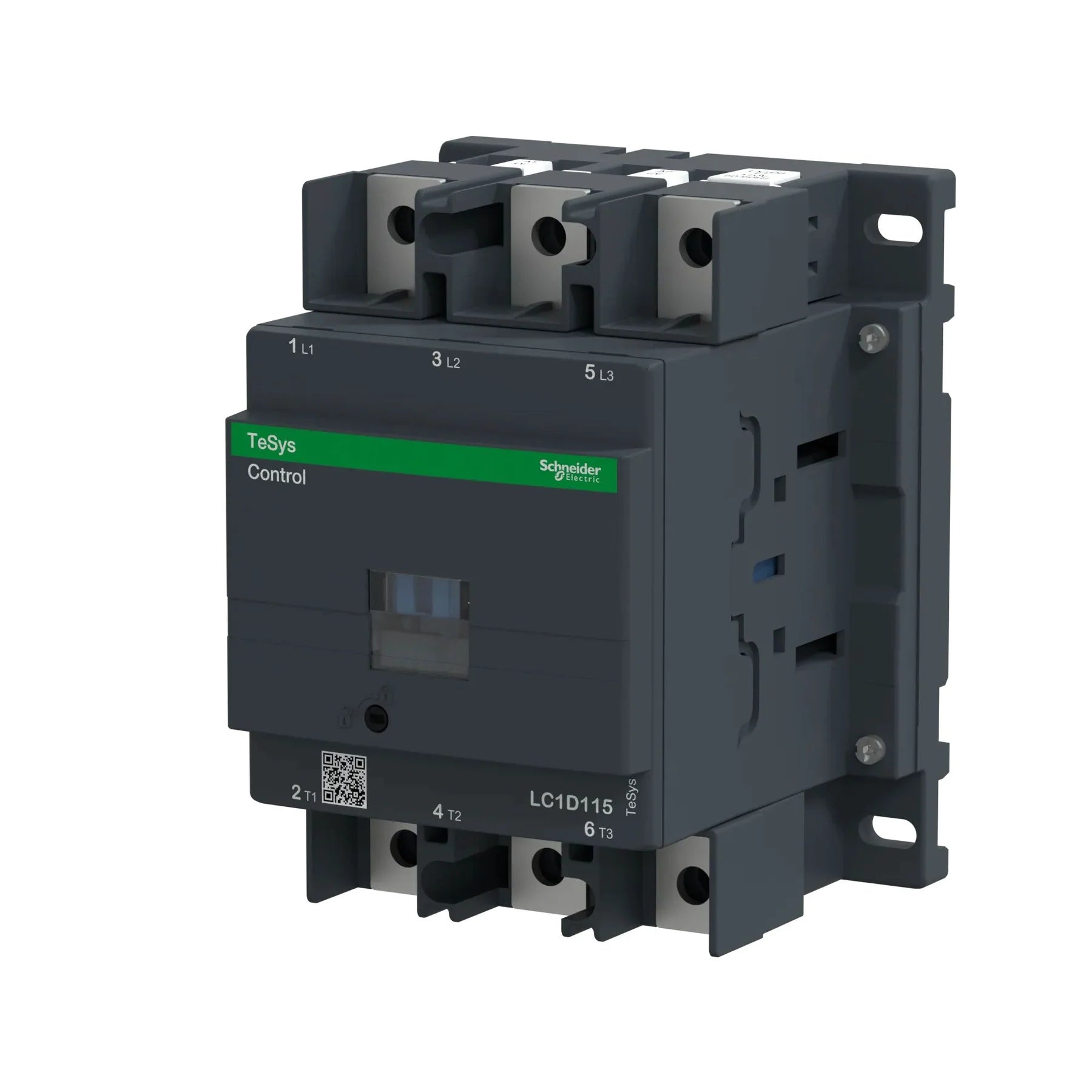

The Square D LC1D1156M7 is a 115 Amp, 3-pole IEC contactor from the Schneider Electric TeSys D Series, designed for integration into motor control systems and motor starter applications. It supports inductive motor loads up to 115 A and resistive loads up to 200 A. The contactor has a 220 V AC coil rated for 50/60 Hz operation and includes one normally open and one normally closed auxiliary contact. The NC auxiliary contact is mirror certified. It supports DIN rail or direct panel mounting and uses ring-lug screw terminals for load and auxiliary connections.

Specifications

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Product Type: IEC Contactor
  • Series: TeSys D
  • Catalog Number / MPN: LC1D1156M7
  • Primary Rating: 115 Amp
  • Poles / Configuration: 3 Pole
  • Coil Voltage: 220 V AC
  • Coil Frequency: 50/60 Hz
  • Auxiliary Contacts: 1 NO, 1 NC
  • Auxiliary Contact Certification: NC contact is mirror certified
  • Inductive Load Rating: 115 A
  • Resistive Load Rating: 200 A

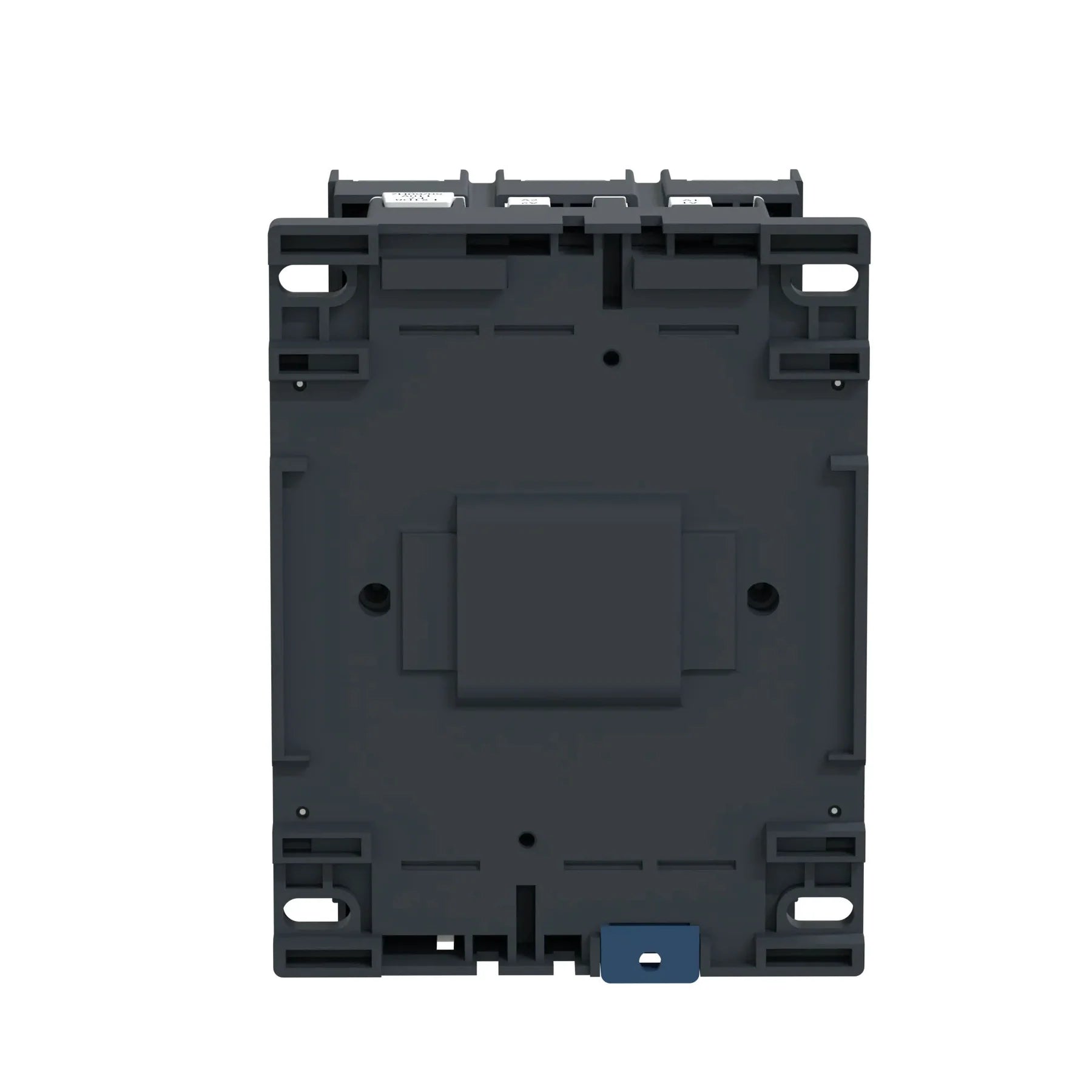

  • Mounting: DIN Rail or Direct Panel Mount
  • Terminals: Ring-Lug Screw Terminals
  • Horsepower Ratings (3 Phase):
    • 30 HP @ 200–208 V AC
    • 40 HP @ 240 V AC
    • 75 HP @ 480 V AC
    • 100 HP @ 600 V AC
  • Dimensions (H × W × D): 6.22" × 4.72" × 5.35"
  • Weight: 5.51 lb

Part Numbers & Identification

  • Manufacturer: Schneider Electric
  • Brand: Square D
  • Catalog Number: LC1D1156M7
  • Series: TeSys D
  • Current Rating: 115 A
  • Pole Count: 3 Pole
  • Product Type: IEC Contactor
  • Auxiliary Contacts: 1 NO, 1 NC
  • UPC:3389110381252

Compatibility

The Square D LC1D1156M7 is designed for compatible Schneider Electric TeSys D motor starters, motor control systems, and industrial control applications.

Certifications

  • UL
  • CSA
  • IEC
  • Type Motor Control
  • Vendor Schneider Electric
  • Brand Square D
  • Electrical Rating 250 Amp - 3 Pole - 600 Volt
