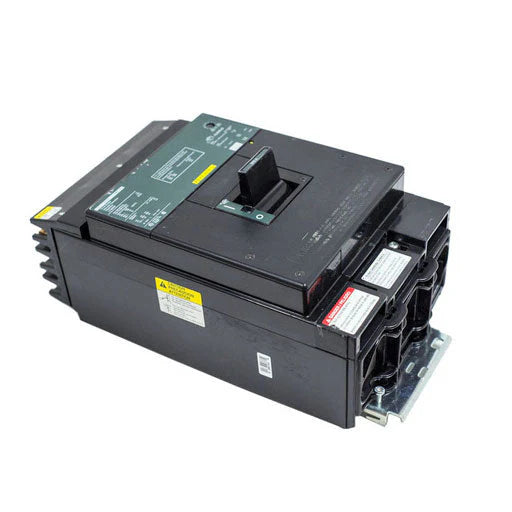

Square D LC36450 450 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 30 kA@480 V – I-Line Plug-In – Type LC

The Square D LC36450 is a 450 Amp, 3-pole molded case circuit breaker from the Square D I-Line Series, Type LC. Designed for commercial and industrial electrical distribution, it provides thermal-magnetic overcurrent protection with LI (Long-Time and Instantaneous) trip functions. The breaker is rated for 600 V AC and 250 V DC, features an I-Line plug-in connection, and provides a 30 kA interrupting rating at 480 V AC. It is designed for use with compatible I-Line panelboards.

Specifications

• Manufacturer: Schneider Electric
• Brand: Square D
• Product Type: Molded Case Circuit Breaker
• Series: I-Line
• Type: LC
• Frame: LC / L-Frame
• Catalog Number / MPN: LC36450
• Primary Rating: 450 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Phase Connection: ABC
• Voltage: 600 V AC
• DC Voltage: 250 V DC
• Interrupting Rating: 30 kA @ 480 V AC
• Trip Type: Thermal-Magnetic
• Trip Functions: LI – Long-Time and Instantaneous
• Connection / Mounting: I-Line Plug-In
• Terminals: Load-Side Lugs
• Actuator: Toggle Handle
• Wire Range: 1 AWG to 600 kcmil, single conductor; 1 AWG to 250 kcmil, two conductors
• Operating Temperature Rating: Approximately 40°C
• Weight: Approximately 27 lb
• Dimensions (H × W × D): 11" × 6" × 5.84"

Part Numbers & Identification

• Manufacturer: Schneider Electric
• Brand: Square D
• Catalog Number: LC36450
• Series: I-Line
• Type: LC
• Frame: LC / L-Frame
• Current Rating: 450 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Functions: LI – Long-Time and Instantaneous
• Connection: I-Line Plug-In
• Terminals: Load-Side Lugs
• UPC: 0785901255680
• Country of Origin: Mexico

Compatibility

The Square D LC36450 is designed for use with compatible Square D I-Line panelboards and electrical distribution equipment.

Certifications

• UL Listed
• CSA Certified
