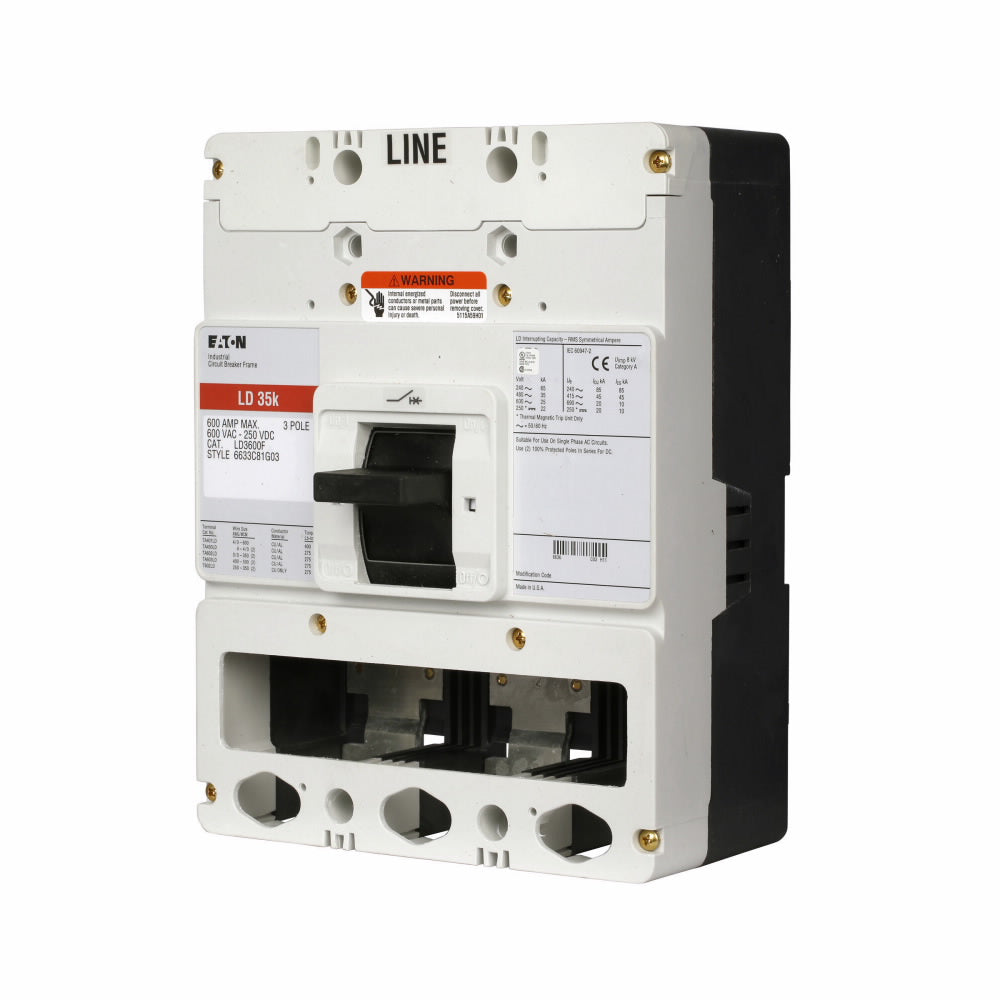

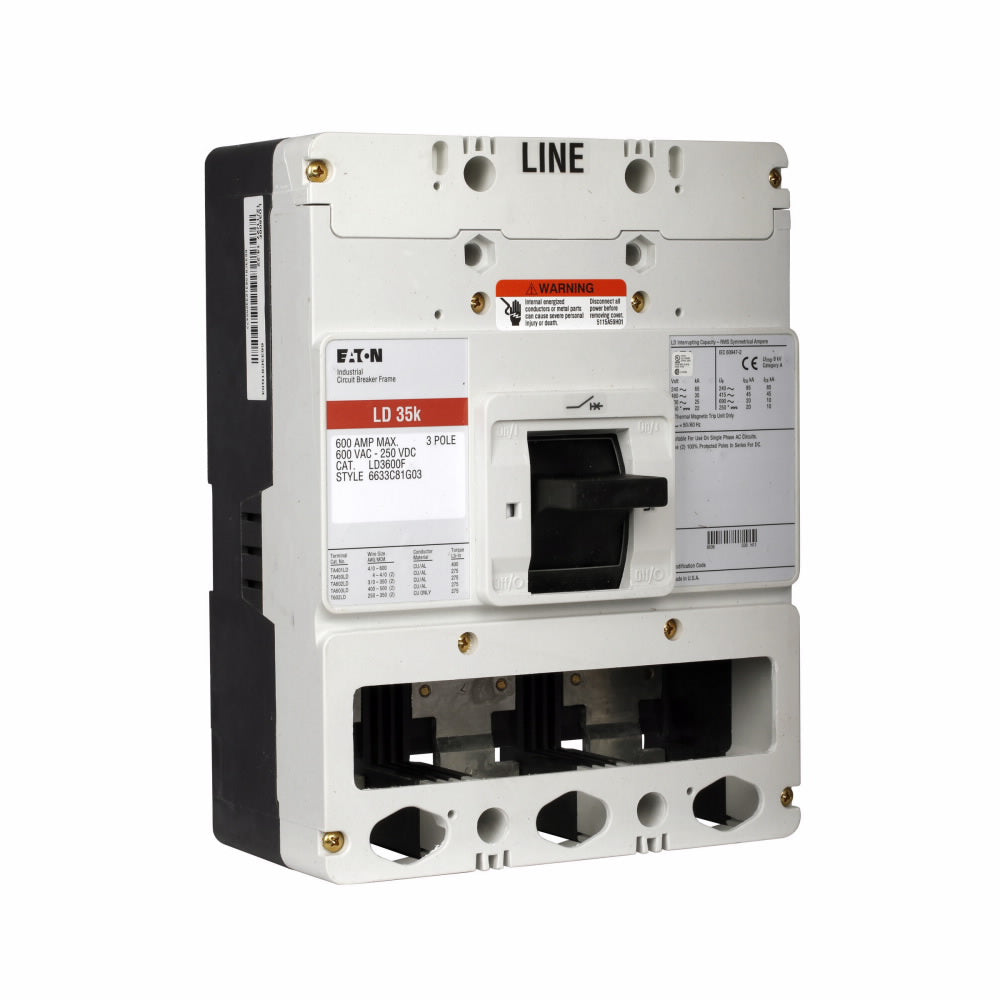

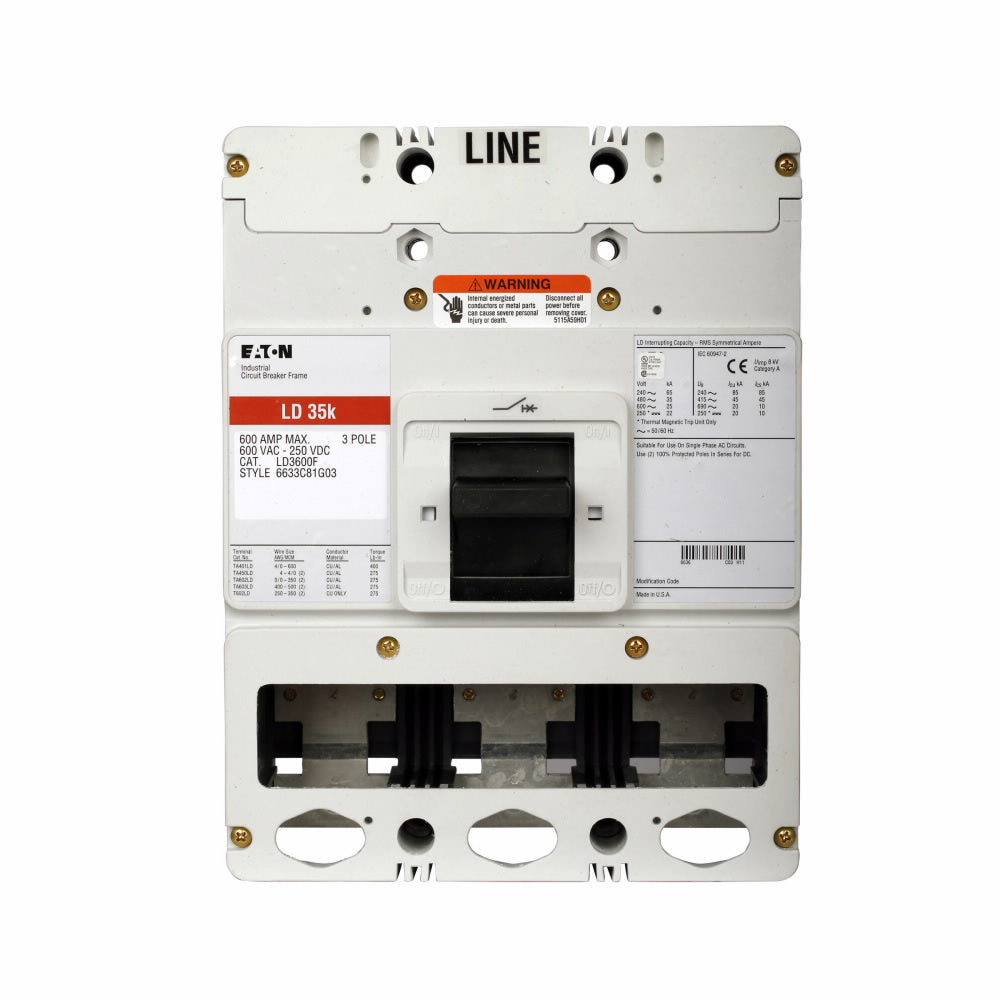

Eaton LD3600F Molded Case Circuit Breaker Frame – 600A – 3-Pole / 3-Phase – 600V – 35kA @ 480V – Bolt-On – Series C LD

The Eaton LD3600F is a 600A, 3-pole, 3-phase molded case circuit breaker frame from the Eaton / Cutler-Hammer / Westinghouse Series C Type LD. It is designed for compatible electrical distribution applications and features thermal-magnetic protection with a standard interrupting capacity.

The LD3600F is rated for 600V and provides a 35kA interrupting rating at 480V. It uses a bolt-on mounting configuration and is supplied as a frame only, with the trip unit not included.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer / Westinghouse
• Product Type: Molded Case Circuit Breaker Frame
• Product Family: Series C
• Series: LD
• Type: LD
• Catalog No.: LD3600F
• Current Rating: 600A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Mounting Type: Bolt-On
• Configuration: Frame Only
• Trip Unit: Not Included
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): LD3600F
• Catalog Number: LD3600F
• Model: LD3600F
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: LD
• Type: LD
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker Frame
• Breaker Configuration: 3-Pole, 600A
• Frame Configuration: Frame Only
• UPC:786679148204

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C Type LD electrical distribution equipment that accepts LD Series molded case circuit breaker frames. The LD3600F is a 3-pole, 600A, 600V frame with a 35kA interrupting rating at 480V and bolt-on mounting.

This product is supplied as frame only and does not include the trip unit. Always verify the specific panelboard or electrical equipment model, compatible trip unit, system voltage, available fault current, pole configuration, mounting arrangement, and installation requirements before installation.

Certifications:

• Series C LD
• 600A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 35kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Bolt-On Mounting
• Frame Only
• Trip Unit Not Included
