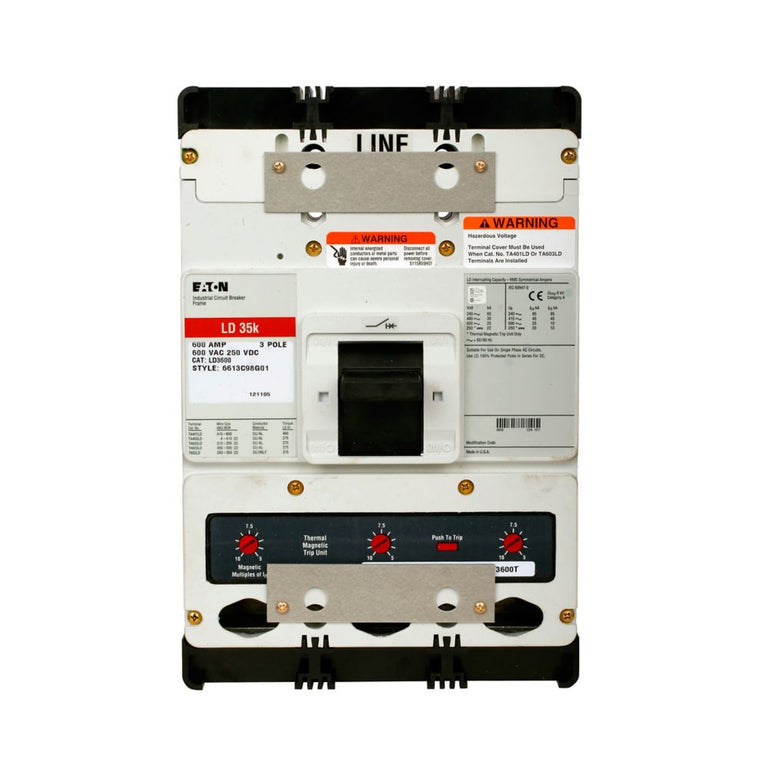

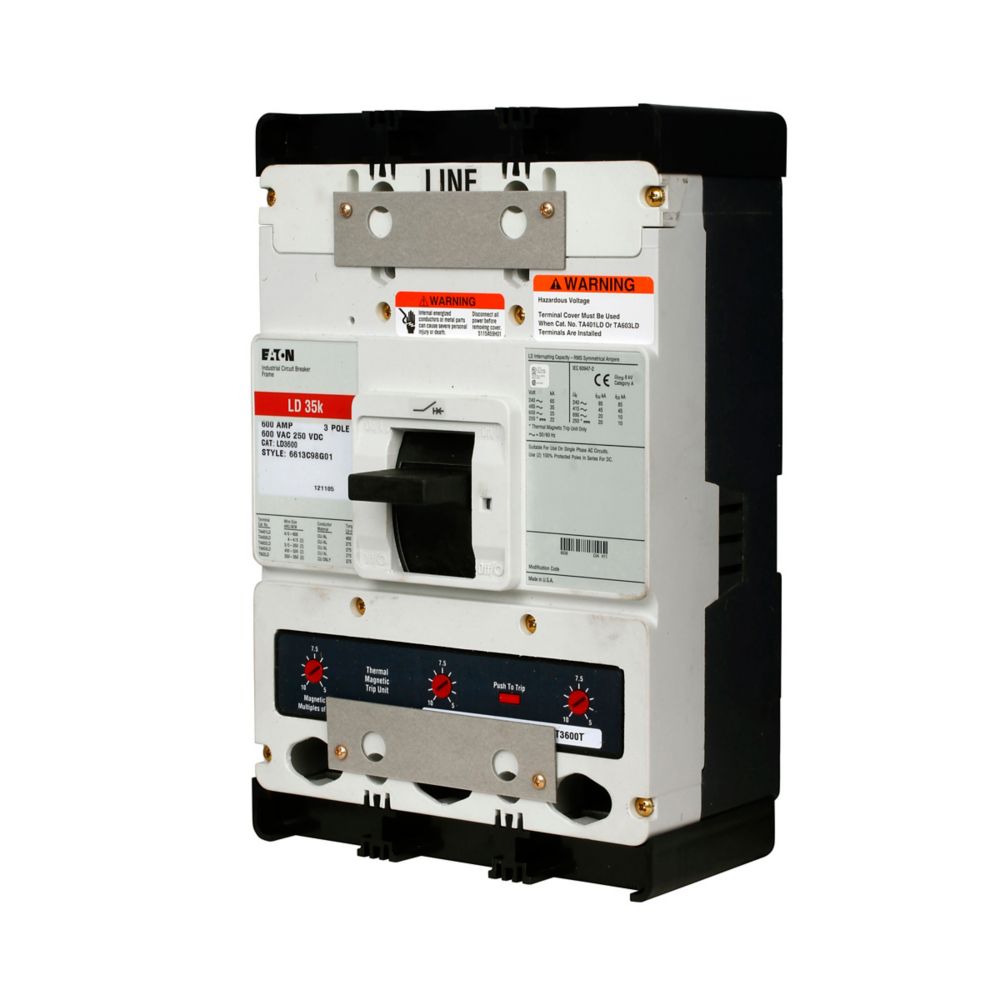

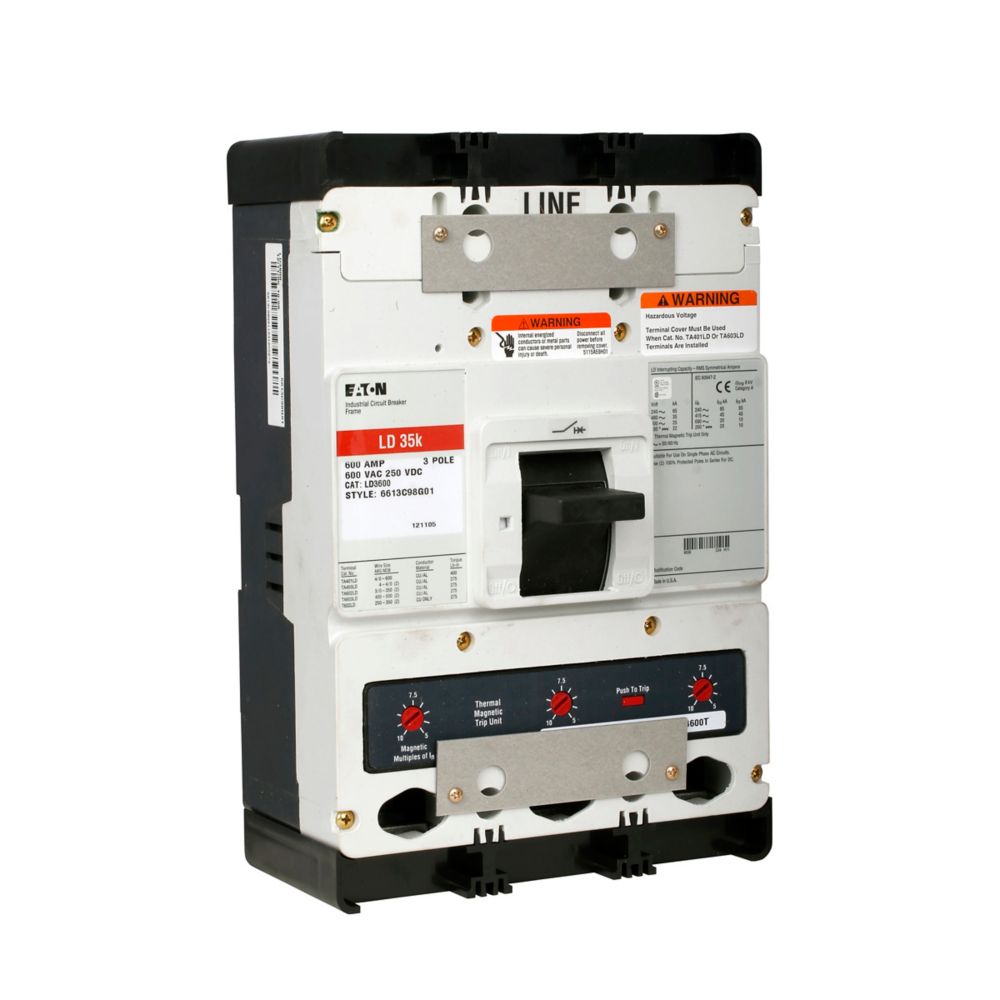

Eaton LD3600Y 600 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 65 kAIC@240 V AC – 35 kAIC@480 V – Feed-Thru – Series C

The Eaton LD3600Y is a 600 Amp, 3-pole, 3-phase molded case circuit breaker from the Eaton / Cutler-Hammer Series C, Type LD product range. It is rated for 600 V and provides interrupting ratings of 65 kAIC at 240 V AC and 35 kA at 480 V. The breaker features thermal-magnetic protection with interchangeable LI (Long-Time and Instantaneous) trip functions, feed-thru mounting, and line and load-side lug terminals. It provides standard interrupting capacity and is calibrated for 40°C applications.

Specifications

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Series: Series C
• Type: LD
• Catalog Number / MPN: LD3600Y
• Primary Rating: 600 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 65 kAIC @ 240 V AC; 35 kA @ 480 V
• Interrupting Capacity: Standard
• Trip Type: Thermal-Magnetic
• Trip Unit: Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Calibration Temperature: 40°C
• Connection / Mounting: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Catalog Number: LD3600Y
• Series: Series C
• Type: LD
• Current Rating: 600 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Unit: Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Connection: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• UPC:786679471210

Compatibility

The Eaton LD3600Y is intended for compatible Eaton / Cutler-Hammer Series C Type LD electrical distribution applications.
