aton LDB3600 Molded Case Circuit Breaker – 600A – 3-Pole – Voltage Not Specified – 65kA @ 240V / 35kA @ 480V – Line & Load – Series C LDB

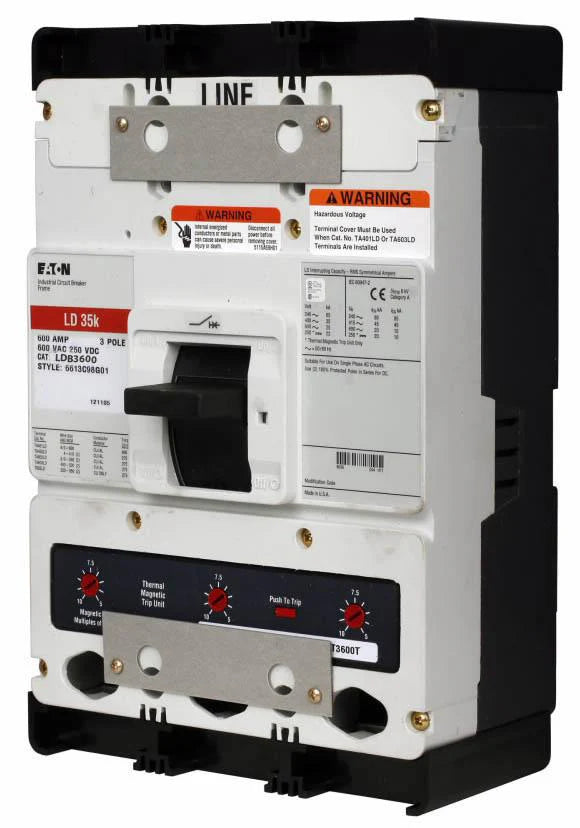

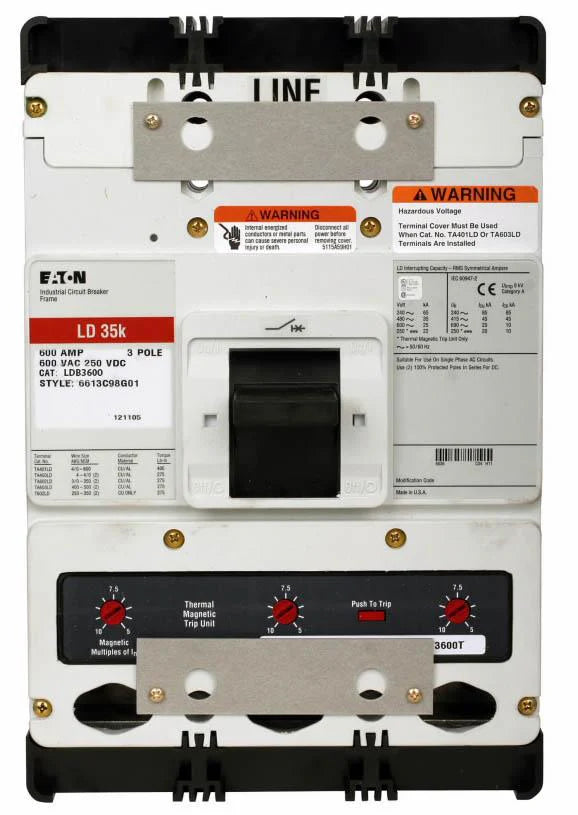

The Eaton LDB3600 is a 600A, 3-pole molded case circuit breaker from the Eaton Series C L-frame LDB Series. It is supplied as a complete breaker and features fixed thermal and fixed magnetic trip protection for compatible electrical distribution applications.

The LDB3600 provides interrupting ratings of 65kAIC at 240V AC and 35kAIC at 480V AC. It features aluminum line- and load-side connections and is designed for 50/60Hz operation. The specific overall voltage rating was not provided in the available product information.

Specifications:

• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Product Family: Series C
• Series: Series C
• Type: LDB
• Frame: L-Frame
• Catalog No.: LDB3600
• Current Rating: 600A
• Number of Poles: 3-Pole
• Interrupting Rating: 65kAIC @ 240V AC; 35kAIC @ 480V AC
• Trip Type: Fixed Thermal, Fixed Magnetic
• Breaker Configuration: Complete Breaker
• Connection: Line and Load
• Conductor / Terminal Material: Aluminum
• Frequency: 50/60Hz
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton

Part Numbers & Identification:

• Manufacturer Part Number (MPN): LDB3600
• Catalog Number: LDB3600
• Model: LDB3600
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: Series C
• Type: LDB
• Frame: L-Frame
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 600A
• UPC:786679147962

Compatibility:

Designed for use with compatible Eaton Series C L-frame LDB electrical distribution equipment that accepts LDB Series molded case circuit breakers. The LDB3600 provides 600A, 3-pole overcurrent protection with fixed thermal and fixed magnetic trip protection.

The breaker features aluminum line- and load-side connections and supports 50/60Hz operation. The available information does not specify the overall voltage rating, phase configuration, or detailed mounting arrangement. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, terminal requirements, mounting arrangement, and installation specifications before installation.

Certifications:

• Eaton Series C LDB Series
• L-Frame
• 600A Rated
• 3-Pole
• 65kAIC @ 240V AC Interrupting Rating
• 35kAIC @ 480V AC Interrupting Rating
• Fixed Thermal Protection
• Fixed Magnetic Protection
• Complete Breaker
• Aluminum Line and Load Connections
• 50/60Hz
