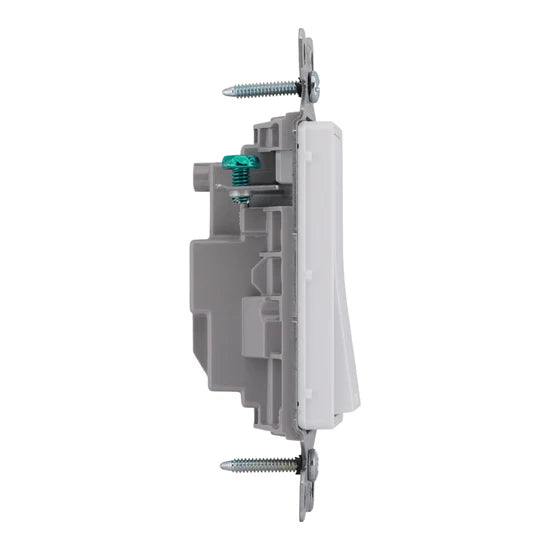

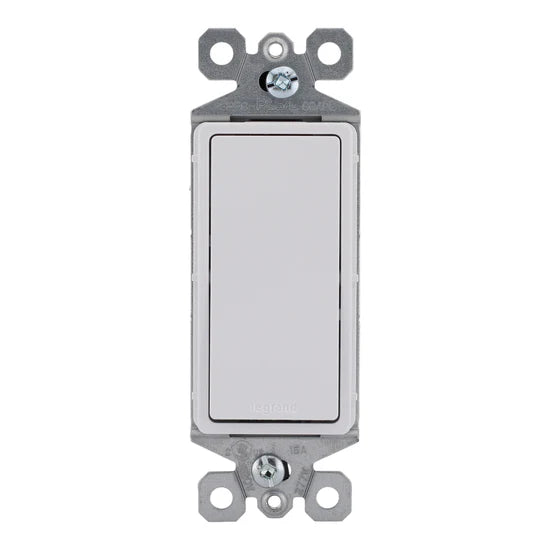

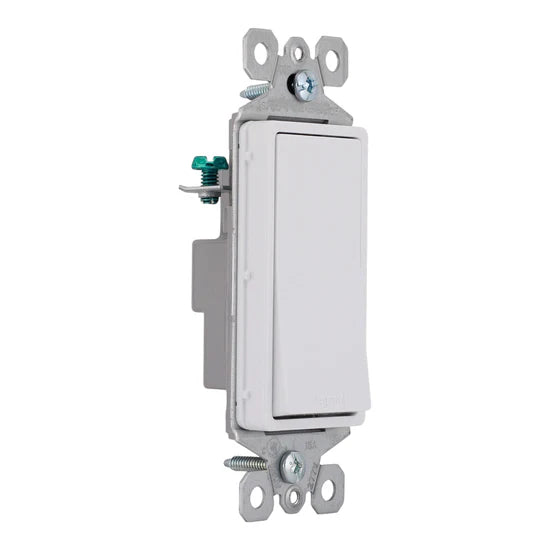

Legrand Pass & Seymour TM870W 15A 1-Pole Paddle Switch – Wall Mount – 120/277V
Couldn't load pickup availability
Ask an expert
The Legrand Pass & Seymour TM870W 15A 1-Pole Paddle Switch – Wall Mount – 120/277V delivers reliable single-pole lighting control for residential and commercial applications. Part of the radiant® collection, this decorator-style switch features a smooth paddle action, satin white finish, and versatile back and side wiring for efficient installation. Designed for durability and broad load compatibility, it supports modern lighting systems including LED and fluorescent loads.
Voltage and Rating
- Amperage Rating: 15 Amps
- Voltage Rating: 120/277 Volts AC
- Poles: 1-Pole
- Switch Type: Single-Pole, Single Throw
Key Specifications
- Mounting Type: Wall Box (1-Gang)

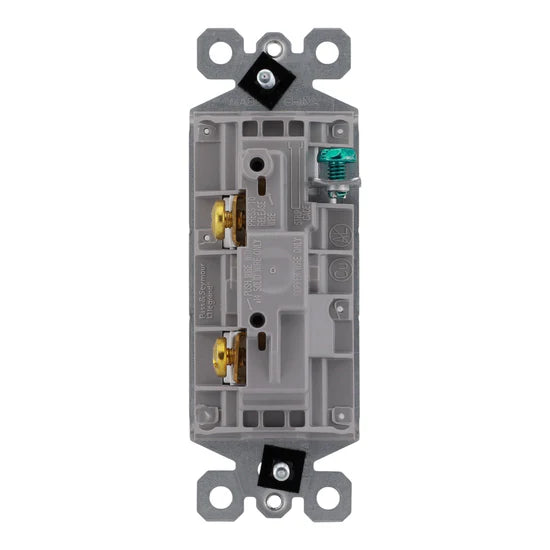

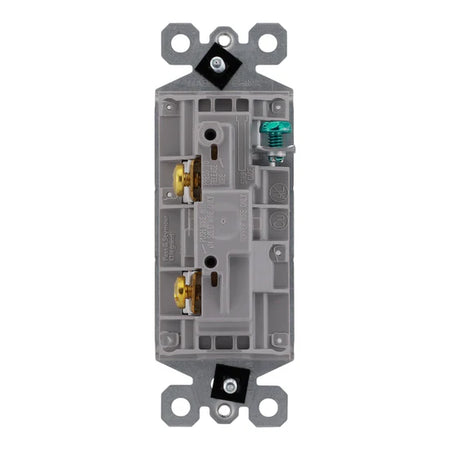

- Connection Terminals: Back and Side Wire
- Wire Size:
- Side terminals: #14–10 AWG Cu (solid or stranded)
- Push wire: #14 AWG Cu solid only
- Load Type: CFL, Fluorescent, Halogen, Incandescent, LED, Universal, Xenon
- Material: High-impact resistant thermoplastic
- Finish: White Satin
- Package Quantity: 10
- Certifications: cULus Listed, HACR Rated
- Warranty: 1-Year Limited
Technical Specifications
- Operating Mechanism: Paddle switch
- Tightening Torque: 14–18 lb-in
- Number of Gangs: 1-Gang
Product Data
- Manufacturer: Legrand
- Brand: Pass & Seymour
- Model Number: TM870W
- UPC: 30785007245401
Dimensions
- Height: 4.19 in
- Width: 1.43 in
- Depth: 1.27 in
- Type Circuit Breakers
- Vendor Legrand
- Brand Legrand
