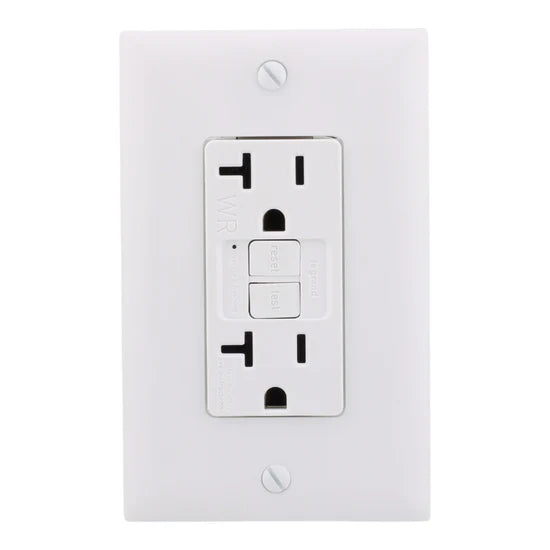

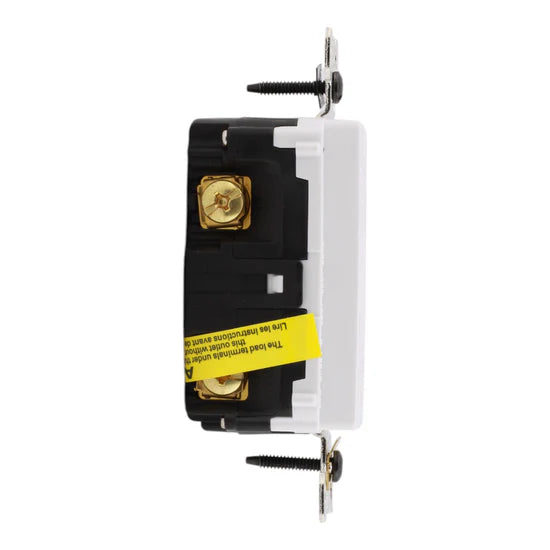

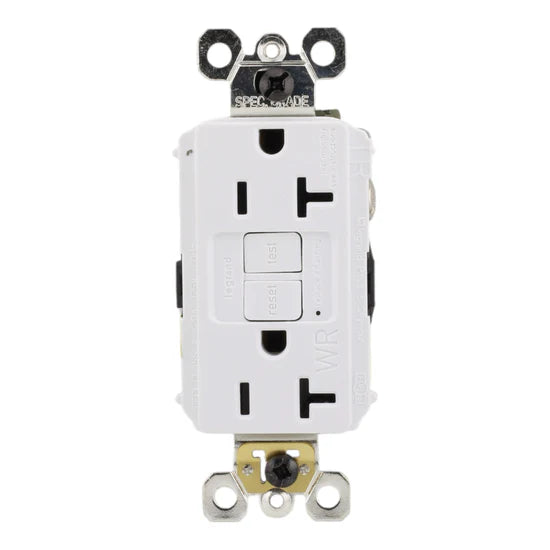

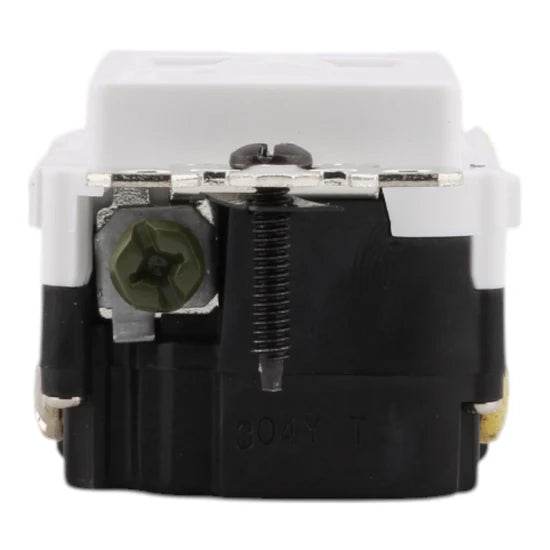

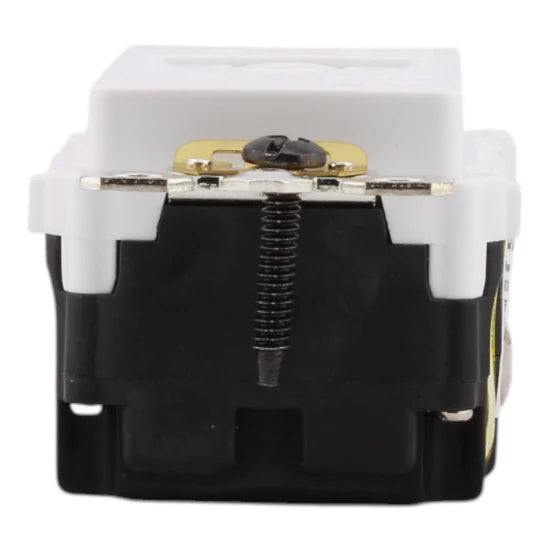

Legrand radiant 2097TRWRW 20A Double Pole GFCI Receptacle – Box Mount – 125VAC

The Legrand radiant 2097TRWRW 20 Amp self-test GFCI receptacle delivers advanced ground-fault protection for residential and commercial installations. Designed with tamper-resistant and weather-resistant construction, it is ideal for outdoor and high-moisture environments. SafeLock protection automatically disconnects power if GFCI protection is compromised, while the device performs automatic self-testing every three seconds to ensure continuous safety. The matte white radiant finish and high-impact thermoplastic body provide durability and a modern appearance. UL and cULus listed, this receptacle supports feed-thru wiring for downstream protection.

Voltage and Rating

• Current Rating: 20 Amps
• Voltage Rating: 125 Volts AC
• Frequency: 50/60 Hz
• Humidity Rating: Up to 95%

Key Specifications

• Receptacle Type: Self-Test GFCI Duplex Receptacle
• Number of Receptacles: 2
• Number of Poles: Double Pole
• Mounting Type: Box Mount
• Outlet Type: GFCI, Self-Test, Tamper-Resistant, Weather-Resistant
• Finish: White, Matte
• Number of Gangs: 1
• Application: Residential and commercial
• Indoor/Outdoor: Outdoor rated

Special Features

• SafeLock protection (disconnects power if protection is lost)
• Automatic self-test every 3 seconds
• Tamper-resistant shutters
• Weather-resistant construction

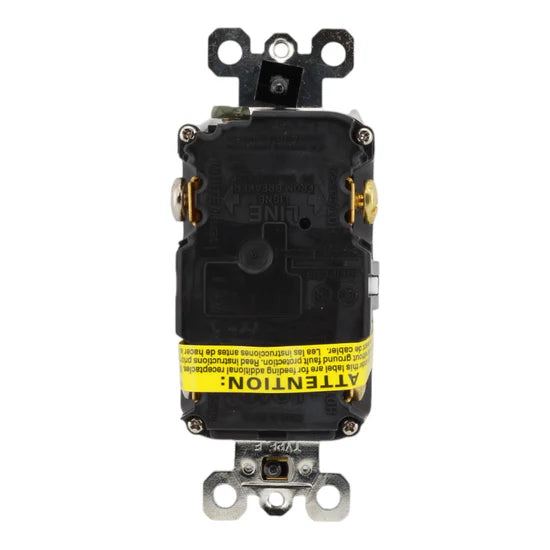

• Feed-thru wiring for downstream protection
• Indicator light for trip/replace status
• High-impact thermoplastic construction

Technical Specifications

• Environmental Rating: UL 94 V2
• Operating Construction: GFCI with auto-test electronics

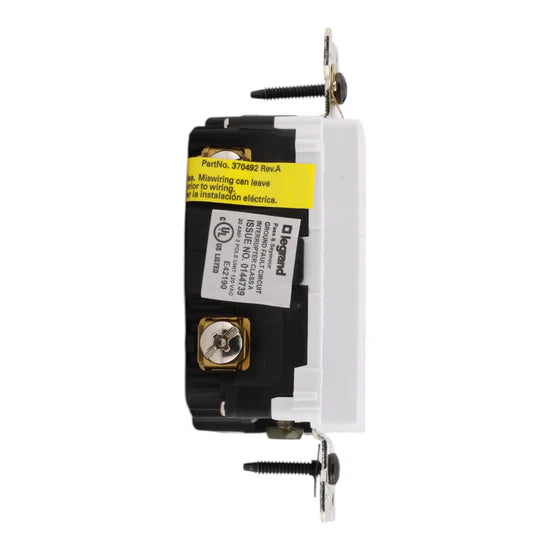

• Certifications: UL Listed, cULus, FSUL
• Warranty: 1-Year Limited
• Country of Origin: China

Product Data

• Manufacturer: Legrand
• Brand: Pass & Seymour radiant Collection
• Model Number: 2097TRWRW
• UPC: 785007036107
• Dimensions:
• • Height: 4.2 in
  • Width: 1.73 in
  • Depth: 1.13 in
